Name: KU-9010G 10-Port Gigabit PoE Switch – 8×PoE, 120W – ANKVI
SKU: KU-9010G

KU-9010G 10-Port Gigabit PoE Switch – 8×PoE, 120W

The KU-9010G is a 10-port Gigabit PoE switch with 8 × 10/100/1000 Mbps PoE ports and 2 × 10/100/1000 Mbps uplinks, delivering up to 30 W per port and a 120 W power budget.

SKU： KU-9010G 分类： PoE Switch

Worry-Free After-Sales14-month warranty & responsive support

Efficient ProcurementOne-stop sourcing, fast turnaround

Fast Response Times24/7 expert technical support

Get wholesale pricing >>>

Description

Overview

The KU-9010G is a full-Gigabit PoE switch for small surveillance and wireless access networks. Its 8 × 10/100/1000 Mbps PoE ports and 2 × 10/100/1000 Mbps uplink ports sit in a compact 202 × 120 × 44 mm desktop case.

Following IEEE 802.3at / 802.3af, the switch feeds up to 30 W to each PoE port from a 120 W budget, so cameras and access points connect with Gigabit bandwidth. A 24 Gbps switching capacity and support for 1236 VLANs complete the access layer.

KU-9010G Key Features

8 × 10/100/1000 Mbps PoE ports plus 2 × 10/100/1000 Mbps uplink ports
IEEE 802.3at / 802.3af compatible PoE with up to 30 W on each port
120 W total power budget for IP cameras and wireless access points
24 Gbps switching capacity with support for 1236 VLANs

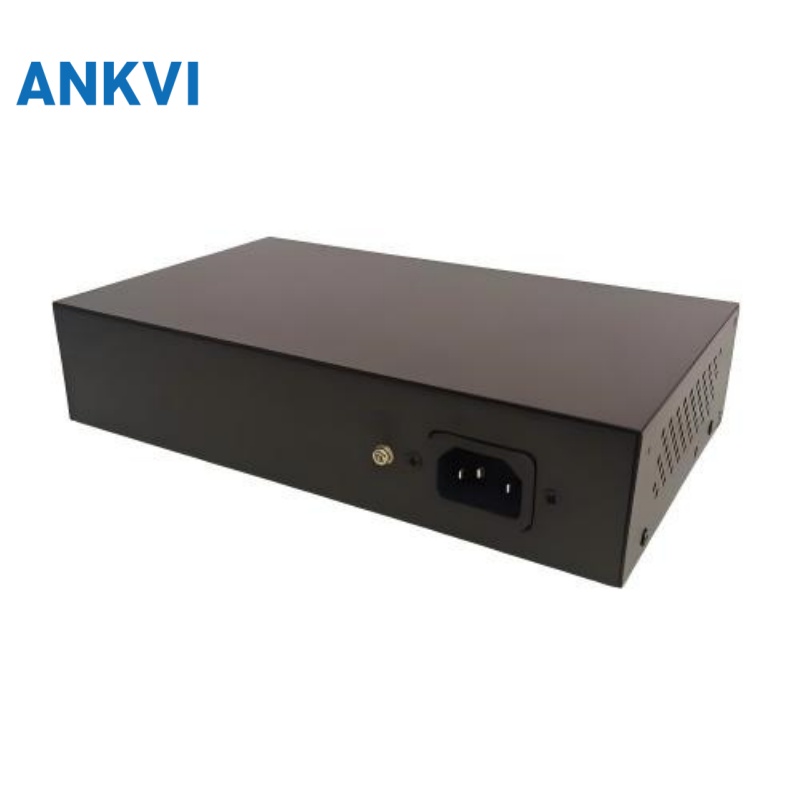

52V / 2.3A DC input in a compact 202 × 120 × 44 mm desktop case

KU-9010G Specifications

Technical Specifications

Parameter	Specification
PoE Ports	8 × 10/100/1000 Mbps
Uplink Ports	2 × 10/100/1000 Mbps
DC Input	52V / 2.3A
Switching Capacity	24 Gbps
Power per PoE Port	≤30 W
Max Power Consumption	≤120 W
Number of VLANs	1236
PoE Standard	IEEE 802.3at / 802.3af
Dimensions	202 × 120 × 44 mm
Gross Weight	1 kg
Packing	20pcs/ctn

Deployment Scenarios

Gigabit IP camera systems that need 8 PoE ports and a 120 W budget
Wireless access points that benefit from 10/100/1000 Mbps PoE links
Access-layer uplinks to a Gigabit core switch or router
Desktop or shelf installation where a compact 202 × 120 × 44 mm case is preferred

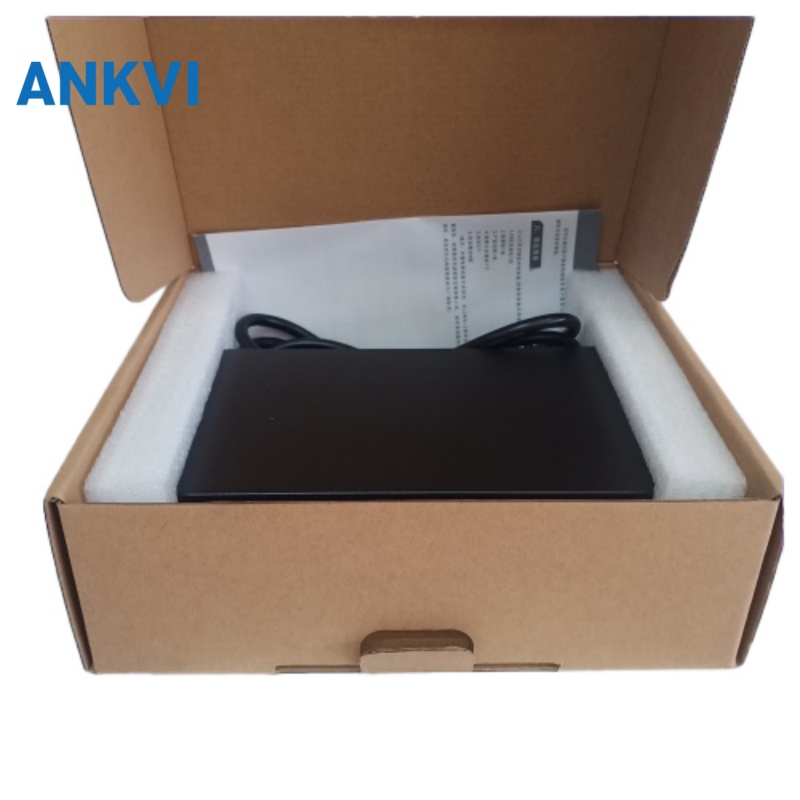

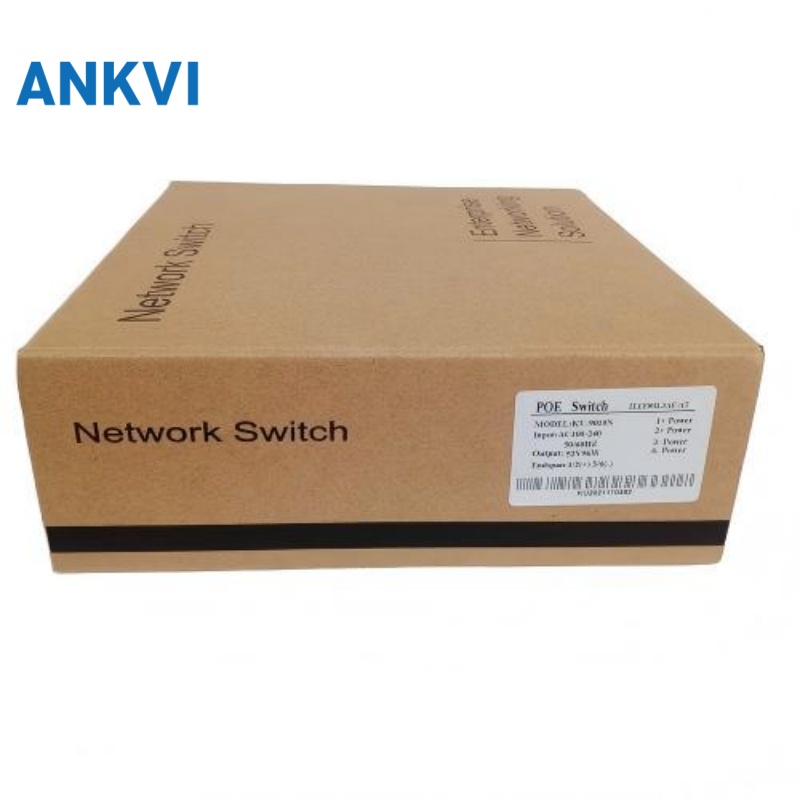

Packing & Shipping

Clients often worry about transit damage?

Our sturdy packaging puts those fears to rest. For different products we use waterproof film, foam protection, palletizing, wooden frame securing and cable reels. This ensures safe and reliable transport.
