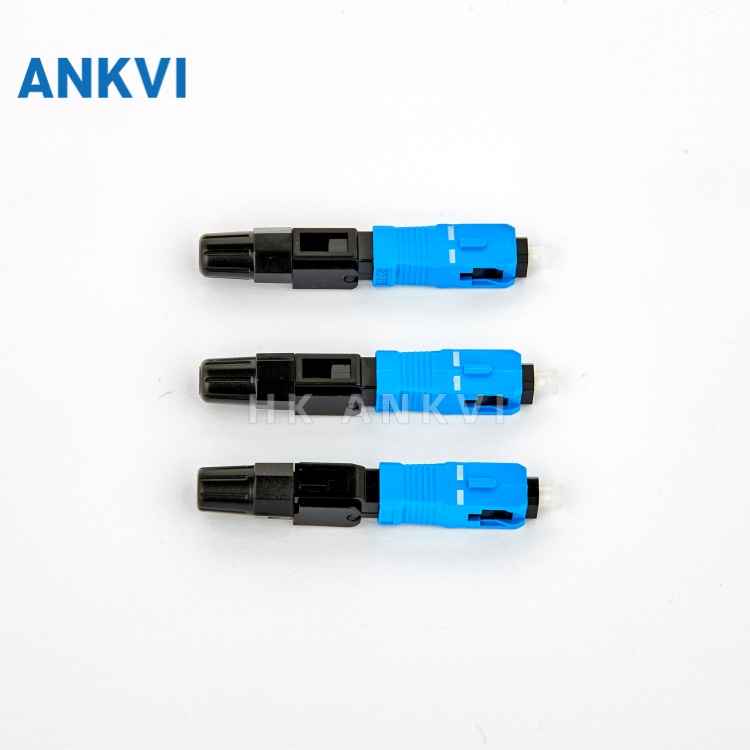

LJZ.011 1301-1 UPC Fast Connector 60 mm
LJZ.011 is a 60 mm 1301-1 fast connector with a UPC end-face for fast field termination of drop cable and indoor cable without a fusion splicer.
Description
Overview

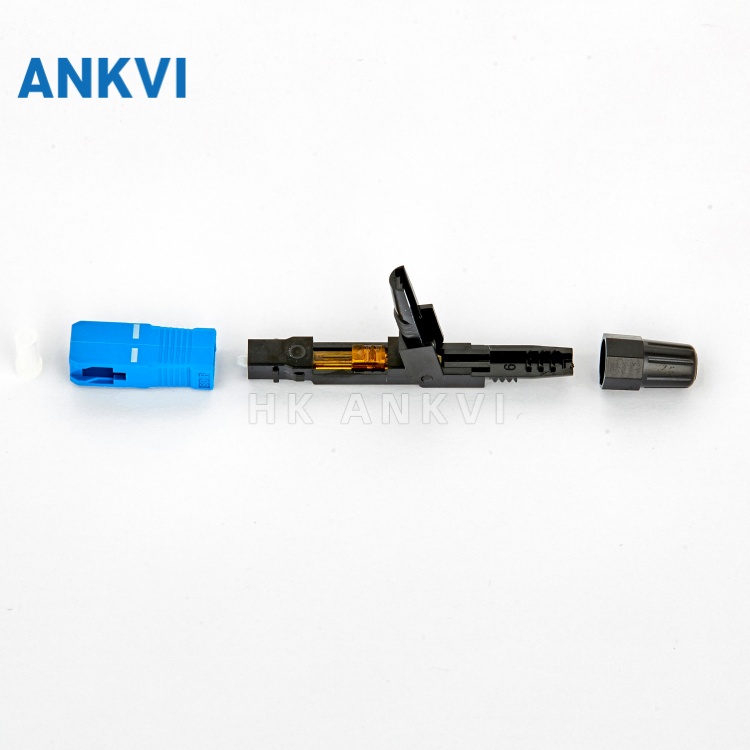

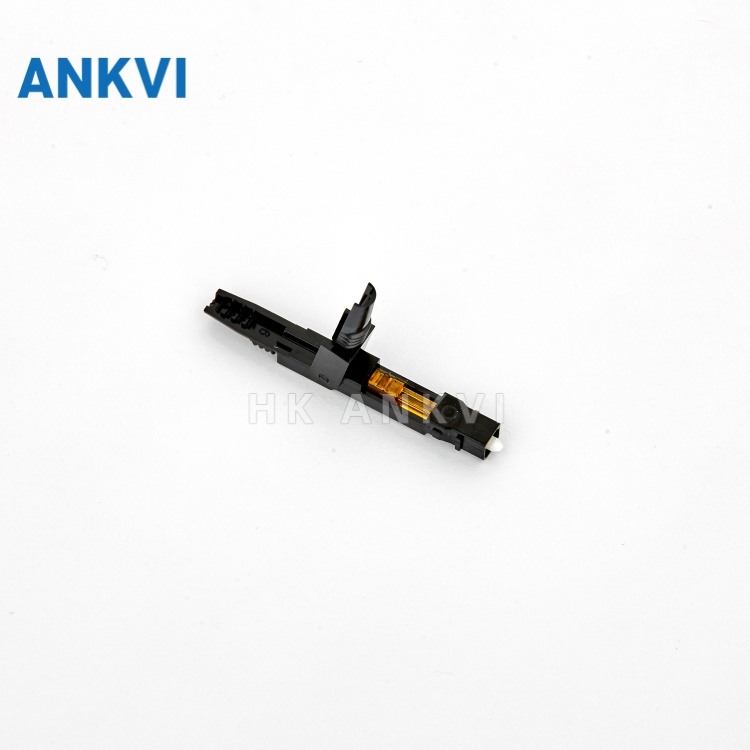

The LJZ.011 is a 60 mm 1301-1 fast connector with a pre-polished UPC end-face and a vertical body orientation, made for fast field termination of optical fiber.
It installs on drop cable and indoor cable without a fusion splicer, and a visible fiber lock confirms the fiber is seated before the connector is closed.
LJZ.011 Key Features
- Field-installable on drop cable and indoor cable without a fusion splicer
- Pre-polished UPC ferrule for consistent low-loss connections
- Visible fiber lock confirms the fiber is correctly seated
- Reusable, supports at least 10 re-terminations
- Mechanical splice holds 2 x 3 mm cable with at least 45 N retention force
- Accepts 3.0/2.0/0.9 mm cable and 0.125 mm fiber
- Compact 60 mm body suits vertical drop-cable routes
LJZ.011 Specifications
| Parameter | Specification |
|---|---|
| Model | LJZ.011 |
| Series | 1301-1 |
| End-face | UPC |
| Body length | 60 mm |
| Applicable cable | Drop cable, indoor cable |
| Fiber mode | Single mode or multi mode |
| Fiber type | G.652D, G.657A2 |
| Fiber cable | 3.0*2.0 mm rubber-insulated optical cable, ∅3.0/∅2.0/∅0.9 insulated optical cable |
| Fiber diameter | 0.125 mm |
| Force holding 2 x 3 mm cable | ≥45 N, loss ≤0.3 dB |
| Fiber lock | Holds the fiber reliably; hang force ≥1.5 N, attenuation change ≤0.2 dB |
| Working wavelength | 1310 nm, 1490 nm, 1550 nm |
| Operation time | About 50 s (no fiber cut) |
| Insertion loss | ≤0.35 dB |
| Insertion loss, typical | 0.3 dB |
| Return loss | ≥50 dB (UPC) |
| Fastening strength of naked fiber | ≥3 N |
| Tensile strength | ≥45 N |
| Reusable | ≥10 times |
| Operating temperature | -40~+85 ℃ |
| On-line tensile strength (20 N) | ΔIL≤0.3 dB |
| Mechanical durability (500 times) | ΔIL≤0.3 dB |
| Drop-off test (4 m height, once per direction, 3 times) | ΔIL≤0.3 dB |
| Environmental performance | High and low temperature, temperature cycling, damp heat, immersion and salt mist: IL variation ≤0.3 dB, RL variation ≤5 dB |
| Mechanical performance | Impact, vibration, torsional and tensile tests: IL variation ≤0.3 dB, RL variation ≤5 dB |
| Packaging | Blister box 14.5*7*1.5 cm, 10 pcs/box; gift box 15.5*11.5*7.5 cm; outer carton 41*17*24.5 cm, 1000 pcs |
Applications
- FTTH drop-cable termination
- Field repair and re-termination of damaged connectors
- Indoor optical wiring and CPN/ONU connection
- Emergency restoration of a broken link
