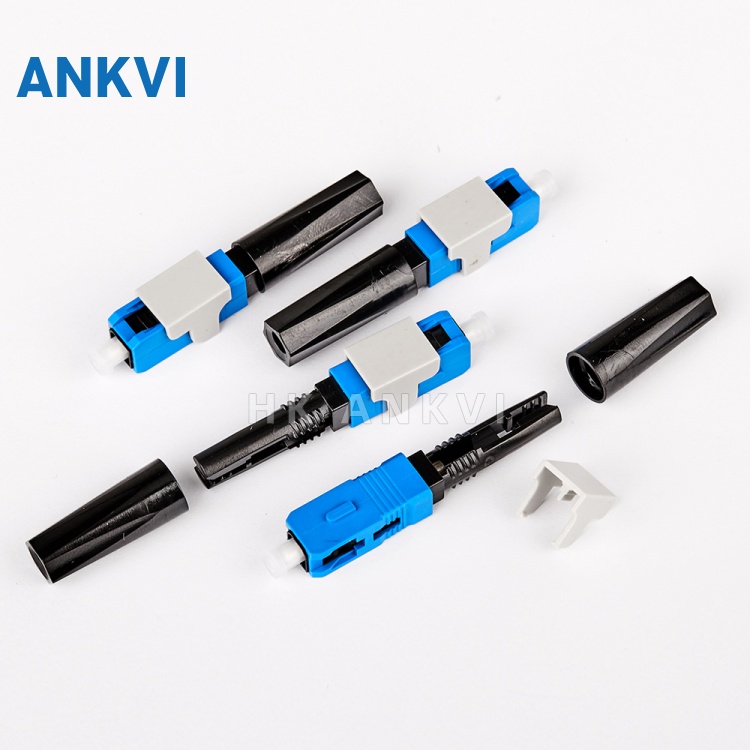

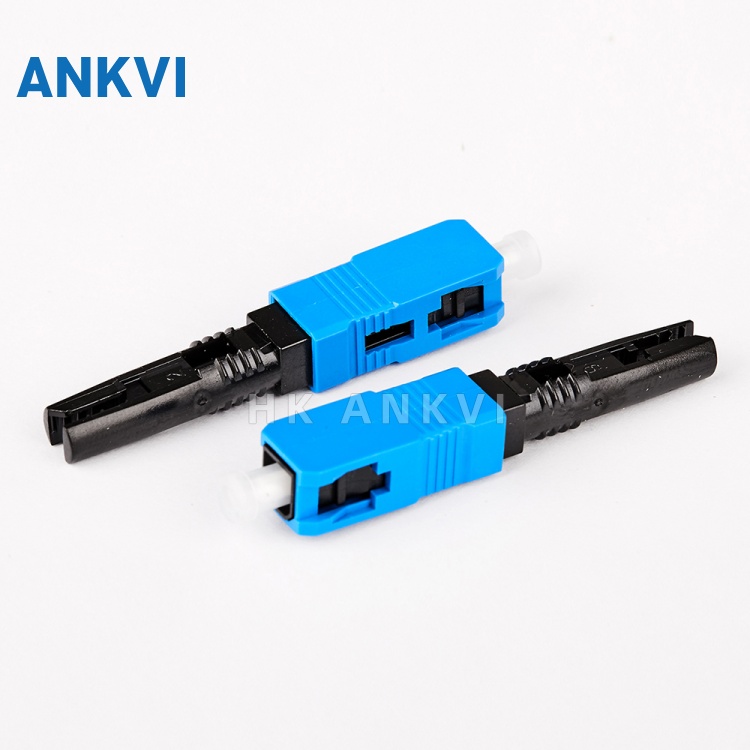

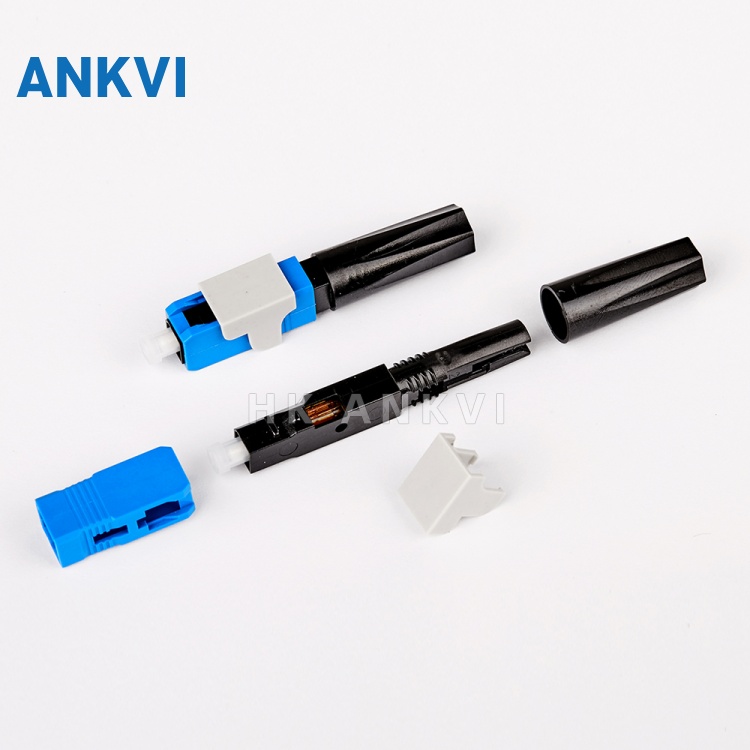

LJZ.016 3301 UPC Fast Connector
Field-installable 3301 series UPC fast connector for drop and indoor cable, with a pre-polished ferrule, a visible fibre lock and no fusion splicer required on site.
Description
Overview
The LJZ.016 is a field-installable fibre optic fast connector of the 3301 series with a UPC end-face, used to terminate drop cable and indoor cable directly. No fusion splicer and no on-site polishing are required.
Its pre-polished ferrule and visible fibre lock make each termination repeatable and easy to inspect, and the connector can be re-used at least 10 times. The manufacturer datasheet states a product length of 50 mm.
LJZ.016 Key Features
- Field-installable: no fusion splicer and no on-site polishing needed
- Pre-polished ferrule with a visible fibre lock that holds the fibre reliably
- Reusable at least 10 times, with an operation time of about 50 s and no fibre cut
- Force holds 2 x 3 mm cable type at the beginning of the connector: ≥45 N with loss ≤0.3 dB
- Accepts 3.0*2.0 mm rubber-insulated optical cable and ⌀3.0/⌀2.0/⌀0.9 insulated optical cable
- Supplied with an adapter that supports strip and cut fibre, plus an operation manual (1 adapter and 1 manual per 10 connectors)
LJZ.016 Specifications
| Parameter | Specification |
|---|---|
| Model | LJZ.016 |
| Series | 3301 |
| End-face | UPC |
| Body length | 50 mm |
| Applicable cable | Drop cable, indoor cable |
| Fibre mode | Single mode or Multi mode |
| Fibre type | G.652D, G.657A2 |
| Fibre cable | 3.0*2.0 mm rubber-insulated optical cable, ⌀3.0/⌀2.0/⌀0.9 insulated optical cable |
| Fibre diameter | 0.125 mm |
| Working wavelength | 1310 nm, 1490 nm, 1550 nm |
| Operation time | About 50 s (no fibre cut) |
| Insertion loss | ≤0.35 dB |
| Insertion loss typical | 0.3 dB |
| Return loss | ≥50 dB |
| Cable retention (2 x 3 mm cable) | ≥45 N, loss ≤0.3 dB |
| Fibre lock | Holds the fibre reliably, bears hang force ≥1.5 N with attenuation change ≤0.2 dB |
| Fastening strength of naked fibre | ≥3 N |
| Tensile strength | ≥45 N |
| Reusable | ≥10 times |
| Operating temperature | -40~+85 ℃ |
| On-line tensile strength (20 N) | ΔIL≤0.3 dB |
| Mechanical durability (500 times) | ΔIL≤0.3 dB |
| Drop-off test (4 m height, once per direction, 3 times) | ΔIL≤0.3 dB |
| Environmental performance | High temperature 85 ℃ 96 h, low temperature -40 ℃ 96 h, temperature cycle 8 h per cycle, 12 cycles / 96 h with 1 h temperature maintenance, temperature/humidity 85 ℃ 95 %RH 96 h, immersion 25 ℃ 96 h, salt mist 5 % NaCl at 6.5~7.5 pH and 35 ℃ 96 h; IL variation ≤0.3 dB, RL variation ≤5 dB, no mechanical damage such as deformation, cracking or looseness |
| Mechanical performance | Impact (4 m height, 1 drop each axis, 3 cycles), vibration (10~50 Hz, sweep 45 times/min, amplitude 0.75 mm, 30 min each axial, pull 15 N), torsional (L = 22-28 cm, rate 10 times/min), tensile (pull 50 N, L = 3 m, 1 min); IL variation ≤0.3 dB, RL variation ≤5 dB, no mechanical damage such as deformation, cracking or looseness |
| Packaging | Blister box 14.5*7*1.5 cm, 10 pcs/box; gift box 15.5*11.5*7.5 cm, 10 blister boxes; outer carton 41*17*24.5 cm with 10 gift boxes / 1000 pcs, or 41*32*24.5 cm with 20 gift boxes / 2000 pcs |
Applications
- FTTH drop-cable termination
- Field repair and emergency restoration of optical links
- Indoor wiring and CPN/ONU connection
