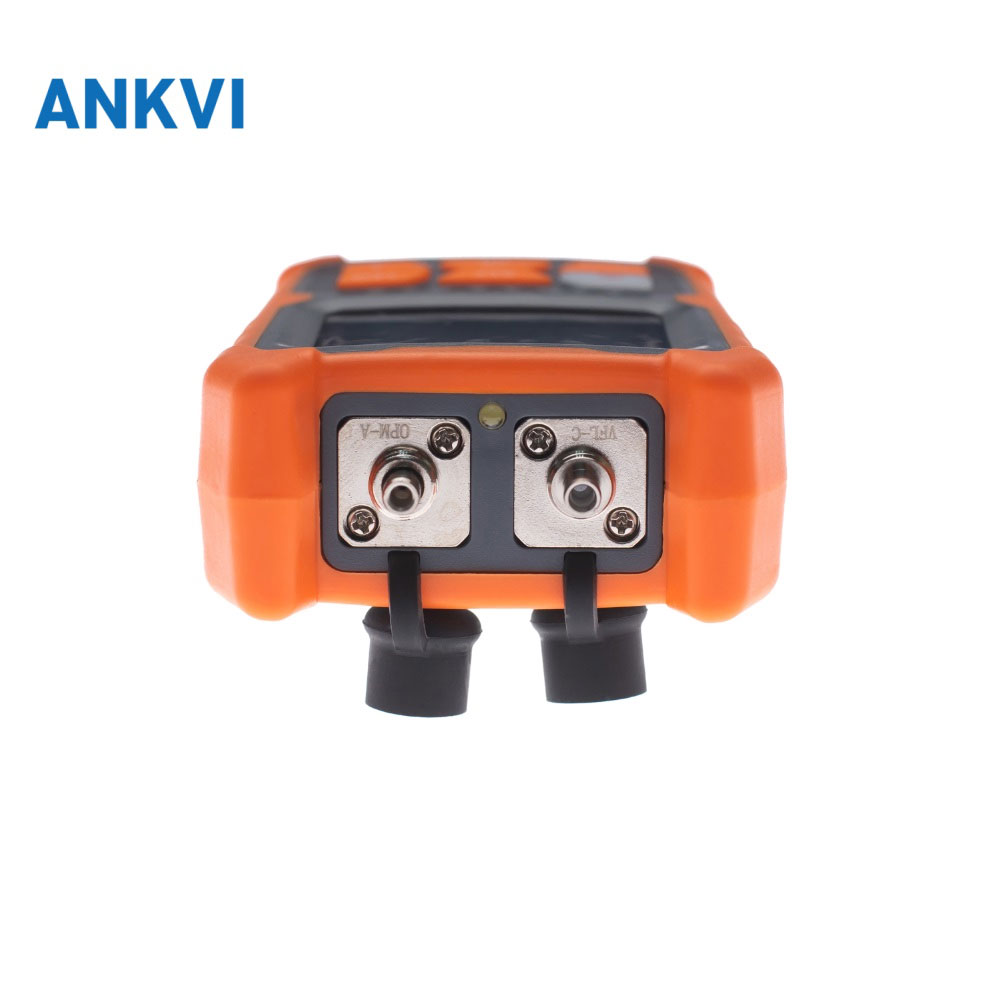

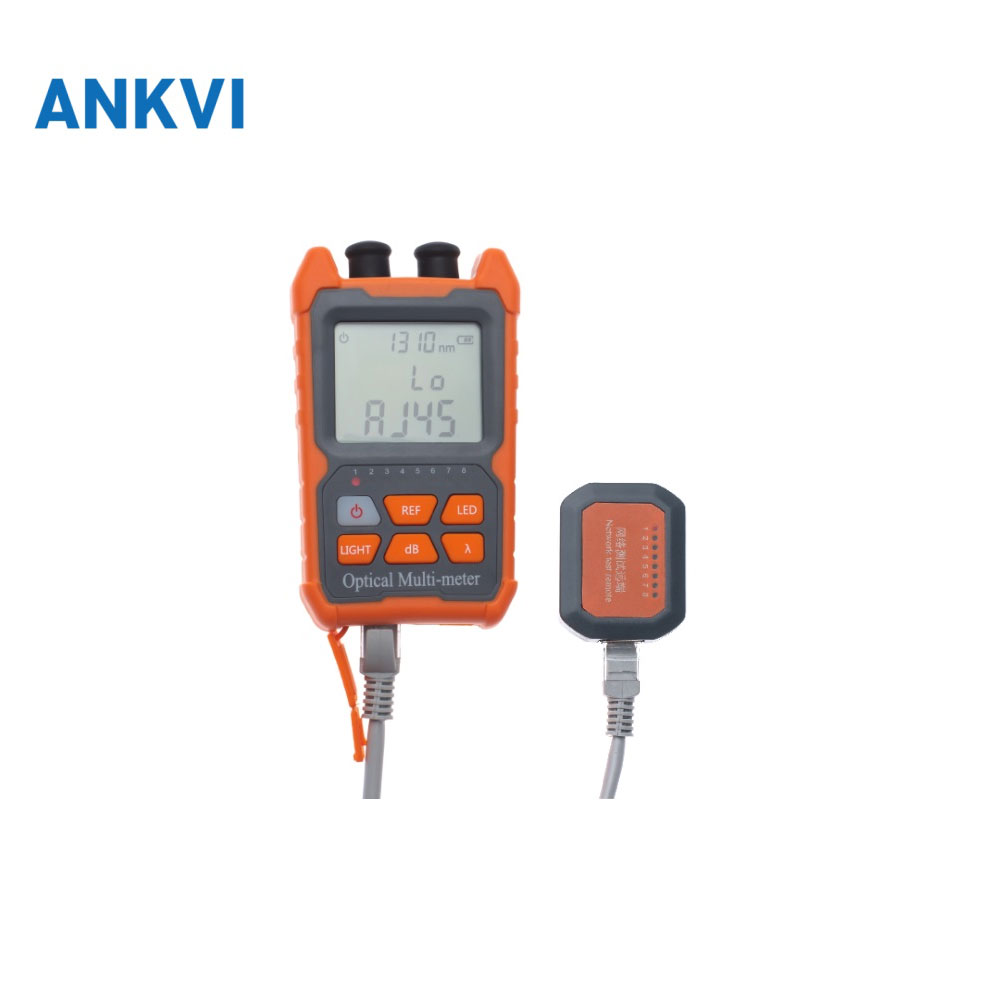

NK200 Mini Optical Power Meter and VFL All-in-One Machine
The NK200 combines a mini optical power meter with a red light source in one handheld unit for continuous optical signal power measurement and optical fibre link loss testing.
Description
Overview
The NK200 series mini optical power meter and red light all-in-one machine is controlled by a single-chip microprocessor but is multifunctional, with an embedded detector and laser that keep the instrument well protected.
It offers automatic shutdown, three VFL modes, backlight display, wavelength memory, user calibration, a wide test range, lighting, and RJ45 cable sequence and cable tracker test functions. It is mainly used for continuous optical signal power measurement, optical fibre link loss testing and optical fibre line on-off testing in optical cable construction, fibre communication, fibre sensing and Optical CATV.
NK200 Key Features
- Supporting lighting, backlight switch and automatic shutdown
- Support working frequency identification (optional)
- Support simultaneous display of mW/dBm
- Supporting portable battery charging
- Support wave memory when shutdown and support user calibration
- Always on and flashing red light, with SC/FC/ST interface and optional RJ45 test
NK200 Specifications
| Parameter | Specification |
|---|---|
| OPM Range (A) | 5: -50dBm~+26dBm / 7: -70dBm~+6dBm |
| OPM Range (B) | 0: None / 2: 2mW / 10: 10mW / 30: 30mW / 50: 50mW |
| Battery (C) | D: Dry battery / L: Lithium battery |
| Cable Sequence (D) | 0: None / 1: Possess |
| Cable Tracker (E) | 0: None / 1: Possess |
| Lithium Battery | 700mAh |
| Working Time | 120h |
| Environmental Adaptability | -10℃~+50℃ |
Applications
- Continuous optical signal power measurement
- Optical fibre link loss testing
- Optical fibre line on-off testing
- Optical cable construction and maintenance, fibre communication, fibre sensing and Optical CATV
