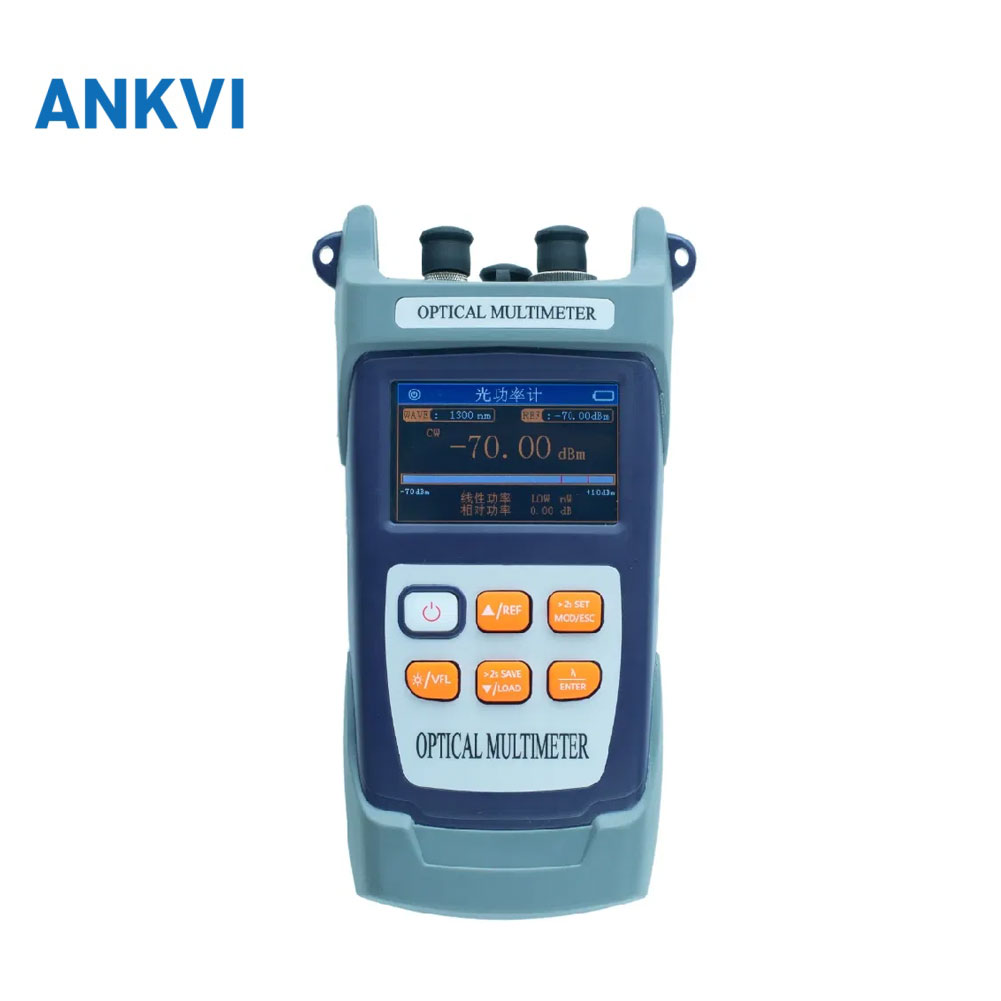

NK303A Optical Power Meter with Visual Fault Locator
The NK303A handheld optical power meter combines optical power measurement with a visual fault locator, offering a compact unit with ultra wide optical power test range.
Description
Overview
NK303A Optical Power Meter + Visual Fault Location is mainly used for the measurement of optical signal power, insertion loss test and stable light source output. It is controlled by a low-power single-chip microprocessor, but multi-function, and the OPM can be well protected by using the built-in detector. It has a compact shape, can choose backlight display and automatic shutdown, with ultra wide optical power test range.
NK303A series are widely used in optical fibre construction and maintenance, optical fibre sensing, Optical CATV and other fields. They can also be used to test insertion loss and splitting ratio of passive components such as optical splitter, circulator, coupler and optical switch.
NK303A Key Features
- Support simultaneous display of mW, dBm and dB
- Automatic wave recognition (optional, special LS required)
- Support user automatic calibration
- Support LS / OPM / VFL integration
- Support backlight 4-level dimming
- Working hours over 12 hours
NK303A Specifications
| Parameter | Specification |
|---|---|
| Model and Function (NK303A1) | OPM -70~+6dBm,VFL10mW |
| Model and Function (NK303A2) | OPM -50~+26dBm,VFL 10mW |
| Battery | 2400mAh lithium battery |
| Backlight | 4-level dimming |
| Working Time | Working hours over 12 hours |
| Display | High definition color LCD |
| Data Storage | 1000 data saved |
| Optical Interface | Support FC / SC / ST interface |
| Operating Temperature | – 10℃~+50℃ |
Applications
- Optical fibre construction and maintenance
- Optical fibre sensing
- Optical CATV
- Insertion loss and splitting ratio testing of optical splitter, circulator, coupler and optical switch
