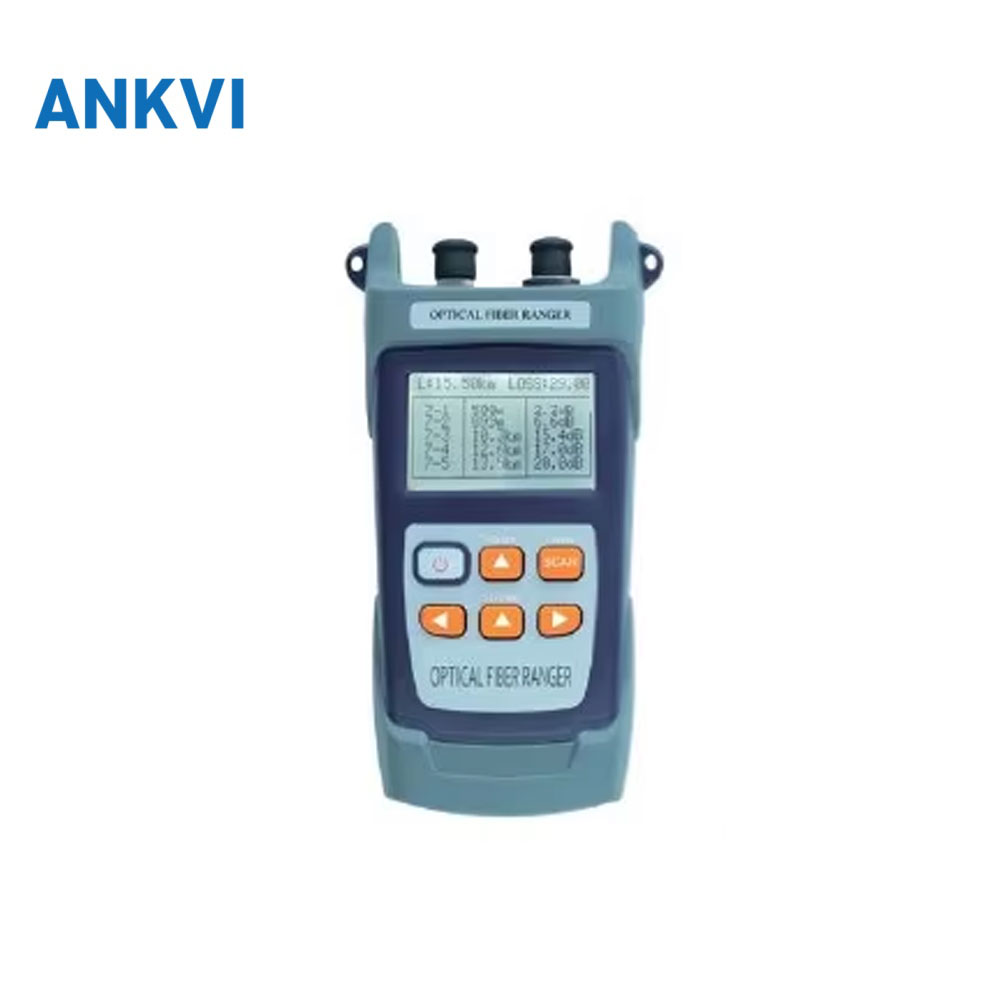

NK306 Portable Optical Fiber Ranger with OTDR Principle
The NK306 portable optical fiber ranger uses OTDR principle to detect fiber cable fault location and type, measuring the distance between two fiber nodes on FTTx access networks.
Description
Overview
NK306 series Optical Fiber Ranger is a portable optical fibre length measuring instrument. It adopts OTDR principle and integrates powerful analysis software. It can quickly and accurately detect the location and type of optical fibre cable fault point, and test the distance between two optical fibre nodes.
NK306 series are easy to operate, without complicated parameter setting, and has friendly interface. It is small in size, light in weight, easy to carry and maintain. It adopts large capacity rechargeable lithium battery and energy saving design, and has long standby time. The instrument is suitable for fault location in engineering construction and maintenance based on FTTx and access network.
NK306 Key Features
- One click test without complicated settings
- Terminal breakpoints, UPC, APC can be easily tested
- 2400mAh lithium battery, long working time
- Integrated VFL, easily detect the fault location in the blind area
- Looking back at 5 groups of data
- Curve and list display, data automatically saved
NK306 Specifications
| Parameter | Specification |
|---|---|
| Wavelength (NK306A1, NK306A2) | 1310nm |
| Wavelength (NK306B1, NK306B2) | 1550nm |
| Battery | 2400mAh lithium battery |
| Visual Fault Locator | VFL integration |
| Data Recording | Looking back at 5 groups of data |
| Display | Curve and list display |
| Interface | USB interface |
| Operating Temperature | – 10℃~+50℃ |
Applications
- Fault location in FTTx and access network engineering construction and maintenance
- Locating and identifying optical fibre cable fault points
- Measuring the distance between two optical fibre nodes
- Detecting the fault location in the blind area with integrated VFL
