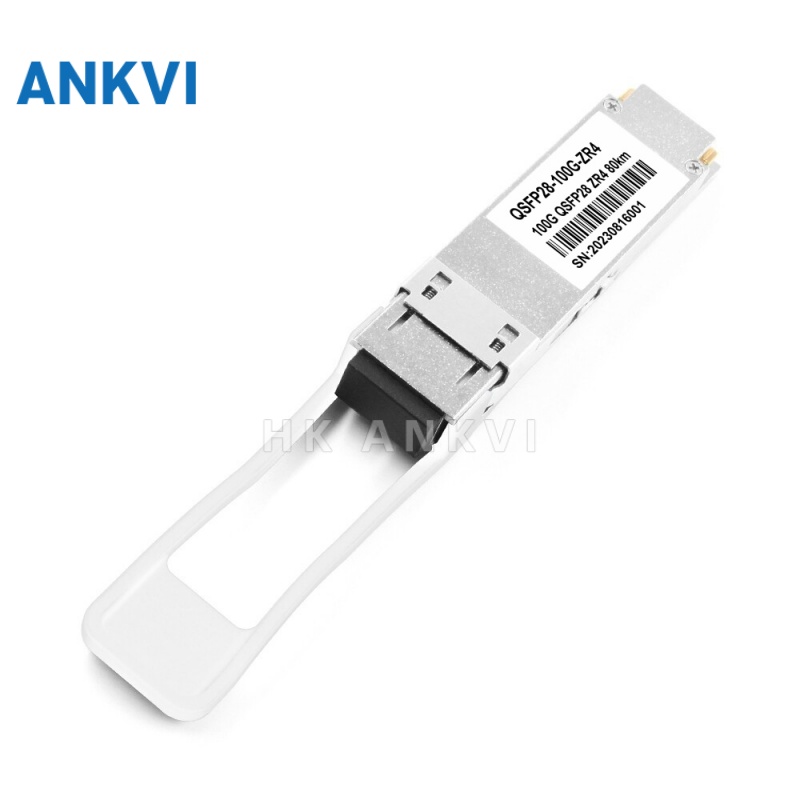

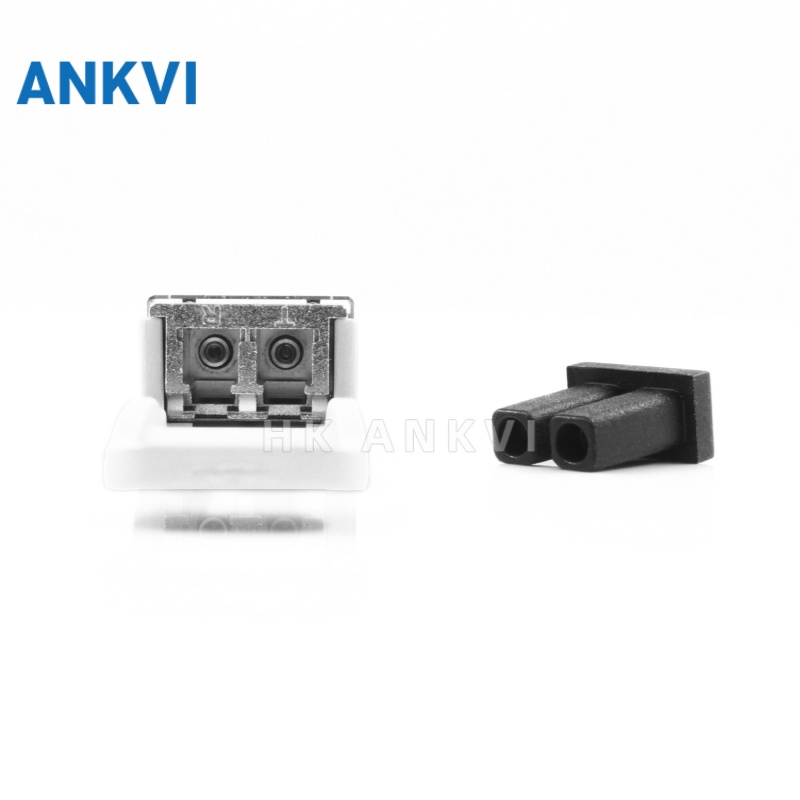

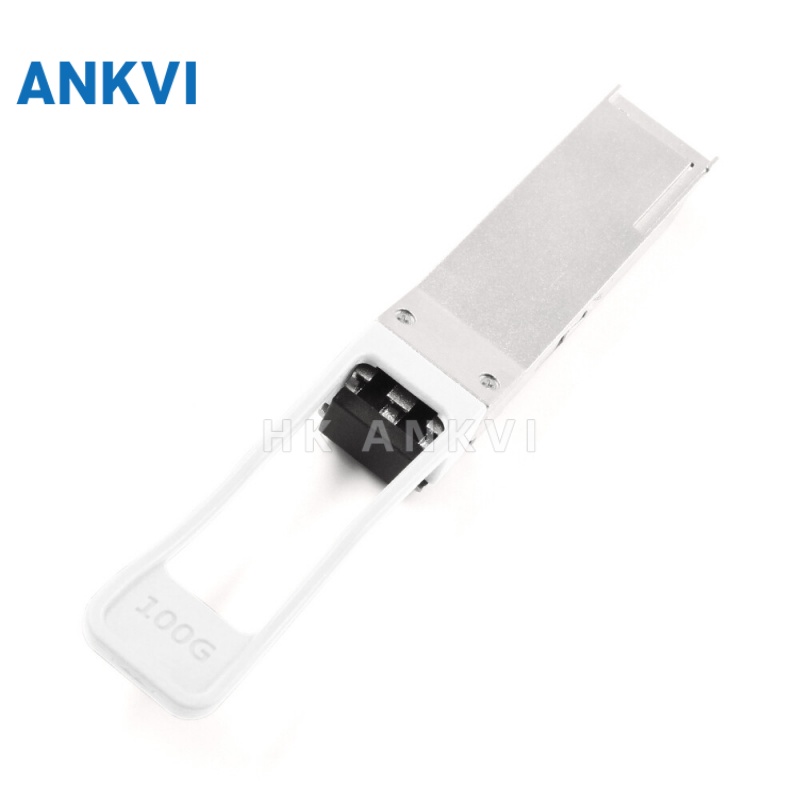

QSFP28-100G-ZR4–100G QSFP28 Optical Transceiver–1310nm, 80 km
QSFP28-100G-ZR4-80KM is a 100G QSFP28 transceiver for 100GBASE-ZR4 single-mode links up to 80 km, with four LAN-WDM lanes, LC duplex, 6.5 W maximum power.
Description
Overview
The QSFP28-100G-ZR4-80KM is a 100G QSFP28 optical transceiver designed for 100GBASE-ZR4 single-mode links of up to 80 km. It uses a 4-lane LAN-WDM MUX/DEMUX design with an aggregate bit rate of 103.125 Gb/s and is compliant with the QSFP28 MSA.
The optical engine pairs a 4-lane EML transmitter with a 4-lane SOA and PIN receiver and multiplexes the lanes onto one single-mode fibre through an industry standard LC duplex connector. It runs from a single 3.3 V supply with a maximum power consumption of 6.5 W, a hot pluggable 38-pin electrical interface and I2C digital diagnostic monitoring as defined in SFF-8636.
QSFP28-100G-ZR4-80KM Key Features
- QSFP28 MSA compliant
- Hot pluggable 38-pin electrical interface
- 4 LAN-WDM lanes MUX/DEMUX design
- 4 x 25G electrical interface
- Supports 103.125 Gb/s aggregate bit rate
- 25.78125 Gb/s per lane signalling speed with KR4 FEC
- Up to 80 km transmission on single mode fibre
- EML transmitter with SOA + PIN receiver
- LC duplex connector
- Maximum power consumption 6.5 W
- Single 3.3 V power supply
- Operating case temperature 0 to +70 deg.C
- RoHS 2.0 compliant
- Digital diagnostic monitoring per SFF-8636 over the 2-wire serial interface
QSFP28-100G-ZR4-80KM Specifications
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 103.125 Gb/s aggregate; 25.78125 Gb/s per lane |
| Reach | Up to 80 km on single mode fibre (G.652) |
| Wavelength | 4 LAN-WDM lanes, 1294.53 to 1310.19 nm |
| Centre Wavelengths | 1294.53 / 1296.59 / 1299.02 / 1301.09 / 1303.54 / 1305.63 / 1308.09 / 1310.19 nm |
| Transmitter Type | EML, 4 lanes (LAN-WDM MUX/DEMUX) |
| Receiver Type | SOA + PIN, 4 lanes |
| Connector | LC duplex |
| Electrical Interface | 38-pin edge connector, hot pluggable, 4 x 25G |
| Power Consumption | 6.5 W maximum |
| Supply Voltage | 3.135 to 3.465 V |
| Power Supply | Single 3.3 V |
| Case Temperature | 0 to +70 deg.C |
| Storage Temperature | -40 to +85 deg.C |
| Relative Humidity | 15 to 85 % |
| Receiver Sensitivity | -28 dBm average per lane (BER 5E-5 with FEC) |
| Receiver Overload | -7 dBm per lane (OMA) |
| Transmitter Output Power | 2.0 to 6.5 dBm average per lane (total average launch power 8.0 to 12.5 dBm) |
| Optical Return Loss | 20 dB optical return loss tolerance |
| Extinction Ratio | 6 dB minimum |
| Digital Diagnostic Monitoring | I2C-based DMI per SFF-8636 |
| RoHS | RoHS 2.0 compliant |
| Bit Error Rate | 5E-5 with FEC |
| Protocol | QSFP28 MSA compliant, 100GBASE-ZR4 |
| Application | 100GBASE-ZR4 100G Ethernet; telecom networking |
Applications
- 100GBASE-ZR4 100G Ethernet
- Telecom networking
