QT7001 Single-Port GPON OLT – 1×10GE + 4×GE Uplink
Compact 1U box-type GPON OLT for ISP, government, campus, hotel and enterprise access networks. One GPON port with up to 1:128 split ratio (ITU-T G.984.2 Class B+/C+/C++), 1×10GE SFP+ and 4×GE uplink ports, and dual redundant AC power supplies. Supports ONT plug-and-play activation, batch ONT configuration and remote upgrade.
Description
Overview
The QT7001 Single-Port GPON OLT is a compact, low-density box-type optical line terminal built for FTTH and enterprise access networks where rack space and port density requirements are modest. It delivers a GPON-based passive optical network for ISPs, government institutions, business parks, hotels, schools and enterprise users.
Each unit provides 1 GPON service port with a maximum 1:128 split ratio, combined with 1×10GE SFP+ and 4×10/100/1000M auto-negotiation uplink ports. Paired with GPON ONTs, it builds a full-fibre access network carrying broadband, VoIP, IPTV, video and CATV services over a passive outside plant — reducing operating cost.
Key Features
Easy operation and maintenance
- Zero-configuration, ready to use — ONT self-discovery and plug-and-play for rapid subscriber activation.
- Guided activation — four steps complete device management and service provisioning.
- In-band management with CLI, Telnet and web-based network management.
- Batch ONT remote upgrade and batch ONT configuration templates (DBA / VLAN / PoE).
High reliability
- Operates from -20 °C to +55 °C; storage -40 to 85 °C; humidity 10–95%.
- Dual redundant power supply — automatically switches to the standby supply if the primary one fails, reducing the risk of downtime.
- 2 kV port lightning protection and 6 kV power supply lightning protection.
- Dual mirroring software for backup.
Powerful networking features
- Remote restart of PSE equipment — remotely reboot a faulty terminal AP or camera for troubleshooting.
- Any ONT device under the same PON can achieve Layer 2 data forwarding.
- Layer 3 communication through VLAN routing.
- Supports 512 concurrent VLANs with VLAN Tag/Trunk mode.
- IGMP v2/v3 with IGMP snooping and 512 concurrent multicast groups.
- Loop detection, port rate limit, ingress/egress/both-stream mirroring, IEEE 802.x flow control, port statistics and monitoring.
Flexible deployment and fast access
- Suited to SMB scenarios of 128–256 network points, avoiding waste caused by low port-resource requirements.
- Suited to low-density area coverage, park and school campus access — flexible deployment and fast service turn-up.
Optical power detection and link monitoring
- Uplink port, PON port and batch ONT optical parameter detection.
- Network management monitors optical link indexes and traffic statistics on all service ports, with automatic alarms when link indexes degrade.
- Long-luminescence ONT detection.

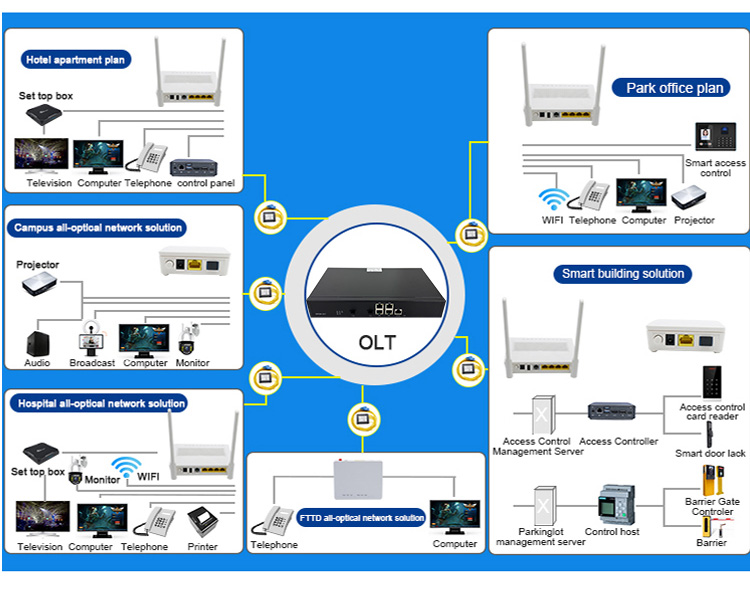

Deployment Scenarios
The QT7001 is deployed as the access-layer OLT in a range of all-optical network scenarios:
- FTTH all-optical network — residential broadband access.
- Hotel and apartment plans — television, computer and telephone services to guest rooms.
- Park and campus office networks — WiFi, telephony and computer access across buildings.
- Smart building solutions — access control management, access controller, parking-lot management and barrier-gate control.
- Hospital all-optical networks — television, computer, telephone and printer services.

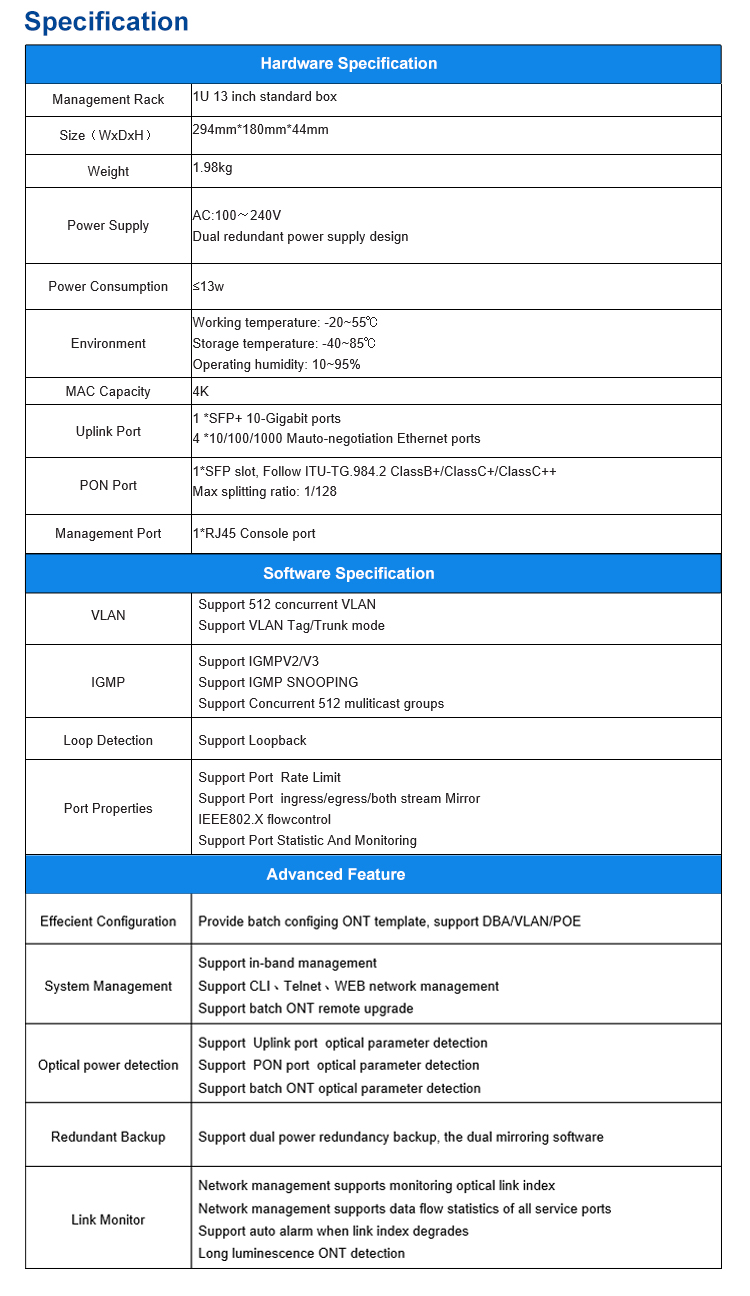

Specifications
Hardware specification
| Management rack | 1U 13-inch standard box |
|---|---|
| Dimensions (W×D×H) | 294 mm × 180 mm × 44 mm |
| Weight | 1.98 kg |
| Power supply | AC 100–240 V; dual redundant power supply design |
| Power consumption | ≤13 W |
| Operating temperature | -20 to 55 °C |
| Storage temperature | -40 to 85 °C |
| Operating humidity | 10–95% |
| MAC capacity | 4K |

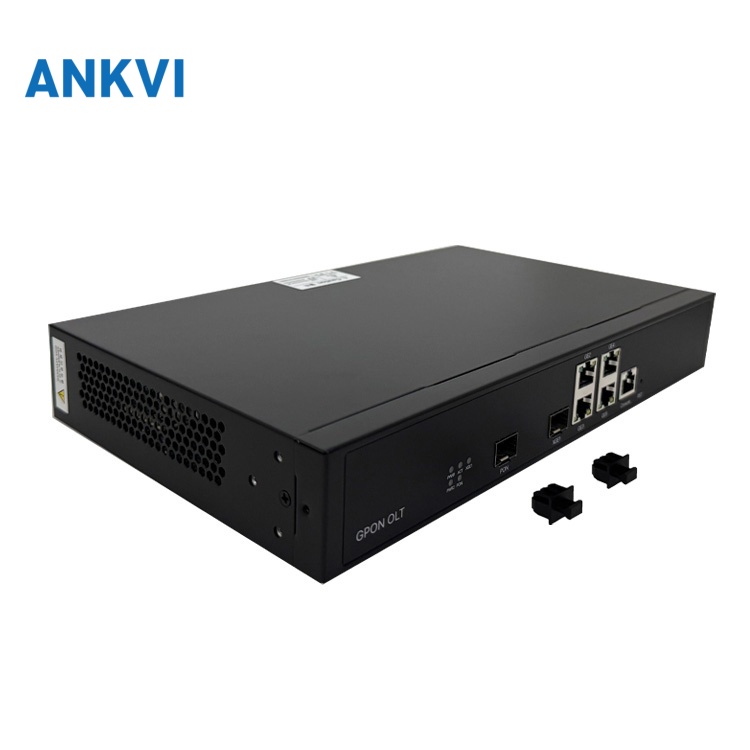

| Uplink port | 1× SFP+ 10-Gigabit port; 4× 10/100/1000M auto-negotiation Ethernet ports |
| PON port | 1× SFP slot, compliant with ITU-T G.984.2 Class B+ / Class C+ / Class C++; max splitting ratio 1:128 |
| Management port | 1× RJ45 Console port |
Software specification
| VLAN | 512 concurrent VLAN; VLAN Tag / Trunk mode |
|---|---|
| IGMP | IGMP v2/v3; IGMP snooping; 512 concurrent multicast groups |
| Loop detection | Support loopback |
| Port properties | Port rate limit; ingress / egress / both-stream mirror; IEEE 802.x flow control; port statistics and monitoring |
| Efficient configuration | Batch ONT configuration templates with DBA / VLAN / PoE support |
| System management | In-band management; CLI, Telnet and web network management; batch ONT remote upgrade |
| Optical power detection | Uplink port, PON port and batch ONT optical parameter detection |
| Redundant backup | Dual power redundancy backup; dual mirroring software |
| Link monitor | Optical link index monitoring; traffic statistics on all service ports; automatic alarm on link degradation; long-luminescence ONT detection |

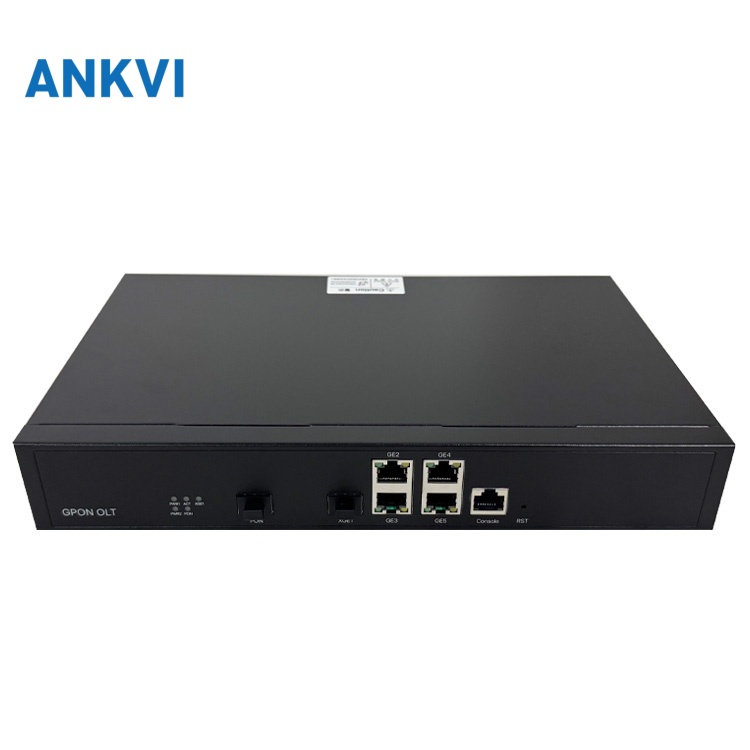

Ports, Interfaces and LED Indicators
| Interface / button | Qty | Description |
|---|---|---|

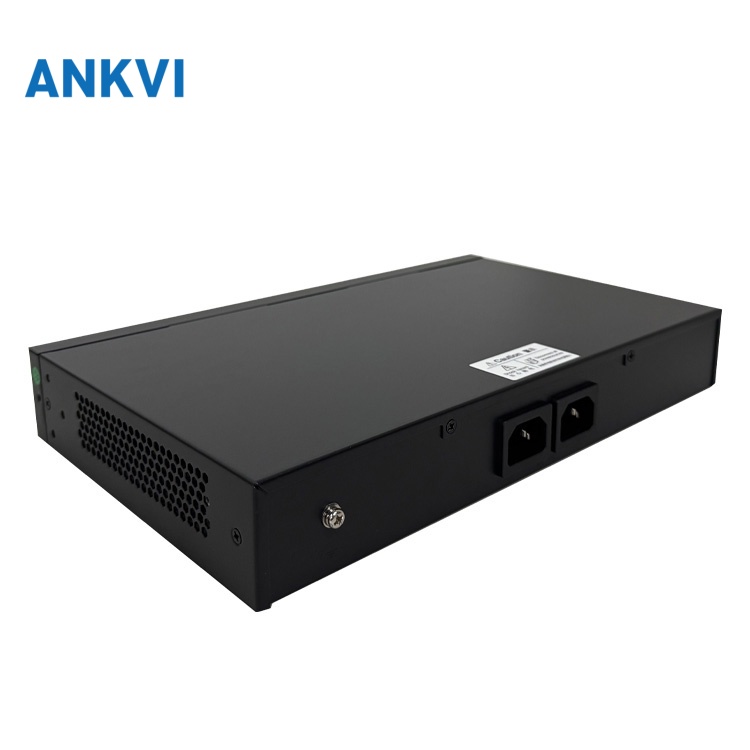

| AC-IN power interface | 2 | Connect to 110V/220V AC power (quantity of power supply is optional before delivery) |
| RST reset key | 1 | Manually restart the product |
| PON GPON service port | 1 | Provides one GPON service interface |
| XGE1 uplink port | 1 | Provides one 10GE/GE uplink optical port |
| GE2–5 uplink ports | 4 | Provides four GE uplink Ethernet ports |
| Console | 1 | RS-232 serial port for local system management |
| LED | Colour | Status | Meaning |
|---|---|---|---|
| PWR1–2 (power) | Green | ON | Normal power supply |
| OFF | No power supply or power supply failure | ||
| ACT (system) | Green | ON | System running properly |
| Slow blink | System initialising, or software starting but master-slave communication not established | ||
| Fast blink | System receiving configuration commands, or establishing master-slave communication | ||
| OFF | System powered off or software not started | ||
| PON | Green | ON | ONT connected to the PON port |
| OFF | No ONT connected to the PON port | ||
| XGE1 | Green | ON | Port connected |
| OFF | Port disconnected or connected improperly | ||
| GE2–5 | Green | ON | Port connected, speed 1000M |
| Blink | Port connected and transmitting data | ||
| Yellow | ON | Port connected, speed below 1000M | |
| Blink | Port connected and transmitting data | ||
| — | OFF | Port disconnected or connected improperly |
Packing and Delivery

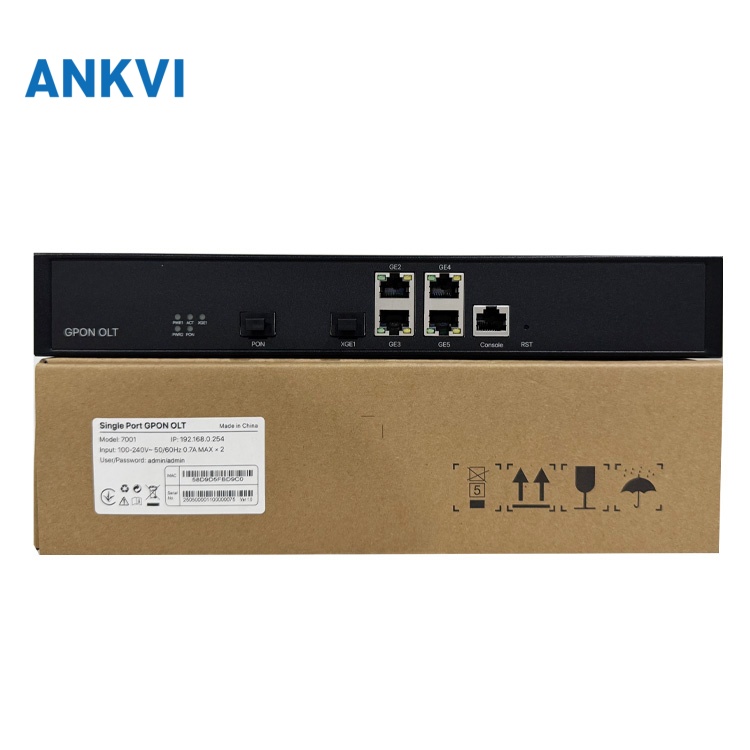

Every unit is hardware- and software-tested before shipping, packed in its original protective carton, and dispatched from a production facility with strong supply capacity for short lead times.
FAQ
What is the difference between the QT7001 and the QT7002?
They share the same 1U 13-inch chassis (294 × 180 × 44 mm), the same uplink configuration and the same software feature set. The QT7001 provides 1 GPON port and draws ≤13 W; the QT7002 provides 2 GPON ports and draws ≤18 W.
What split ratio does the PON port support?
Up to 1:128 per PON port, compliant with ITU-T G.984.2 with Class B+, Class C+ and Class C++ optical modules.
Which uplink ports are available?
One SFP+ 10-Gigabit port and four 10/100/1000M auto-negotiation Ethernet ports.
How is the device managed?
In-band management via CLI, Telnet or web interface, plus a local RJ-232 Console port. Batch ONT remote upgrade and configuration templates are supported.
What is the power supply configuration?
AC 100–240 V with a dual redundant power supply design and automatic switchover to the standby supply.
What is the operating temperature range?
-20 °C to +55 °C, with 2 kV port and 6 kV power supply lightning protection.
