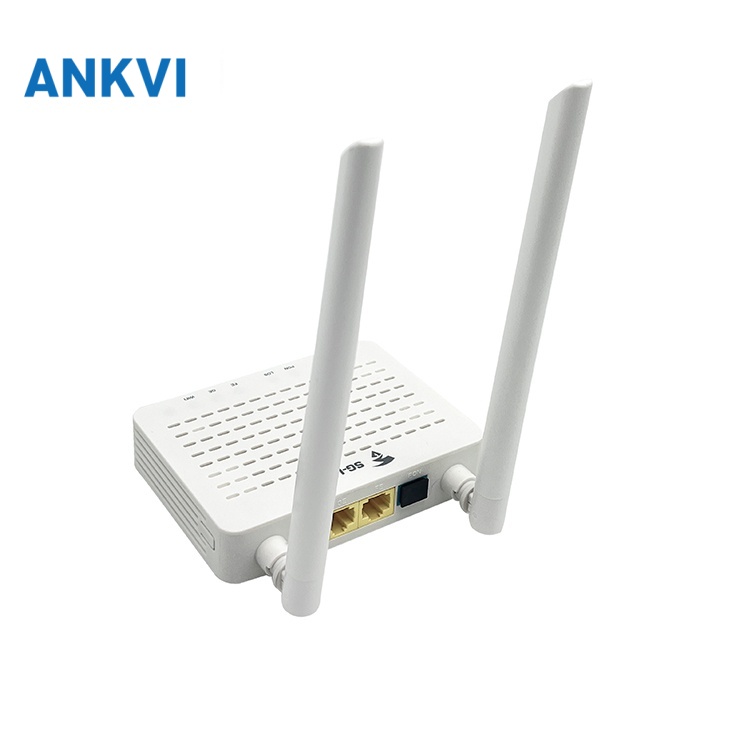

SG6040 Wireless GPON ONU – 1×GE, 1×FE, 2.4 GHz Wi-Fi

Description

Overview

The SG6040 wireless GPON ONU provides both wired and wireless network access, which makes it suitable for home users and small offices that want a gigabit drop, a second Fast Ethernet port and Wi-Fi from a single desktop unit. The mixed wired plus wireless arrangement covers devices that are best served by cable as well as those that connect over the air.

The wired side presents one 1 × GE and one 1 × FE auto-negotiation RJ45 port, and the radio is IEEE 802.11 b/g/n on 2.4 GHz (2.400–2.483 GHz), up to 300 Mbps with MIMO, 2T2R with dual 5 dBi antennas, 13-channel support, wireless AP mode, multiple concealed SSIDs, WMM, encryption up to WPA3 and modulation DSSS, CCK, OFDM with BPSK, QPSK, 16QAM and 64QAM encoding. The PON uplink is single-mode SC/PC on a GPON Class B+ link of up to 20 km, with TX power 0 to +4 dBm and RX sensitivity −27 dBm.

It accesses mainstream GPON OLTs and interworks with Fiberhome AN5516, ZTE C220 / C300 / C320 / C600 and Huawei MA5600 / MA5680 / MA5800. Routing covers bridge, router and route-and-bridge mixed mode with NAT, ALG, UPnP, DMZ, firewall, port forwarding, virtual server, one WAN for multiple services and VxLAN, EoIP, L2TP and IPSec VPN, over IPv4/IPv6 dual stack with IPv4/IPv6 static route. Management runs over WEB / TELNET / CLI / TR069, ITU-T G.984.x OMCI and CTC 3.0. The unit measures 114 × 85 × 23 mm, weighs under 250 g without its adapter, runs on 12 V 1 A and draws less than 12 W, with PWR / PON / LOS / FE / GE / 2.4 GHz Wi-Fi indicators, over −5 °C to +45 °C and 10 % to 90 % non-condensing humidity.

SG6040 Key Features

• Wired and wireless access in one ONU — one 1 × GE plus one 1 × FE auto-negotiation RJ45 port
• Integrated 2.4 GHz Wi-Fi for computers, tablets and phones alongside the cabled drops
• IEEE 802.11 b/g/n on 2.4 GHz (2.400–2.483 GHz), up to 300 Mbps with MIMO
• 2T2R with dual 5 dBi antennas and 2×2 MIMO technology implementation
• 13-channel support, wireless AP mode and multiple concealed SSIDs; WMM support
• Encryption WEP-64 / WEP-128 / WPA / WPA2 / WPA3 and authentication WEP / WAP-PSK (TKIP) / WAP2-PSK (AES)
• Modulation DSSS, CCK, OFDM with BPSK, QPSK, 16QAM and 64QAM encoding
• GPON Class B+ uplink on SC single mode, SC/PC, up to 20 km; TX power 0 to +4 dBm, RX sensitivity −27 dBm
• SN / Password / LOID authentication, DBA and two-way FEC with SR/NSR DBA and GEM/TCONT mapping
• Auto polarity detection (AUTO MDIX), storm control and flow control on the Ethernet ports
• Bridge, router and bridge/router mixed mode operation
• IGMP v1/v2/v3 snooping and proxy plus MLD v1/v2 snooping and proxy, with Wi-Fi bearer multicast services
• NAT, ALG, UPnP, DMZ, firewall, port forwarding and virtual server; one WAN for multiple services
• DHCP, DHCPv6 server, PPPoE and static IP; IPv4, IPv6 and IPv4/IPv6 dual stack with IPv4/IPv6 static route
• VxLAN, EoIP, L2TP and IPSec VPN support; ACL and spanning tree
• 4K VLAN, 2K MAC address table and four-queue QoS (SP / WRR / 802.1P / DSCP)
• Port monitoring, mirroring, rate limiting and SLA; anti-DDoS filtering based on ACL / MAC / URL
• Management via WEB / TELNET / CLI / TR069, ITU-T G.984.x OMCI and CTC 3.0

SG6040 Specifications

Device Parameters

Parameter	Value	Parameter	Value
Dimension	114 mm × 85 mm × 23 mm	Temperature	−5 °C to +45 °C
Weight	< 250 g (without power adapter)	Humidity	10 % to 90 % (no condensing)
Power Supply	12 V 1 A	Interface	1GE + 1FE + WIFI4
Power Consumption	< 12 W	Indicators	PWR / PON / LOS / FE / GE / 2.4 GHz Wi-Fi

PON Interface

Item	Specification
OLT compatibility	Accesses mainstream GPON OLT
Standards	GPON Class B+
Optical connector	SC single mode, SC/PC
Wavelength	TX 1310 nm, RX 1490 nm
Transmission distance	Up to 20 km
TX power	0 to +4 dBm
RX sensitivity	−27 dBm
Overload power	−8 dBm (GPON)
Authentication	SN / Password / LOID (GPON)
PON features	Two-way FEC, SR/NSR DBA, GEM/TCONT mapping

LAN Interface

Item	Specification

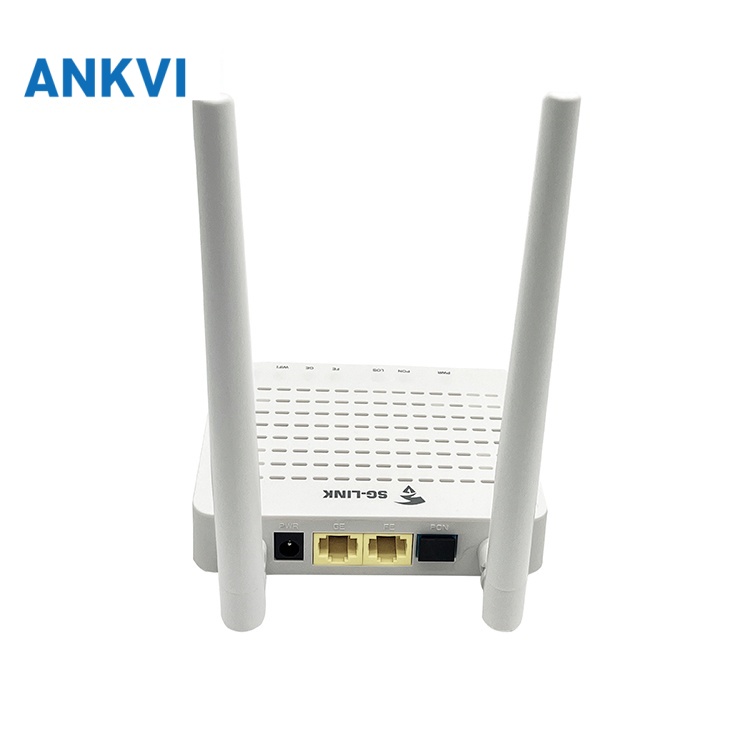

Ethernet port	1 × GE + 1 × FE, auto-negotiation RJ45 connectors
MAC address	Restriction and learning capabilities
VLAN	Ethernet port-based VLAN tag / tag stripping, local switching / isolation
Layer 2	Pass-through support
Protection	Storm control and flow control

Wi-Fi Interface

Item	Specification
Standard	Compliant with IEEE 802.11 b/g/n, operates at 2.4 GHz (2.400–2.483 GHz)
Data rate	Up to 300 Mbps with MIMO
Antennas	2T2R with dual 5 dBi antennas
Channels	13-channel support
MIMO	2×2 MIMO technology implementation
Modes	Wireless AP mode support; multiple concealed SSIDs
Multimedia	Wi-Fi Multi Media (WMM) support
Encryption	WEP-64 / WEP-128 / WPA / WPA2 / WPA3
Authentication	WEP / WAP-PSK (TKIP) / WAP2-PSK (AES)
Modulation	DSSS, CCK, OFDM
Encoding	BPSK, QPSK, 16QAM, 64QAM

Function

Category	Specification
Basic compatibility	SN / Psw / LOID / LOID+Psw authentication (GPON); DBA; auto-detecting, auto-configuration and auto firmware upgrade
Compatibility	Interworking with Fiberhome AN5516, ZTE C220 / C300 / C320 / C600 and Huawei MA5600 / MA5680 / MA5800
Data service functions	Full-speed non-blocking switching; bridge, router and bridge/router mixed mode; IGMP v1/v2/v3 snooping / proxy and MLD v1/v2 snooping / proxy; QinQ VLAN, 1:1 VLAN, VLAN reusing and VLAN trunk; auto polarity detection of Ethernet ports (AUTO MDIX); port monitoring, mirroring, rate limiting and SLA; integrated IEEE 802.1p QoS with four level priority queues; 4K VLAN ID; 2K MAC address table
Multicast	IGMP and MLD (v1/v2/v3) with snooping and proxy features; max multicast VLAN 8; max multicast group 64; fast leave; downlink multicast VLAN switching / transmission / stripping; Wi-Fi bearer multicast services
L2	802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN
L3	DNS, DNS client, DDNS/DNS server; DHCP, DHCPv6 server, PPPoE, static IP; NAT, ALG, UPnP, DMZ; IPv4, IPv6 and IPv4/IPv6 dual stack; IPv4/IPv6 static route; firewall; port forwarding; one WAN for multiple services; virtual server; bridge, route and route-and-bridge mixed mode; ACL, spanning tree; DHCP server & DHCP relay; VxLAN, EoIP, L2TP and IPSec VPN
VLAN	4K VLAN; auto VLAN detection; VLAN tag / untag / transparent / trunk mode; VLAN 1:1 translation mode (≤ 8 VLANs); 4 queues including SP, WRR and 802.1P
QoS	SP / WRR / 802.1P / DSCP; flow mapping based on VLAN, 802.1p, Ethernet port or any combination; broadcast message rate limiting; Ethernet port speed limiting
Management	WEB / TELNET / CLI / TR069; ITU-T G.984.x OMCI; CTC 3.0, backward compatible with 2.1 / 2.0
Security and alarm	Anti-DDoS with filtering based on ACL / MAC / URL, IPv6 firewall and MAC/IP/URL address filtering; Dying Gasp and EthPort LOS
O&M	WEB / TELNET / OAM / OMCI / TR069; software dual backup and rollback; optical link measurement and diagnosis; integrated OAM/OMCI remote configuration and maintenance; detecting rogue ONU and hardware dying gasp

Deployment Scenarios

• Home FTTH access where a gigabit drop, a second Fast Ethernet port and Wi-Fi are all needed
• Small offices that want wired and wireless access from one desktop ONU
• Subscribers mixing cabled devices with phones and tablets over the same 2.4 GHz Wi-Fi
• Networks using mainstream GPON OLTs from Fiberhome, ZTE or Huawei
• Deployments needing VPN or VLAN segmentation over a subscriber-side ONU
