Name: UPS1203A1-57.72WH Mini DC UPS – 12 V 3 A, 57.72 Wh – ANKVI
SKU: UPS1203A1-57.72WH

Description

Overview

ANKVI UPS1203A1-57.72WH is a 12 V 3 A mini DC UPS with a 57.72 Wh lithium battery and 3000 mA output. It keeps low power DC equipment running when the mains supply fails, using a built-in rechargeable battery and constant voltage / constant current charging management.

When mains is online the unit identifies the adapter and charges its battery; when mains is offline it switches instantly to battery output. Hardware and software protection covers over-charge, over-discharge, over-current and short circuit.

UPS1203A1-57.72WH Key Features

Maximum output power 36 W.
Battery capacity 57.72 Wh (2600 mAh x 6).
Input 12 V +/-5% at 750 mA + loading current.
Charging current 750 mA +/-10% with 90% charging transfer efficiency.
Output 12 V -2% at 3000 mA, 90% discharging transfer efficiency.
Over-discharge protection at 9.0 V and over-charge protection at 12.6 V.
Automatically identifies the adapter when mains is online and switches instantly when mains fails.

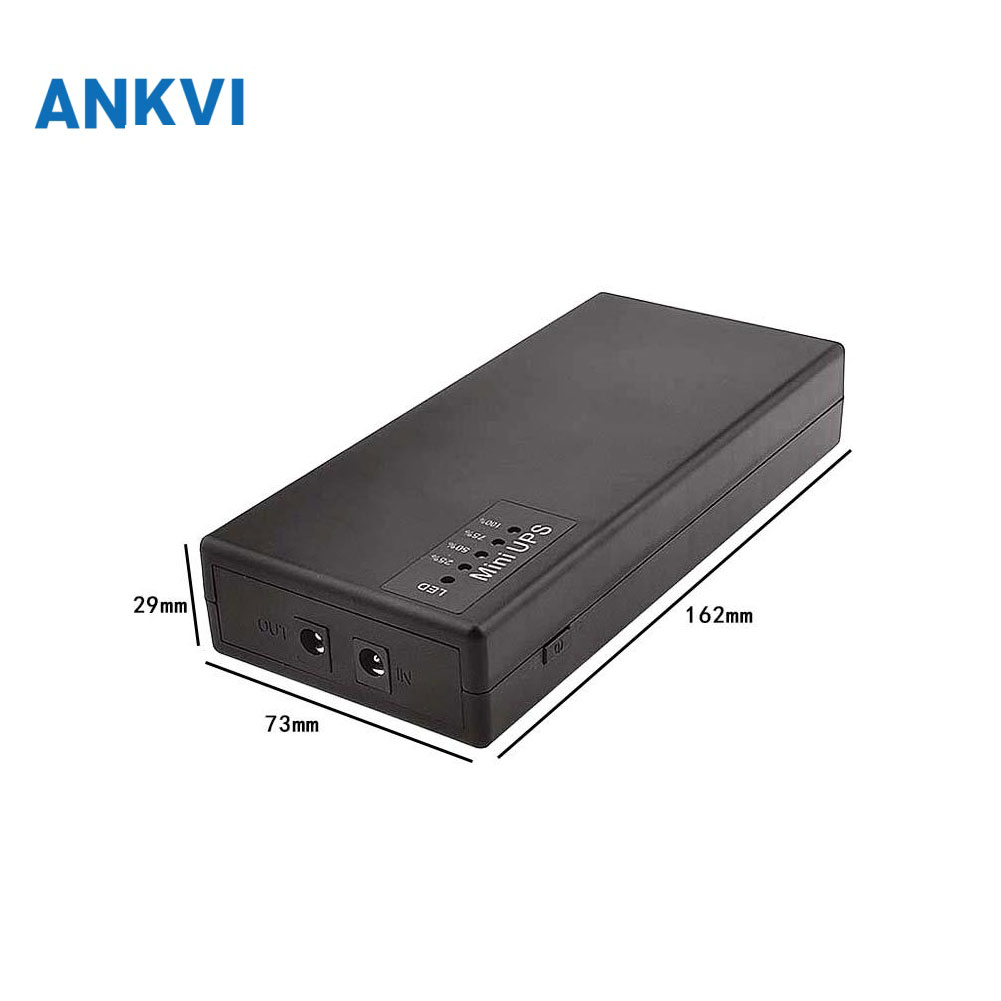

Standard weight 475 g in a 162 x 73 x 29 mm case.

UPS1203A1-57.72WH Specifications

Parameter	Specification
Model	UPS1203A1
Output Power	36 W
Battery Capacity	57.72 Wh (2600 mAh x 6)
Input Voltage	12 V +/-5%
Input Current	750 mA + loading current
Charging Current	750 mA +/-10%
Charging Transfer Efficiency	90%
No-load Voltage Range	12.1 V +/-5%
Output Current Range	3000 mA
Output Voltage Range	12 V -2%
Discharging Transfer Efficiency	90%
Over-discharge Protection	9.0 V
Over-charge Protection	12.6 V
With Load Current (battery)	2000 mA
Standard Weight	475 g
Volume	162 x 73 x 29 mm
Charging Temperature	0 to 55 C
Discharging Temperature	-20 to 65 C

Applications

Routers, wireless cameras and CCTV equipment.
Access control and fingerprint attendance terminals.
Fire safety and security monitoring systems.
Alarm systems and emergency lighting.
PoE devices such as IP cameras and access points.
Small digital products charged over USB.
