Name: UPS901A-14.8 Mini DC UPS – 9 V 1 A, 14.8 Wh – ANKVI
SKU: UPS901A-14.8

Description

Overview

ANKVI UPS901A-14.8 is a 9 V 1 A mini DC UPS with a 14.8 Wh lithium battery and full protection circuitry. It keeps low power DC equipment running when the mains supply fails, using a built-in rechargeable battery and constant voltage / constant current charging management.

When mains is online the unit identifies the adapter and charges its battery; when mains is offline it switches instantly to battery output. Hardware and software protection covers over-charge, over-discharge, over-current and short circuit.

UPS901A-14.8 Key Features

Maximum output power 9 W (maximum).
Battery capacity 14.8 Wh (2000 mAh x 2).
Input 9 V +/-5% at 300 mA + loading current.
Charging current 300 mA +/-10% with 90% charging transfer efficiency.
Output 9 V +/-5% at 1000 mA, 90% discharging transfer efficiency.
Over-discharge protection at 6.3 V and over-charge protection at 8.55 V.
Automatically identifies the adapter when mains is online and switches instantly when mains fails.

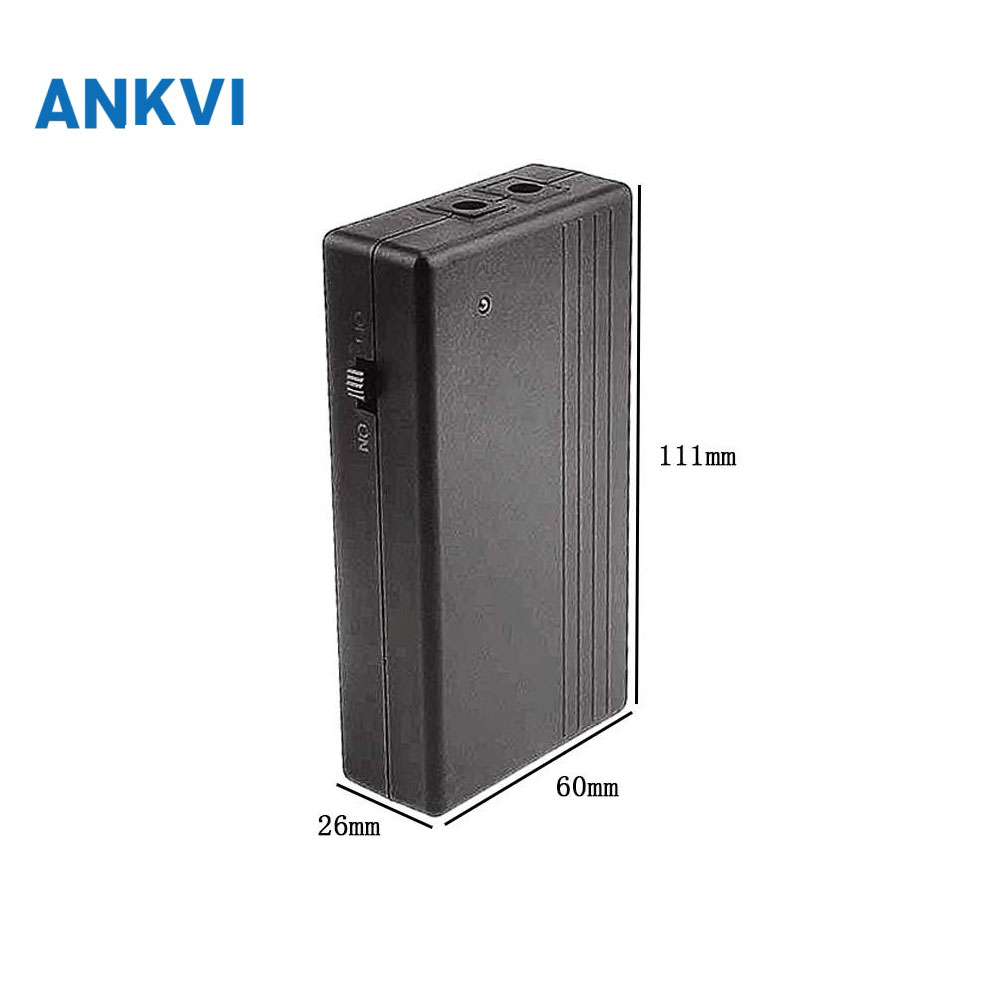

Standard weight 198 g in a 111 x 60 x 26 mm case.

UPS901A-14.8 Specifications

Parameter	Specification
Model	UPS901A
Output Power	9 W (maximum)
Battery Capacity	14.8 Wh (2000 mAh x 2)
Input Voltage	9 V +/-5%
Input Current	300 mA + loading current
Charging Current	300 mA +/-10%
Charging Transfer Efficiency	90%
No-load Voltage Range	9 V +/-5%
Output Current Range	1000 mA
Output Voltage Range	9 V +/-5%
Discharging Transfer Efficiency	90%
Over-discharge Protection	6.3 V
Over-charge Protection	8.55 V
With Load Current (battery)	2000 mA
Standard Weight	198 g
Volume	111 x 60 x 26 mm
Charging Temperature	0 to 55 C
Discharging Temperature	-20 to 65 C
Storage (30 days)	-20 to 45 C
Storage (90 days)	-20 to 35 C

Applications

Routers, wireless cameras and CCTV equipment.
Access control and fingerprint attendance terminals.
Fire safety and security monitoring systems.
Alarm systems and emergency lighting.
PoE devices such as IP cameras and access points.
Small digital products charged over USB.
