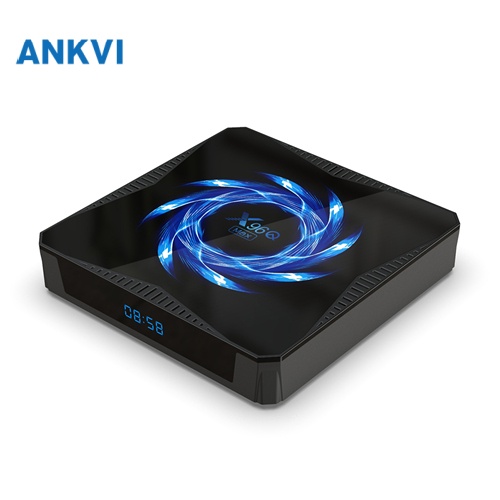

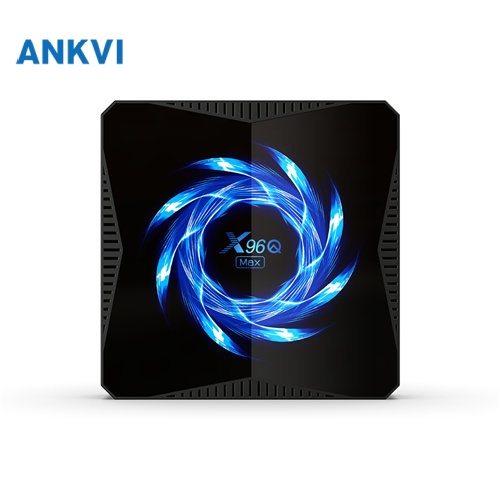

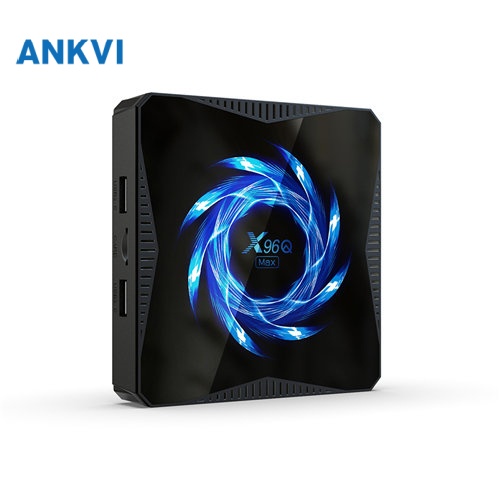

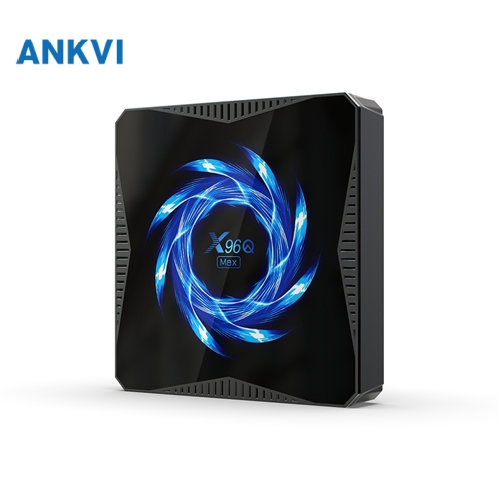

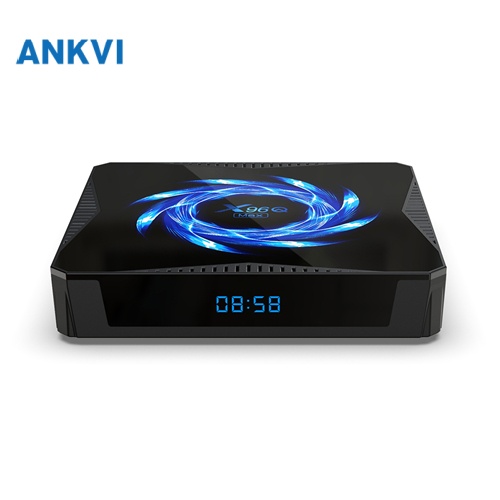

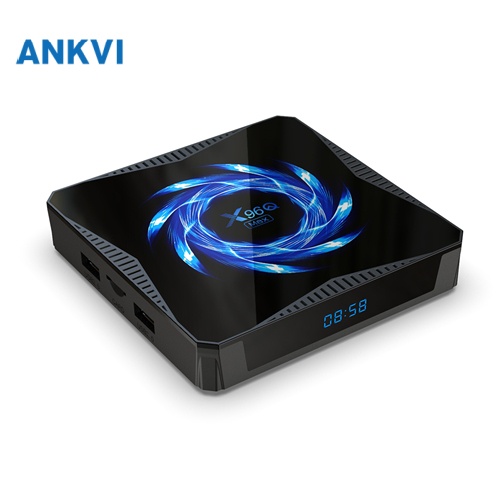

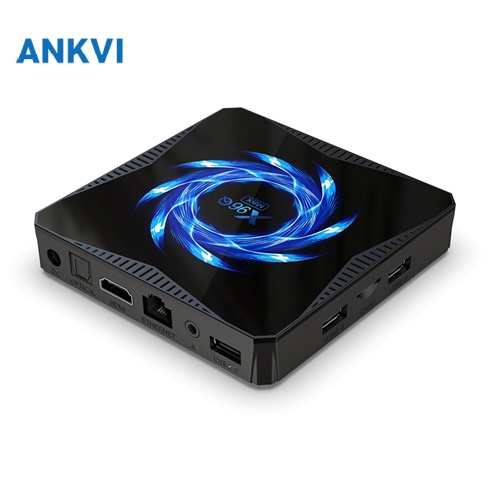

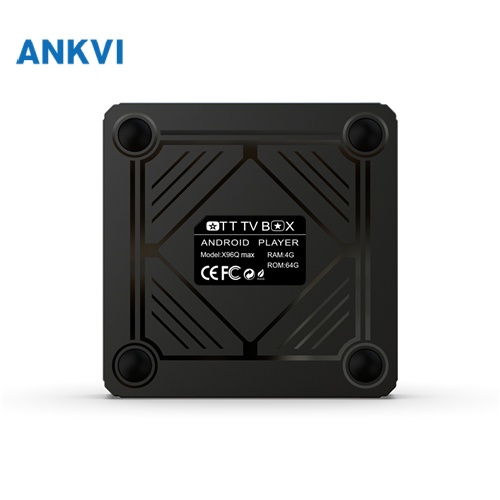

X96Q MAX 4K Android TV Box – H616, 4GB/32GB
The X96Q MAX is an Android 10.0 TV box powered by the Allwinner H616 quad-core CPU with 4GB of DDR3 memory and 32GB/64GB eMMC flash, 802.11ac Wi-Fi, three USB host ports and HDMI 2.0A output.
Worry-Free After-Sales14-month warranty & responsive support
Efficient ProcurementOne-stop sourcing, fast turnaround
Fast Response Times24/7 expert technical support
Description
Overview
The X96Q MAX is an Android 10.0 TV box powered by the Allwinner H616 quad-core Cortex-A53 processor with a G31 GPU. It carries 4GB of DDR3 memory and 32GB/64GB of eMMC flash.
Video plays at up to 4Kx2K@60fps and is output through HDMI 2.0A, with 802.11 b/g/n/ac Wi-Fi, Ethernet, three USB host ports and an AV OUT jack.
X96Q MAX Key Features
- Allwinner H616 Quad Core ARM Cortex A53 CPU with G31 GPU
- 4GB DDR3 memory and 32GB/64GB eMMC flash
- 4Kx2K@60fps video decoding with 6K@30fps H.265 support
- HDMI 2.0A output and RJ45 Ethernet
- 802.11 b/g/n/ac Wi-Fi
- 3 x USB Host ports, an AV OUT jack and a TF card slot
- Android 10.0 operating system
X96Q MAX Specifications
| Parameter | Specification |
|---|---|
| CPU | Allwinner H616 Quad Core ARM Cortex A53 |
| GPU | G31 OPenGL3.2 |
| Memory | DDR3：4GB |
| Flash | eMMC：32GB/64GB |
| WiFi | IEEE 802.11 b/g/n/ac |
| Moudle | Plastic : Black Color |

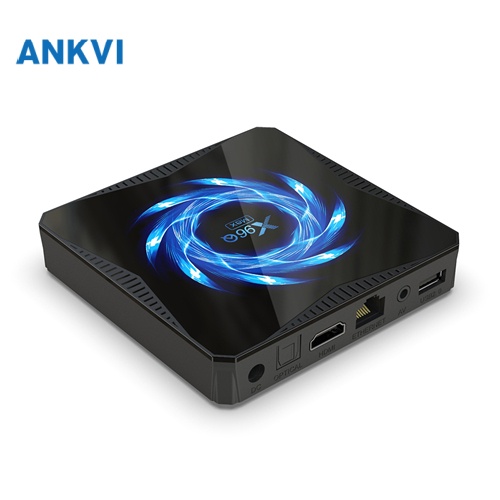

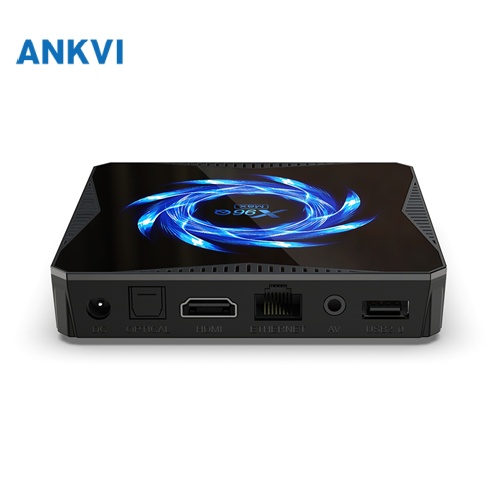

| I/O 1*HDMI | 4K*2K UHD Output, HDMI 2.0A |
| I/O 1*AV OUT | 480i/576i standard definition output |
| I/O 3*USB | 3* USB Host Port |
| I/O 1*RJ45 | Ethernet Interface |
| I/O 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB |
| Power | DC 5V/2A；LED indicator，Working ：Blue; Standby：Red |
| OS | Android 10.0 |
| Video | Video Engine (AVE) with dedicated hardware decoders and encoders; support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps; supports multiple “secured” video decoding sessions and simultaneous decoding and encoding; Video Decoding: VP9 Profile 2 up to 4Kx2K@60fps; H.265 Main10@L5.1 up to 4Kx2K@60fps,or 6K@30fps; AVS2-P2 Profile up to 4Kx2K@60fps; H.264 BP/MP/HP@L4.2 up to 4Kx2K@30fps; H.263 BP up to 1080P@60fps; MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496); MPEG-2 MP/HL up to 1080P@60fps (ISO-13818); MPEG-1 MP/HL up to 1080P@60fps (ISO-11172); Xvid up to 1080P@60fps; Sorenson Spark up to 1080P@60fps; VP8 up to 1080P@60fps; AVS/AVS+ JiZhun Profile up to 1080P@60fps; WMV9/VC1 SP/MP/AP up to 1080P@60fps; JPEG HFIF file format up to 45MPPS; Multiple language and multiple format sub-title video support; MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918); Supports JPEG thumbnail, scaling, rotation and transition effects; Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing; Audio Codec: Two audiio digital-to-analog(DAC) channels; Support 16-bit and 20-bit sample rate; 8kHz to 192kHz DAC sample rate; 95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms; One128*24-bits FIFO for DAC data transmit; built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch; Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs; Built-in stereo audio DAC; Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
| Image | HD JPEG、BMP、GIF、PNG、TIF |
| Language | English French German Spanish Italian etc multilateral languages |
| Applications – Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. |
| Applications – Apps | Apps download freely form android market、amazon app store etc. |
| Applications – Medium | Local Media playback,Support HDD, U Disck ,TF Card . |
| Applications – Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc |
| Applications – Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
| Packing – Product dimension | 106*106*19(mm) |
| Packing – Qty per unit packing | 1pcs |
| Packing – Unit packing: (LxWxH) | 205*140*50(mm) |
| Packing – Unit packing (G.W.) | 0.14kg（Product）/0.414kg（ Packing+Product） |
| Packing – Qty per export carton | 20PCS |
| Packing – Export carton (WxHxL) | 420*270*305 （mm） |
| Packing – Export carton (G.W.) | 8.8Kg |
| Accessories | HDMI cable *1, IR Remote *1, User Manual *1, Package box *1, Power adapter *1 |
Applications
- Home entertainment and 4K video playback
- IPTV and OTT streaming apps
- Hotel and guest-room TV systems
- Digital signage and office displays
