Name: X96S 4K Android TV Stick – S905Y2, 4GB/32GB – ANKVI
SKU: X96S

Description

Overview

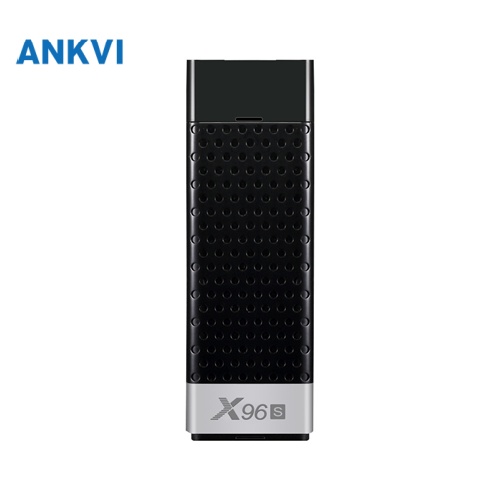

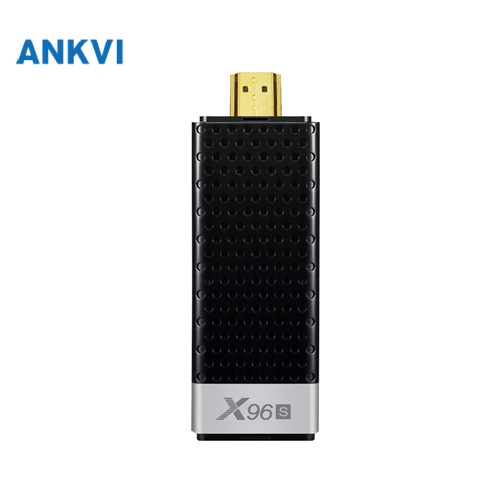

The X96S is a stick style Android player running Android 9.0 on an Amlogic S905Y2 quad core ARM Cortex A53 processor at @2GHz with an ARM Dvalin MP2 GPU. LowPower DDR4 memory and 32GB eMMC flash keep it responsive for 4K content.

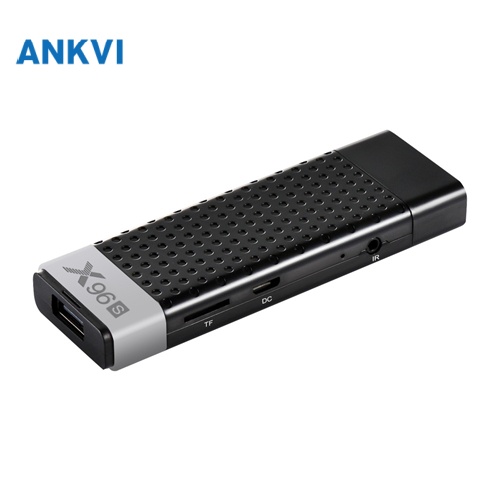

Video leaves the unit through HDMI 2.1 with HDMI CEC, Dynamic HDR and HDCP 2.2, handling up to 4Kx2K@75. The black plastic body carries a USB 3.0 port, a Micro USB 2.0 port, an IR receiver connection and a TF card slot, and is powered from DC 5V/1A.

X96S Key Features

Amlogic S905Y2 quad core ARM Cortex A53 processor running at @2GHz
ARM Dvalin MP2 GPU on Android 9.0
4GB LowPower DDR4 memory and 32GB eMMC flash
HDMI 2.1 output with CEC, Dynamic HDR and HDCP 2.2 up to 4Kx2K@75
IEEE 802.11 a/b/g/n/ac WiFi on 2.4G / 5.8G plus Bluetooth 4.2
USB 3.0 and Micro USB 2.0 ports plus a TF card slot
Decodes VP9 Profile-2, H.265 HEVC and AVS2 at up to 4Kx2K@60fps

X96S Specifications

Parameter	Specification
CPU	Amlogic S905Y2 Quad Core ARM Cortex A53 @2GHz
GPU	ARM Dvalin MP2 GPU
Memory	LowPower DDR4:4GB(Option: 1GB / 2GB / 3GB)
Flash	eMMC：32GB(Option: 8GB / 16GB / 64GB )
WiFi	IEEE 802.11 a/b/g/n/ac ; 2.4G / 5.8G （2G+16G ， 2.4G WIFI）
Bluetooth	Bluetooth 4.2
Moudle	Plastic : Black Color
I/O	1HDMI: HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output.; 1USB，1Micro USB: 1 USB 3.0 ;1Micro USB 2.0; 1IR: Remote Reciver Connect; 1*TF CARD: Support 4GB/8GB/16GB/32GB/64GB
Power	DC 5V/1A；LED indicator，Working：Blue;
OS	Android 9.0
Video	Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders; Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps; Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding; Video/Picture Decoding: VP9 Profile-2 up to 4Kx2K@60fps; H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps; AVS2-P2 Profile up to 4Kx2K@60fps; H.264 AVC HP@L5.1 up to 4Kx2K@30fps; H.264 MVC up to 1080P@60fps; MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496); WMV/VC-1 SP/MP/AP up to 1080P@60fps; AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps; MPEG-2 MP/HL up to 1080P@60fps (ISO-13818); MPEG-1 MP/HL up to 1080P@60fps (ISO-11172); RealVideo 8/9/10 up to 1080P@60fps; Multiple language and multiple format sub-title video support; MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918); Supports JPEG thumbnail, scaling, rotation and transition effects; Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
Audio	Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing; Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output; built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch; Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs; Built-in stereo audio DAC; Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image	HD JPEG、BMP、GIF、PNG、TIF
Language	English French German Spanish Italian etc multilateral languages
Online	Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps	Apps download freely form android market、amazon app store etc.
Medium	Local Media playback,Support HDD, U Disck ,TF Card .
Talk online	Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc.
Others	Support Email,office suit etc.; Support DLNA function; Support 2.4G wireless mouse/keyboard
Accessories	HDMI cable 1; IR Line 1; IR Remote 1; Micro USB Line 1; USB adapter 1; User Manual 1

Applications

Home entertainment and 4K streaming
IPTV and OTT set-top use
Hotel and guest room TV
Local media playback from HDD, U disk or TF card
