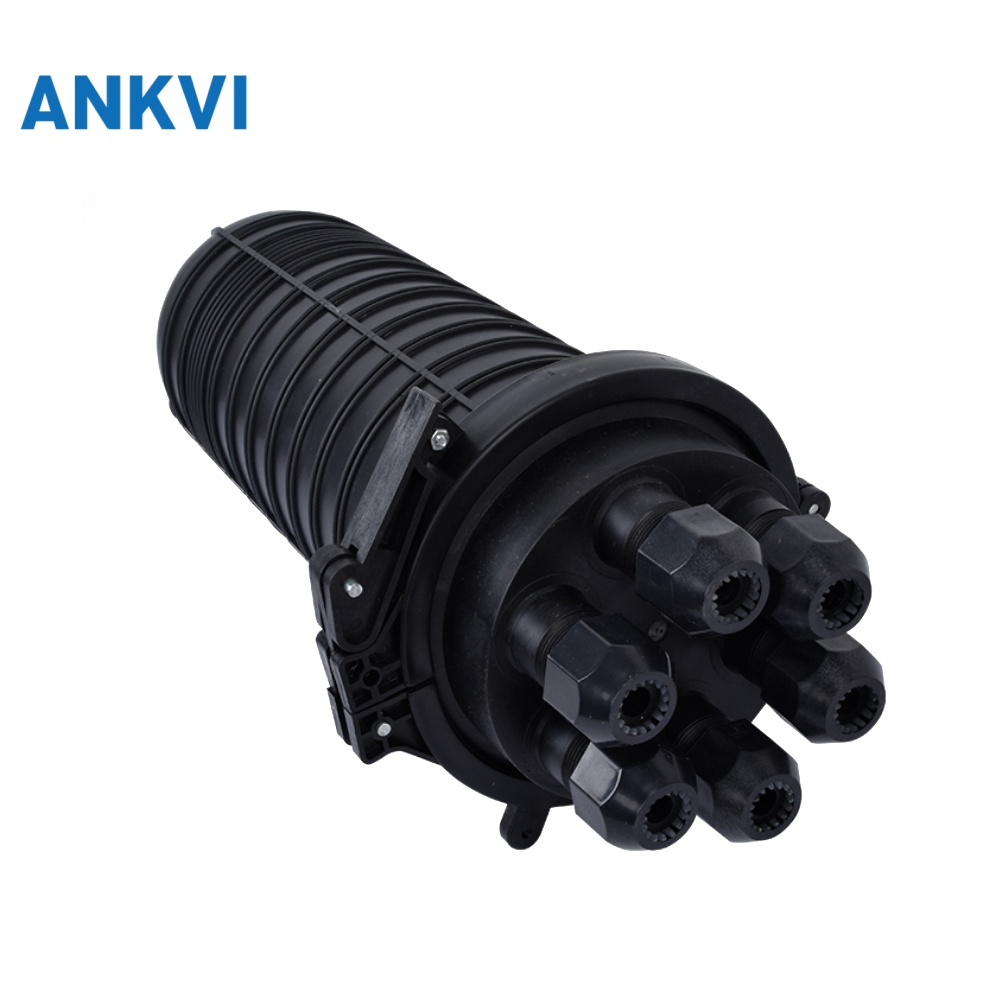

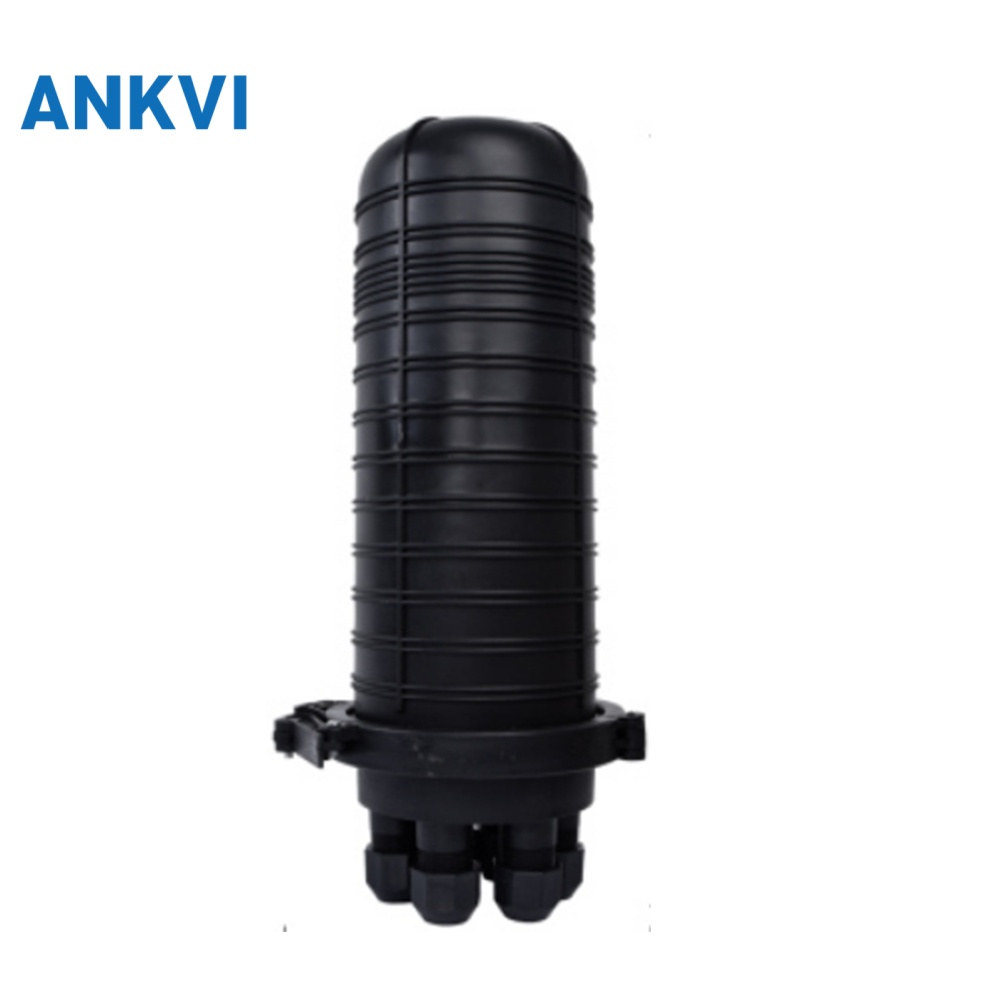

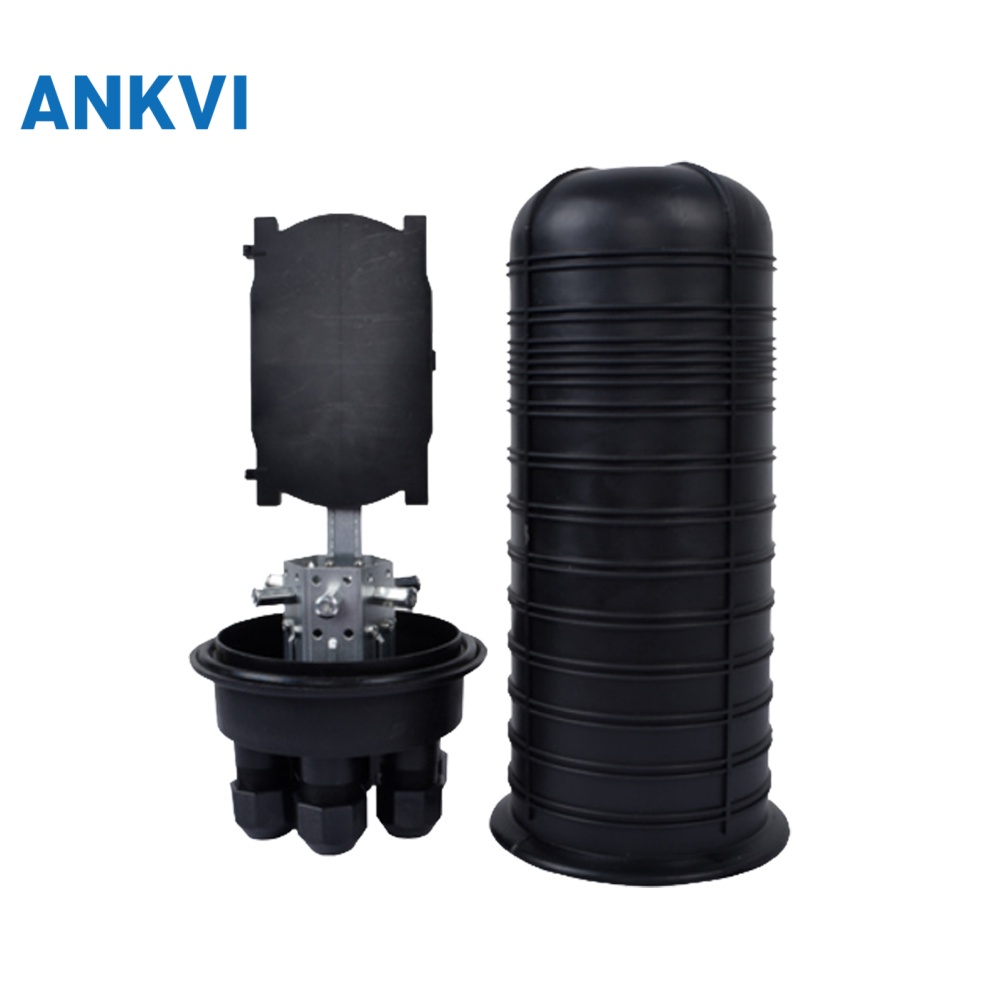

XRT-MS-003 Vertical Splice Closure – 96 Core, IP65
The XRT-MS-003 is a vertical dome splice closure in PP sealed to IP65, taking up to 96 cores on four 24-core trays with 3-in 3-out cable ports.
Description
Overview
The optical cable connector box is used for direct connection and large capacity discontinuous connection of optical fiber cable, and plays a role of protecting the optical fiber cable joint.
It can meet the construction requirements for laying optical fiber cables, underground, pipelines and wells.
XRT-MS-003 Key Features
- It is suitable for the aerial
- All kinds of accessories can be configured.
- An aging resistance: good stability to heat, heat radiation, air, ozone etc..
- The purpose of corrosion resistance: high resistance to dilute acid, salt, oxidizing agent, aliphatic hydrocarbons etc..
- The purpose of sealing technology: using repeatable opening seal components, to ensure airtight good waterproof performance.
- All the mechanical properties: the ability to endure harsh conditions such as vibration, impact, cable tensile distortion and strong temperature change etc..
XRT-MS-003 Specifications
Technical Index
| Parameter | Specification |
|---|---|
| Model No. | XRT-MS-003 |
| Color | Black |
| Capacity(Max) | 12cores(12core/tray*1trays) 24oores(24core/tray*1trays) 48cores(24core/tray*2trays) 72cores(24core/tray*3trays) 96cores(24core/tray*4trays) |
| Protection Level | IP65 |
| Material | PP |
| Inlet/Outlet | 3 inlet 3 outlet |
| Scope of inlet (3in)Oval shape | Φ20mm |
| Product Size | H410*Φ130mm |
| Scope of outet(3out) Round shape | Φ20mm |
| Structure | Mechanical sealing |
| Package / Carton | 6pcs/carton,47*40*59CM,12.5kgs |
Applications
- FTTH project and FTTX Deployments
- Optical LAN, WAN and CATV
- Telecommunication Network
- Local Area Network
