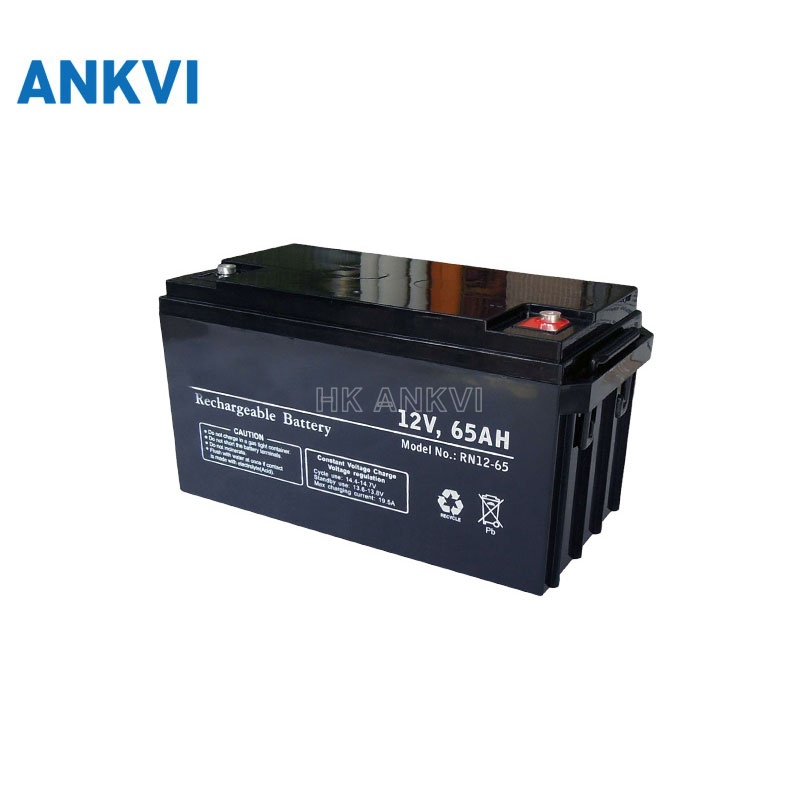

Name: 12V65AH Sealed Lead Acid Battery – 12 V 65 Ah, 10 Hour Rate – ANKVI
SKU: 12V65AH

Description

Overview

ANKVI 12V65AH is a 12 V 65 Ah sealed lead acid rechargeable battery for standby and cyclic duty. The case measures 350 x 169 x 179 mm, with a total height of 179 mm, and weighs about 20.3 kg.

It is charged at constant voltage and can be used in float (standby) or cyclic service. The M6 terminal takes the discharge current, and the initial charging current is limited to less than 16.2 A.

12V65AH Key Features

Nominal voltage of 12 V with a rated capacity of 65 Ah at the 10 hour rate.
Capacity at other rates: 58 Ah at the 5 hour rate (11.6 A), 40.8 Ah at the 1 hour rate (40.8 A).
Case size 350 x 169 x 179 mm (L x W x H), total height 179 mm, weight about 20.3 kg (+/-4%).
Internal resistance of 6.5 mOhm when fully charged at 25 C.
M6 terminal type.
Designed for a 12 year float service life at 25 C (LRN series).
Initial charging current limited to less than 16.2 A.
Constant voltage charging: cycle use 14.50 – 14.90 V, standby (float) use 13.50 – 13.80 V.
Low self-discharge of less than 3% of normal capacity per month at 25 C.
Wide operating temperature range from -15 to 50 C.
Low internal resistance gives high output power; no equalising discharge is needed.
Good charge acceptance and quick charge capability at constant voltage.

12V65AH Specifications

Parameter	Specification
Nominal Voltage	12 V
Rated Capacity (10 hour rate)	65 Ah
Capacity (5 hour rate)	58 Ah (11.6 A)
Capacity (1 hour rate)	40.8 Ah (40.8 A)
Internal Resistance	6.5 mOhm (fully charged, 25 C)
Length	350 mm (13.8 in)
Width	169 mm (6.65 in)
Height	179 mm (7.05 in)
Total Height	179 mm (7.05 in)
Weight	approx. 20.3 kg (44.75 lb), +/-4%
Terminal Type	M6
Design Life	12 years at 25 C (LRN series)
Initial Charging Current	less than 16.2 A
Cycle Use Voltage	14.50 – 14.90 V
Standby (Float) Use Voltage	13.50 – 13.80 V
Operating Temperature Range	-15 to 50 C
Self-discharge	less than 3% of normal capacity per month at 25 C

Applications

Electric tools
Alarm and security systems
Electric toys
Solar power systems
Emergency lighting
Wind power systems
Electronic instruments
Telecommunication equipments
Medical equipment
Uninterruptible power supplies
