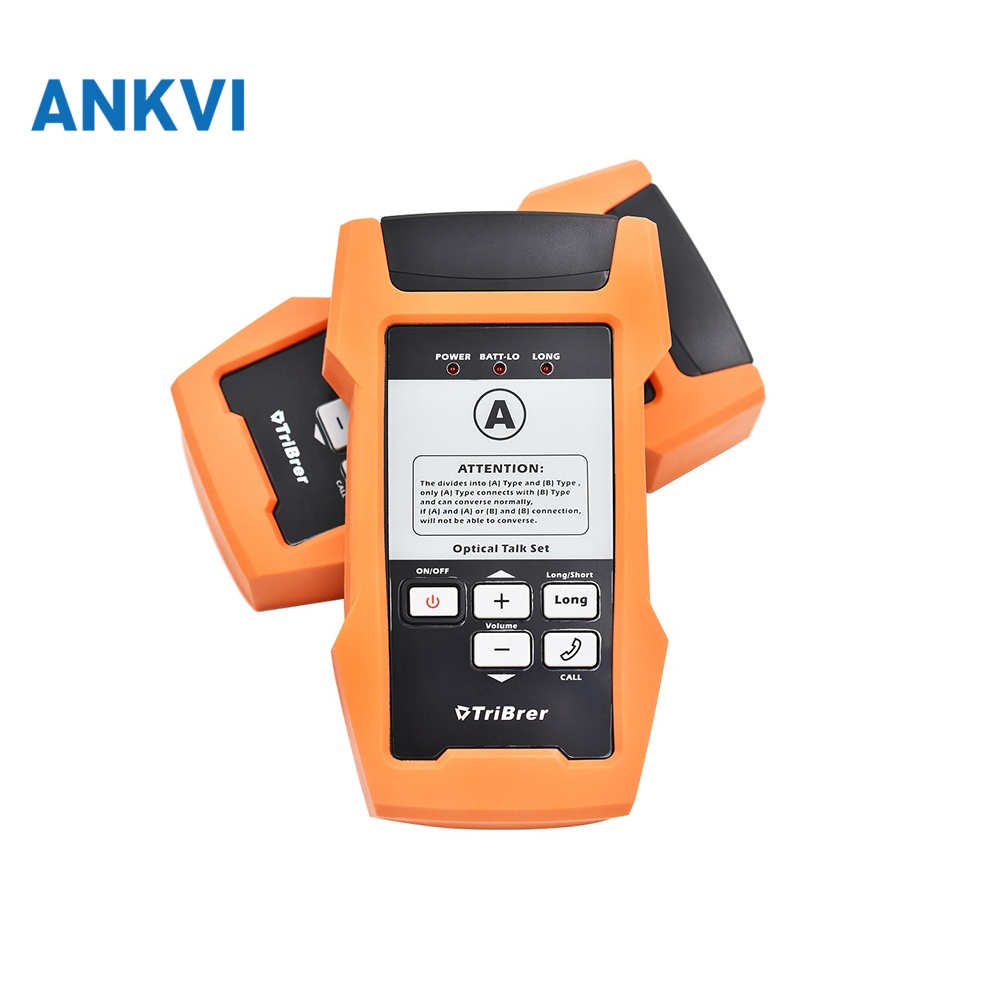

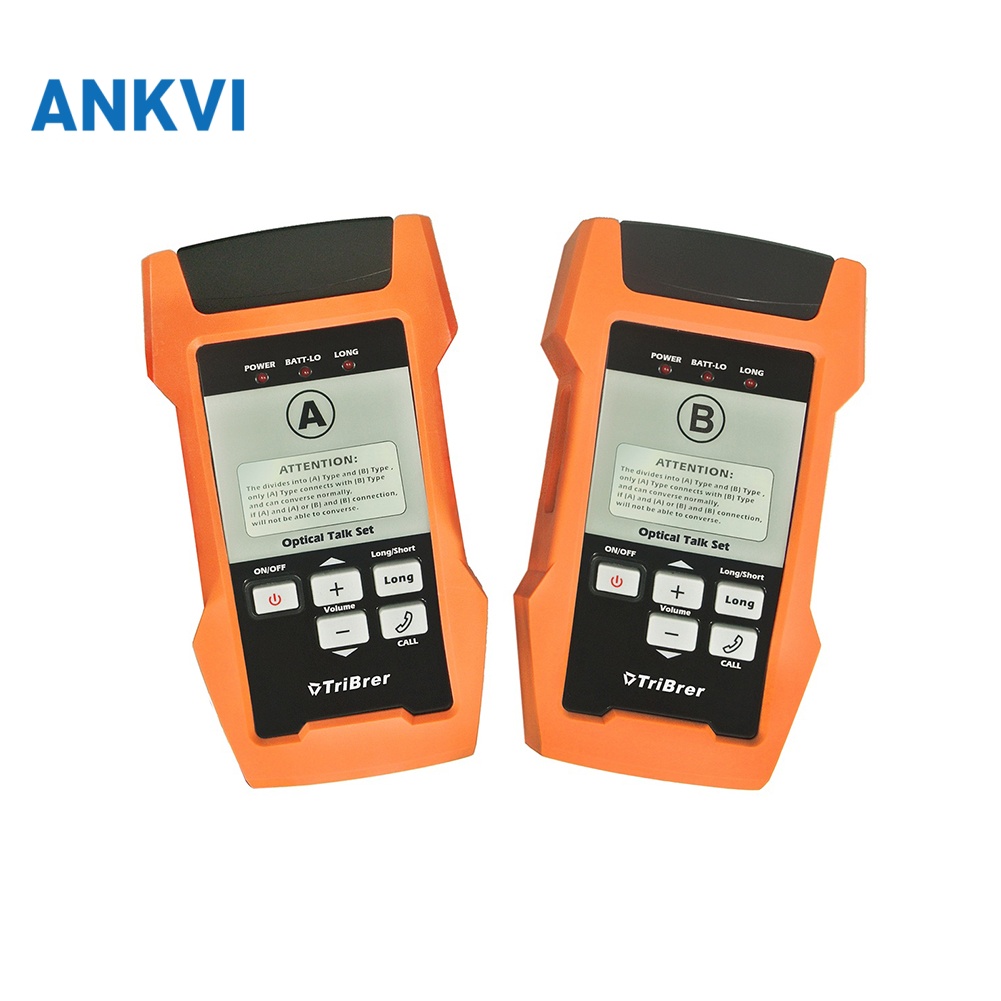

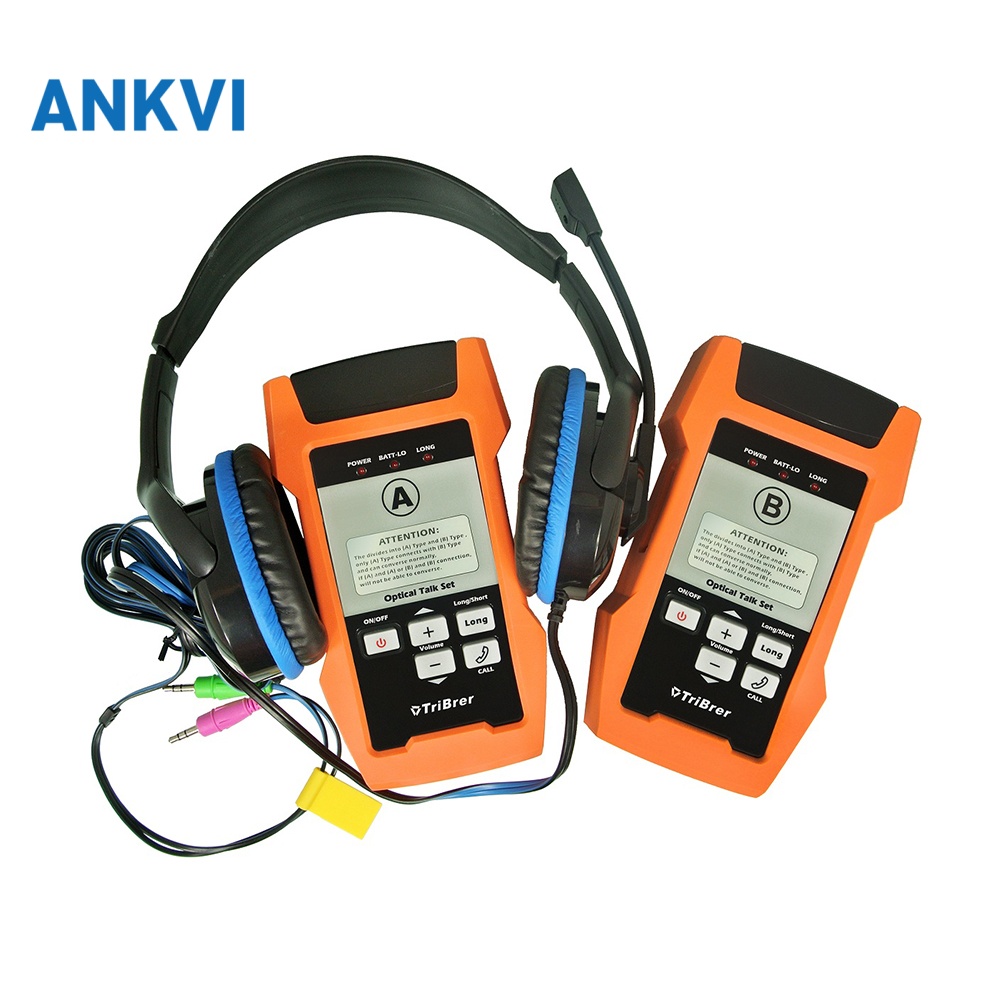

GJ.025 AOT600 Full-Duplex Optical Talk Set
Handheld full-duplex optical talk set with 1310nm and 1550nm versions, 45dB dynamic range on single-mode fiber, talk distance above 120 km, fiber clamp and FC / PC adapter.
Description
Overview
The GJ.025 AOT600 is a handheld optical talk set that provides high quality full-duplex communication over a single fiber, together with light source capabilities.
With a 45dB dynamic range it supports a dynamic distance above 120 km on single-mode fiber, and its long/short mode suits different link lengths.
GJ.025 AOT600 Key Features
- Talk by connecting with fiber
- High quality full-duplex communication
- Light source capabilities
- Wide dynamic range: 45dB
- Large dynamic distance: >120km
- Long/short mode for different distance
GJ.025 AOT600 Specifications
| Parameter | Specification |
|---|---|
| Model | AOT600 |
| Wavelength | A: 1310nm, B: 1550nm |
| Operating Style | Full duplex communication |
| Output Power | > -5dBm |
| Fiber Type | SM |
| Dynamic Range* | SM fiber: 45dB |
| Dynamic Distance* | SM fiber: > 120 km |

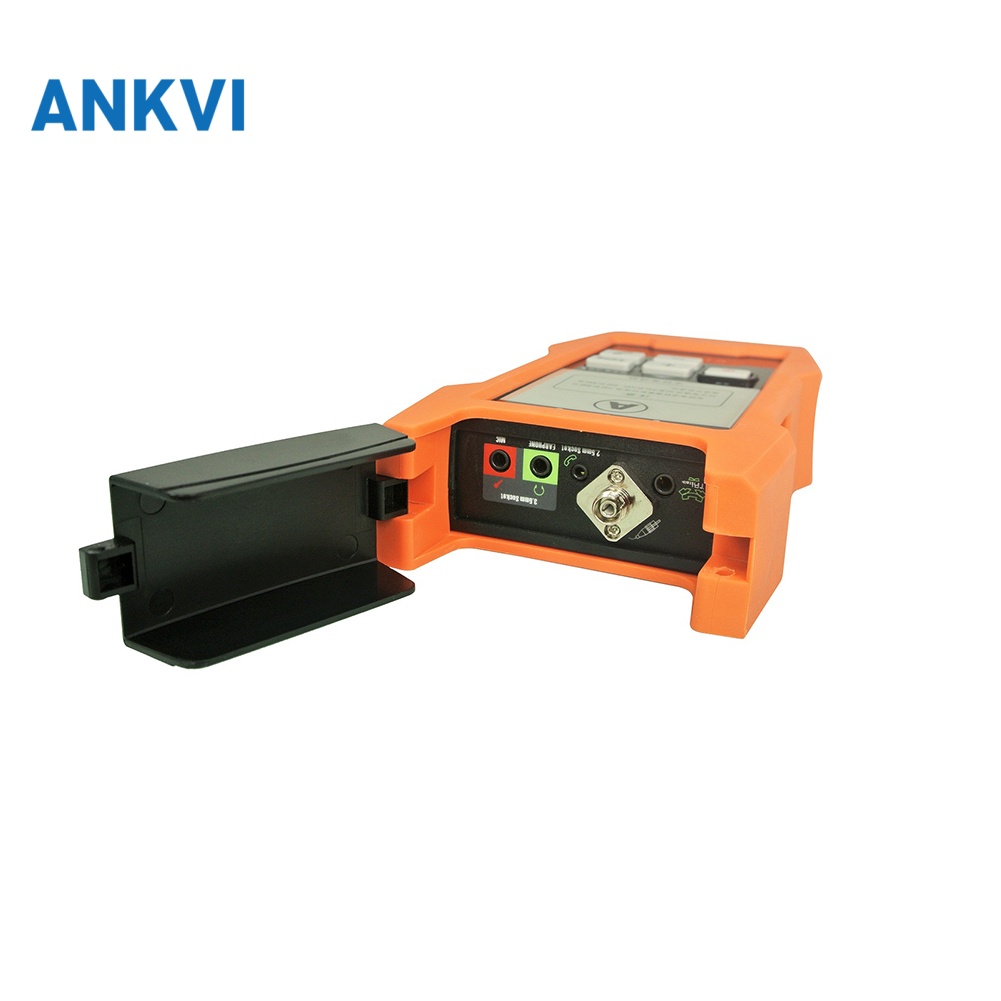

| Connecting Adapter | FC / PC |
| Battery Charge | Optional |
| Operate Time | Above 12 hours |
| Power Supply | 2 * AA batteries or AC/DC adapter |
| Size(H*W*D) | 170mm * 97mm * 38mm |
| Weight | About 380g |
| Storage Temperature | -20 — +60 , < 90%RH |
| Operating Temperature | -10 — +50 , < 90%RH |
Applications
- End-to-end talk during fiber splicing and maintenance
- Optical link commissioning and acceptance testing
- Fiber identification and continuity checking
