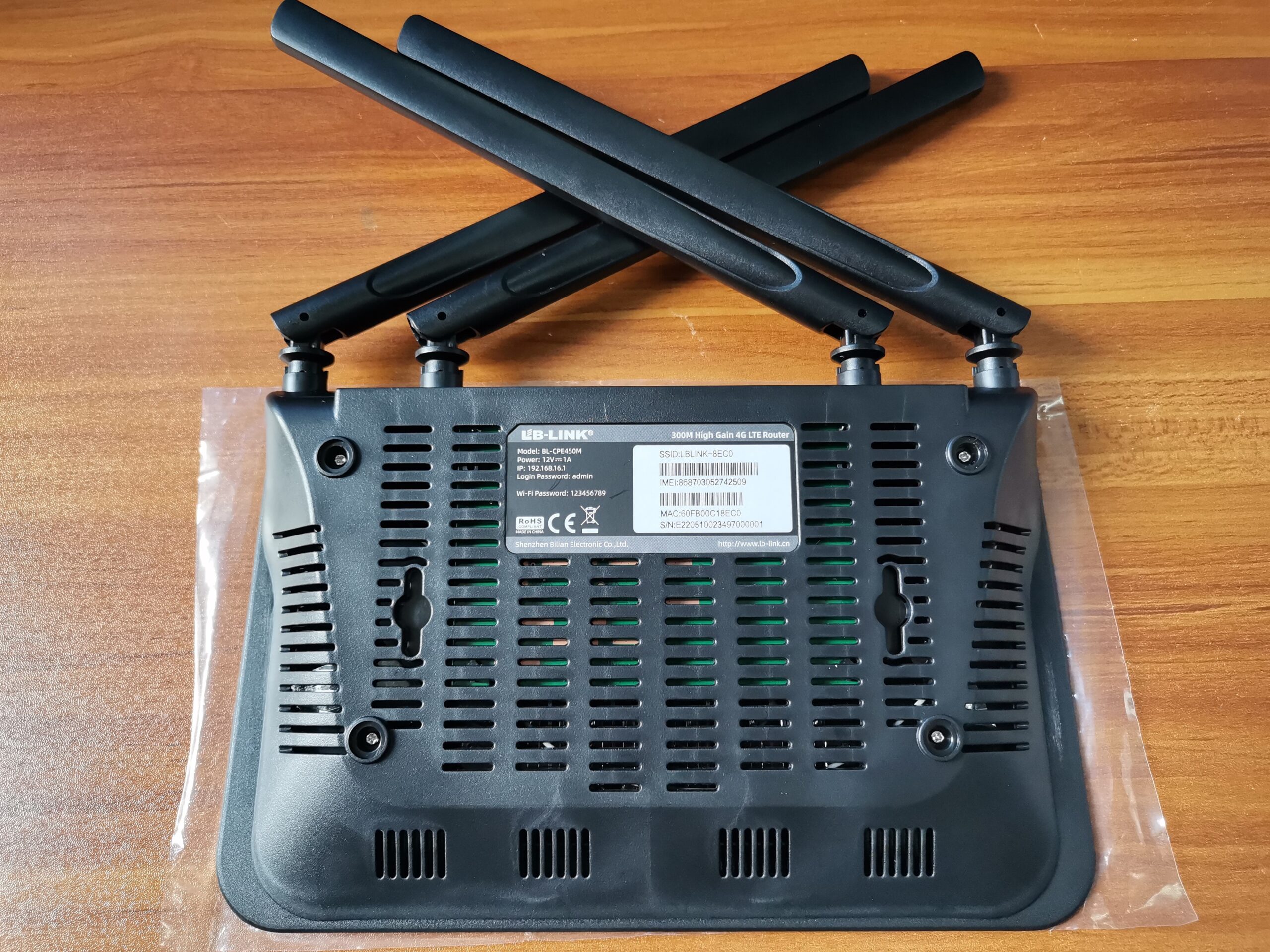

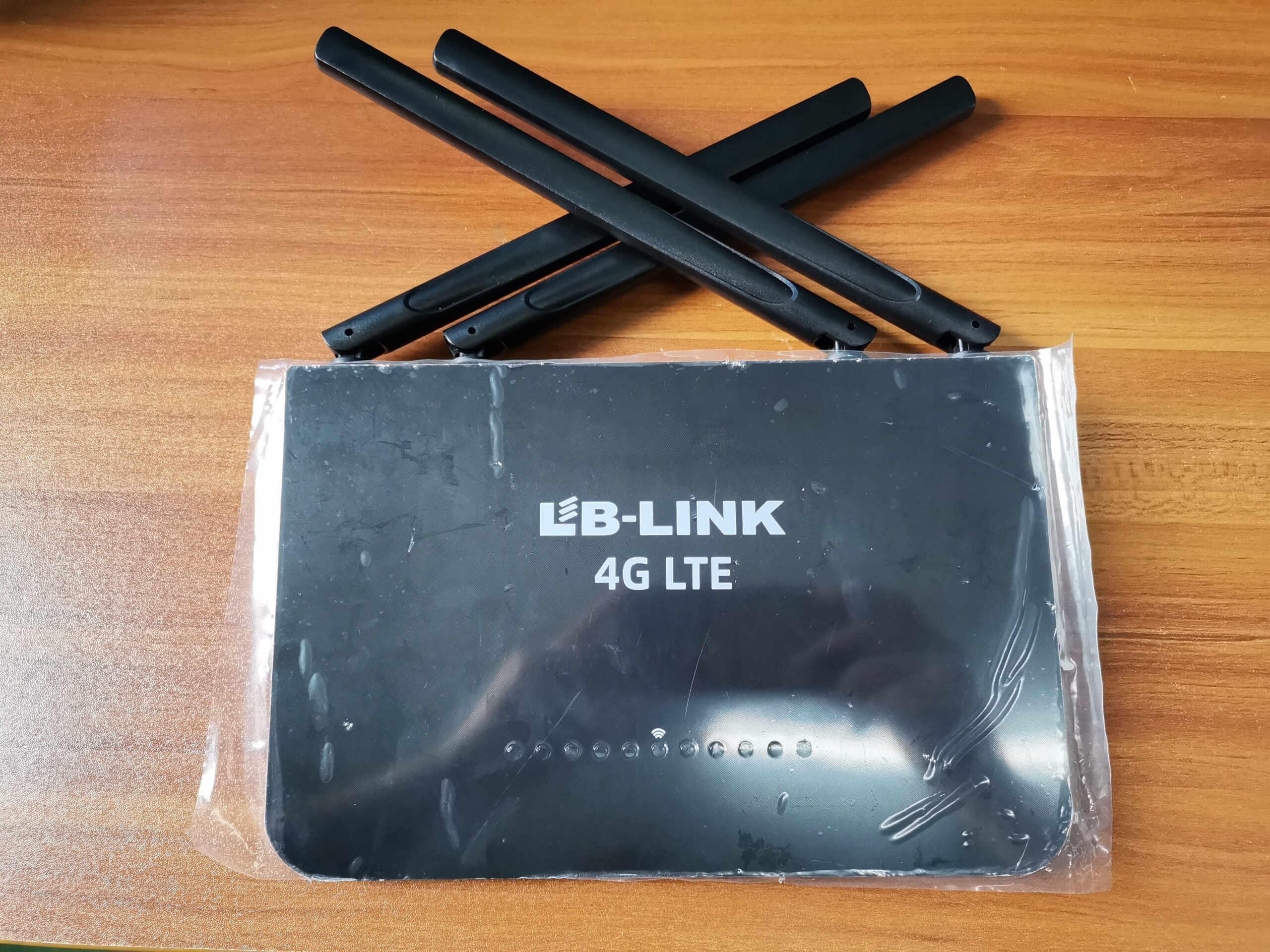

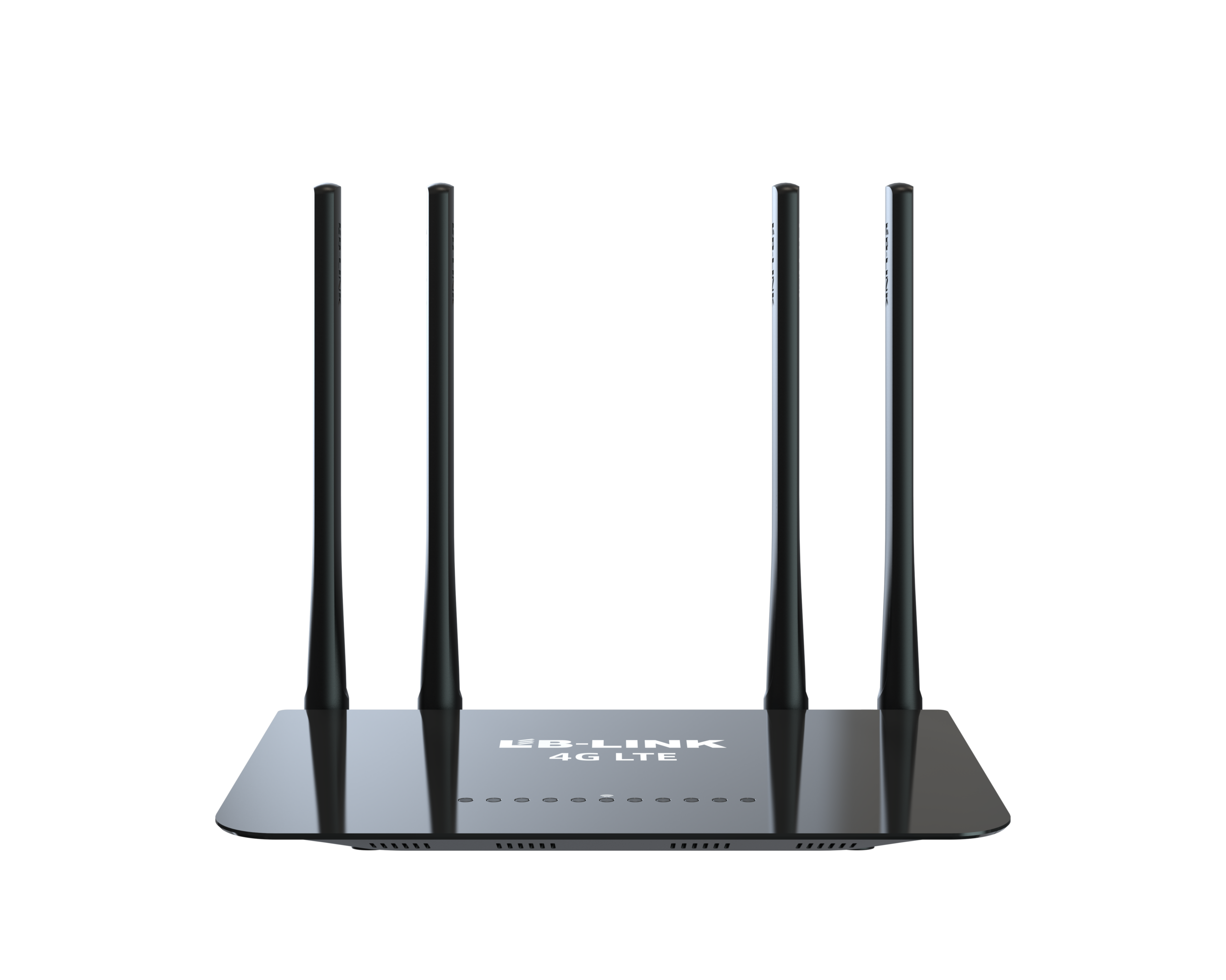

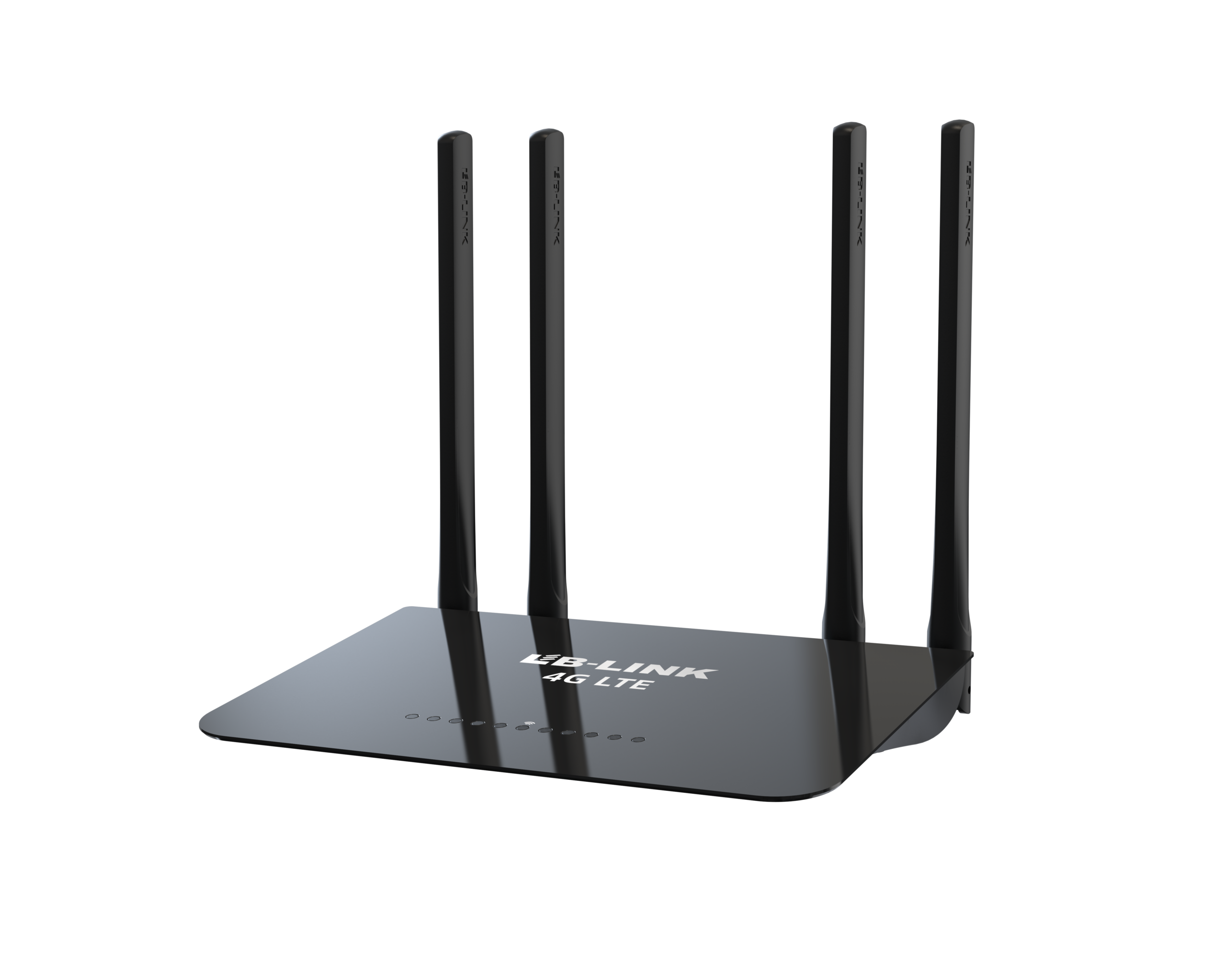

Name: BL-CPE450M 4G LTE CPE Router – 300Mbps WLAN, 4 Antennas – ANKVI
SKU: BL-CPE450M

Description

Overview

The BL-CPE450M is a 4G LTE CPE router that shares a mobile broadband line over 2.4GHz Wi-Fi and wired Ethernet. It runs in router, dual-access 4G plus router, repeater or access point mode.

An LTE CAT4 modem handles the mobile link and the WLAN section uses 2×2 MIMO. The unit is configured from its web page or from the LB-LINK APP.

BL-CPE450M Key Features

Works with a broad range of mobile operators: LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41 and WCDMA B1/B5/B8
Four modes in one device: 4G Router, 4G+Router (Dual-Access), Repeater and AP
4*6dBi high-gain antennas for wider signal coverage
2.4G WLAN up to 300Mbps (MAX) and LTE-FDD downlink up to 150Mbps (MAX)
Supports 32 Wi-Fi devices online at the same time
Web page management with network traffic statistics and multi-layer wireless security
LB-LINK APP remote management

BL-CPE450M Specifications

Parameter	Specification
CPU	MT7628/580MHz
DRAM/FLASH	64MB DDR2/8M SPI

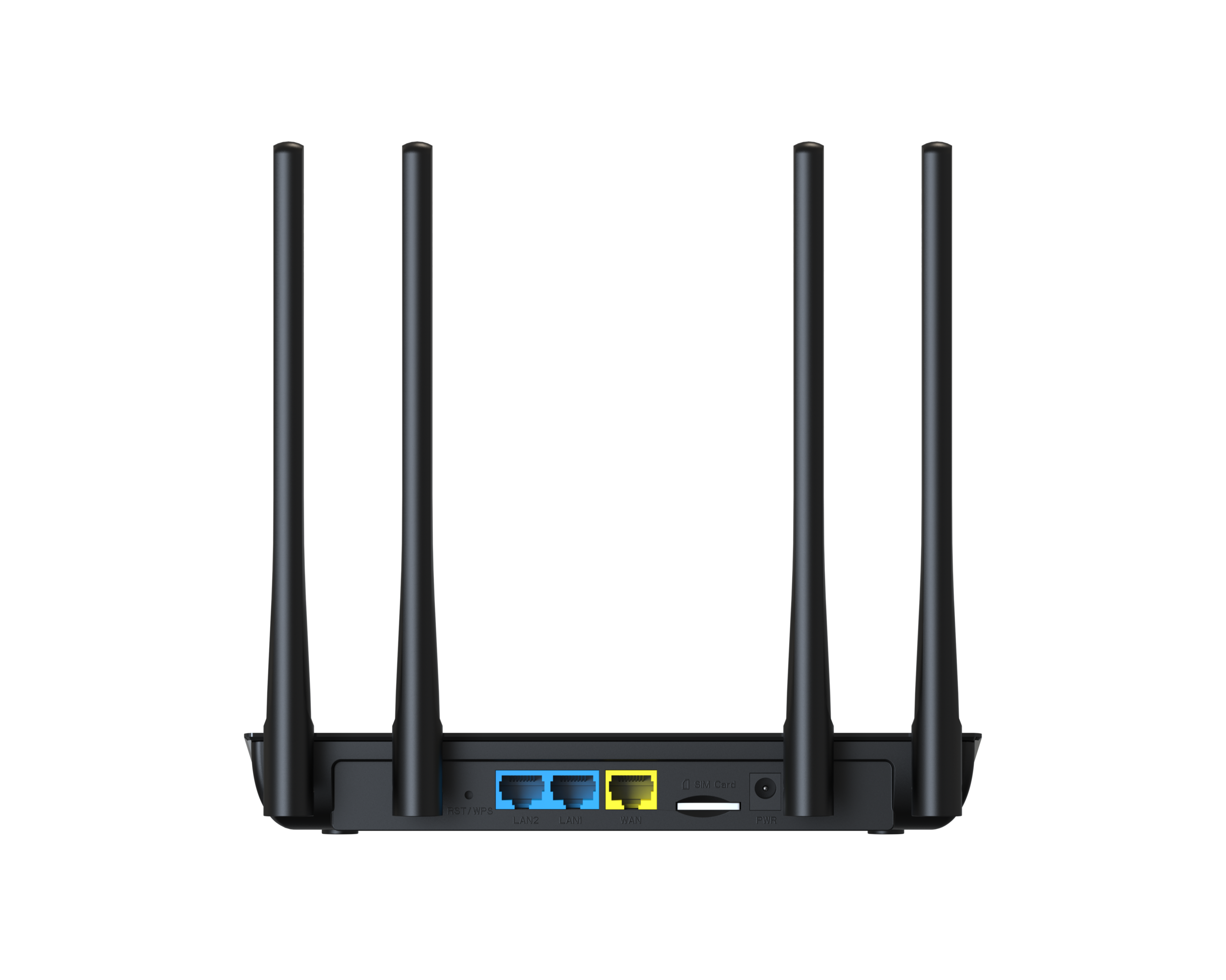

Interface	2x RJ45 10M/100M LAN Ethernet interfaces 1 x RJ45 10M/100M WAN Ethernet interfaces 1 x Reset 1 x Power jack 12V 1A 1 x SIM（Standard）
Antenna	2.4G（802.11N）：2T2R 4G ：2T2R
Gain	2.4G ：5dBi 4G：1-4Dbi
Range	2.4-2.4835GHZ
LED	SYS
Transmit Power	11b：1/2/5.5/11Mbps 11g：6/9/12/18/24/36/48/54Mbps 11n： 300Mbps （MAX）
Spread-spectrum technique	DSSS
Data Encryption	WPA-PSK、WPA2-PSK、WPA/WPA2-PSK
Modulation type	11b：CCK、QPSK、BPSK 11g：OFDM 11n：QPSK，BPSK，16-QAM，64-QAM
Media access protocol	CAMA/CA with ACK
RF Power	11b：18±1.5dBm@1-11Mbps 11g：16±1.5dBm@6-54Mbps 11n：15±1.5dBm@6-54Mbps
Receiver Sensitivity	11b:-95dBm@1Mbps,-89dbm@11Mbps, 11g: -92dBm@6Mbps,-72dbm@54Mbps, 11n: -85dBm@MCS0,,-70dbm@MCS7, -86dBm@MCS8,-68dbm@MCS15,,
4G Modulation type /GNSS	LTE CAT4（compatible with LCC/PCIE/M2 package）
GNSS function	GPS、GLONASS、BeiDou/Compass、Galileo、QZSS
4G module RF Power	Class 4 (33dBm±2dB) for GSM850 Class 4 (33dBm±2dB) for EGSM900 Class 1 (30dBm±2dB) for DCS1800 Class 1 (30dBm±2dB) for PCS1900 Class E2 (27dBm±3dB) for GSM850 8-PSK Class E2 (27dBm±3dB) for EGSM900 8-PSK Class E2 (26dBm±3dB) for DCS1800 8-PSK Class E2 (26dBm±3dB) for PCS1900 8-PSK Class 3 (24dBm+1/-3dB) for WCDMA bands Class 3 (23dBm±2dB) for LTE-FDD bands
LTE Character	Support 3GPP R8 non-CA cat 4 FDD Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO LTD-FDD： DL 150Mbps（MAX） UL 50Mbps（MAX）
TD-SCDMA Character	Support CCSA Release 3 TD-SCDMA DL（MAX） 4.2Mbps UL（MAX）2.2Mbps
Software function	Access mode: Router mode, AP mode, Repeater Mode, 4G mode Basic setting: WAN setting, LAN setting, Mac clone, DNS, 2.4GWIFI setting, 2.4G guest network setting, 2.4G channel setting, 2.4G signal strength setting, 2.4G channel optimization Advance setting: Black list setting, Bonding list, Children protectionlist, Web blacklist, Modify administrator password, QoS, Static bonding, Forbidden connection, Restore to default setting, Restart router, Firmware upgrade local/online More functional: Network speed testing, L2TP client, PPTP client, UPNP, DMZ, Remote web management, Port forwarding, Virtual server

Applications

Home and small-office internet sharing where fixed broadband is unavailable
Wired plus 4G dual-access backup for shops and branch offices
Extending an existing network in AP or repeater mode
Sharing one mobile connection with phones, laptops and tablets
