DCI3100 16x100GE 1RU DCI WDM System – 16x QSFP28 Ports

Description

Overview

The DCI3100 16x100GE is an integrated wavelength division equipment developed for data centre interconnect (DCI) scenarios, based on wavelength division multiplexing technology. It is built in a simple box-type form only 1U high, and it can be stacked, which saves room space and allows flexible migration.

A single 1RU unit supports a maximum transmission capacity of 1.6T (16 x 100G) and offers 16 QSFP28 optical ports, each running at up to 100Gbit/s. Transmission capacity is extended to 1 fibre 3.2T by stacking two 1RU units. The product family is used to build networks in batches at 400G, 800G, 1.2T and 1.6T capacity, eliminating complex optical layer configuration and reducing redundant fibre connections.

The equipment has no complex optoelectronic crossing and transmits services transparently, with complete physical quarantine of the service ports. Networking is simple and does not change the original network topology; the model is selected according to attenuation or the number of kilometres. The optical cable side supports 1+1 line protection with automatic route selection, and an in-band monitoring channel lets whole-network SNMP management run over the optical path. Delivery is one box per site, power-on and plug-and-play, with no fibre skipping and no manual intervention.

DCI3100 16x100GE Key Features

• 1RU 1.6Tbps (16 x 100G) maximum transmission capacity from a single unit
• 16 QSFP28 optical ports at up to 100Gbit/s each
• Stacking two 1RU units extends a single fibre to 3.2Tbps
• Simple box-type 1U design that can be stacked, saving equipment room space and allowing flexible migration
• Mixed transmission of multiple services including 100GE, with service interfaces and quantities flexibly customised by the customer
• No complex optoelectronic crossing, transparent service transmission and complete physical quarantine of the service ports

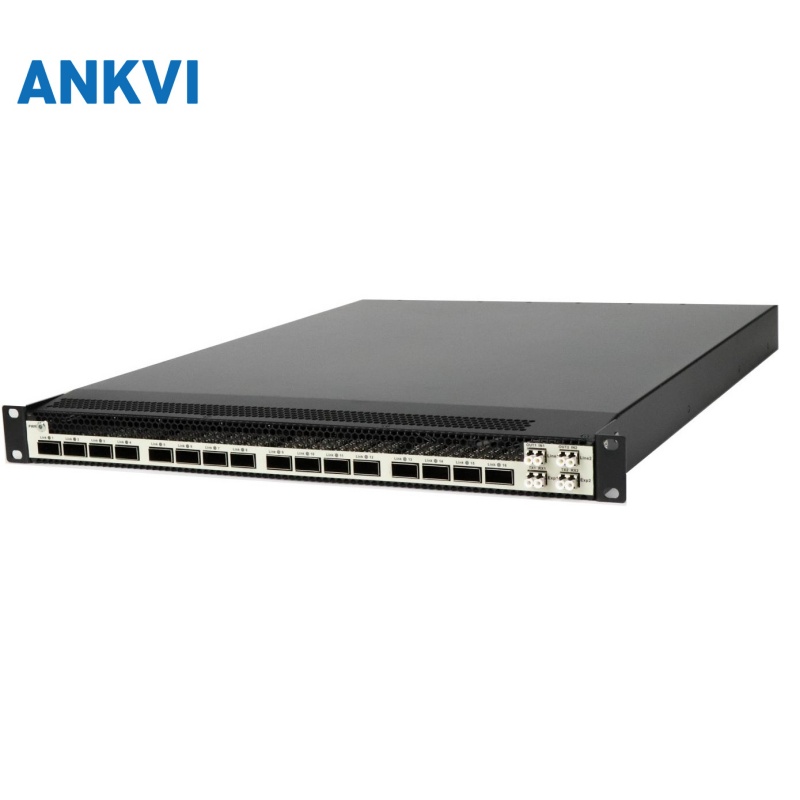

• Front panel carries Link1 to Link16 client optical interfaces, IN1/OUT1 primary route ports and IN2/OUT2 backup route ports
• Supports 1+1 line protection at the optical cable side with automatic route selection
• In-band monitoring channel for whole-network SNMP management over the optical path

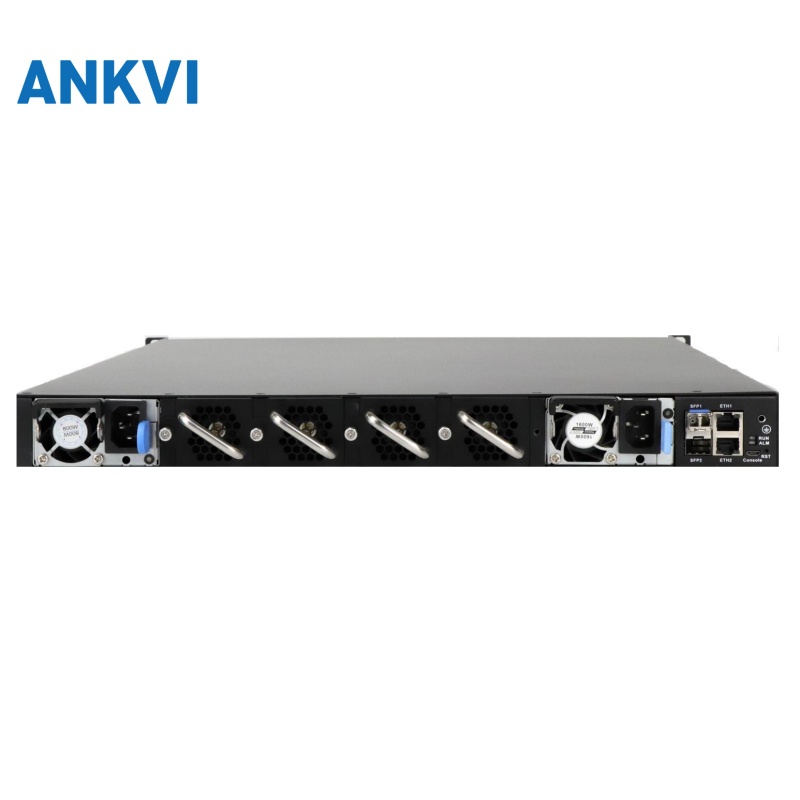

• Front air intake and rear air outlet, AC power supply, sized to fit data centre server racks with dual hot-plug server power supplies in Load Share 1+1 hot backup

DCI3100 16x100GE Specifications

Technical Specifications

Deployment Scenarios

• Data centre interconnect between sites that need high-capacity transmission from a single 1RU box
• Metropolitan or inter-building links that stack two 1RU units to reach 3.2T per fibre
• Sites that mix 100GE and other services on one box without changing the existing network topology
• Deployments that require line side 1+1 protection with automatic route selection and in-band SNMP monitoring
• One-box site delivery where plug-and-play installation in a 19-inch server cabinet is required
• Equipment rooms where front air intake and rear air outlet match the data centre cooling layout
