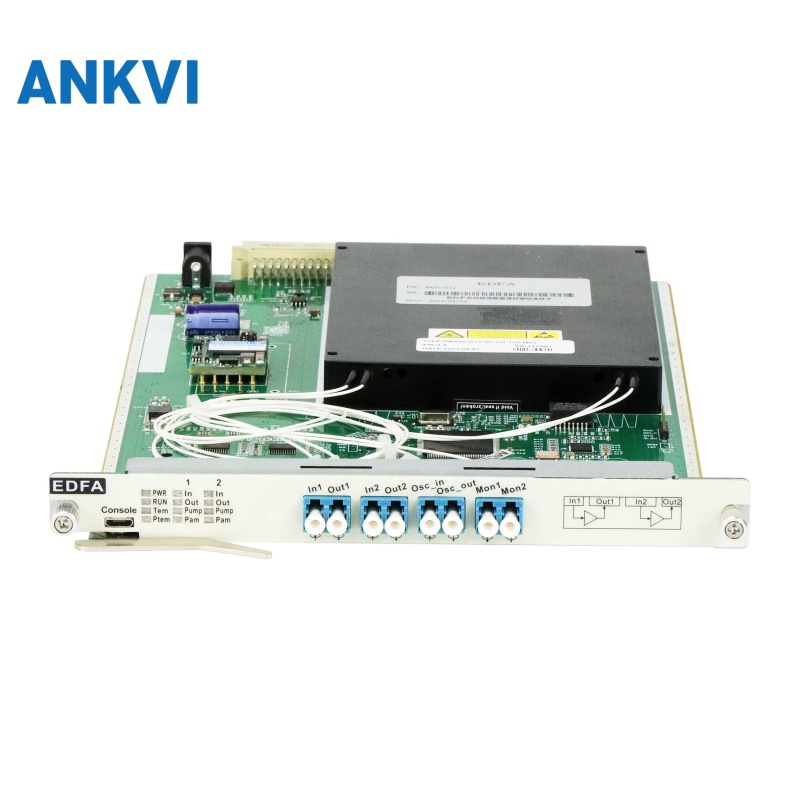

EDFA Erbium-Doped Fiber Amp Card – 48ch C-Band
A C-band erbium-doped fiber amplifier card that boosts up to 48 DWDM channels at 100 GHz or 96 at 50 GHz, with flat gain, low noise and one-slot 0.5RU mounting.
Description
Overview
The EDFA is an erbium-doped fiber amplification card. Its main function is to compensate the power of the signal light in the transmission link, and it can amplify the optical signals of up to 48 channels (channel interval of 100 GHz) or 96 channels (channel interval of 50 GHz) at C band at the same time.
It has the characters of flat gain, locked gain and low noise figure, and is an indispensably important component for DWDM systems, future high-speed systems and all-optical network long-distance transmission.
Four amplifier types are available — OBA, OLA, OPA and R/B-EDFA — each with its own minimum input power, maximum output power and maximum gain, so the card can be matched to booster, line, pre-amplifier or remote-pumped positions.
EDFA Key Features
- Four EDFA types in one card family — OBA, OLA, OPA and R/B-EDFA
- Amplifies up to 48 channels at 100 GHz spacing or 96 channels at 50 GHz spacing in the C band
- Standard working wavelength range 1529nm~1561nm, extension type 1528nm~1568nm
- Flat gain and low noise figure — noise factor below 5.5dB and gain flatness below 1.5dB
- Maximum gain of 12dB for OBA or 25dB for OLA, OPA and R/B-EDFA
- Optional built-in dual pump for signal secondary amplification
- Gain locking and transient control technology plus automatic shut-off of the output optical power
- Real-time monitoring of optical power, optical pumping and temperature
- Pump shutdown threshold and automatic recovery time can be set
- LC/UPC optical interface, one 0.5RU slot in OSP3800 series chassis, 30W maximum power consumption
EDFA Specifications
Technical Specifications
| Function | Description |
|---|---|
| Working wavelength range | Standard type: 1529nm~1561nm, for 40 wavelength (100 GHz) or 80 wavelength (50 GHz) DWDM systems Extension type: 1528nm~1568nm, for 48 wavelength (100 GHz) or 96 wavelength (50 GHz) DWDM systems |
| EDFA type | OBA, OLA, OPA and R/B-EDFA |
| Min input optical power | OBA -22dBm OLA -30dBm OPA -32dBm R/B-EDFA -30dBm |
| Max output power | OBA +20dBm OLA +20dBm OPA +16dBm R/B-EDFA +20dBm |
| Max gain | OBA 12dB OLA 25dB OPA 25dB R/B-EDFA 25dB |
| Noise factor | <5.5dB |
| Gain flatness | <1.5dB |
| Secondary amplification | Support built-in dual pump (optional) for signal secondary amplification |
| Unique technology | Support gain locking technology, transient control technology and automatic shut-off technology of output optical power |
| Network management function | Support real time monitoring for EDFA port working state, including optical power, optical pumping and temperature Support pump shutdown threshold and automatic recovery time setting function |
| Occupied slot number | Support OSP3800 series chassis, occupy 1 slot (0.5RU) |
| Optical interface | LC/UPC |
| Max power consumption | 30W |
| MTBF | >100000 hours |
Deployment Scenarios
- Boosting the transmit power of a C-band DWDM link at the head-end
- Compensating span loss in long-distance and all-optical network transmission
- Pre-amplifying weak signals ahead of the receiving terminal
- Remote-pumped or bidirectional amplification positions that need R/B-EDFA
- Links that must keep flat gain across 48 channels at 100 GHz or 96 channels at 50 GHz
