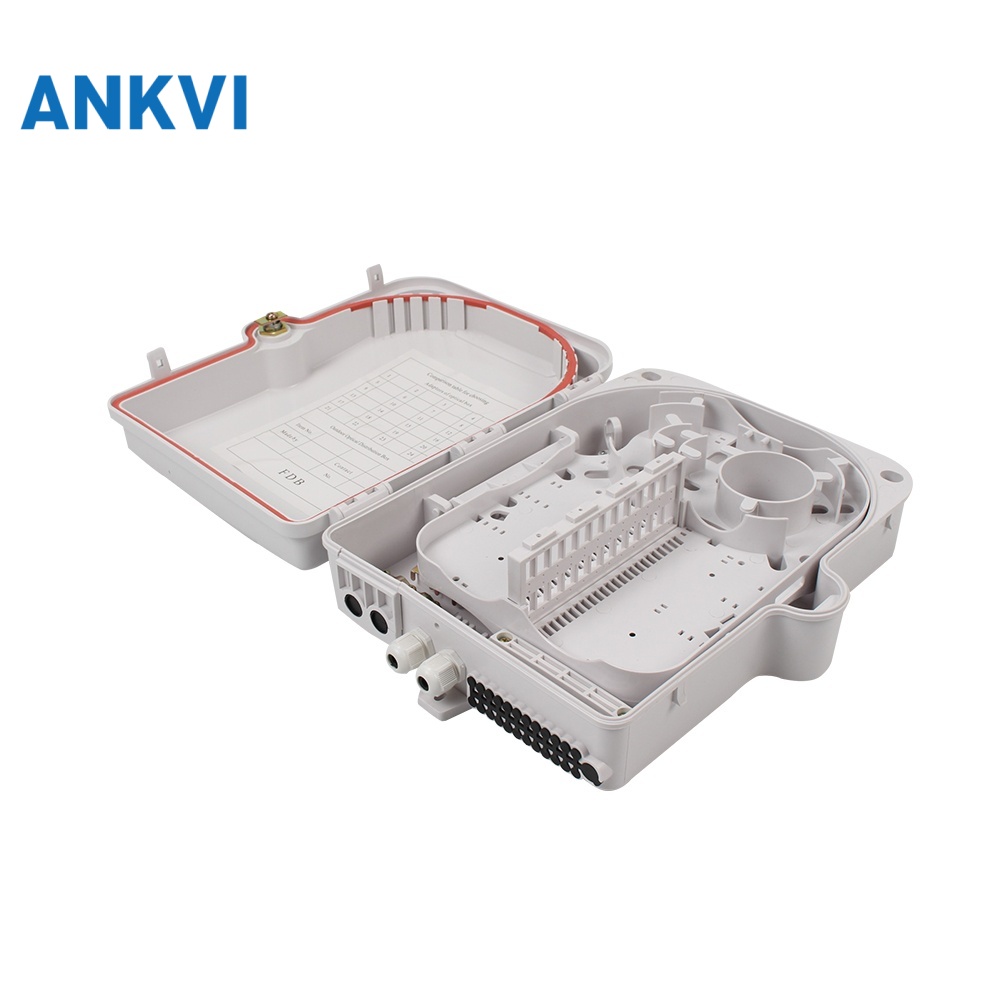

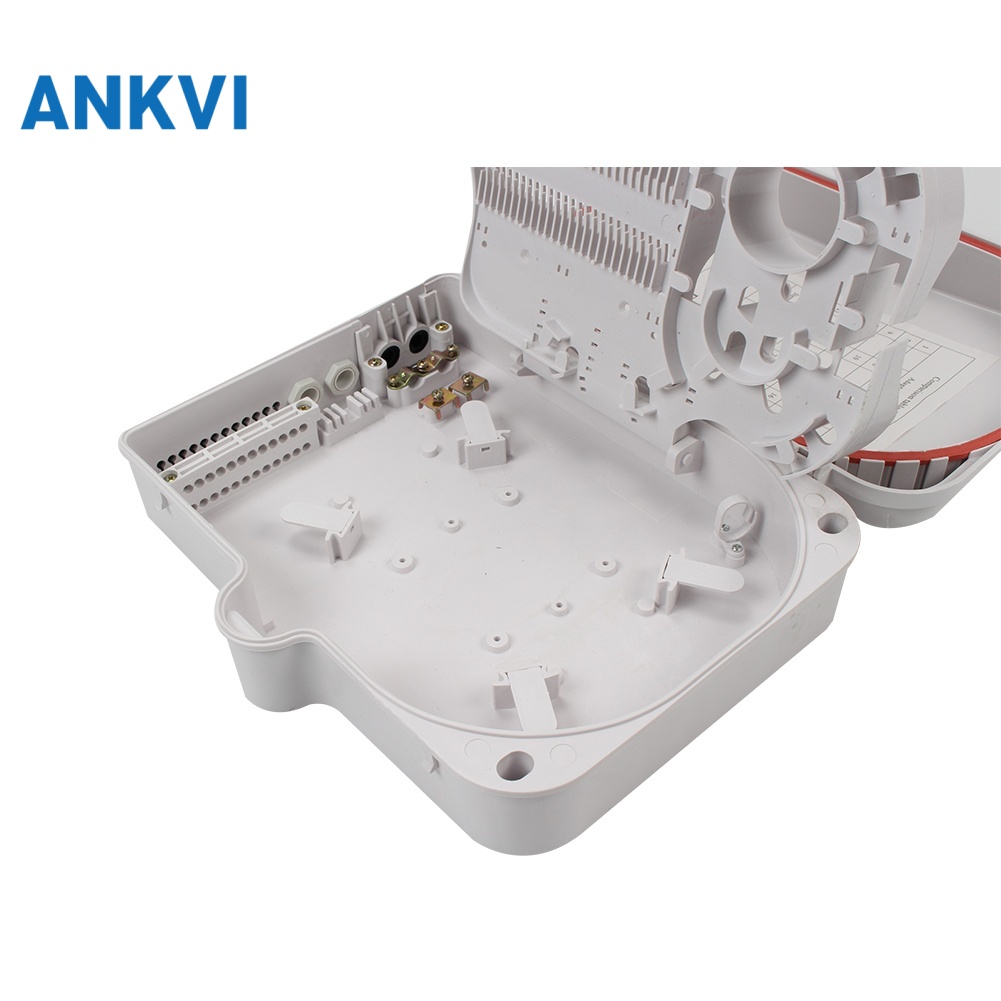

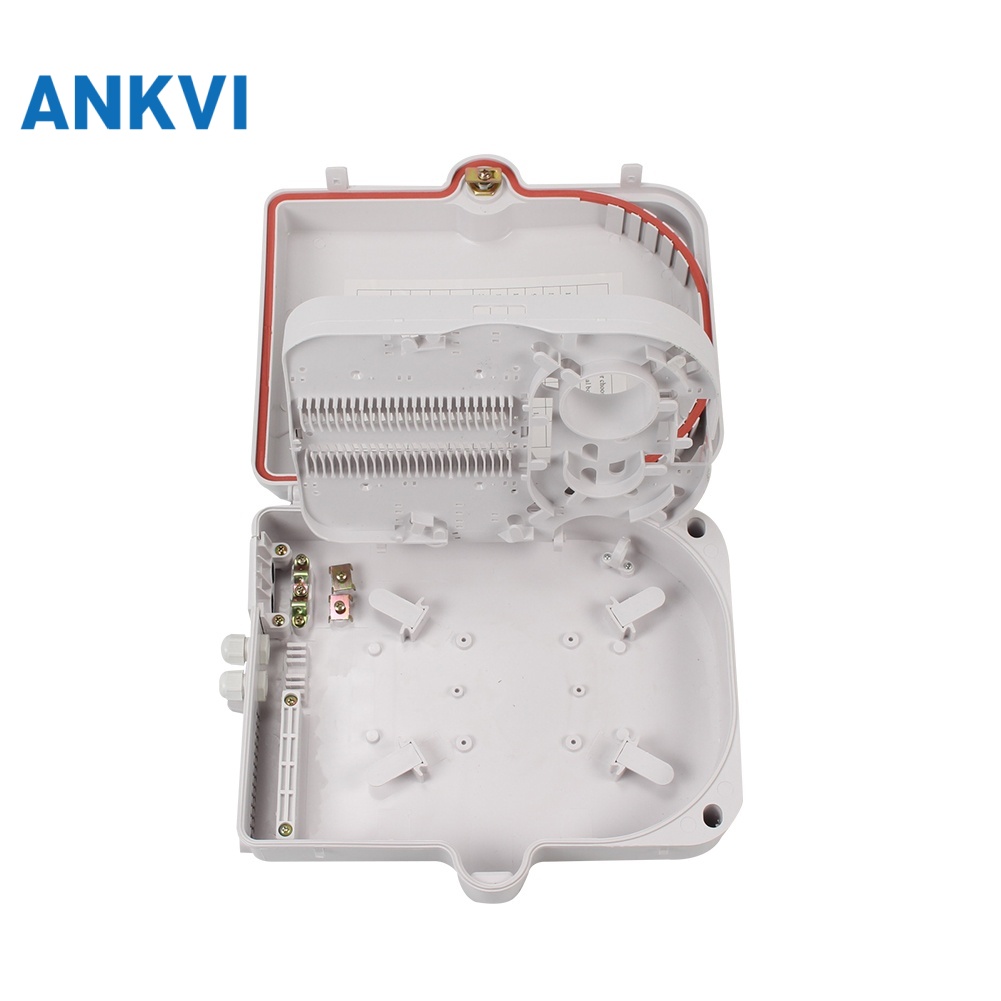

FQX.002 Fiber Optic Distribution Box – 24 Port, IP65

Description

Overview

This distribution box can realize the functions of fiber fusion, distribution and scheduling in the FTTH system. This fiber box is made of new ABS material, and its shell is strong and durable.

The IP65 protection rating allows it to be installed and used outdoors. Internally, this kind of FDB can also be fitted with a variety of stents to install adapters, mini steel splitters or cassette splitters.

FQX.002 Key Features

• 24-port fiber optic distribution box for FTTH fusion, distribution and scheduling
• New ABS housing with a strong and durable shell
• IP65 protection rating for outdoor installation and use
• Accommodates up to 24 SC, FC, LC or E2K adapters
• Fits one 1×16 splitter or two 1×8 splitters

FQX.002 Specifications

Product Specifications

Installation and Accessories

• Wall-mount: drill 4 holes over the wall to match the box, insert the expansion bolts and fasten with the screws; the wall-mount kit includes 4 plastic ties, 4 screws, 4 plastic expansion bolts and 1 galvanized iron key.
• Pole-mount: fit the easy pole ring to the telecom pole; the pole-mount kit includes 4 plastic ties, 4 screws, 4 plastic expansion bolts, 2 hoops, 2 backboards and 1 galvanized iron key.
• Heat shrink tubing is supplied with both mounting options and matches the splice closure cores.
• Configuration can be customized as required.

Applications

• FTTH access networks that need fibre fusion, distribution and scheduling in one box
• Outdoor wall-mounted installations
• Pole-mounted installations on telecom poles
• Deployments mixing SC, FC, LC or E2K adapters with 1×16 or 1×8 splitters
