FQX.011 Fiber Optic Distribution Box 16 Ports – ABS, IP65

Description

Overview

This distribution box can realize the functions of fiber fusion, distribution and scheduling in the FTTH system.

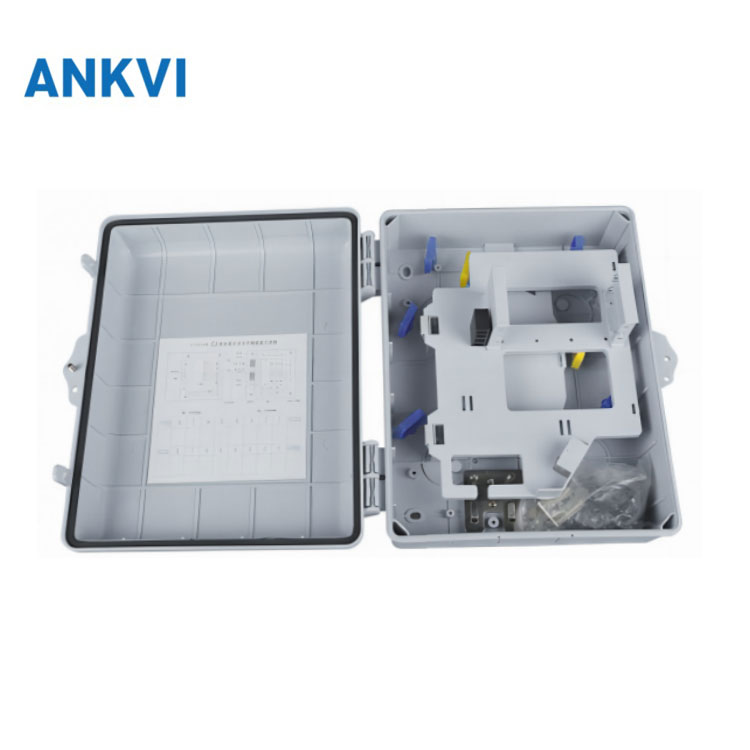

This fiber box made of new ABS material, and its shell is strong and durable. IP65 protection allows it to be installed and used outdoors, and internally it can be fitted with a variety of stents to install adapters, mini steel splitter or cassette splitter.

FQX.011 Key Features

• New ABS shell that is strong, durable and rated IP65 for outdoor use
• Accommodates up to 16 SC, FC, LC or E2K adapters
• Takes one 1×16 splitter or two 1×8 splitters
• 2IN-2OUT cable inlet and outlet layout for FTTH distribution
• Working range -30deg.C~80deg.C and packed at 10sets/carton

FQX.011 Specifications

Product Specifications

Installation and Accessories

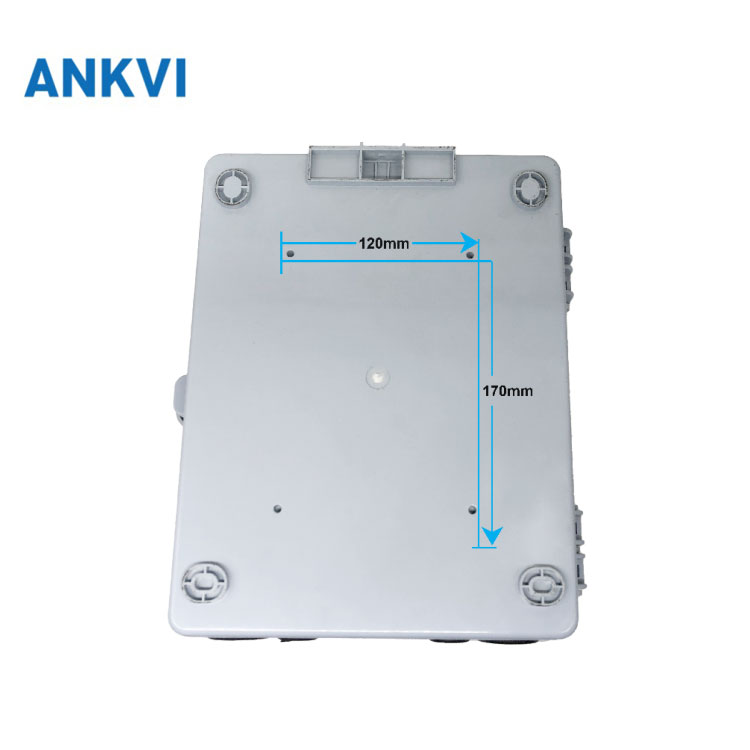

• Wall-mount: drill 4 holes over the wall based on the size, place the expansion bolts, place the box to match up the holes and use bolts to fasten; supplied with heat shrink tubing (same as splice Closure Cores), 8 plastic ties, 4 screws, 4 plastic expansion bolts, 1 galvanized iron key, 4 throat hoops and 4 rubber plugs.
• Pole-mount: set the easy pole ring to the telecom pole; supplied with heat shrink tubing (same as splice Closure Cores), 8 plastic ties, 4 screws, 4 plastic expansion bolts, 1 galvanized iron key, 4 throat hoops, 4 rubber plugs, 2 hoops and 2 backboards.

Applications

• FTTH fiber fusion, distribution and scheduling
• Outdoor wall or pole subscriber drop connections
• Access networks serving up to 16 subscribers from one enclosure
