Name: GYXTW Outdoor Armoured Cable – 2-12F, 8.0 mm – ANKVI
SKU: GYXTW

Description

Overview

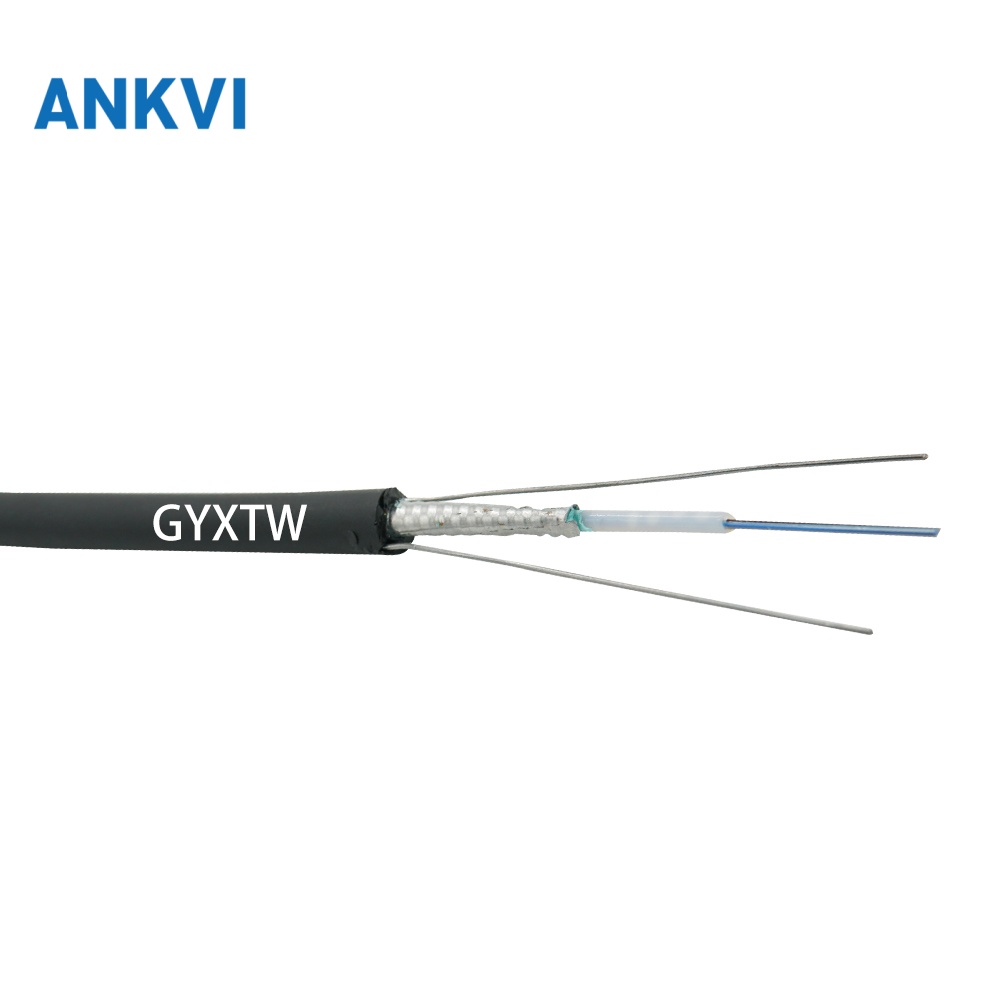

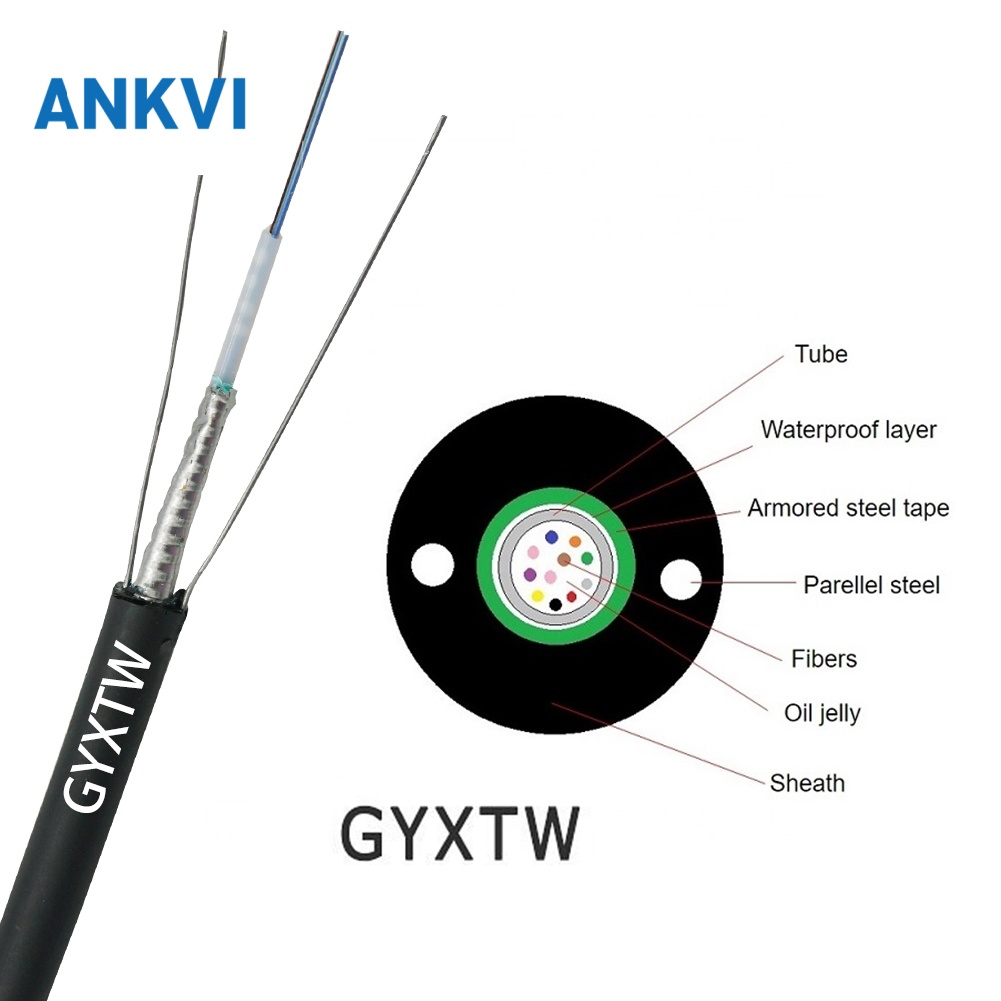

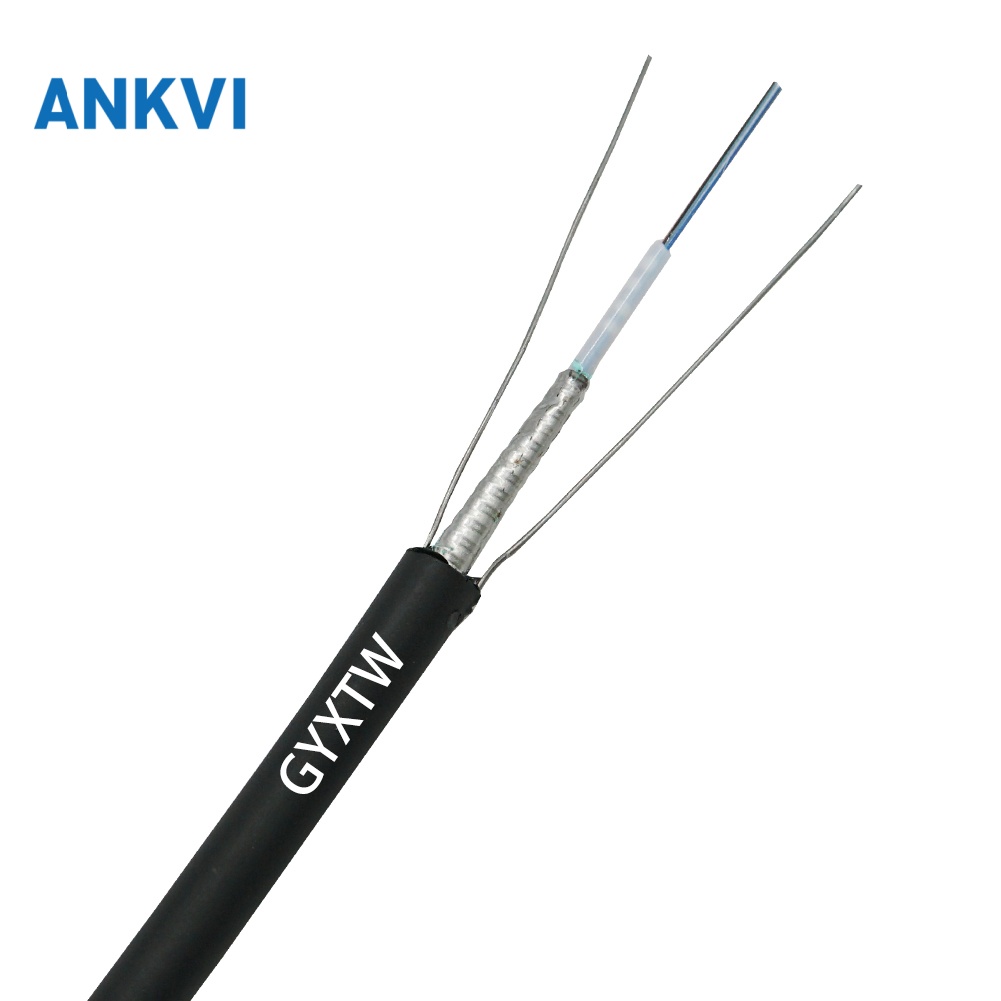

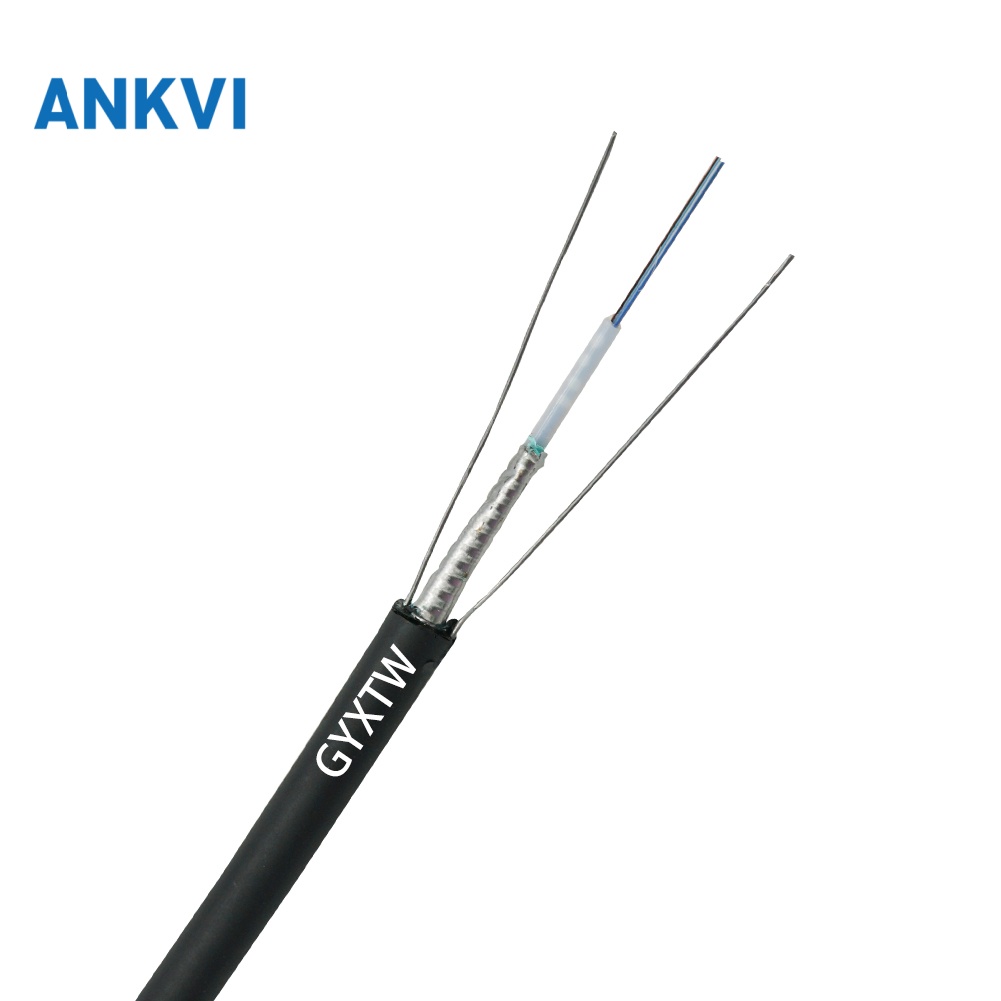

The GYXTW is an outdoor armoured optical fibre cable for aerial and ducted routes. A single central PBT loose tube carries 2 to 12 G.652D fibres, surrounded by corrugated steel tape and two parallel steel strength members.

The round profile is finished with a black PE sheath measuring 8.0±0.1mm and 2.0MM thick, for a cable weight of 60±10kg/km.

GYXTW Key Features

2 to 12 G.652D fibres in one central PBT loose tube, up to 12 fibres per tube
Corrugated steel tape armouring with a 0.22mm thickness
Two parallel steel strength members of 0.7mm x2
Black PE outer sheath, 8.0±0.1mm outer diameter and 2.0MM thickness
Attenuation of ≤0.36 dB/km at 1310 nm and ≤0.22 dB/km at 1550 nm

GYXTW Specifications

Fiber Parameters

Parameter	Specification
Standard	G.652D
Mode Field Diameter (1310 nm)	9.2±0.4 μm
Mode Field Diameter (1550 nm)	10.4±0.5 μm
Cladding Diameter	124.8±0.7 μm
Cladding Non-Circularity	≤0.7 %
Core-Cladding Concentricity Error	≤0.5 μm
Coating Diameter	245±5 μm
Coating Non-Circularity	≤6.0 %
Cladding-Coating Concentricity Error	≤12.0 μm
Cable Cutoff Wavelength	λcc≤1260 nm
Attenuation (max.) at 1310 nm	≤0.36 dB/km
Attenuation (max.) at 1550 nm	≤0.22 dB/km

Mechanical and Environmental Characteristics

Parameter	Specification
Weight	60±10 kg/km
Max. Tensile (Long Term)	1000 N
Max. Tensile (Short Term)	2000 N
Crush (Long Term)	1000 N
Crush (Short Term)	2000 N
Wind speed	25 Meters per second
Min. Bend Radius (Dynamic)	25D mm
Min. Bend Radius (Static)	10D mm
Installation Temperature	-20~+60 ℃
Operating Temperature	-40~+70 ℃
Storage Temperature	-40~+70 ℃

Cable Parameters

Parameter	Specification
Fiber No.	2-12
Loose Tube – Dimension	2.1mm±0.05mm
Loose Tube – Material	PBT
Loose Tube – Tube No.	1
Loose Tube – Fibers per Tube	12
Armoured steel tape – Material	Corrugated steel tape
Armoured steel tape – Thickness	0.22mm
Parellel 2 steels – OD.	0.7mm x2
Parellel 2 steels – Material	Steels
Outer Sheath – OD.	8.0±0.1mm
Outer Sheath – Thickness	2.0MM
Outer Sheath – Material	PE
Outer Sheath – Color	Black

Applications

Aerial and ducted outdoor routes that need a compact armoured cable
FTTH feeder and distribution links needing 2 to 12 fibres
Overhead spans exposed to wind speeds up to 25 Meters per second
Backbone connections between cabinets, poles and access points

Packing & Shipping

Clients often worry about transit damage?

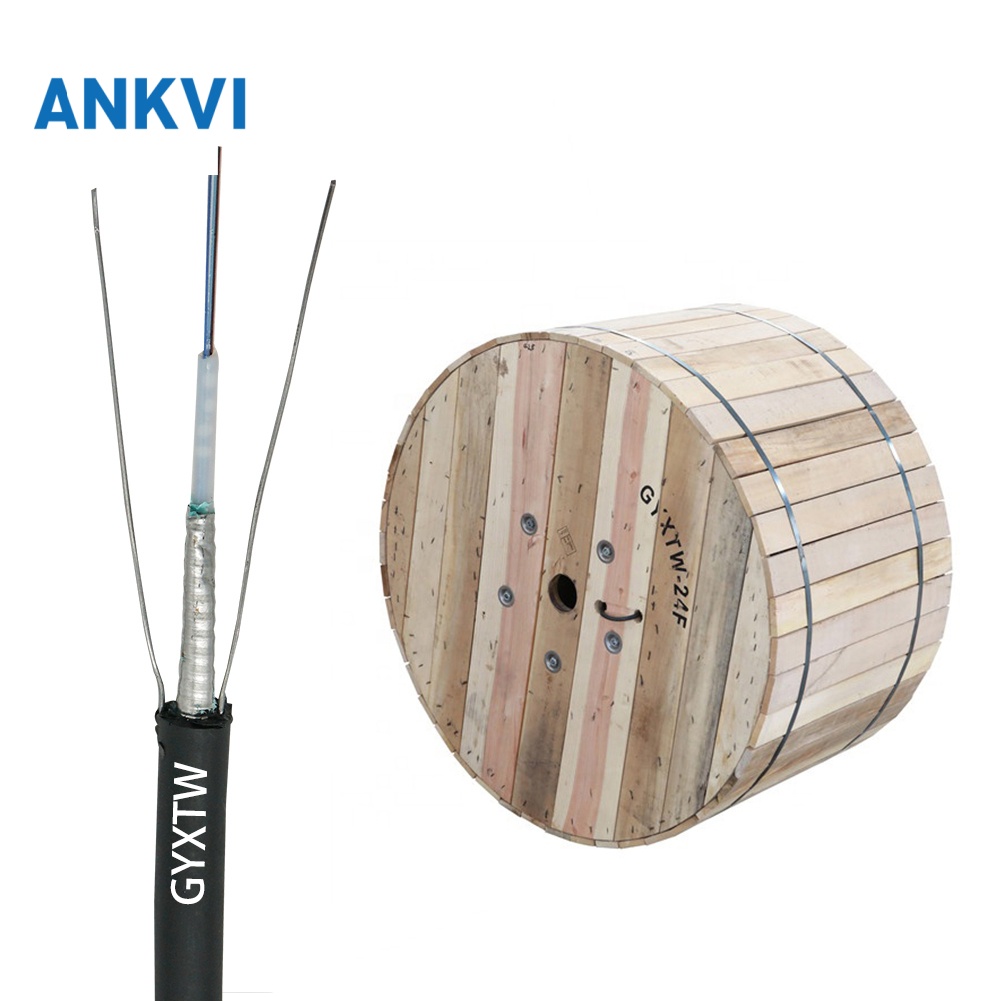

Our sturdy packaging puts those fears to rest. For different products we use waterproof film, foam protection, palletizing, wooden frame securing and cable reels. This ensures safe and reliable transport.
