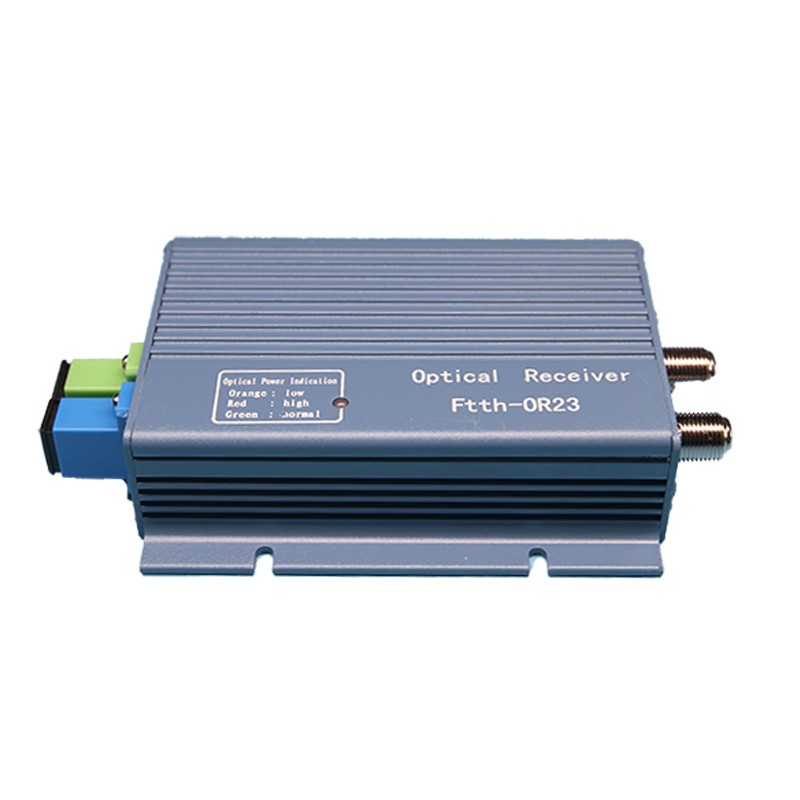

HS-OR23BW FTTB Optical Receiver with WDM, 1310/1490/1550 nm
HS-OR23BW is an FTTB CATV optical receiver with WDM that supports 1310/1490/1550 nm and 47~1002 MHz bandwidth with AGC over +2~-15 dBm.
Description
Overview
The HS-OR23BW is an FTTB optical receiver with a built-in WDM module, designed for CATV FTTH networks with AGC optical constant level output.

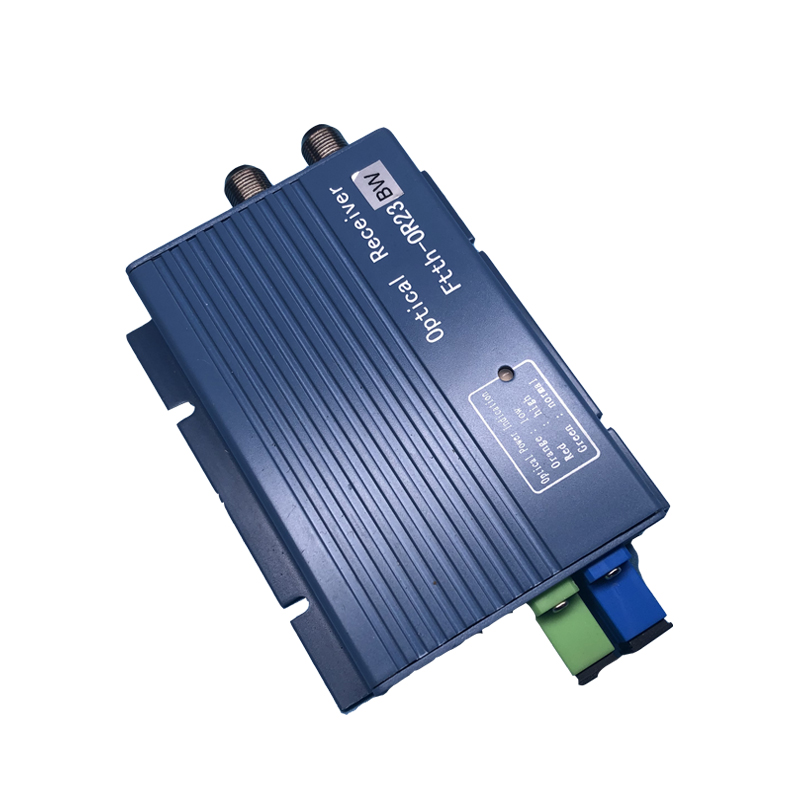

Its brushed aluminium alloy shell, GaAs RF amplifying module and external modular power supply make FTTH CATV network construction straightforward.
HS-OR23BW Key Features
- Brushed aluminium shell with good heat dispersion
- GaAs module as RF amplifying module with 47~1002 MHz bandwidth

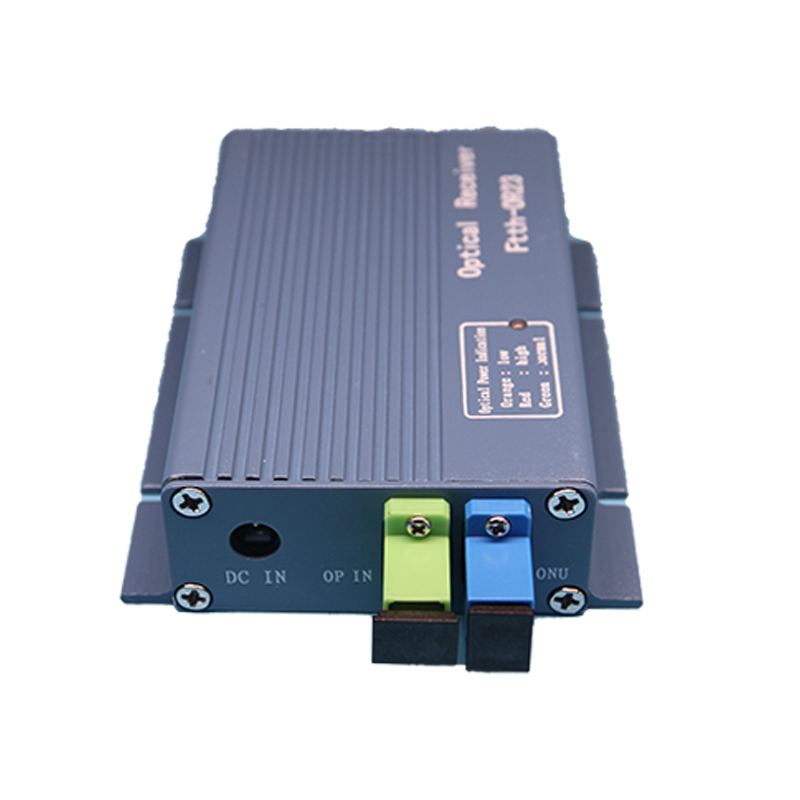

- WDM wavelength support for 1310/1490/1550 EPON GPON and 1270/1310/1490/1550/1577 XGSPON

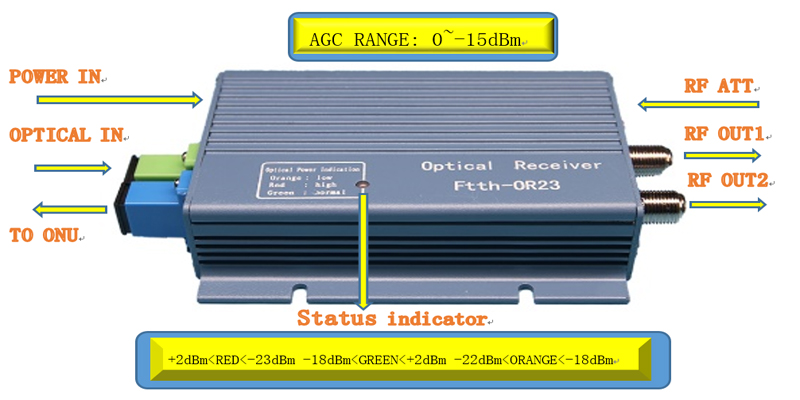

- AGC control range +2~-15 dBm keeps the output level unchanged
- Low consumption design with a high reliable switching power supply and optical inspection circuit

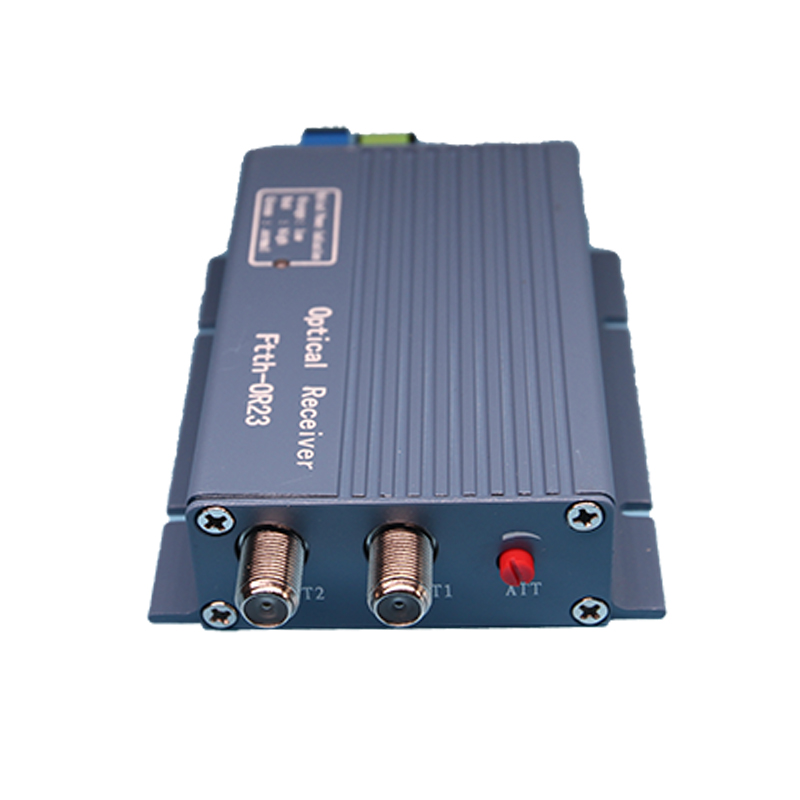

- RF output level ≥100 dBuv with a 5VDC input port feeding way of power supply
HS-OR23BW Specifications
Specifications
| Parameter | Specification |
|---|---|
| Model | OR23BW |
| Optical wavelength (nm) | 1310/1490/1550 (EPON GPON); 1270/1310/1490/1550/1577 (XGSPON) |
| Optical input range (dBm) | +2~ -15 (Analog TV); +2~ -23 (Digital TV) |
| Output return loss (dB) | ≥45 |
| Bandwidth (MHz) | 47~1002 |
| Flatness (dB) | ±0.75 |
| RF output level * (dBuv) | ≥100 (Pin:-15~+0dBm) |
| AGC control range (dBm) | +2~-15 |
| AGC character (dB) | ≤±0.5 (Pin:-10~+0dBm) |
| Output return loss (dB) | ≥14 (47-1000MHz) |
| Output impendance (Ω) | 75 |
| Gain adjustable rang (db) | 0~20 |
| MER (dB) | >36 (Pin:-15~+0dBm); >30 (Pin:-22dBm) |
| BER (dB) | <1.0E-9 (Pin:-15-+0dBm); <1.0E-9 (Pin:-22dBm) |
| CNR (dB) | ≥51 (Pin=-2dBm) |
| CTB (dB) | ≥65 (Pin=-2dBm) |
| CSO (dB) | ≥62 (Pin=-2dBm) |
| Power supply (V) | +5VDC |
| Power consumption (W) | ≤4(500mA) (+5VDC) |
| Operating temperature (℃) | -20~+60 |
| Dimension (mm) | 128*80*26 |
Applications
- FTTH CATV network construction with WDM
- EPON GPON and XGSPON FTTH access networks
- High level RF distribution with single or dual outputs
