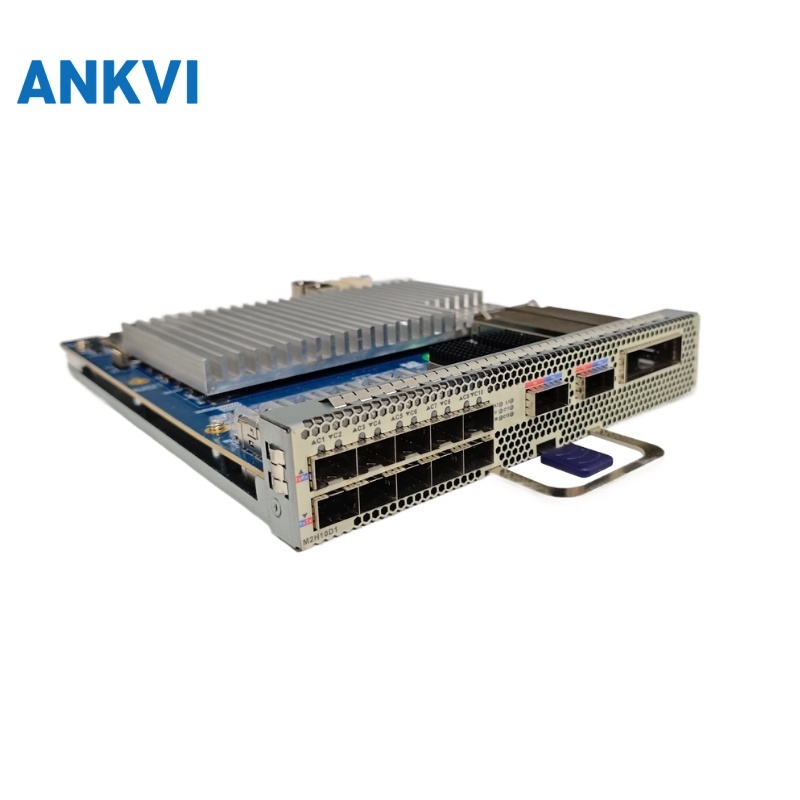

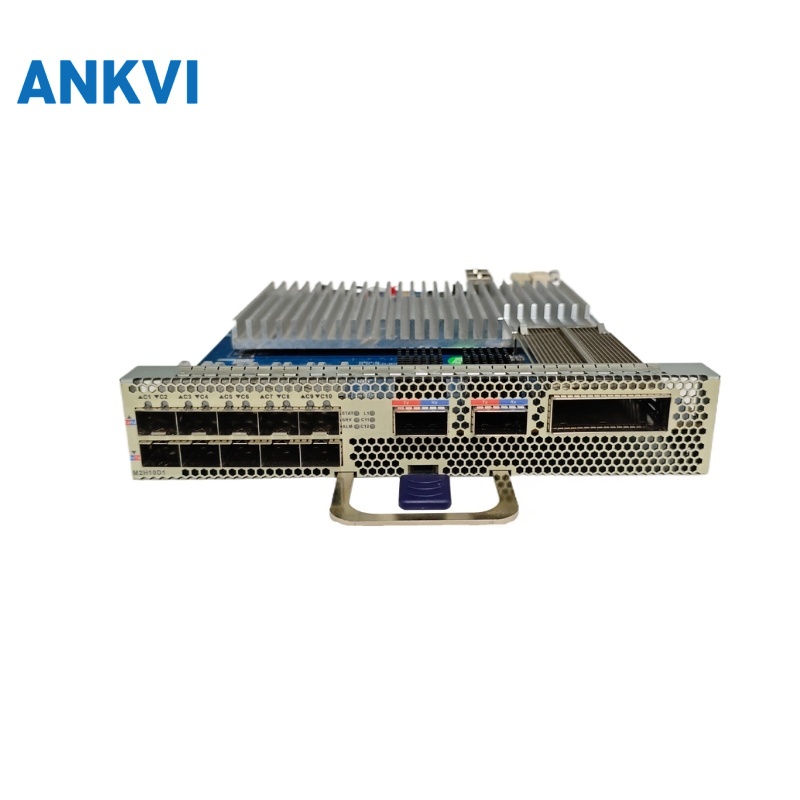

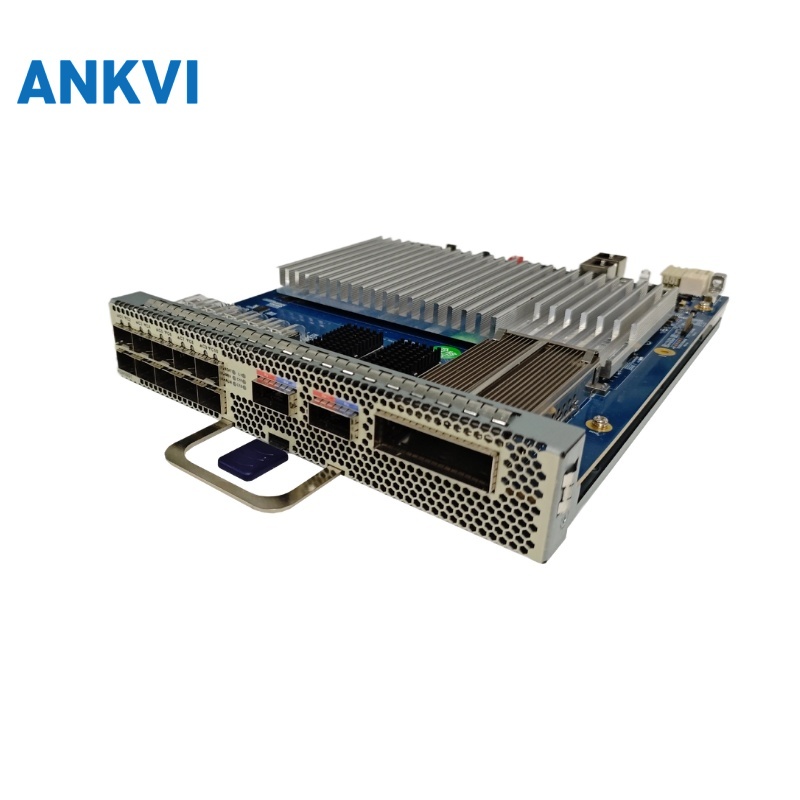

Name: M2H10D1 – 200G Coherent Service Card, 2 x 100GE – ANKVI
SKU: M2H10D1

Description

Overview

The M2H10D1 is a 200G service card that supports two 100GE, or one 100GE plus ten 10GE, service access. It adopts 16QAM / QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance and non-linearity.

It can realize 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable operation.

M2H10D1 Key Features

Supports two 100GE services, or one 100GE plus ten 10GE services
Client side: 2 pluggable QSFP28 100G modules, 1 pluggable QSFP+ 40G module and 10 pluggable SFP+ 10G modules
One pluggable 200G CFP2 DCO coherent module on the line side
Service types: 10GE / OTU2 / STM-64 / 10GE WAN / 40GE / 100GE / 100GE FlexE (unaware mode) / OTU4
Flexible mapping, for example 100G <-> ODU4 <-> ODUC2 <-> OTUC2 and 10G <-> ODU2 <-> ODU4 <-> ODUC2 <-> OTUC2
Line-side modulation 16QAM / QPSK; C-band 50GHz 96 waves tunable line side
200GE over 1200 kilometers of non-relay transmission
Line-side protection with the optical protection card: switchover completed within 50ms
Downstream insertion of Local Fault, plus transparent transmission of Local Fault and Remote Fault

M2H10D1 Specifications

Technical Specifications

Function	Description
Occupied Slots	1/2 slots, shown in name 2/4/6/8 slot
Client-side Interface	Supports 2 pluggable QSFP28 100G modules; supports 1 pluggable QSFP+ 40G module; supports 10 pluggable SFP+ 10G modules
Line-side Interface	Supports 1 pluggable 200G CFP2 DCO coherent module
Service Type	10GE/OTU2/STM-64/10GE WAN/40GE/100GE/100GE FlexE (unaware mode)/OTU4
Service Mapping Path	2 x 100G client to 1 x 200G line: 100G <-> ODU4 <-> ODUC2 <-> OTUC2; 1 x 100G + 10 x 10G client to 1 x 200G line: 10G <-> ODU2 <-> ODU4 <-> ODUC2 <-> OTUC2; 1 x 40G + 10 x 10G client to 1 x 200G line: 40G <-> ODU3 <-> ODU4 <-> ODUC2 <-> OTUC2
Line-side Modulation Format	200G: 16QAM / QPSK
Line-side Protection Function	When switching over with the optical protection card, the switchover must be completed within 50ms
Local Fault	Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure; supports transparent transmission of Local Fault and Remote Fault

Deployment Scenarios

Metro and regional DWDM links that carry two 100GE services on one 200G wavelength
Sites that mix one 100GE and ten 10GE clients onto a single 200G line signal
Links that need 200GE over non-relay distances of up to 1200 km
Systems that terminate OTU2, STM-64, 10GE WAN, 40GE or OTU4 clients on a 200G line
Deployments that require optical protection switchover within 50ms and Local Fault transparency
