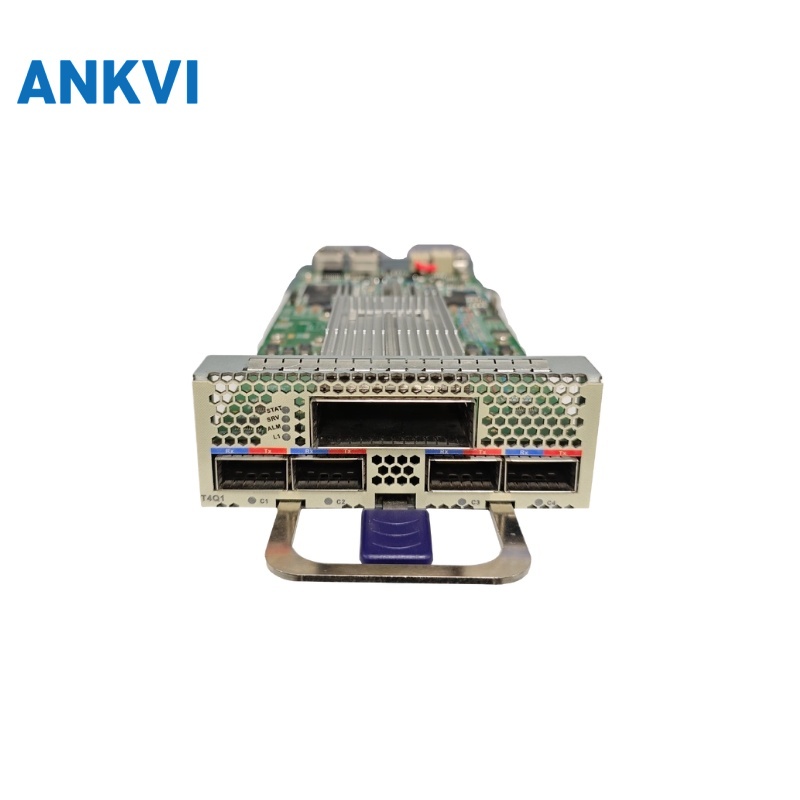

T4Q1 Card – 400G Coherent TMUX, 4 x 100GE
T4Q1 400G coherent TMUX card muxing four 100GE clients onto one 400G CFP2 DCO line, with 16QAM/16QAM-PCS/QPSK and 2000 km non-relay reach in C-band DWDM.
Description
Overview
The T4Q1 Card is a 400G coherent TMUX service card that supports four 100GE service access. It adopts 16QAM / 16QAM-PCS / QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance and non-linearity.
It can realize 400GE business over 2000 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable operation.
T4Q1 Card Key Features
- Supports four 100GE service access
- Client side: 4 pluggable QSFP28 100G modules
- One pluggable 400G CFP2 DCO coherent module on the line side
- Service type: 100GE
- Mapping 4 x 100G client to 1 x 400G line: 100G <-> ODU4 <-> ODUC4 <-> OTUC4
- Line-side modulation 16QAM / 16QAM-PCS / QPSK
- DWDM line side: C-band 50GHz 96 waves tunable
- 400GE over 2000 kilometers of non-relay transmission
- oFEC, client-side Ethernet RMON monitoring and client-side ALS
- Downstream insertion of Local Fault plus transparent transmission of Local Fault and Remote Fault
- Loop and time delay measurement support
- Line-side protection with the optical protection card: switchover completed within 50ms
T4Q1 Card Specifications
Technical Specifications
| Function | Description |
|---|---|
| Occupied Slots | 1/4 slots, shown in name 1~8 slot |
| Client-side Interface | Supports 4 pluggable QSFP28 100G modules |
| Line-side Interface | Supports 1 pluggable 400G CFP2 DCO coherent module |
| Service Type | 100GE |
| Service Mapping Path | 4 x 100G client to 1 x 400G line mode: 100G <-> ODU4 <-> ODUC4 <-> OTUC4 |
| Line-side Modulation Format | 400G: 16QAM / 16QAM-PCS / QPSK |
| WDM Technology | Support DWDM: C-band 50GHz 96 waves tunable |
| FEC Technology | Support oFEC |
| Client-side Ethernet RMON Monitoring | Support |
| Client-side Automatic Laser Shutdown (ALS) | Support |
| Local Fault | Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure; supports transparent transmission of Local Fault and Remote Fault |
| Loop | Support |
| Time Delay Measurement | Support |
| Line-side Protection Function | When switching over with the optical protection card, the switchover must be completed within 50ms |
Deployment Scenarios
- Adding a single 400G wavelength built from four 100GE clients
- Metro and long-haul DWDM links that need 400GE over non-relay distances up to 2000 km
- C-band 50GHz 96-wave systems that use 16QAM-PCS line-side modulation
- Sites requiring oFEC, client-side RMON monitoring and ALS
- Deployments that must complete optical protection switchover within 50ms
