Overview

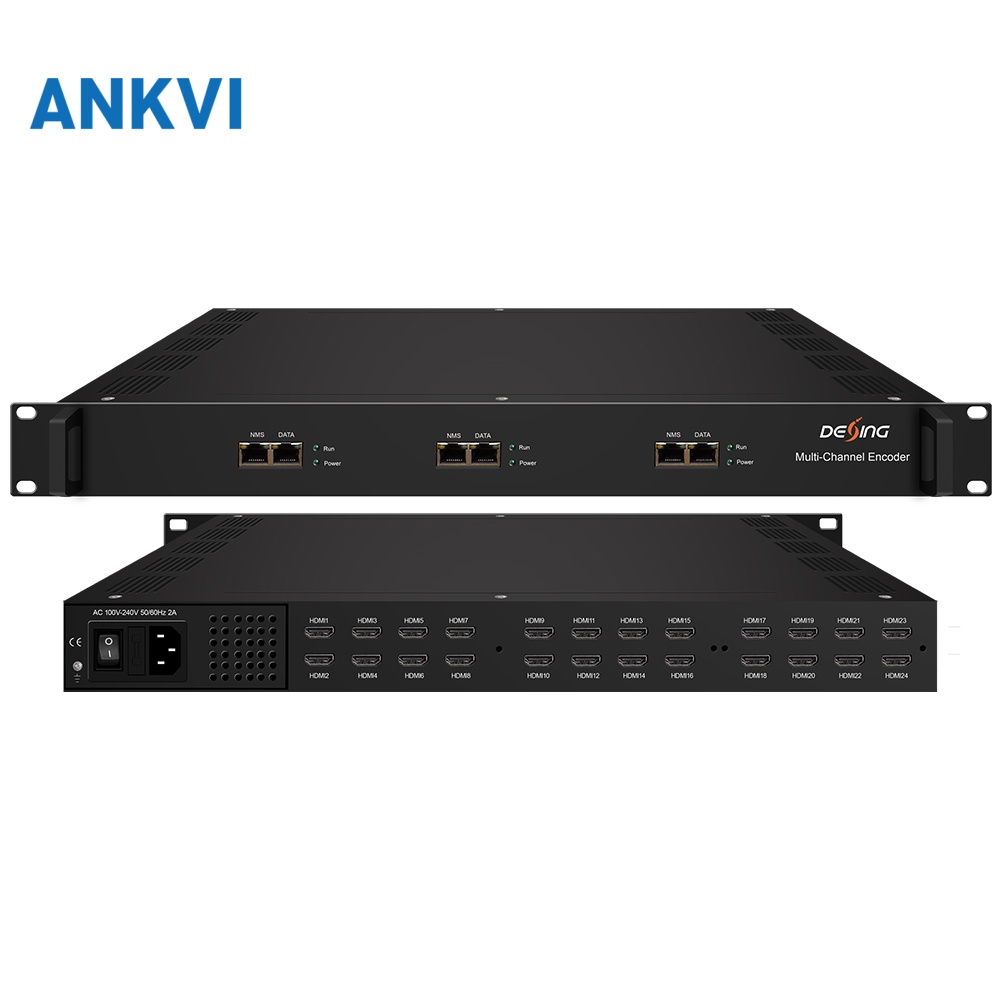

The NDS3228S is a professional multi-channel HD/SD audio and video encoding device supplied with 8, 16 or 24 HDMI inputs. Every 8 HDMI ports share one encoder module, and each module provides 1 MPTS and 8 SPTS output, giving a high integration design for cable TV digital head-ends and digital TV broadcasting.

Each input is encoded to MPEG-4 AVC/H.264 at 1 – 13 Mbps with CBR or VBR rate control, and audio is encoded as MPEG-1 Layer 2, LC-AAC or HE-AAC with AC3 pass-through and gain adjustment from 0 to 255. Output is carried over IP using UDP and RTP/RTSP, an optional ASI port mirrors the MPTS, and the platform supports QR code, LOGO and caption insertion together with null packet filtering.

NDS3228S Key Features

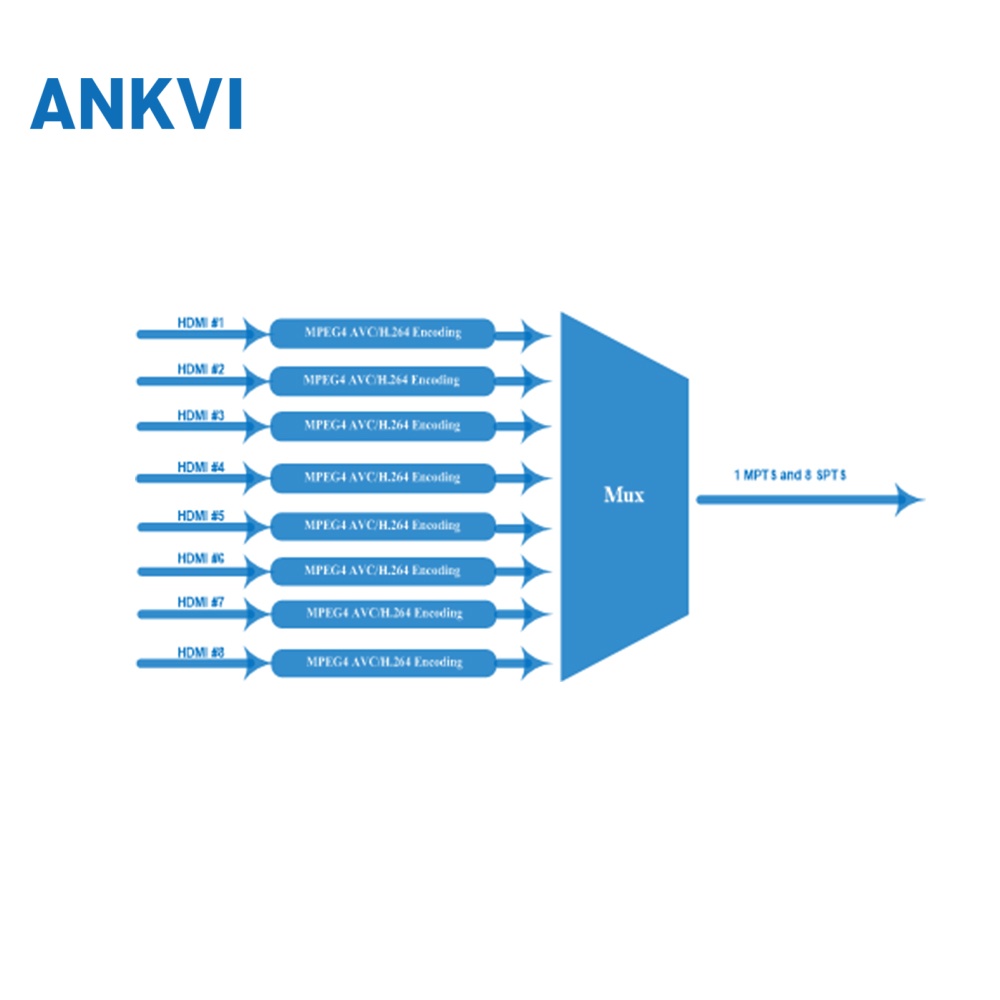

8 HDMI inputs with 8 SPTS and 1 MPTS output per encoder module, up to 24 HDMI inputs
MPEG-4 AVC/H.264 video encoding at 1 – 13 Mbps per channel
MPEG-1 Layer II, LC-AAC and HE-AAC audio encoding with AC3 pass-through
Audio gain adjustable from 0 to 255
IP output over UDP and RTP/RTSP protocol, with 1 ASI out as a mirror of the MPTS (optional)

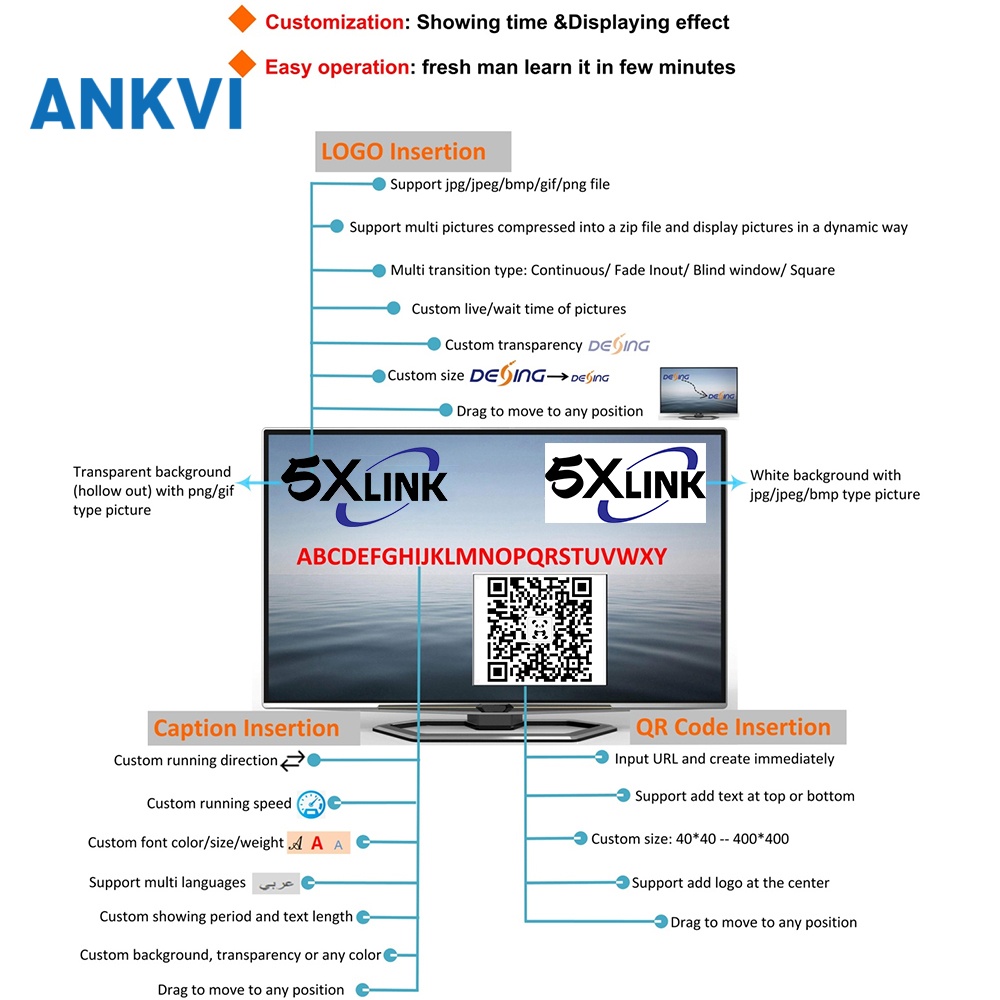

Supports QR code, LOGO and caption insertion
Supports the Null PKT Filter function
Control via web management with easy software updates over Ethernet
CBR or VBR rate control with an IP…P GOP structure
48 kHz, 24-bit audio encoding

NDS3228S Specifications

Parameter	Specification

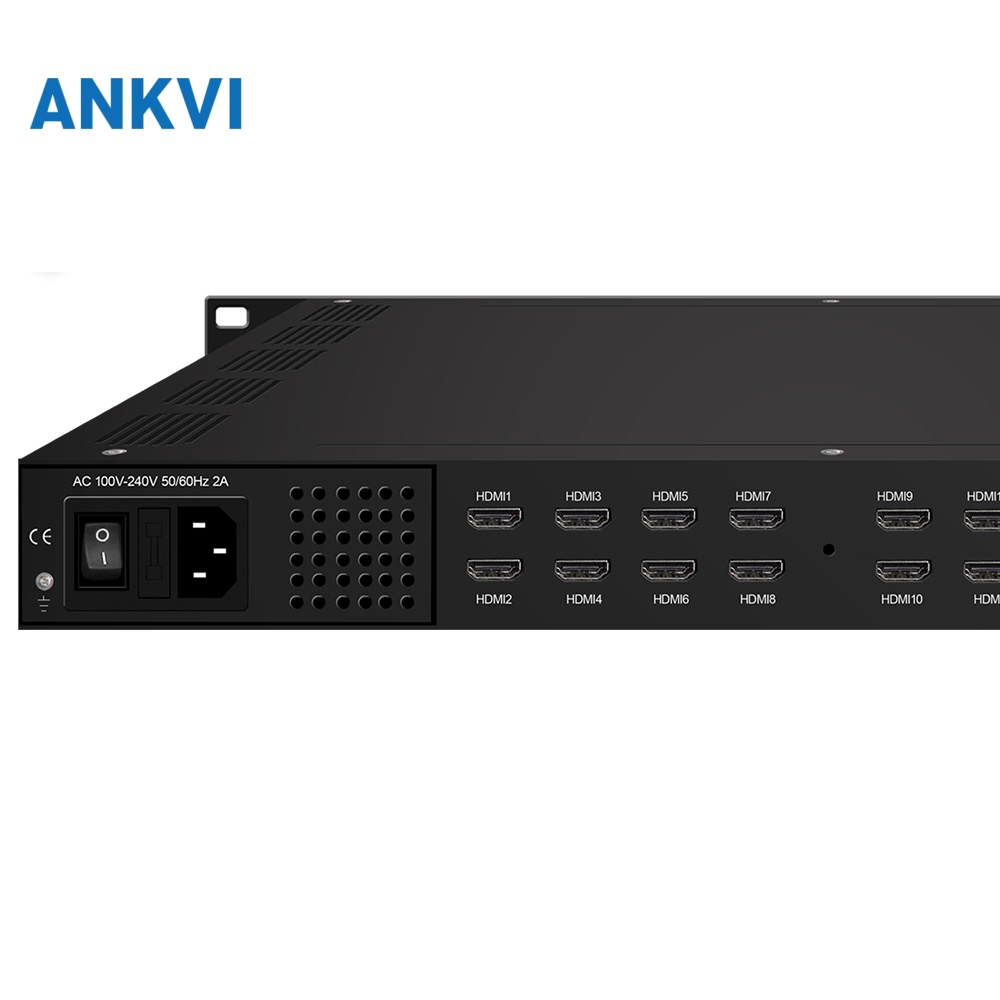

Input	8 / 16 / 24 HDMI inputs
Channel Count	8, 16 or 24 HDMI inputs (NDS3228S-8, NDS3228S-16, NDS3228S-24)
Video Input Resolution	1920x1080_60P, 1920x1080_60i, 1920x1080_50P, 1920x1080_50i, 1280x720_60P, 1280x720_50P, 720x576_50i, 720x480_60i
Output Resolution	1920x1080_30P, 1920x1080_25P, 1280x720_30P, 1280x720_25P, 720x576_25P, 720x480_30P
Video Encoding	MPEG-4 AVC/H.264
Bit Rate	1 – 13 Mbps each channel
Rate Control	CBR / VBR
GOP Structure	IP…P (P frame adjustment, without B frame)
Audio Encoding	MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 pass-through
Sampling Rate	48 kHz
Audio Resolution	24-bit
Audio Gain	0 – 255 adjustable
MPEG-1 Layer 2 Bit Rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
LC-AAC Bit Rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC Bit Rate	48/56/64/80/96/112/128 kbps

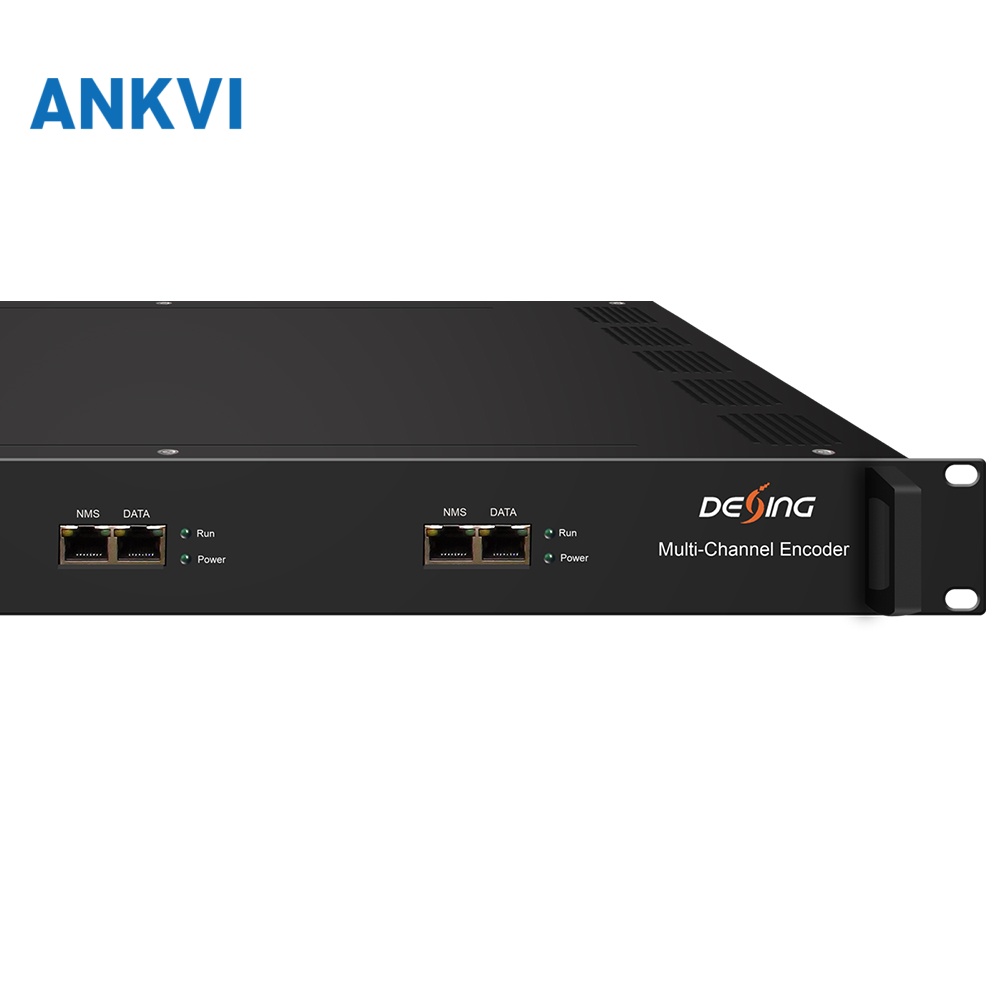

IP Output	DATA (GE) over UDP and RTP/RTSP, 8 HDMI inputs with 8 SPTS and 1 MPTS output for each encoder board
Output Connector	1 ASI out as mirror of MPTS (optional as order)
Management	Web management
Language	Chinese and English
Upgrade	Ethernet software upgrade
Dimensions	482 x 328 x 44 mm (W x L x H)
Operating Temperature	0 to 45 C
Storage Temperature	-20 to 80 C
Power Supply	AC 110 V +/-10%, 50/60 Hz, AC 220 V +/-10%, 50/60 Hz

Applications

Cable TV digital head-ends needing multi-channel HDMI encoding
Digital TV broadcasting and IPTV distribution systems
Hotels and campuses adding channels with LOGO, caption and QR code overlays
Encoding several HDMI sources into a single MPTS for distribution
