Name: NDS3528S HDMI Encoder Modulator – 8 HDMI Inputs, 4 DVB-C/DVB-T Carriers – ANKVI
SKU: NDS3528S

Description

Overview

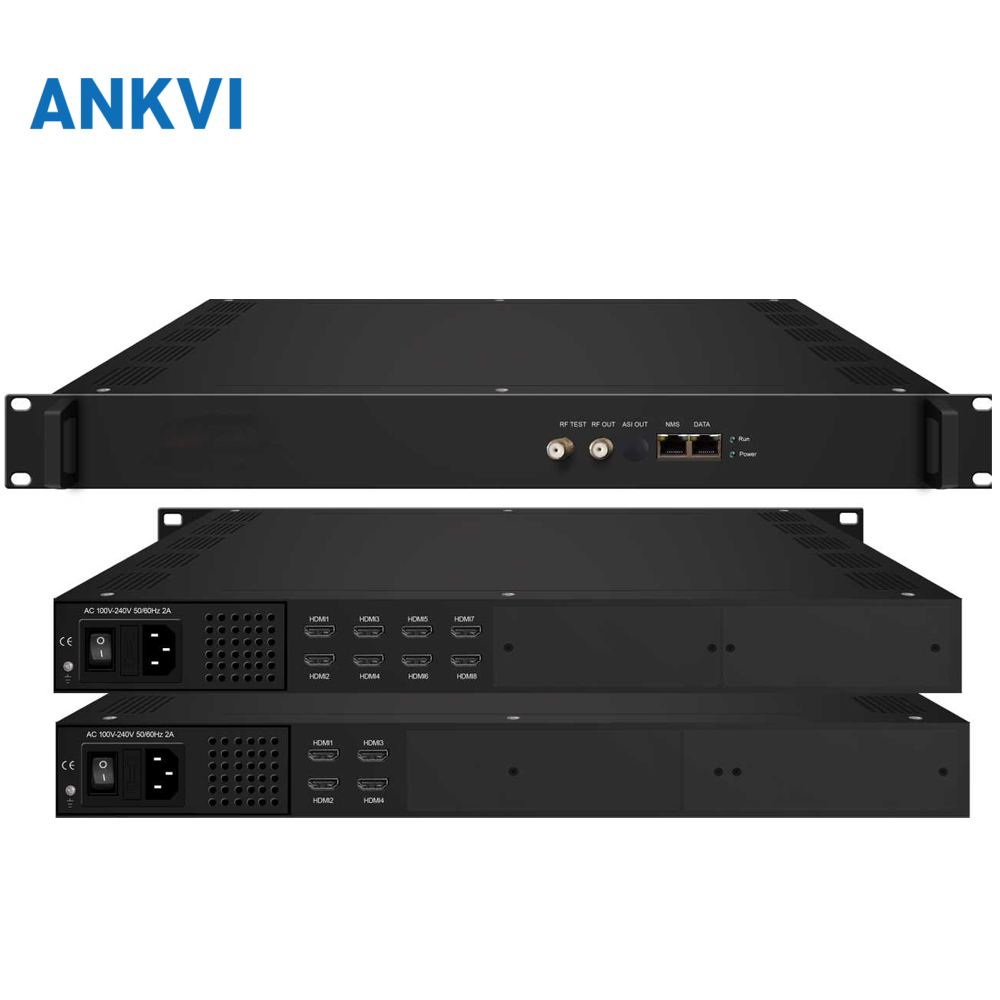

The NDS3528S is a professional high integration device that includes encoding, multiplexing and modulating in one box, measuring 482mm x 328mm x 44mm (W x L x H). It supports 8 HDMI inputs and DVB-C or DVB-T RF out with 4 adjacent carriers, plus 4 MPTS out as mirror of the 4 modulation carriers through the DATA (GE) port. The unit is intended for small CATV headend systems and for hotel TV, entertainment, hospital and apartment distribution systems.

Each HDMI input is encoded to MPEG-4 AVC/H.264 video with a bit rate of 1Mbps to 13Mbps and CBR or VBR rate control, and audio is encoded as MPEG-1 Layer 2, LC-AAC or HE-AAC with AC3 pass through and adjustable gain. The 4 output channels are multiplexed with PID remapping and PSI/SI editing and inserting, then modulated into 4 DVB-C or DVB-T carriers combined on one RF output. LOGO, OSD and QR code insertion is available for every local channel, and control and firmware updates are performed through the web interface.

NDS3528S Key Features

8 HDMI inputs with MPEG-4 AVC/H.264 video encoding
4 groups of multiplexing and modulating output channels
4 DVB-C or DVB-T RF out with 4 carriers combined output
4 MPTS IP output over UDP and RTP/RTSP as mirror of the 4 modulation carriers
Video bit rate 1Mbps~13Mbps each channel with CBR/VBR rate control
MPEG-1 Layer 2, LC-AAC and HE-AAC audio encoding, AC3 pass through and audio gain adjustment
PID remapping plus PSI/SI editing and inserting
LOGO, OSD and QR code insertion for every local channel
Control via web management, and easy updates via web

NDS3528S Specifications

Parameter	Specification
Input	8 HDMI inputs
Video Encoding	MPEG-4 AVC/H.264
Video Resolution	Input 1920x1080_60P, 1920x1080_60i, 1920x1080_50P, 1920x1080_50i, 1280x720_60P, 1280x720_50P, 720x576_50i, 720x480_60i; output 1920x1080_30P, 1920x1080_25P, 1280x720_30P, 1280x720_25P, 720x576_25P, 720x480_30P
Bit Rate	1Mbps~13Mbps each channel
Rate Control	CBR/VBR
Audio Encoding	MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through
Audio Sampling Rate	48KHz
Audio Resolution	24-bit
Audio Gain	0-255 adjustable
Audio Bit Rate	MPEG-1 Layer 2 and LC-AAC 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps; HE-AAC 48/56/64/80/96/112/128 kbps
Multiplexing	4 groups; maximum PID remapping 180 input per channel; PID remapping (automatically or manually); PSI/SI table generated automatically
Output	4 groups of multiplexing/modulating output channels
RF Output	4 x RF DVB-C out (4 carriers combined output); 4 x RF COFDM DVB-T out (4 carriers combined output); RF output on F type interface
Modulation Standard	EN300 429 / ITU-T J.83A/B (DVB-C); EN300744 (DVB-T)
Constellation	DVB-C J.83A 16/32/64/128/256QAM, J.83B 64/256QAM; DVB-T QPSK, 16QAM, 64QAM
Bandwidth	DVB-C J.83A 8M, J.83B 6M; DVB-T 6M, 7M, 8M
FFT Mode	2K (DVB-T)
Symbol Rate	5.0Msps~7.0Msps, 1ksps stepping
Frequency Range	50~960MHz, 1KHz step
RF Output Level	DVB-C -25~-1dBm (82~105dBuV), 0.1dBm; DVB-T -28~-3dBm (77~97dBuV), 0.1dB step
MER	>= 40dB (DVB-C); >= 42dB (DVB-T)
Guard Interval	1/4, 1/8, 1/16, 1/32 (DVB-T)
FEC	1/2, 2/3, 3/4, 5/6, 7/8 (DVB-T)
IP Output	4 IP MPTS output over UDP/RTP/RTSP
Network Port	1 x 1000M Base-T Ethernet interface
Management	Network management (WEB); Chinese and English language
Control Interface	Web management and Ethernet software upgrade
Power Supply	AC 110V +/-10%, 50/60Hz; AC 220V +/-10%, 50/60Hz
Operating Temperature	0~45C
Storage Temperature	-20~80C
Dimensions	482mm x 328mm x 44mm (W x L x H)

Applications

Small CATV headend systems
Hotel TV systems
Entertainment systems in sports bars
Hospital and apartment distribution systems
