NK6200 PON Handheld Optical Time Domain Reflectometer

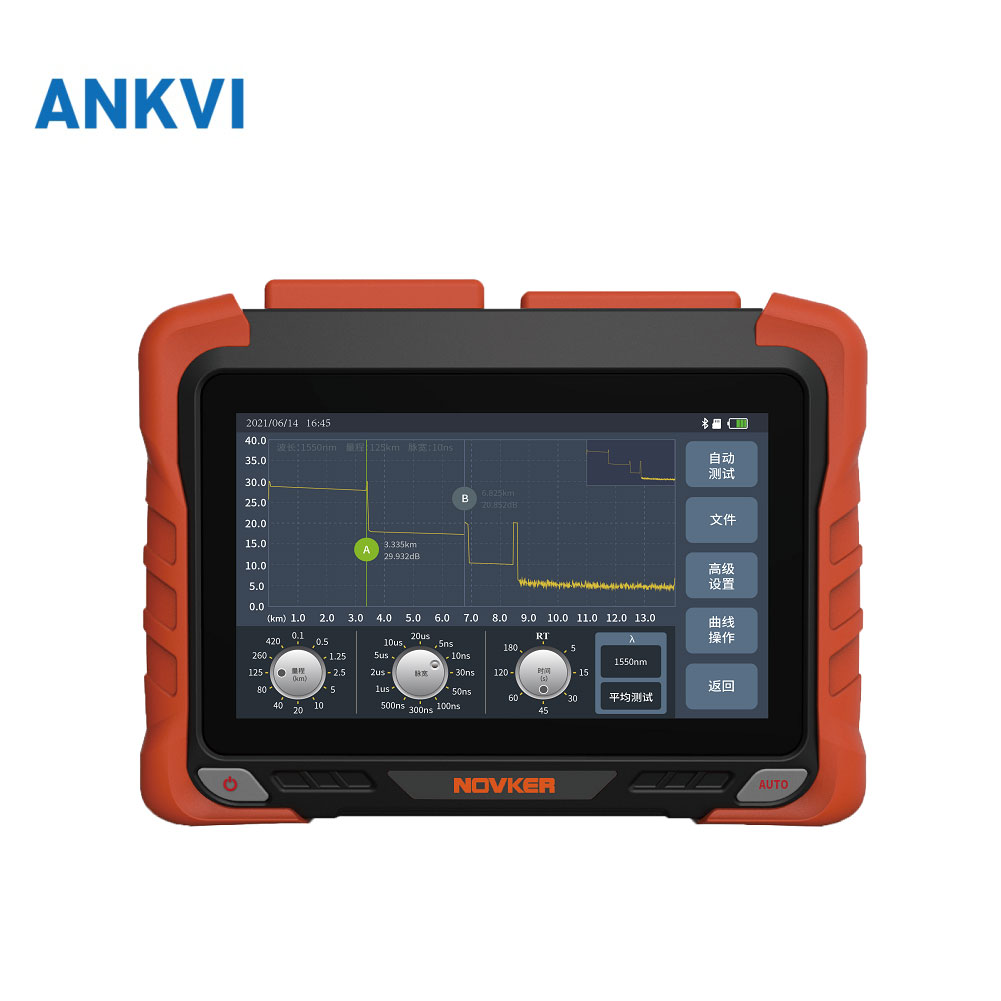

NK6200 PON handheld OTDR combines key and touch operation with PON network test, integrating OTDR, VFL, light source, OPM, event map, optical loss test, end face detection and Ethernet test.
Description
Overview
The NK6200 PON OTDR is a high performance optical time domain reflectometer for testing optical fiber length, loss and connection quality in engineering construction, link maintenance test and metropolitan area networks.
The unit uses a capacitance touch screen with intelligent hardware design and integrates nine modules. Short fiber and automatic test accuracy is improved, and the instrument works with Ethernet test and mobile APP control.
NK6200 Key Features
- Event dead zone suitable for short fiber test
- Online detection with effective APD active protection
- Support for fast charging protocol and power bank
- Ethernet test, supporting Ethernet remote test
- Support SM/MM/SM+MM test and PON network online test
- Mobile APP wireless operation
NK6200 Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 1310nm±20nm 1550nm±20nm (PD1); 1625nm±20nm（Filtered） (PS1); 1650nm±5nm（Filtered） (PS2); 1310nm/1550nm±20nm 1625nm±15nm（Filtered） (PT1); 1310/1550nm±20nm 1650±5nm（Filtered） (PT2-PT4) |
| Filter | / (PD1); High pass＞1595nm Isolation＞40dB (1270nm~1585nm) (PS1); Bandpass1650nm±7nm Isolation＞40dB (1650nm±10nm) (PS2); High pass＞1595nm Isolation＞40dB (1270nm~1585nm) (PT1); Bandpass1650nm±7nm Isolation＞40dB (1650nm±10nm) (PT2-PT4) |
| Fiber Type | G.652 |
| Max Dynamic Range | 37/35dB, 38dB, 38dB, 38/36/36dB, 40/38/38dB, 42/40/40dB, 38/36/36dB |
| Event Blind Zone | 0.5m |
| ATT Blind Zone | 3.5m |
| PON Blind Zone | 30m |
| Loss Resolution | ±0.001dB |
| Loss Threshold | 0.01dB |
| Laser Type | FP-LD （SM fiber） |
| Mode | CW/270Hz/1kHz/2kHz |
| Display Resolution | 800×480 |
| Charging | Type-C 5V/3A,9V/2A,12V/1.5A |
| Battery | 3.7V 10400mAh |
| Size | 215mm×160mm×50mm |
| Storage | 2GB, USB-A、Type-C port，RJ45 LAN 10/100Mbit/s |
| OPM range | -50dBm~+26dBm/-70dBm~+6dBm |
| Distance range | 100m/500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/260km/420km |
| Pulse width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us |
Applications
- Engineering construction and link maintenance test of optical fiber networks
- Urban trunk and backbone network testing
- Metropolitan area network and PON access network online test
- Short fiber and automatic test where accuracy matters
