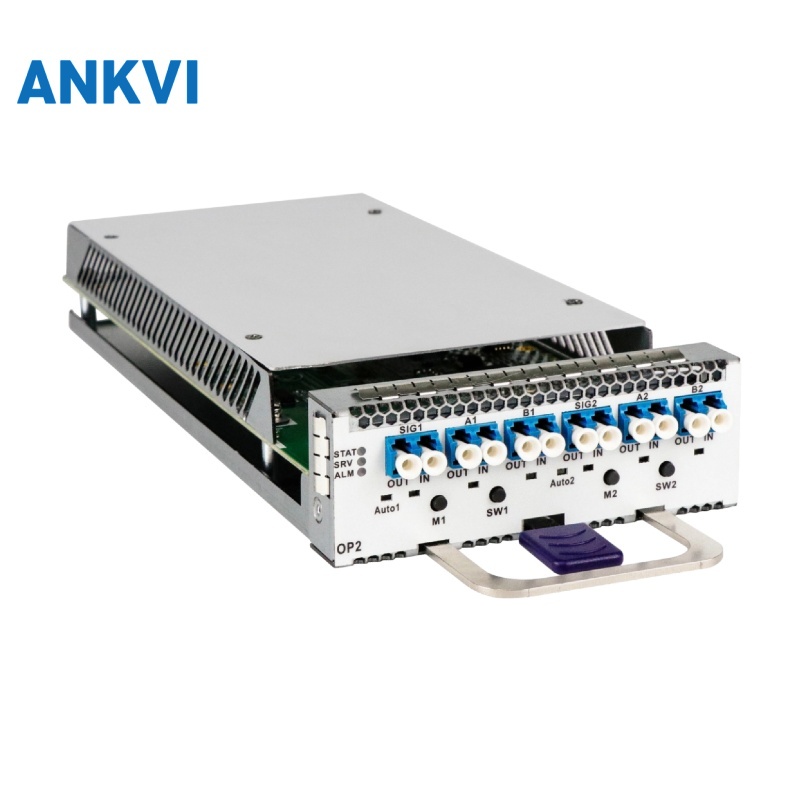

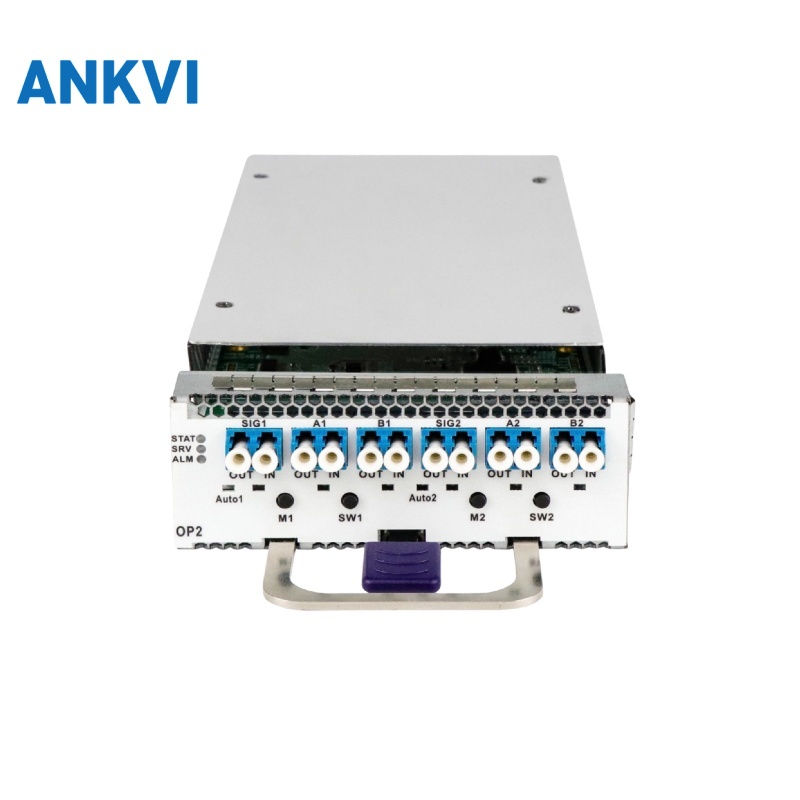

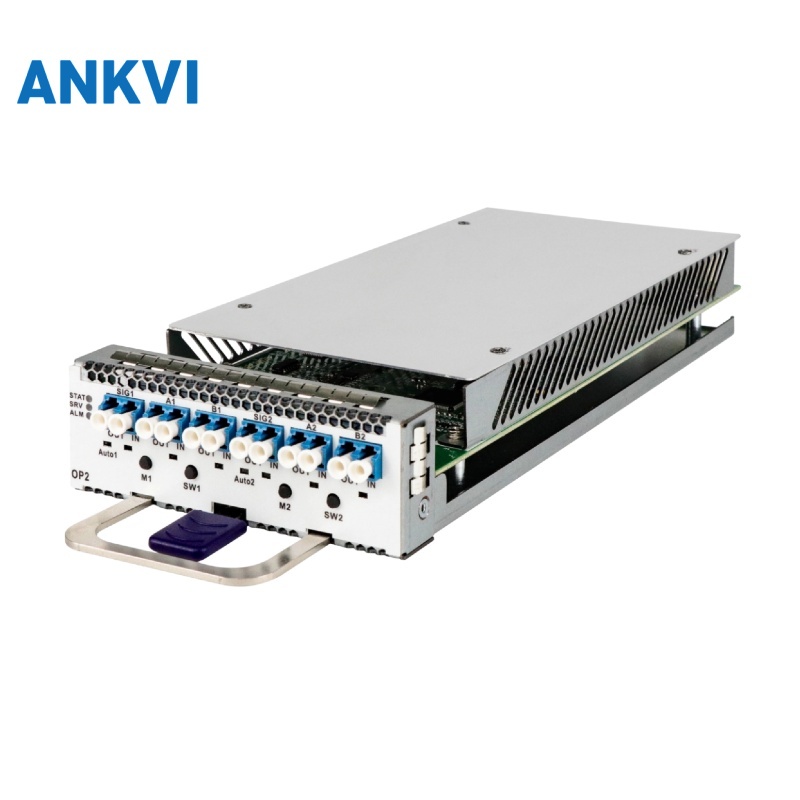

Name: OP2 Card – Optical Line Protection, 1+1, 15 ns – ANKVI
SKU: OP2 Card

Description

Overview

The OP2 Card is part of the Optical Line Protection (OLP) system, an optical line protection subsystem built on advanced dynamic synchronous optical switching technology.

When unexpected fibre breakage or significant signal loss degrades communication quality or causes equipment failures, the OLP system switches to the backup line within seconds. Service delivery stays uninterrupted, fibre or equipment malfunctions are prevented, and recovery time drops from hours to milliseconds. The card occupies only 1/4 standard slot capacity.

OP2 Card Key Features

1+1 optical line protection with dynamic synchronous optical switching
Switches to the backup line within seconds when the working line fails
Reduces recovery time from hours to milliseconds
Occupies only 1/4 standard slot capacity
Operating wavelength 1310±50 nm and 1550±50 nm
Light power range +23 to -50 dBm with ±0.25 dB accuracy
Measurement resolution ±0.01 dB and return loss ≥55 dB
Polarization-related loss ≤0.05 dB, wavelength dependent loss ≤0.1 dB
Insertion loss Tx ≤4 dB and Rx ≤1.2 dB
Switching speed <15 ns with a power dissipation of ≤15 W

OP2 Card Specifications

Technical Specifications

Performance Parameter	1+1
Operating Wavelength	1310±50 nm, 1550±50 nm
Range of Light Power	+23 to -50 dBm
Accuracy of Light Power	±0.25 dB
Measure Optical Power Resolution	±0.01 dB
Return Loss	≥55 dB
Polarization-related Loss	≤0.05 dB
Wavelength Dependent Loss	≤0.1 dB
Insertion Loss	Tx ≤4 dB, Rx ≤1.2 dB
Switching Speed	<15 ns
Size	107 (W) x 262 (D) x 40 (H) mm
Working Temperature	-10 to +60 ℃
Storage Temperature	-40 to +85 ℃
Relative Humidity	5% to 95%, no condensation
Power Dissipation	≤15 W

Deployment Scenarios

Protecting a working fibre against an unexpected break by moving to a backup line
Routes that carry live traffic and cannot wait hours for a repair
Automatic restoration of service quality after a significant signal loss
Sites that monitor the optical power on the working and protection paths
