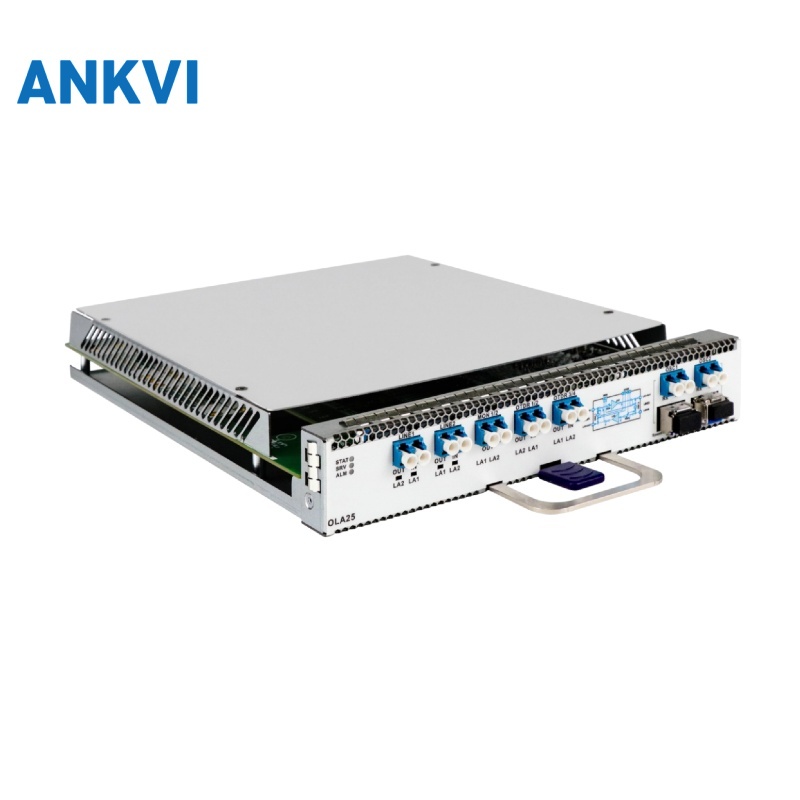

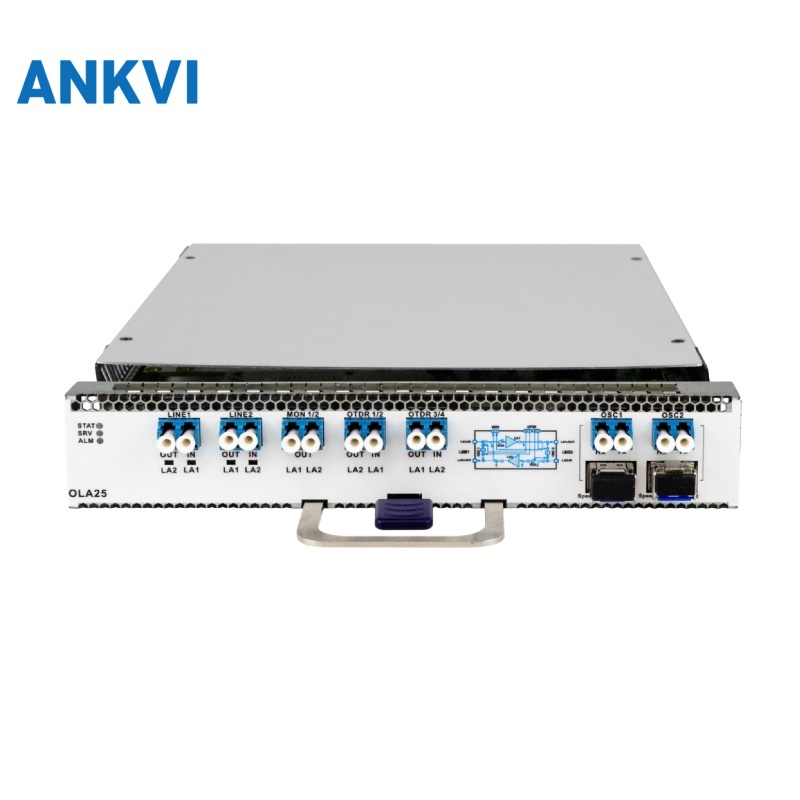

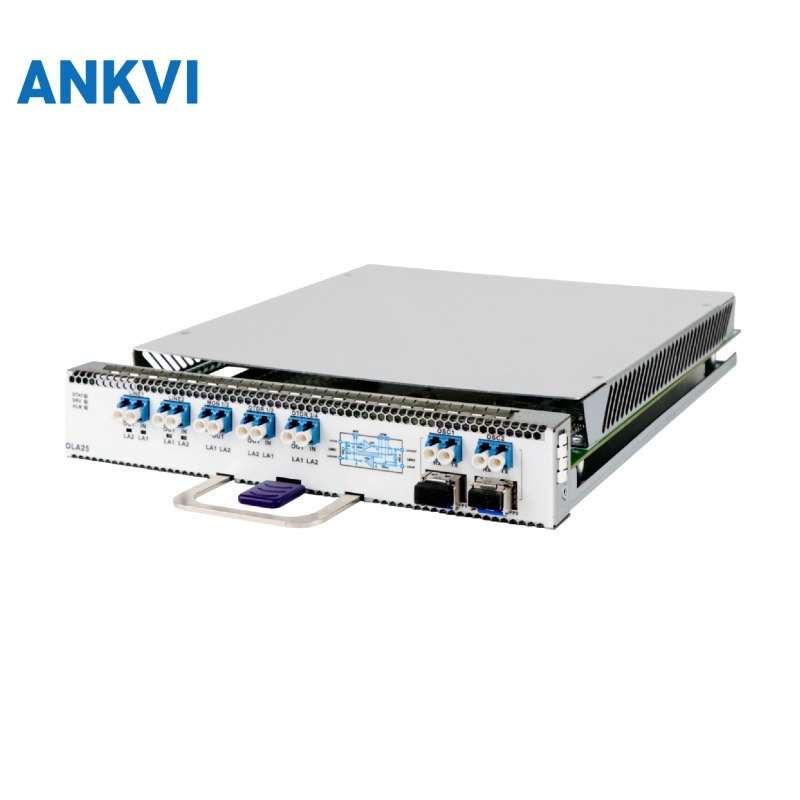

EDFA Card – DWDM Amplifier, 8-33 dB Gain, 20 dBm
The EDFA Card is a dual-amplifier erbium-doped fibre amplifier module with AGC and APC operation, 1528 to 1565 nm range and only 1/2 standard slot occupancy.
Description
Overview
The EDFA Card is the optical amplifier module of a DWDM system. It delivers a versatile, low-noise solution for erbium-doped fibre amplification in a highly integrated, compact module.
It operates with constant gain (Automatic Gain Control, AGC) and constant output power (Automatic Power Control, APC). The large-format module supports dual amplifiers with two independent gain units and occupies only 1/2 standard slot capacity.
EDFA Card Key Features
- Dual amplifiers with two independent gain units on one card
- Constant gain (AGC) and constant output power (APC) operation
- Highly integrated, compact large-format module
- Occupies only 1/2 standard slot capacity
- Operating wavelength 1528 to 1565 nm
- Output light power up to 20 dBm, gain from 8 to 33 dB
- Noise factor 5.0 dB with gain flatness 1.0 dB
- Input threshold -34 dBm, adjustable
- Polarization-related loss 0.3 dB and polarization-dependent gain 0.4 dB
- Polarization mode dispersion 0.5 ps, pump leakage -29 dBm and return loss 45 dB
EDFA Card Specifications
Technical Specifications
| Performance Parameter | Value |
|---|---|
| Operating Wavelength | 1528 to 1565 nm |
| Output Light Power | 20 dBm |
| Gain | 8 to 33 dB |
| Noise Factor | 5.0 dB |
| Gain Flatness | 1.0 dB |
| Input Threshold | -34 dBm, adjustable |
| Polarization-related Loss | 0.3 dB |
| Polarization-dependent Gain | 0.4 dB |
| Polarization Mode Dispersion | 0.5 ps |
| Pump Leakage | -29 dBm |
| Return Loss | 45 dB |
| Size | 216 (W) x 262 (D) x 40 (H) mm |
| Working Temperature | -10 to 60 ℃ |
| Storage Temperature | -40 to 80 ℃ |
| Relative Humidity | 5% to 95%, no condensation |
| Power Dissipation | ≤30 W |
Deployment Scenarios
- Boosting the launch power of a DWDM link before the signal leaves the terminal
- In-line amplification on long spans, using dual gain units per card
- Preamplification ahead of a receiver where the input level is low
- Sites that need AGC or APC operation to keep per-channel power stable
