SG8050 GPON/EPON ONU – 4×GE, WiFi 5, 2×USB

Description

Overview

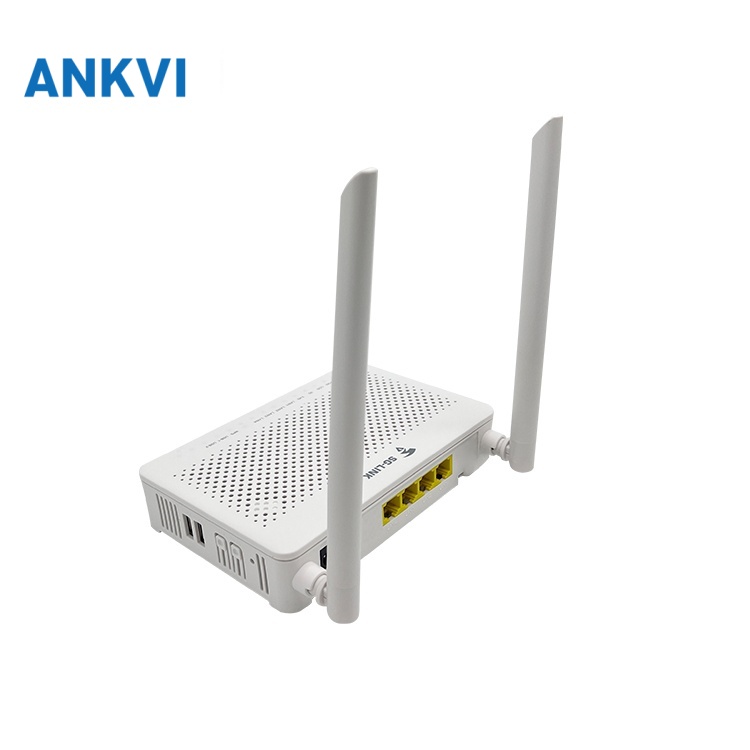

The SG8050 GPON/EPON ONU is a WiFi 5 optical network unit built for busy homes and small businesses that need many wired and wireless devices online at once. It terminates a single SC PON uplink and combines four gigabit Ethernet ports, dual USB ports and dual-band WiFi in one desktop unit, so the whole subscriber LAN sits behind a single fibre drop.

It accesses mainstream GPON and EPON OLTs and is tested for interworking with Fiberhome AN5516, ZTE C220/C300/C320/C600 and Huawei MA5600/MA5680/MA5800 platforms, so it can be dropped into an existing access network without changing the OLT side. Bridge, router and bridge/router mixed modes are supported together with NAT, ALG, UPnP, DMZ, DHCP/DHCPv6, PPPoE, static IP, 4K VLAN and IPv4/IPv6 dual stack, while WEB, TELNET, CLI, OAM, OMCI and TR069 cover remote management, provisioning and diagnostics.

The unit measures 205 × 136 × 24 mm, weighs under 250 g without its adapter, runs on 12 V 1.5 A and consumes less than 12 W. Front indicators cover PWR / PON / LOS / 5 GHz WiFi / 2.4 GHz WiFi / LAN1-4 / WPS / USB1-2, and an operating range of −5 °C to +45 °C at 10 % to 90 % non-condensing humidity suits desktop or cabinet installation in subscribers’ premises.

SG8050 Key Features

• Single GPON/EPON uplink — SC single mode, SC/PC with SC/APC optional — and up to 20 km transmission distance
• GPON Class B+ / EPON PX20+ with TX power 0 to +4 dBm, RX sensitivity −27 dBm and overload power −8 dBm (GPON) / −3 dBm (EPON)
• Authentication by SN / Password / LOID (GPON) and MAC / Key / LOID (EPON); two-way FEC, SR/NSR DBA and GEM/TCONT mapping
• Four 4 × GE auto-negotiation RJ45 ports with MAC restriction and learning, Layer 2 pass-through and storm / loop / flow control
• Dual-band WiFi 5 (IEEE 802.11 b/g/n/ac), 2T2R with dual 5 dBi external antennas and MU-MIMO support
• 2.4 GHz (2.400 to 2.483 GHz) and 5.0 GHz (5.150 to 5.825 GHz) operation, 13 channels with adjustable wireless selection
• Wireless AP mode, WMM support, multiple concealed SSIDs, and WiFi EasyMesh function
• WiFi encryption WEP-64 / WEP-128 / WPA / WPA2 / WPA3 with WPA-PSK (TKIP) and WPA2-PSK (AES) authentication
• WiFi modulation DSSS, CCK and OFDM with OFDMA support, using BPSK, QPSK, 16QAM, 64QAM and 1024-QAM encoding
• Dual USB ports for shared storage / printer / console, with FTP network storage
• Bridge, router and bridge/router mixed mode; DHCP, DHCPv6, PPPoE, static IP and static routing
• NAT, ALG, UPnP, DMZ, firewall and port forwarding; one WAN for multiple services and virtual server
• 4K VLAN and 2K MAC address table; VLAN tag / untag / transparent / trunk mode and VLAN 1:1 translation (≤ 8 VLANs)
• IGMP and MLD (v1/v2/v3) snooping and proxy with up to 8 multicast VLANs, 64 multicast groups and fast leave
• Four-level priority-queue QoS (SP, WRR, 802.1P, DSCP) with flow mapping and broadcast message rate limiting
• Management through WEB / TELNET / CLI / TR069, ITU-T G.984.x OMCI and CTC 3.0 (backward compatible with 2.1 / 2.0)
• O&M with loop detection, software dual backup and rollback, optical link measurement and diagnosis, and rogue ONU detection
• Security with anti-DDoS filtering based on ALC / MAC / URL, flow and storm control, IPv6 firewall and MAC / IP / URL address filtering

SG8050 Specifications

Device Parameters

Parameter	Value	Parameter	Value
Dimension	205 mm × 136 mm × 24 mm	Temperature	−5 °C to +45 °C
Weight	< 250 g (without power adapter)	Humidity	10 % to 90 % (no condensing)
Power Supply	12 V 1.5 A	Interface	4GE + WiFi 5 + 2×USB
Power Consumption	< 12 W	Indicators	PWR / PON / LOS / 5 GHz WiFi / 2.4 GHz WiFi / LAN1-4 / WPS / USB1-2

PON Interface

Item	Specification
OLT compatibility	Accesses mainstream GPON/EPON OLTs
Standards	GPON Class B+ / EPON PX20+
Optical connector	SC single mode, SC/PC, SC/APC optional
Wavelength	TX 1310 nm, RX 1490 nm
Transmission distance	Up to 20 km
TX power	0 to +4 dBm
RX sensitivity	−27 dBm
Overload power	−8 dBm (GPON), −3 dBm (EPON)
Authentication	SN / Password / LOID (GPON) · MAC / Key / LOID (EPON)
PON features	Two-way FEC, SR/NSR DBA, GEM/TCONT mapping

LAN Interface

Item	Specification
Ethernet port	4 × GE, auto-negotiation RJ45 connectors
MAC address	Restriction and learning capabilities
VLAN	Ethernet port-based VLAN tag / tag stripping, local switching and isolation
Layer 2	Pass-through support
Protection	Storm control, loop detection and flow control

WiFi Interface

Item	Specification
Standard	Compliant with IEEE 802.11 b/g/n/ac
Operating frequencies	2.4 GHz (2.400 to 2.483 GHz) and 5.0 GHz (5.150 to 5.825 GHz)
Channels	13 channels with adjustable wireless selection
Modes	Wireless AP mode and Wi-Fi Multi Media (WMM) support; multiple concealed SSIDs
Antennas	2T2R with dual 5 dBi external antennas
TX power	11n – 20 dBm / 11ac – 23 dBm
Encryption	WEP-64 / WEP-128 / WPA / WPA2 / WPA3
Authentication	WEP / WPA-PSK (TKIP) / WPA2-PSK (AES)
Modulation	DSSS, CCK, OFDM, with OFDMA support
Encoding	BPSK, QPSK, 16QAM, 64QAM, 1024-QAM
Advanced	MU-MIMO, dynamic QoS and WiFi EasyMesh function
WPS	WPS support

USB Interface

Item	Specification
Ports	Dual USB ports
Network storage	Supports FTP network storage
Sharing	Dual USB ports for shared storage / printer / console

Function

Category	Specification
Basic	SN / Psw / LOID / LOID+Psw authentication (GPON) and Mac / LOID / Mac+LOID authentication (EPON); DBA; auto-detecting, auto-configuration and auto firmware upgrade; support triple churning
Alarm	Dying gasp, port loop detect and EthPort LOS
Compatibility	Interworking with Fiberhome AN5516, ZTE C220 / C300 / C320 / C600 and Huawei MA5600 / MA5680 / MA5800
L2	802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN; rich QinQ VLAN functions and IGMP snooping multicast features
L3	DNS, DNS client, DDNS / DNS server; DHCP, DHCPv6, PPPoE, static IP, IPv4/IPv6 dual stack and static routing; NAT, ALG, UPnP, DMZ; firewall and port forwarding; one WAN for multiple services; virtual server; ACL and spanning tree; DHCP server and DHCP relay; VxLAN, EoIP, L2TP and IPSec VPN

Data Service, Multicast, VLAN and QoS

Area	Specification
Data service functions	Full-speed non-blocking switching; bridge, router and bridge/router mixed mode; IGMP v1/v2/v3 snooping / proxy and MLD v1/v2 snooping / proxy; QinQ VLAN, 1:1 VLAN, VLAN reusing and VLAN trunk; auto polarity detection of Ethernet ports (AUTO MDIX); port monitoring, rate limiting and SLA; integrated IEEE 802.1p QoS with four-level priority queues; 4K VLAN ID; 2K MAC address table
Multicast	IGMP and MLD (v1/v2/v3) snooping and proxy; max 8 multicast VLANs; max 64 multicast groups; fast leave; downlink multicast VLAN switching / transmission / stripping; WiFi bearer multicast services
VLAN	4K VLAN; auto VLAN detection; VLAN tag, untag, transparent and trunk mode; VLAN 1:1 translation mode (≤ 8 VLANs)
QoS	Four queues including SP, WRR and 802.1P; SP, WRR, 802.1P and DSCP; flow mapping based on VLAN, 802.1p, Ethernet port or any combination; broadcast message rate limiting
O&M	Loop detection; WEB / TELNET / OAM / OMCI / TR069; software dual backup and rollback; optical link measurement and diagnosis; integrated OAM / OMCI remote configuration and maintenance; detecting rogue ONU and hardware dying gasp

Management, O&M and Security

Area	Specification
Management	WEB / TELNET / CLI / TR069; ITU-T G.984.x OMCI; CTC 3.0, backward compatible with 2.1 / 2.0
Security	Anti-DDoS filtering based on ALC / MAC / URL; flow and storm control; loop detection; IPv6 firewall; MAC / IP / URL address filtering

Deployment Scenarios

• FTTH access for high-end homes with four wired devices plus a growing number of wireless clients
• SMB and SOHO sites that need a 4-port gigabit switch, WiFi and shared USB storage in one box
• MDU and small-office installations using GPON or EPON OLTs from Fiberhome, ZTE or Huawei
• Hospitality and campus networks — guest houses, offices and business parks — that reuse an existing PON infrastructure
• Bulk ISP rollouts that need OMCI / TR069 remote provisioning, auto-configuration and auto firmware upgrade
