SG5000 Single-Port GPON/EPON ONU – 1×GE, SC/PC

Description

Overview

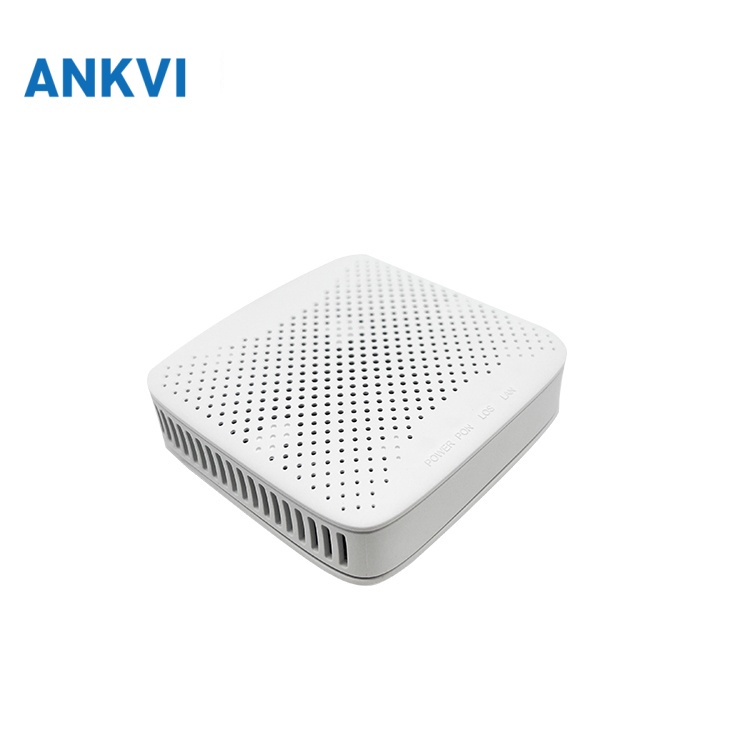

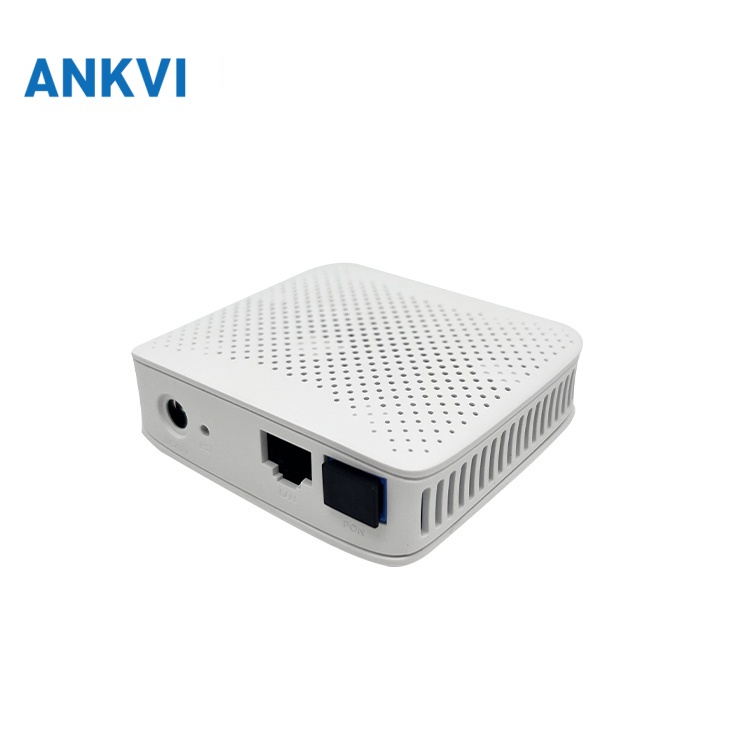

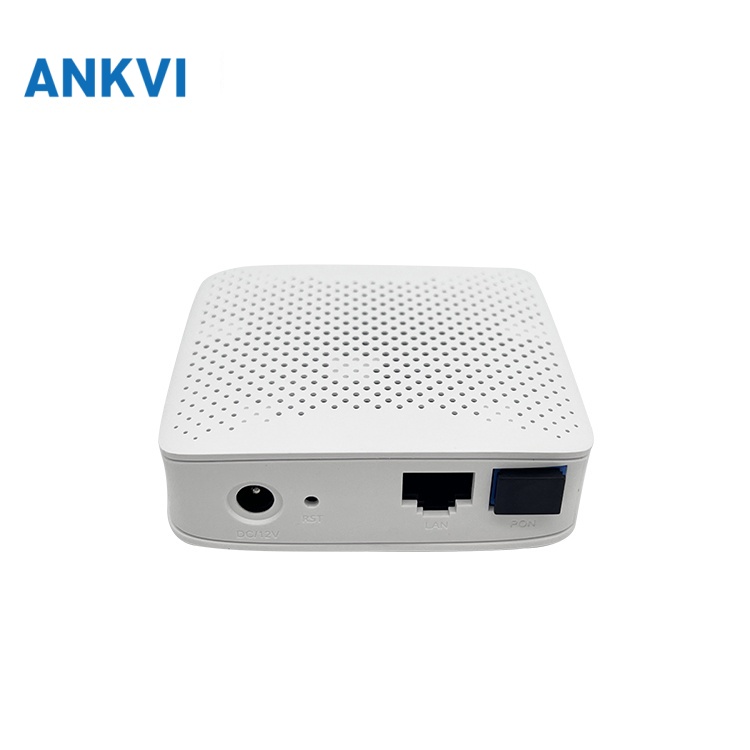

The SG5000 single-port GPON/EPON ONU is a compact desktop optical network unit that delivers one high-speed data service to a subscriber over a passive optical network. It terminates a single SC/PC PON uplink and presents one gigabit Ethernet port, which makes it a straightforward fit for FTTH and FTTB access where a single Ethernet drop is enough.

It accesses mainstream GPON and EPON OLTs and is tested for interworking with Fiberhome AN5516, ZTE C220/C300/C320/C600 and Huawei MA5600/MA5680/MA5800 platforms, so it can be dropped into an existing access network without changing the OLT side. Bridge and route modes (PPPoE, DHCP or static IP), NAT, ALG, DMZ and IPv4/IPv6 dual stack cover the usual subscriber edge requirements.

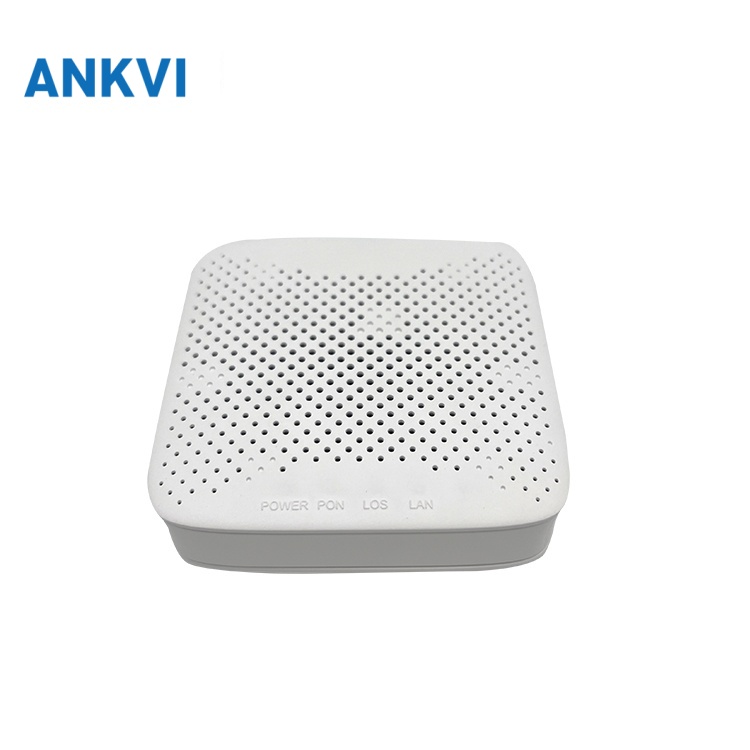

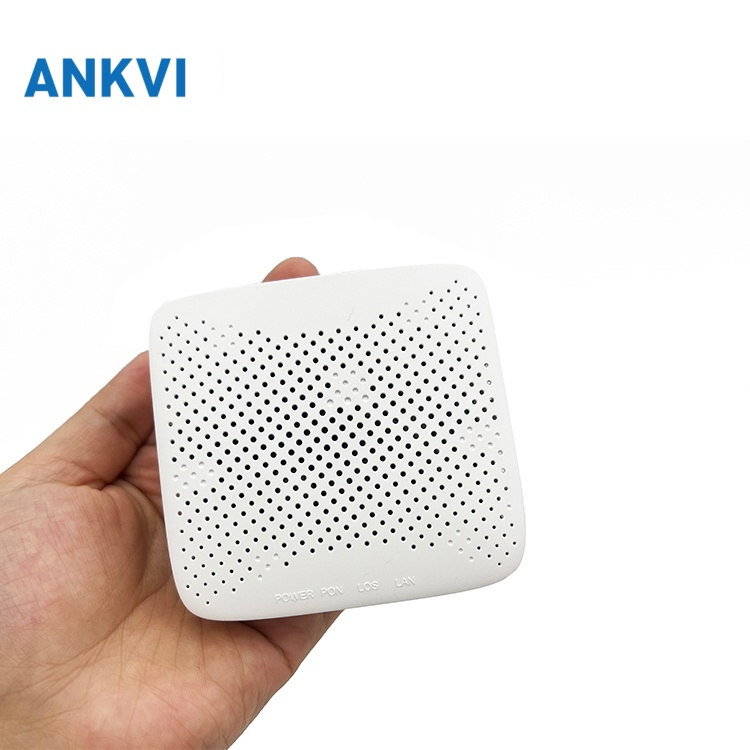

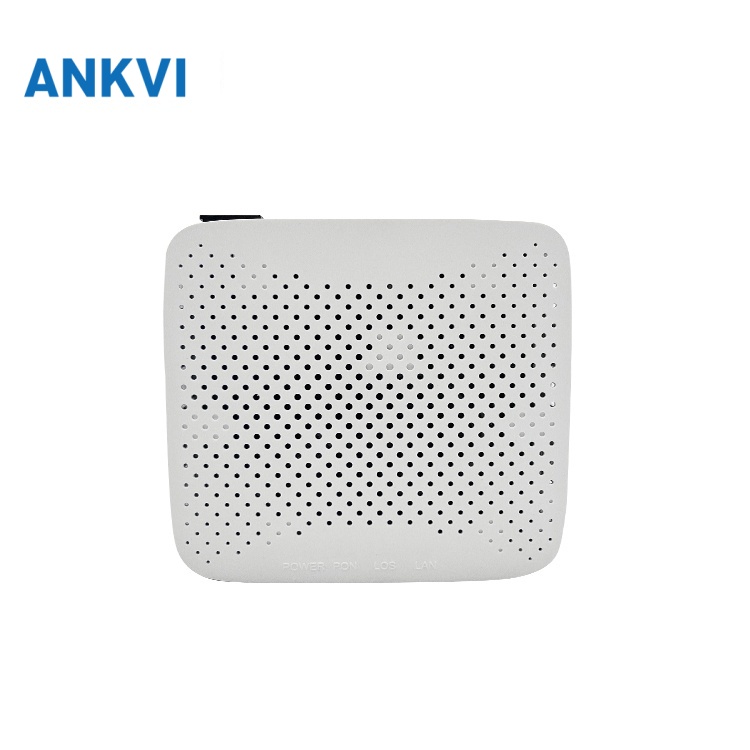

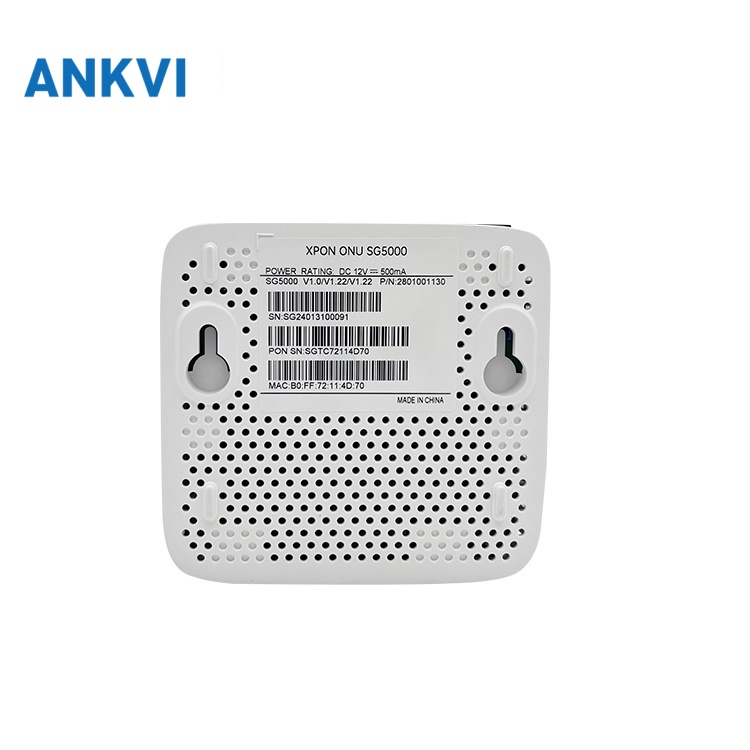

The unit measures 80 × 75 × 20 mm, weighs under 250 g without its adapter, runs on 12 V 0.5 A and draws less than 6 W. Front-panel indicators (PWR / PON / LOS / LAN) show link state at a glance, and the indicator light energy-saving mode reduces standby consumption further. An operating range of −5 °C to +45 °C and 10–90 % non-condensing humidity suits unattended installation in cabinets, wall boxes and subscribers’ premises.

SG5000 Key Features

• Single GPON/EPON uplink — SC single mode, SC/PC — plus one 1 × GE auto-negotiation RJ45 port
• GPON Class B+ / EPON PX20+ with up to 20 km transmission distance
• Optical budget transparency: TX power 0 to +4 dBm, RX sensitivity −27 dBm
• Authentication by SN / Password / LOID (GPON) and MAC / Key / LOID (EPON)
• Two-way FEC, SR/NSR DBA and GEM/TCONT mapping
• Bridge and route modes (PPPoE, DHCP, static IP) with NAT, ALG, DMZ and virtual server
• IPv4, IPv6 and IPv4/IPv6 dual stack
• 4K VLAN and 2K MAC address table; 802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN
• QinQ, 1:1 VLAN, VLAN reusing and VLAN trunk; VLAN 1:1 translation (≤ 8 VLANs)
• IGMP v1/v2/v3 snooping and proxy — up to 8 multicast VLANs and 64 multicast groups with fast leave
• Four-priority-queue QoS (SP, WRR, 802.1P, DSCP) with flow mapping and broadcast rate limiting
• Management through WEB / TELNET / CLI, ITU-T G.984.x OMCI and CTC 3.0 (backward compatible with 2.1 / 2.0)
• Auto-detecting, auto-configuration and auto firmware upgrade, with software dual backup and rollback
• Anti-DDoS filtering based on ALC / MAC / URL, plus flow and storm control and loop detection
• Dying gasp, port loop detect and EthPort LOS alarms; optical link measurement and diagnosis
• Indicator light energy saving; under 6 W typical consumption

SG5000 Specifications

Device Parameters

Parameter	Value	Parameter	Value
Dimension	80 mm × 75 mm × 20 mm	Temperature	−5 °C to +45 °C
Weight	< 250 g (without power adapter)	Humidity	10 % to 90 % (no condensing)
Power Supply	12 V 0.5 A	Interface	1GE
Power Consumption	< 6 W	Indicators	PWR / PON / LOS / LAN

PON Interface

Item	Specification
OLT compatibility	Accesses mainstream GPON/EPON OLTs
Standards	GPON Class B+ / EPON PX20+
Optical connector	SC single mode, SC/PC
Wavelength	TX 1310 nm, RX 1490 nm
Transmission distance	Up to 20 km
TX power	0 to +4 dBm
RX sensitivity	−27 dBm
Overload power	−8 dBm (GPON), −3 dBm (EPON)
Authentication	SN / Password / LOID (GPON) · MAC / Key / LOID (EPON)
PON features	Two-way FEC, SR/NSR DBA, GEM/TCONT mapping

LAN Interface

Item	Specification
Ethernet port	1 × GE, auto-negotiation RJ45
MAC address	Restriction and learning capabilities
VLAN	Ethernet port-based VLAN tag / tag stripping, local switching and isolation
Layer 2	Pass-through support
Protection	Storm control, loop detection and flow control

Function

Category	Specification
Basic	SN / Psw / LOID / LOID+Psw authentication (GPON) and Mac / LOID / Mac+LOID authentication (EPON); DBA; auto-detecting, auto-configuration and auto firmware upgrade
Alarm	Dying gasp, port loop detect and EthPort LOS
Compatibility	Interworking with Fiberhome AN5516, ZTE C220 / C300 / C320 / C600 and Huawei MA5600 / MA5680 / MA5800
L2	802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN
L3	Bridge and route modes (PPPoE, DHCP, static IP); NAT, ALG, DMZ; IPv4, IPv6 and IPv4/IPv6 dual stack; virtual server

Data Service, VLAN and QoS

Area	Specification
Data service functions	Full-speed non-blocking switching; bridge and router support; IGMP v1/v2/v3 snooping and proxy; QinQ VLAN, 1:1 VLAN, VLAN reusing and VLAN trunk; auto polarity detection of Ethernet ports (AUTO MDIX); port monitoring, rate limiting and SLA; integrated IEEE 802.1p QoS with four priority queues; 4K VLAN ID; 2K MAC address table
VLAN	4K VLAN; auto VLAN detection; VLAN tag / untag / transparent / trunk mode; VLAN 1:1 translation mode (≤ 8 VLANs)
QoS	Four queues including SP, WRR and 802.1P; SP / WRR / 802.1P / DSCP; flow mapping based on VLAN, 802.1p, Ethernet port or any combination; broadcast message rate limiting; Ethernet port speed limiting

Management, O&M, Multicast and Security

Area	Specification
Management	WEB / TELNET / CLI; ITU-T G.984.x OMCI; CTC 3.0, backward compatible with 2.1 / 2.0
O&M	Loop detection; software dual backup and rollback; WEB / TELNET / OAM / OMCI; optical link measurement and diagnosis
Multicast	IGMP v1/v2/v3 snooping; max 8 multicast VLANs; max 64 multicast groups; fast leave; downlink multicast VLAN switching, transmission and stripping
Security	Anti-DDoS filtering based on ALC / MAC / URL; flow and storm control; loop detection
Other	Indicator light energy saving

Deployment Scenarios

• FTTH subscriber access where the operator needs one gigabit Ethernet drop per home
• FTTB and MDU installations that already run GPON or EPON OLTs from Fiberhome, ZTE or Huawei
• SOHO and small-enterprise internet access with bridge or routed PPPoE / DHCP / static IP service
• Hospitality and campus networks — hotels, schools and business parks — that reuse an existing PON infrastructure
• ISP bulk rollout programmes that require OMCI and CTC 3.0 remote provisioning and auto-configuration
