SG8161 GPON/EPON ONU – 4×GE, 1×POTS, CATV, WiFi 5, 2×USB

Description

Overview

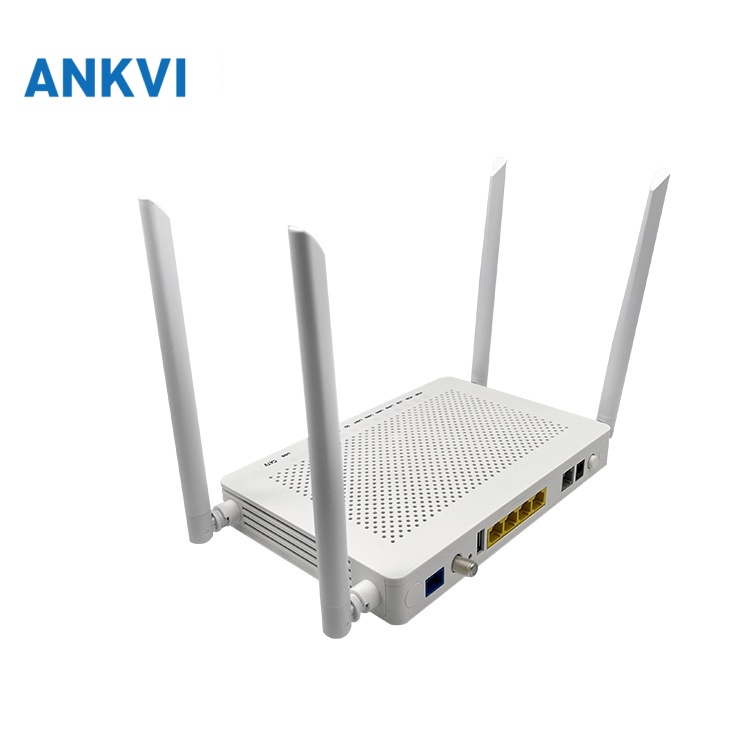

The SG8161 GPON/EPON ONU is a desktop optical network unit that terminates a single PON uplink and presents four gigabit Ethernet ports, one FXS POTS voice port, a CATV RF overlay port, dual-band WiFi5 and two USB ports. It fits high-end home users and small to medium-sized businesses that need data, voice and television service on one access line.

It accesses mainstream GPON and EPON OLTs and interworks with Fiberhome AN5516, ZTE C220/C300/C320/C600 and Huawei MA5600/MA5680/MA5800 platforms, so it can be added to an existing access network without changing the OLT side. Voice runs over SIP and IMS SIP with G.711/G.722/G.729 codecs, T.30/T.38 fax, echo cancellation to ITU-T G.165/G.168-2002 and GR-909 line testing, while the CATV port carries RF video with remote management. Management runs over WEB, TELNET, CLI, OAM, OMCI and TR069.

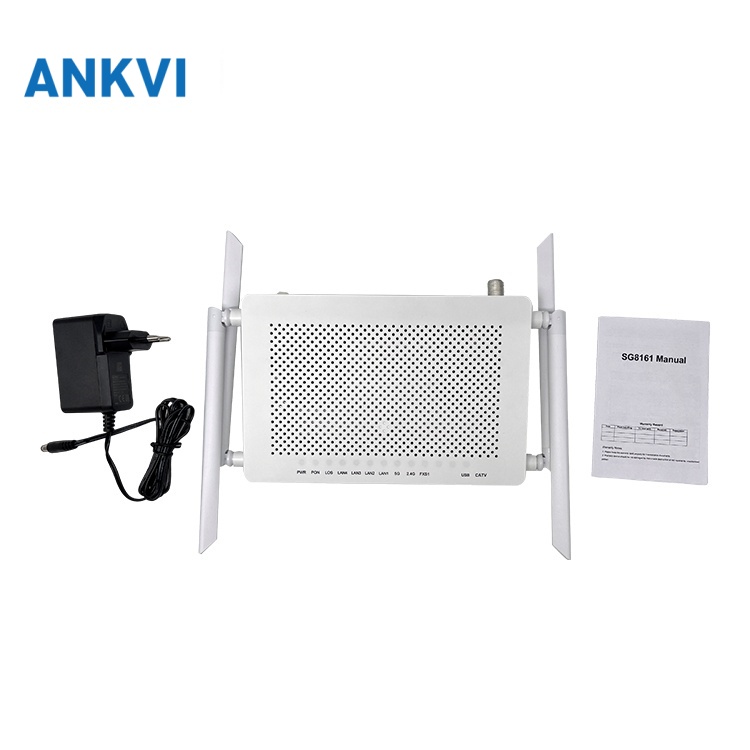

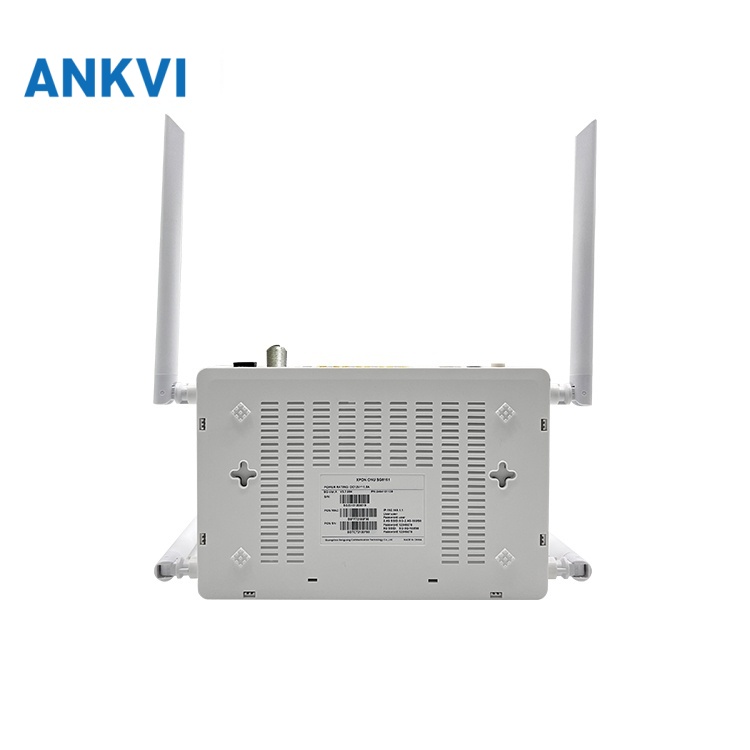

The unit measures 205 mm × 136 mm × 24 mm, weighs under 250 g without its adapter, runs on 12 V 1.5 A and draws less than 12 W. Front-panel indicators — PWR, PON, LOS, 5GHz WiFi, 2.4GHz WiFi, LAN1-4, FXS, WPS, USB1-2 and CATV — show link state at a glance, and an operating range of −5 °C to +45 °C with 10 % to 90 % non-condensing humidity suits unattended installation.

SG8161 Key Features

• Four 1 × GE auto-negotiation RJ45 LAN ports plus a single GPON/EPON PON uplink
• One FXS POTS voice port and one CATV RF overlay port with remote management
• Dual-band WiFi5 — compliant with IEEE 802.11 b/g/n/ac, 2.4 GHz and 5.0 GHz, 13 channels with WMM support
• 2T2R with dual 5 dBi external antennas; MU-MIMO, Dynamic QoS and WiFi EasyMesh support
• Wireless security: WEP-64 / WEP-128 / WPA / WPA2 / WPA3 encryption with WAP-PSK (TKIP) and WAP2-PSK (AES) authentication
• GPON Class B+ / EPON PX20+ with up to 20 km transmission distance over an SC/APC single-mode connector
• Optical budget: TX power 0 to +4 dBm, RX sensitivity −27 dBm, overload −8 dBm (GPON) / −3 dBm (EPON)
• Two-way FEC, SR/NSR DBA and GEM/TCONT mapping
• CATV RF and optical power range +2 to -18 dBm; RF frequency range 47 to 1000 MHz; RF output impedance 75 Ω
• CATV optical receiving wavelength 1550 ± 10 nm with optical reflection loss ≥ 45 dB
• RF output level and AGC range 83 / 81 / 79 / 77 / 75 / 73 dBuv across the six optical windows; MER ≥ 32 dB (-14 dBm optical input) and > 35 dB (-10 dBm)
• Two USB ports for FTP network storage and shared storage / printer / console use
• Voice codecs G.711 / G.722 / G.729; fax T.30 / T.38 and 56 Kbps modem access; SIP and IMS SIP call protocol
• Echo cancellation to ITU-T G.165 / G.168-2002 (128 ms), line testing per GR-909, MD5 authentication, call forwarding, waiting, hot-line and alarm clock
• Bridge, router and bridge/router mixed mode with NAT, ALG, UPnP, DMZ and virtual server
• IPv4, IPv6 and IPv4/IPv6 dual stack with DHCP, DHCPv6, PPPoE and static routing; 4K VLAN, 2K MAC, QinQ, 1:1 VLAN, VLAN trunk and VLAN 1:1 translation (≤ 8 VLANs)
• IGMP and MLD snooping and proxy; up to 8 multicast VLANs and 64 multicast groups with fast leave; four-queue QoS (SP, WRR, 802.1P, DSCP)
• Management via WEB / TELNET / CLI / OAM / OMCI / TR069, ITU-T G.984.x OMCI and CTC 3.0; anti-DDoS filtering, IPv6 firewall and dying gasp alarms

SG8161 Specifications

Device Parameters

Parameter	Value	Parameter	Value
Dimension	205 mm × 136 mm × 24 mm	Temperature	−5 °C to +45 °C
Weight	< 250 g (without power adapter)	Humidity	10 % to 90 % (no condensing)

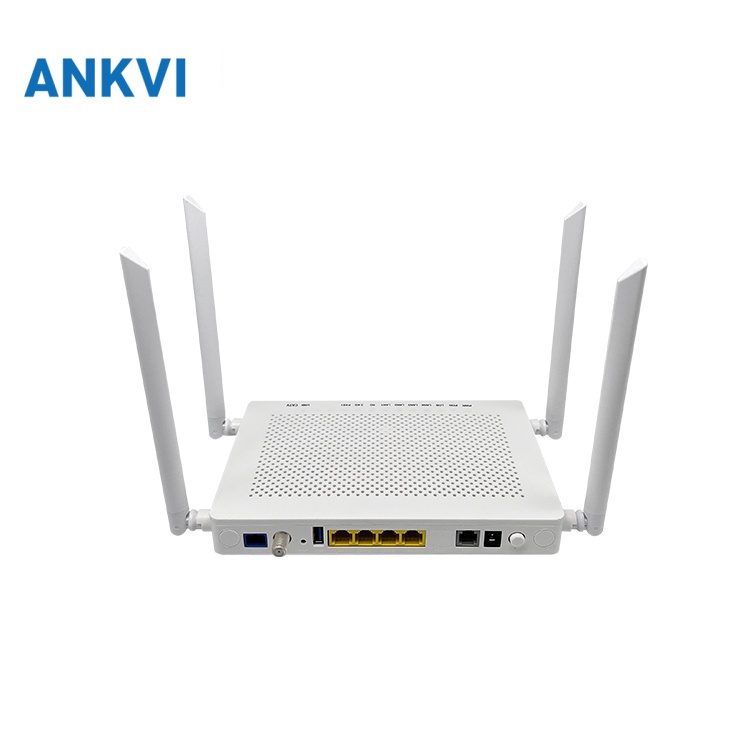

Power Supply	12 V 1.5 A	Interface	4GE + 1POTS + 1CATV + WiFi5 + 2 × USB
Power Consumption	< 12 W	Indicators	PWR / PON / LOS / 5GHz WiFi / 2.4GHz WiFi / LAN1-4 / FXS / WPS / USB1-2 / CATV

PON Interface

Item	Specification
OLT compatibility	Accesses mainstream GPON/EPON OLTs
Standards	GPON Class B+ / EPON PX20+
Optical connector	SC single mode, SC/APC
Wavelength	TX 1310 nm, RX 1490 nm
Transmission distance	Up to 20 km
TX power	0 to +4 dBm
RX sensitivity	−27 dBm
Overload power	−8 dBm (GPON), −3 dBm (EPON)
Authentication	SN / Password / LOID (GPON) · MAC / Key / LOID (EPON)
PON features	Two-way FEC, SR/NSR DBA, GEM/TCONT mapping

LAN Interface

Item	Specification
Ethernet port	4 × GE, auto-negotiation RJ45
MAC address	Restriction and learning capabilities
VLAN	Ethernet port-based VLAN tag / tag stripping, local switching and isolation
Layer 2	Pass-through support
Protection	Storm control, loop detection and flow control

WIFI Interface

Item	Specification
Standards	Compliant with IEEE 802.11 b/g/n/ac
Operating frequencies	2.4 GHz (2.400-2.483 GHz), 5.0 GHz (5.150-5.825 GHz)
Channels	13 channels with adjustable wireless selection
Mode	Wireless AP mode and Wi-Fi Multi Media (WMM) support
SSID	Multiple concealed SSIDs support
TX power	11n-20 dBm / 11ac-23 dBm
Encryption	WEP-64 / WEP-128 / WPA / WPA2 / WPA3
Authentication	WEP / WAP-PSK (TKIP) / WAP2-PSK (AES)
Modulation	DSSS, CCK, OFDM, with OFDMA support
Encoding	BPSK, QPSK, 16QAM, 64QAM, 1024QAM
Features	Supports MU-MIMO, Dynamic QoS and WiFi EasyMesh function
Antennas	2T2R with dual 5 dBi external antennas
WPS	WPS support

USB Interface

Item	Specification
Storage	Supports FTP Network Storage
Ports	Dual USB Ports for Shared Storage / Printer / Console

VoIP Interface

Item	Specification
Voice enhancement	Supports G.711 / G.722 / G.729 codecs, with auto-negotiation
Fax	Supports T.30 / T.38, high / low speed, bypass and T38 fax
Modem	High-speed (56 Kbps) dial access
Call protocol	SIP (IMS compatible), compatible with popular call agents
SIP support	Supports both SIP and IMS SIP, with heartbeat function and active/standby call agent
Echo cancellation	Exceeds ITU-T G.165 / G.168-2002, up to 128 ms tail length
Line testing	According to GR-909 standard
Voice services	Includes MD5 authentication, call forwarding, waiting, hot-line, alarm clock, and more
Supplementary	Silence detection, multi-party conferencing, loss compensation, local exchange

CATV Interface

Item	Specification
Management	Supports CATV Remote Management
RF / optical power range	+2 to -18 dBm
RF frequency range	47 to 1000 MHz
RF output impedance	75 Ω
Optical receiving wavelength	1550 ± 10 nm
Optical reflection loss	≥ 45 dB
RF output level and AGC range	83 dBuv @ 0 to -10 dBm / 81 dBuv @ -1 to -11 dBm / 79 dBuv @ -2 to -12 dBm / 77 dBuv @ -3 to -13 dBm / 75 dBuv @ -4 to -14 dBm / 73 dBuv @ -5 to -15 dBm
MER	≥ 32 dB (-14 dBm optical input), > 35 (-10 dBm)

Function

Category	Specification
Basic	SN / Psw / LOID / LOID+Psw authentication (GPON) and Mac / LOID / Mac+LOID authentication (EPON); DBA; auto-detecting, auto-configuration and auto firmware upgrade; triple churning
Compatibility	Interworking with Fiberhome AN5516, ZTE C220 / C300 / C320 / C600 and Huawei MA5600 / MA5680 / MA5800
Data service functions	Full-speed non-blocking switching; bridge, router and bridge/router mixed mode; IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy; QinQ VLAN, 1:1 VLAN, VLAN reusing and VLAN trunk; auto polarity detection of Ethernet ports (AUTO MDIX); port monitoring, rate limiting and SLA; integrated IEEE 802.1p QoS with four priority queues; 4K VLAN ID; 2K MAC address table
L2	802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN; rich QinQ VLAN functions and IGMP snooping multicast features
L3	DNS, DNS client, DDNS/DNS server; DHCP, DHCPv6, PPPoE, static IP, IPv4/IPv6 dual stack and static routing; NAT, ALG, UPnP, DMZ; firewall; port forwarding; one WAN for multiple services; virtual server; ACL, spanning tree; DHCP server & DHCP relay; VxLAN, EoIP, L2TP and IPSec VPN

VLAN and QoS

Area	Specification
VLAN	4K VLAN; auto VLAN detection; VLAN tag / untag / transparent / trunk mode; VLAN 1:1 translation mode (≤ 8 VLANs)
QoS	Four queues including SP, WRR and 802.1P; SP / WRR / 802.1P / DSCP; flow mapping based on VLAN, 802.1p, Ethernet port or any combination; broadcast message rate limiting
Multicast	IGMP and MLD (v1/v2/v3) with snooping and proxy; max 8 multicast VLANs; max 64 multicast groups; fast leave; downlink multicast VLAN switching, transmission and stripping; WiFi bearer multicast services

Management, O&M and Security

Area	Specification
Management	WEB / TELNET / CLI / TR069; ITU-T G.984.x OMCI; CTC 3.0, backward compatible with 2.1 / 2.0
O&M	Loop detection; WEB / TELNET / OAM / OMCI / TR069; software dual backup and rollback; optical link measurement and diagnosis; integrated OAM/OMCI remote configuration and maintenance; detecting rogue ONU, hardware dying gasp
Alarm	Dying gasp, port loop detect and EthPort LOS
Security	Anti-DDoS filtering based on ALC / MAC / URL; flow & storm control, loop detection; IPv6 firewall; MAC/IP/URL address filtering

Deployment Scenarios

• Triple-play FTTH homes that need data, WiFi5, VoIP telephony and CATV television over one optical line
• Operators delivering RF video (CATV) alongside GPON/EPON data to the same subscriber premises
• High-end residential and small-business sites that also need four wired LAN ports and USB storage
• FTTB and MDU deployments that already run GPON or EPON OLTs from Fiberhome, ZTE or Huawei
• ISP rollouts that need OMCI and CTC 3.0 remote provisioning with auto-configuration across data, voice and video
