X96 Max+Ultra 8K Android TV Box – S905X4, 4GB/64GB
The X96 Max+Ultra is an 8K-capable Android 11 TV box built on the Amlogic S905X4 quad-core CPU with 4GB RAM and 64GB ROM, dual external-antenna Wi-Fi, Gigabit Ethernet and Bluetooth 4.X.
Description
Overview

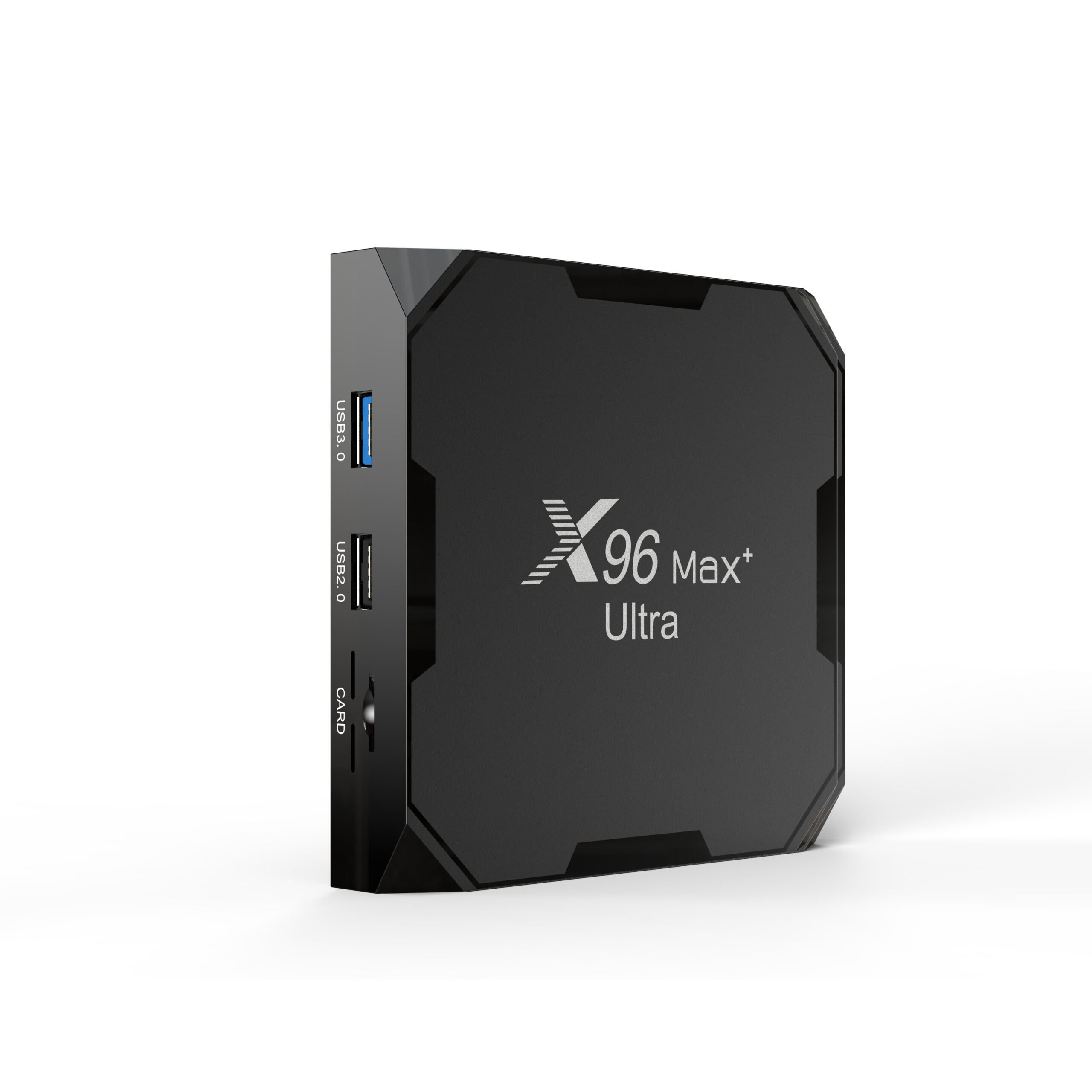

The X96 Max+Ultra is an Android 11 media box built on the Amlogic S905X4 quad-core processor with an ARM Mali-G31 MP2 GPU. It combines 4GB of RAM with 64GB of ROM and two external antennas.
Video decoding reaches 8Kx4K@24, and the interface covers 4K*2K HDMI output, 1000M Ethernet, USB 3.0 and USB 2.0 ports, a Micro SD slot and Bluetooth 4.X.
X96 Max+Ultra Key Features
- Amlogic S905X4 quad-core CPU with ARM Mali-G31 MP2 GPU
- 4GB RAM and 64GB ROM, with 2/4GB and 16/32/64/128GB options
- 8Kx4K@24 video decoding with HDR support

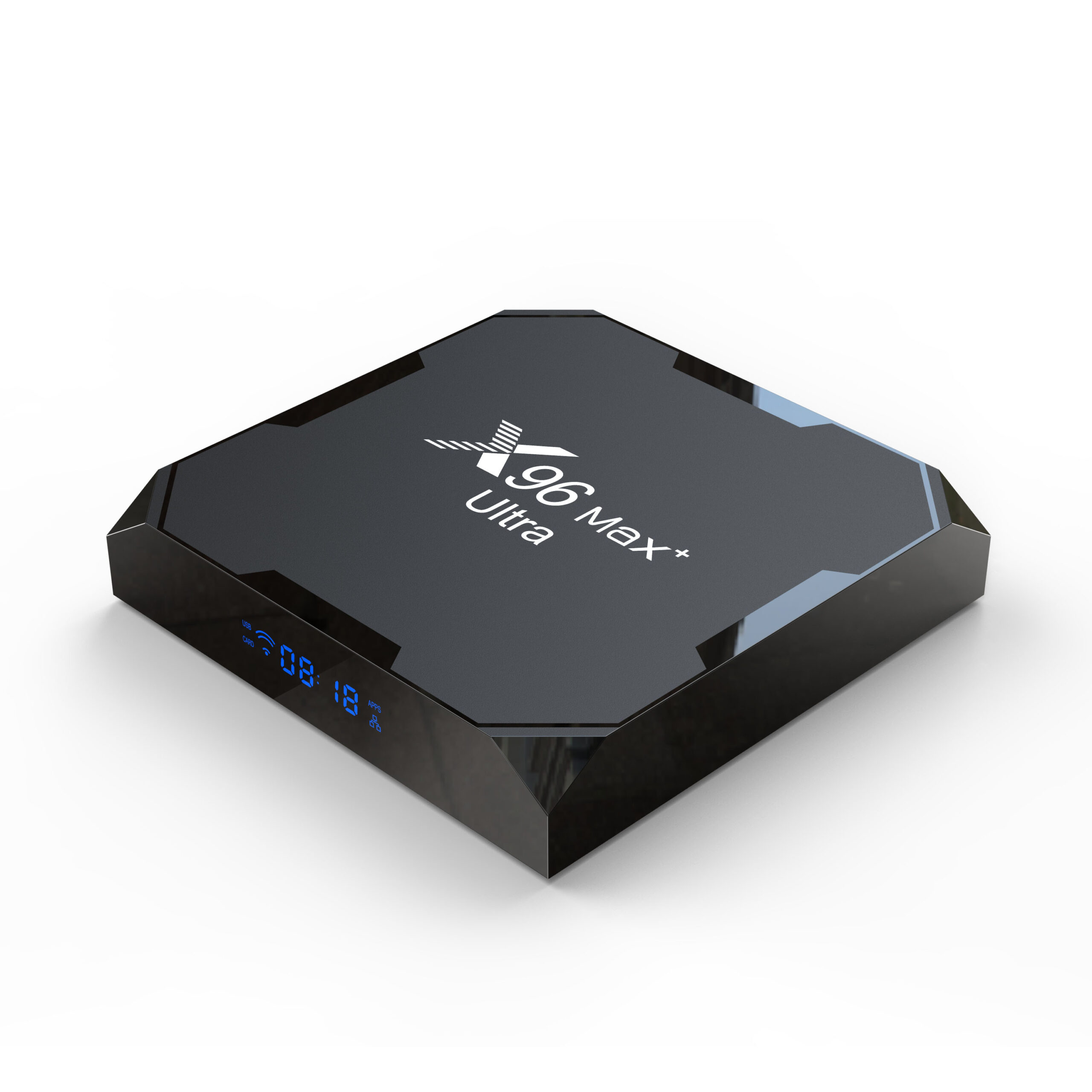

- Dual-band 2.4G/5G 802.11ac Wi-Fi with two external antennas
- 4K*2K UHD HDMI output and 1000M Ethernet

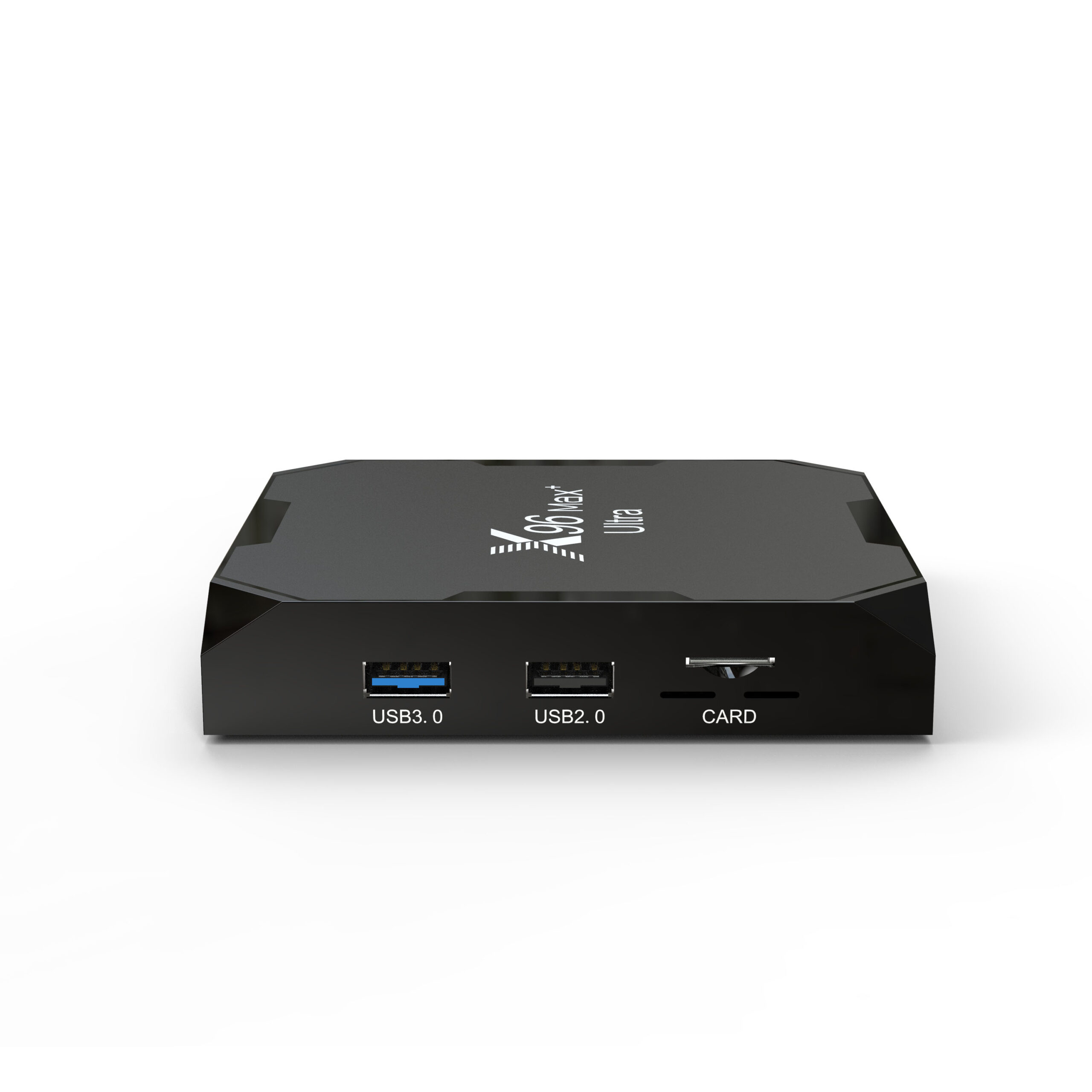

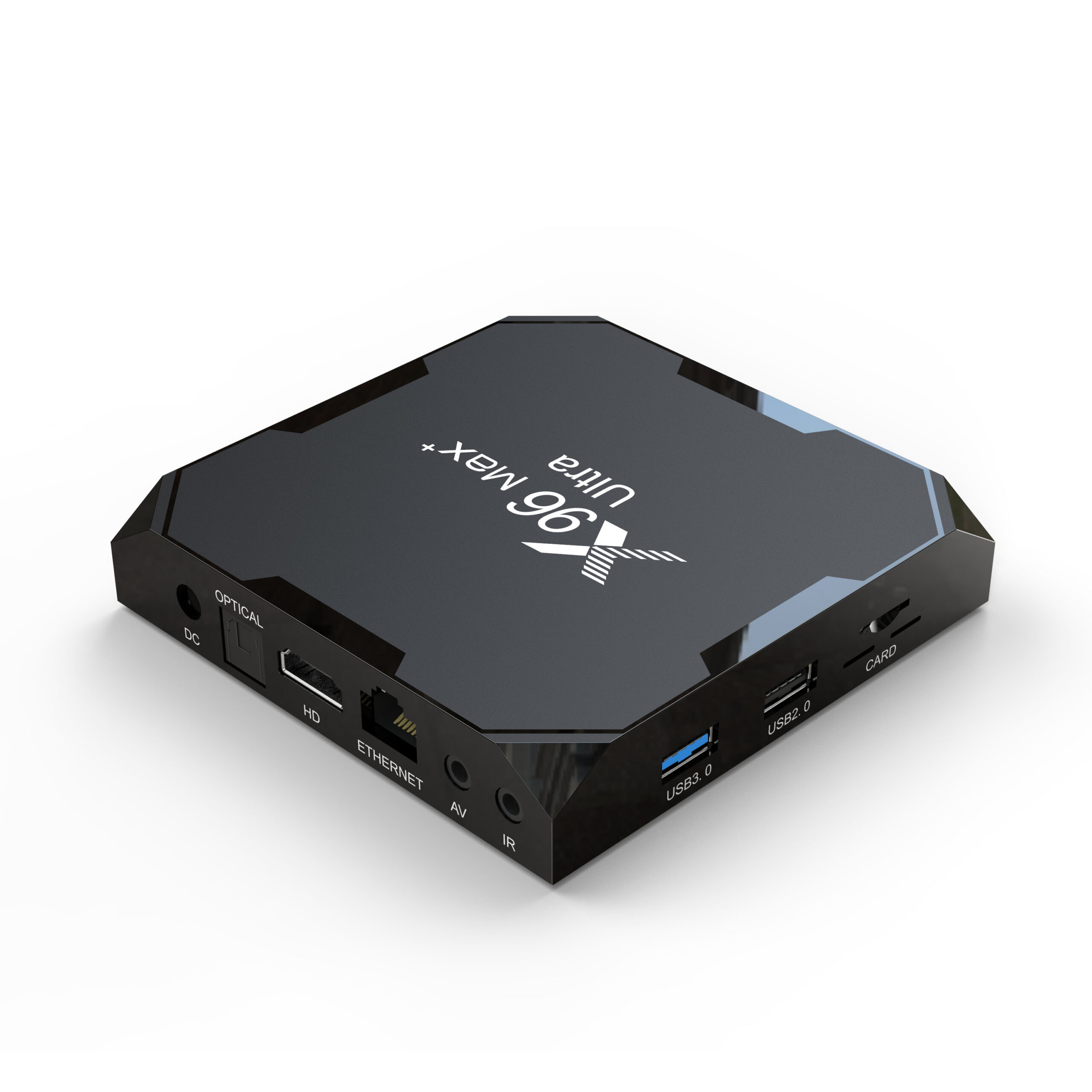

- 1 x USB 3.0 plus 1 x USB 2.0 ports and a Micro SD slot
X96 Max+Ultra Specifications
| Parameter | Specification |
|---|---|
| CPU Chipset | Amlogic S905X4 |
| CPU Architecture | Quad Core ARM Cortex A55 |
| GPU Chipset | ARM Mali-G31 MP2 |
| GPU Architecture | OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support |
| RAM Capacity | 4GB (2/4GB Optional) |
| ROM Capacity | 64GB (16/32/64/128GB Optional) |
| External storage USB Storage Devices | USB2.0, USB3.0 Support |
| External storage Micro SD card | Supported |
| Operating system OS Version | Android 11 |
| Language | Multi-Language |
| Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders; support multi-video decoder up to 4x1080P@60fps; supports multiple “secured” video decoding sessions and simultaneous decoding and encoding; Video/Picture Decoding: VP9 Profile-2 up to 8Kx4K@24 fps, H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps, AVS2-P2 Profile up to 8Kx4K@24 fps, MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496), WMV/VC-1 SP/MP/AP up to 1080P@60fps, AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps, MPEG-2 MP/HL up to 1080P@60fps (ISO-13818), MPEG-1 MP/HL up to 1080P@60fps (ISO-11172, RealVideo 8/9/10 up to 1080P@60fps, multiple language and multiple format sub-title video support, MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918, supports JPEG thumbnail, scaling, rotation and transition effects, supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. |
| Image | HD JPEG、BMP、GIF、PNG、TIF |
| Wi-Fi Type | Support WiFi IEEE 802.11 b / g / n / ac |
| Wi-Fi Frequency | Support 2.4G and 5G |
| Antenna Type | Two external antennas |
| Bluetooth | Support BT4.X |
| Charge DC connector | DC IN(5V/2A) |
| Video output HDMI | 4K*2K UHD Output, HDMI 1.4/2.0 |
| IR Reciver 3.5mm Earphone jack | Remote Reciver Connect |
| Micro SD External memory | Support |
| USB port USB host | 1*USB3.0 1*USB2.0 normal type |
| Ethernet | 1000M Ethernet |
| Body Material | Plastic |
| Color | Black |
| Size | 105x105x19(mm) |
| Weight | 0.137Kg |
| Cerifications Standard CE | / |
| Cerifications RoHS | / |
| Cerifications Others Optional | / |
| Package contents | User manual *1, Gift Box *1, Remote control *1, HDMI external cable *1, Power adapter *1 |
| Shipping Gift Box Dimension(mm) | 205x140x50mm |
| Shipping Carton Size(mm) | 420x270x305mm |
| Shipping Qty Per Carton(pcs) | 20PCS |
| Shipping Gift Box.G.W(gs) | 0.394Kg |
| Shipping Export carton (G.W.)(kgs) | 8.8Kg |
Applications
- Home entertainment and 4K video playback
- IPTV and OTT streaming apps
- Hotel and guest-room TV systems
- Digital signage and office displays
