XRT-002 Horizontal Splice Closure – 144 Core, IP65, ABS
The XRT-002 is a horizontal in-line optical splice closure in ABS with IP65 protection, 2in 2out oval and round cable ports and capacity up to 144cores on 24core trays.
Description
Overview

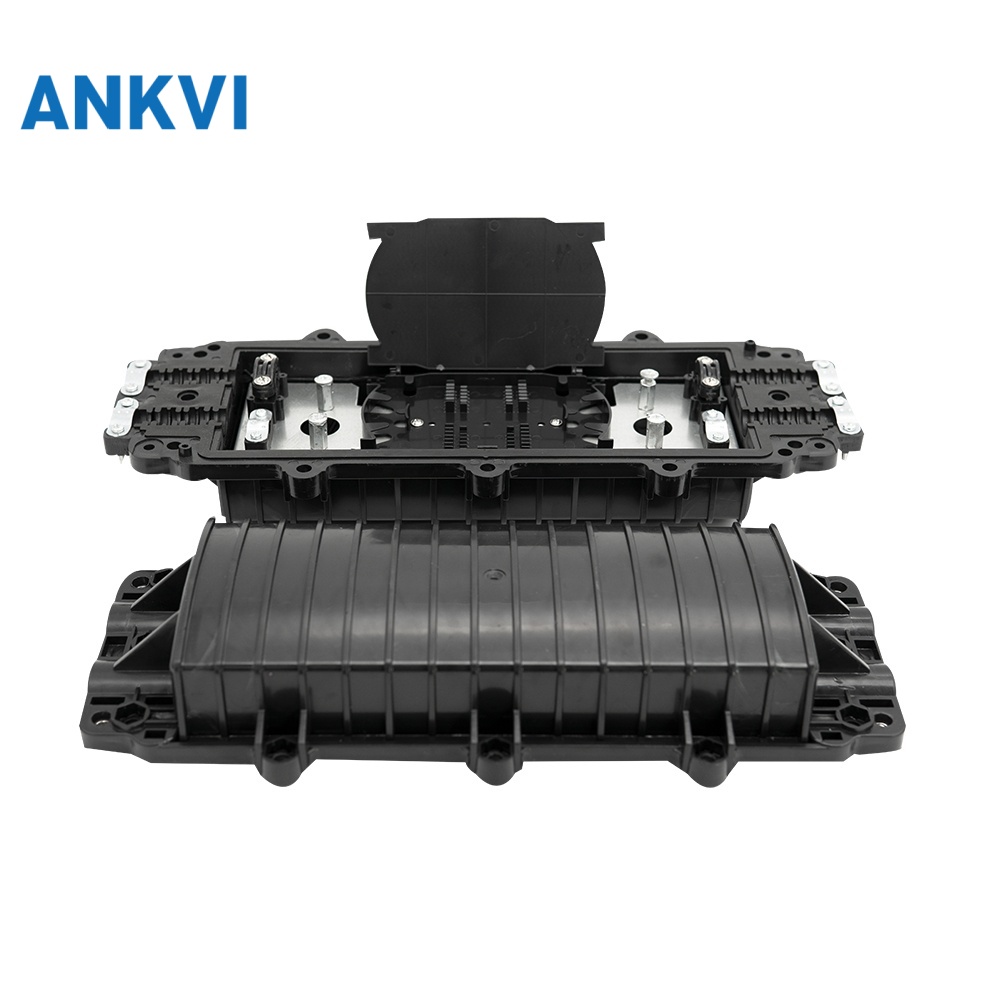

The XRT-002 is a horizontal (in-line) optical splice closure used for direct connection and large capacity discontinuous connection of optical fibre cable. It protects the cable joint and meets the construction requirements for laying optical fibre cables underground, in pipelines and in wells.

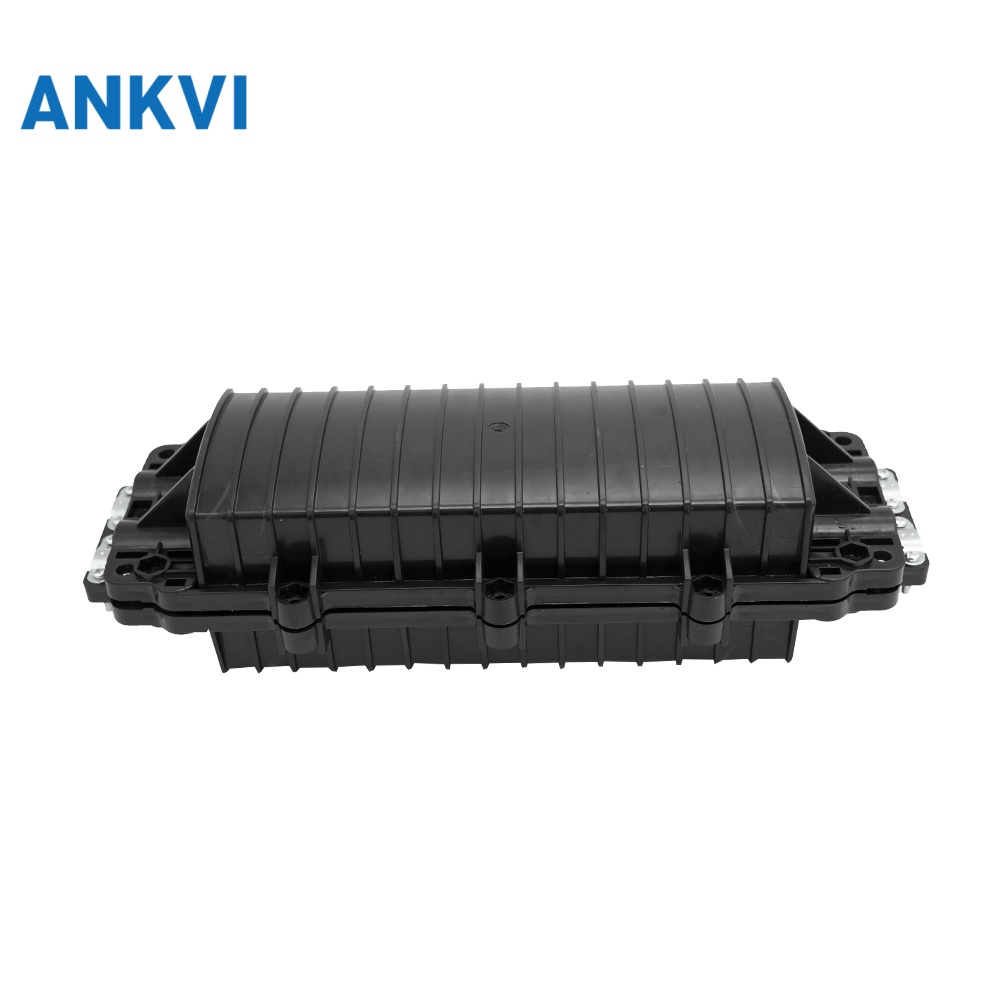

The shell is moulded from high strength engineering plastic with an anti-aging agent and sealed mechanically, giving a black ABS housing with IP65 protection level. Cable entry is 2in 2out, capacity runs from 12cores up to 144cores, and the closure can be mounted on a pole or buried.
XRT-002 Key Features
- High strength engineering plastic shell with an anti-aging agent for long outdoor service
- Mechanical sealing of all cable import and export points and of the box opening

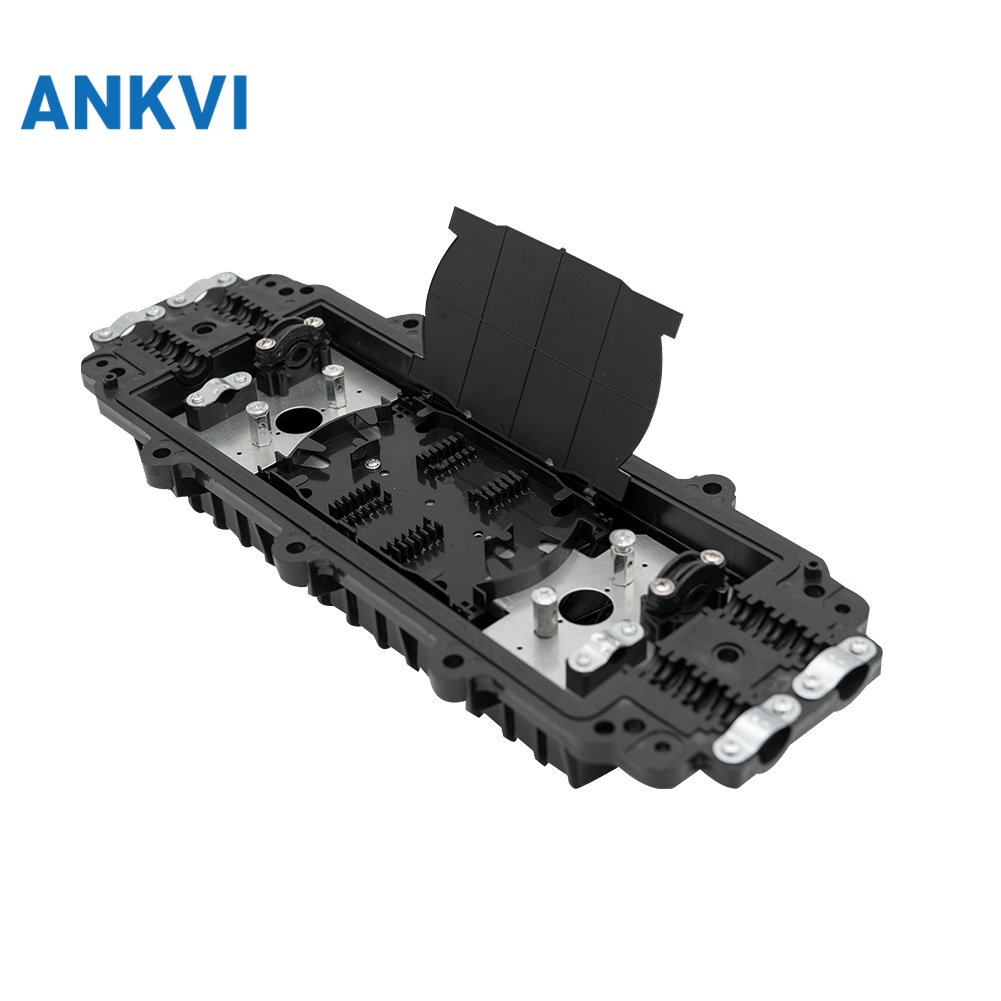

- Laminated splice tray structure that keeps fibre welding easy to operate

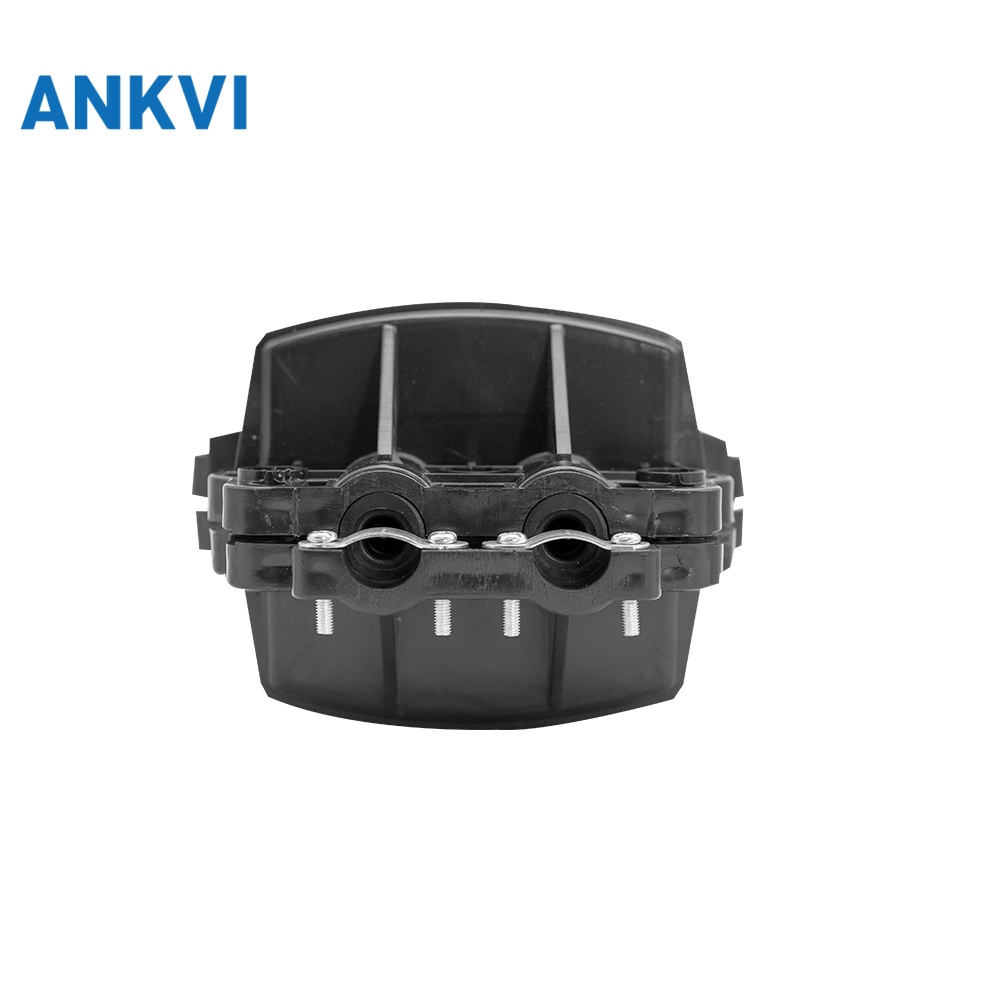

- Black ABS housing with IP65 protection level and 2in 2out oval and round ports
- Capacity from 12cores up to 144cores using 24core trays
- Suitable for both common cable and optical cable
XRT-002 Specifications
Technical Index
| Parameter | Specification |
|---|---|
| Model No. | XRT-002 |
| Color | Black |
| Capacity(Max) | 12cores(12core/tray*1trays) 24cores(24core/tray*1trays) 48cores(24core/tray*2trays) 72cores(24core/tray*3trays) 96cores(24core/tray*4trays) 144cores(24core/tray*6trays) |
| Protection Level | IP65 |
| Material | ABS |
| Inlet/Outlet | 2in 2out |
| Scope of inlet (2in) Oval/outet(2out) Round shape | Φ18mm |
| Product Size | H 450*170*100mm |
| Structure | Mechanical sealing |
| Package / Carton | 10pcs/carton,49*38*50cm,23kgs |
Applications
- FTTH project and FTTX deployments
- Optical LAN, WAN and CATV
- Telecommunication network
- Local area network
