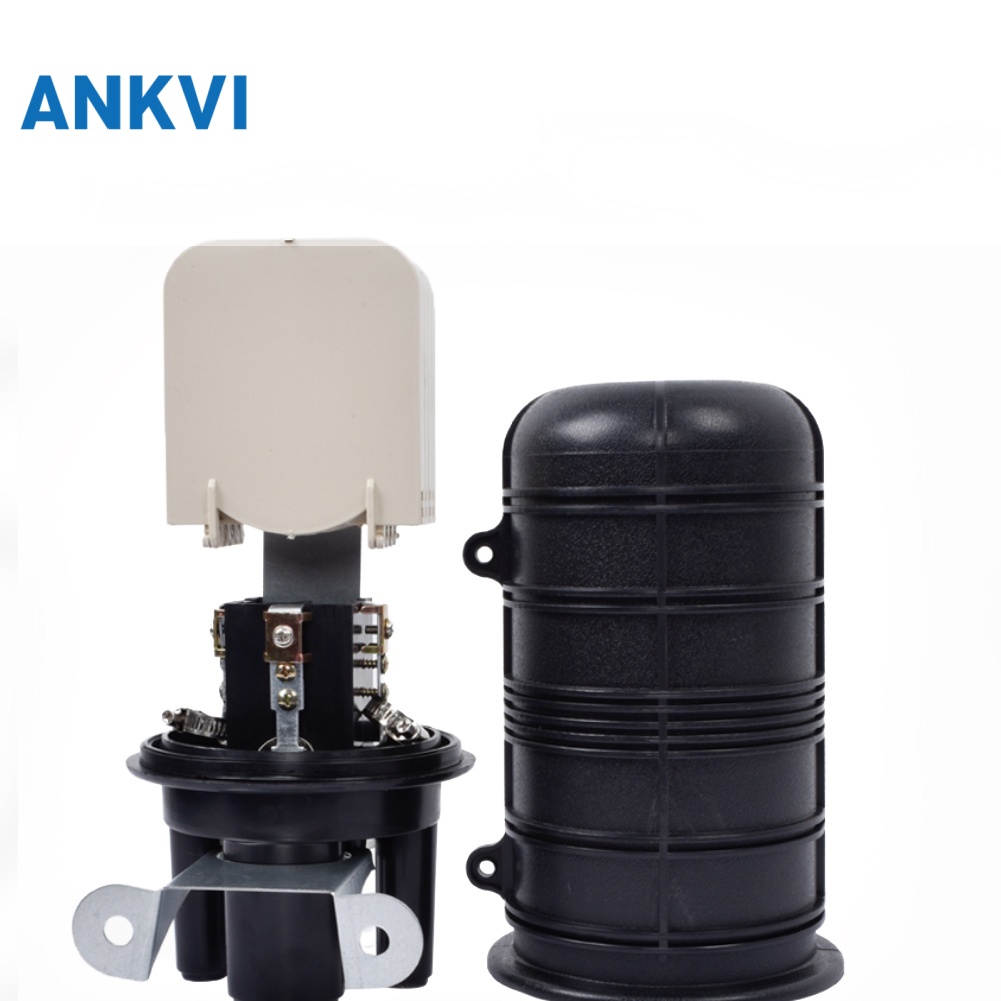

XRT-MS-001 Vertical Splice Closure – 48 Core, IP68
The XRT-MS-001 is a vertical dome splice closure in ABS with IP68 sealing, holding up to 48 cores across two 24-core trays and fitted with 1-in 3-out cable ports.
Description
Overview
The optical cable connector box is used for direct connection and large capacity discontinuous connection of optical fiber cable, and plays a role of protecting the optical fiber cable joint.
It can meet the construction requirements for laying optical fiber cables, underground, pipelines and wells.
XRT-MS-001 Key Features
- It is suitable for the aerial
- All kinds of accessories can be configured.
- An aging resistance: good stability to heat, heat radiation, air, ozone etc..
- The purpose of corrosion resistance: high resistance to dilute acid, salt, oxidizing agent, aliphatic hydrocarbons etc..
- The purpose of sealing technology: using repeatable opening seal components, to ensure airtight good waterproof performance.
- All the mechanical properties: the ability to endure harsh conditions such as vibration, impact, cable tensile distortion and strong temperature change etc..
XRT-MS-001 Specifications
Technical Index
| Parameter | Specification |
|---|---|
| Model No. | XRT-MS-001 |
| Color | Black |
| Capacity(Max) | 12cores(12core/tray*1trays) 24cores(24core/tray*1trays) 48cores(24core/tray*2trays) |
| Protection Level | IP68 |
| Material | ABS |
| Inlet/Outlet | 1in 3out |
| Scope of inlet (3in) Oval shape | Φ18mm |
| Product Size | H 300*Φ150mm |
| Scope of outlet(3out) Round shape | Φ15mm |
| Structure | Heat Shrinkable sealing |
| Package / Carton | 9pcs/carton,59*33.5*52om,13.5kgs |
Applications
- FTTH project and FTTX Deployments
- Optical LAN, WAN and CATV
- Telecommunication Network
- Local Area Network
