XRT-013 Horizontal Splice Closure – 144 Core, IP65, PC Alloy
The XRT-013 is a horizontal in-line optical splice closure in PC alloy with IP65 protection, 3 inlet 3 outlet ports and capacity up to 144cores on 24core trays.
Description
Overview
The XRT-013 is a horizontal (in-line) optical splice closure used for direct connection and large capacity discontinuous connection of optical fibre cable. It protects the cable joint and meets the construction requirements for laying optical fibre cables underground, in pipelines and in wells.

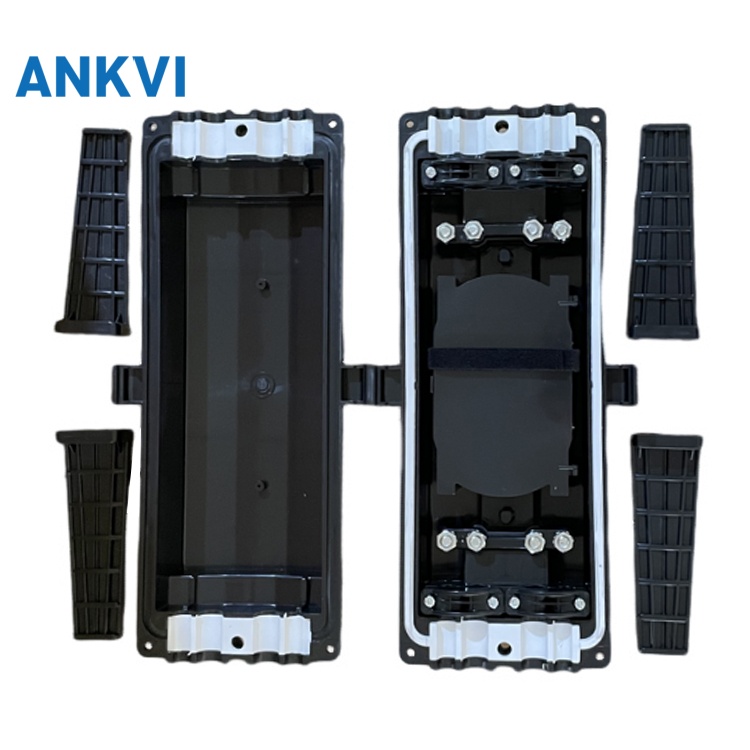

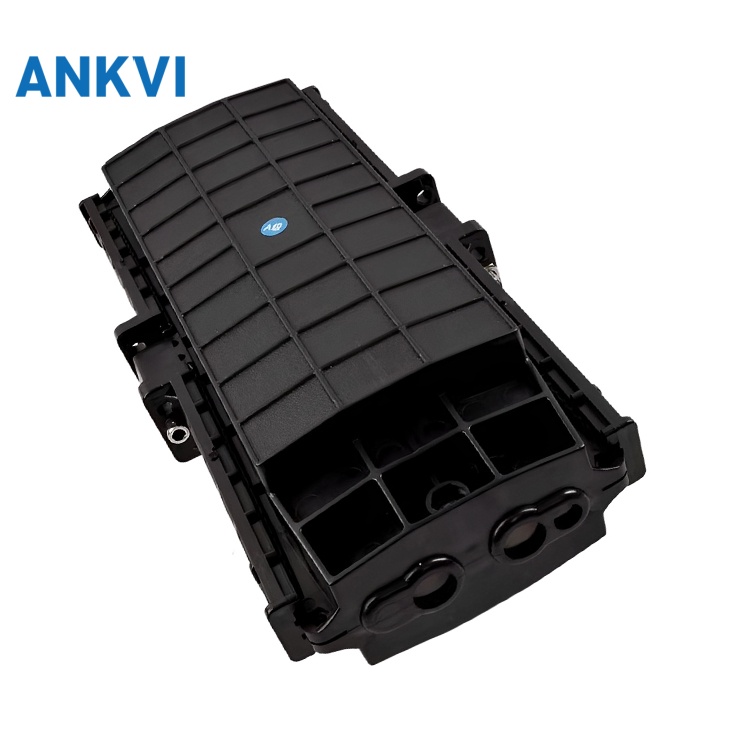

The shell is moulded from high strength engineering plastic with an anti-aging agent and sealed mechanically, giving a black PC alloy housing with IP65 protection level. The 404*190*100mm body takes 3 inlet 3 outlet oval and round cable ports and 12cores to 144cores, and it can be mounted on a pole or buried.
XRT-013 Key Features
- High strength engineering plastic shell with an anti-aging agent for long outdoor service
- Mechanical sealing of all cable import and export points and of the box opening
- Laminated splice tray structure that keeps fibre welding easy to operate
- Black PC alloy housing with IP65 protection level and 3 inlet 3 outlet oval and round ports
- Capacity from 12cores up to 144cores using 24core trays
- Suitable for both common cable and optical cable
XRT-013 Specifications
Technical Index
| Parameter | Specification |
|---|---|
| Model No. | XRT-013 |
| Color | Black |
| Capacity(Max) | 12cores(12core/tray*1trays) 24cores(24core/tray*1trays) 48cores(24core/tray*2trays) 72cores(24core/tray*3trays) 96cores(24core/tray*4trays) 144cores(24core/tray*6trays) |
| Protection Level | IP65 |
| Material | PC alloy |
| Inlet/Outlet | 3 inlet 3 outlet |
| Scope of inlet (3in) Oval shape | Φ20mm |
| Scope of outlet(3out) Round shape | Φ13mm |
| Product Size | 404*190*100mm |
| Structure | Mechanical sealing |
| Package / Carton | 10pcs/carton,69*43*43CM,23kgs |
Applications
- FTTH project and FTTX deployments
- Optical LAN, WAN and CATV
- Telecommunication network
- Local area network
