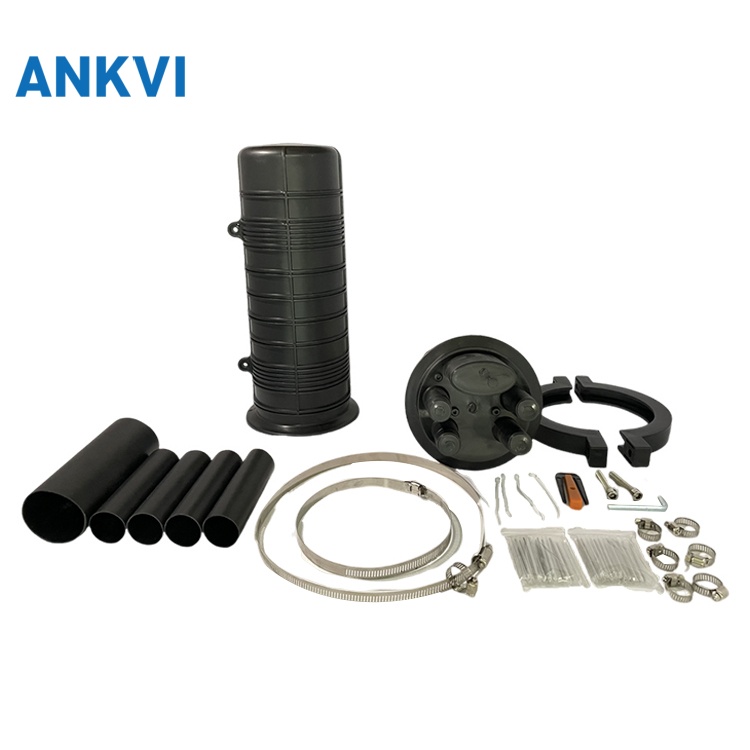

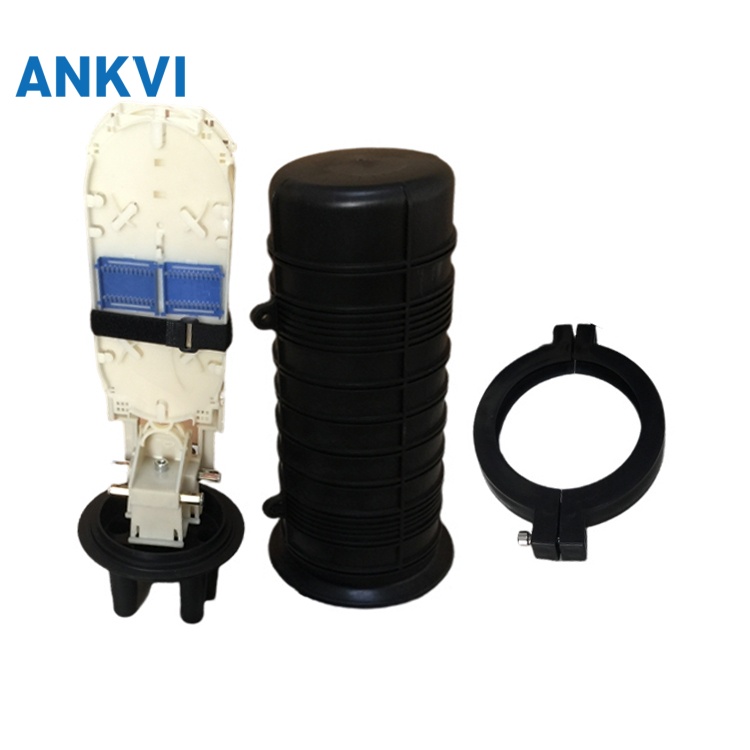

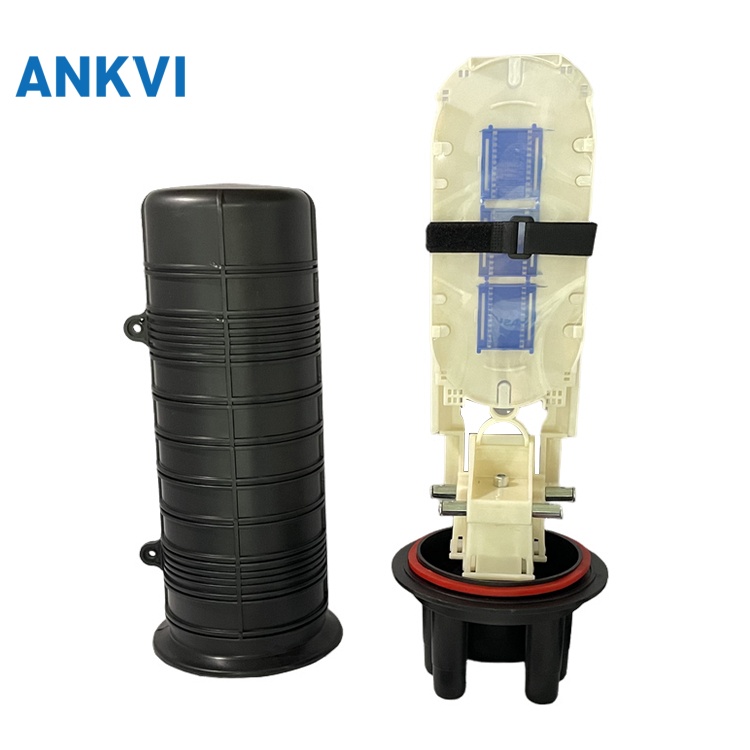

XRT-MS-009 Vertical Splice Closure – 96 Core, IP68
The XRT-MS-009 is a black IP68 vertical fibre optic splice closure with one inlet and four outlets, heat shrinkable sealing and capacity for up to 96 cores.
Description
Overview
The XRT-MS-009 is a vertical (dome) fibre optic splice closure for direct connection and large capacity discontinuous connection of optical fibre cable, protecting the cable joints underground, in pipelines and in wells.
Its heat shrinkable sealing structure, IP68 protection level and 1 inlet 4 outlet layout suit aerial, pole and buried installation.
XRT-MS-009 Key Features
- IP68 protection level for reliable sealing in harsh outdoor conditions.
- Heat shrinkable sealing structure with repeatable opening seal components.
- Aging resistance with good stability to heat, heat radiation, air and ozone.
- Corrosion resistance against dilute acid, salt, oxidizing agent and aliphatic hydrocarbons.
- Mechanical strength to endure vibration, impact, cable tensile distortion and strong temperature change.
- Locking device needs no special tools for easy installation and repeated opening.
XRT-MS-009 Specifications
Technical Index
| Parameter | Specification |
|---|---|
| Model No. | XRT-MS-009 |
| Color | Black |
| Capacity(Max) | 12cores(12core/tray*1trays) / 24oores(24core/tray*1trays) / 48cores(24core/tray*2trays) / 72cores(24core/tray*3trays) / 96cores(24core/tray*4trays) |
| Protection Level | IP68 |
| Material | ABC |
| Inlet/Outlet | 1 inlet 4 outlet |
| Scope of inlet (1in) Oval shape | 60 *30mm |
| Scope of outet(4out) Round shape | Φ23mm |
| Product Size | H450*Φ120mm |
| Structure | Heat Shrinkable sealing |
| Package / Carton | 6pcs/carton, 61*39*50CM,14.17kgs |
Applications
- FTTH project and FTTX Deployments.
- Optical LAN, WAN and CATV.
- Telecommunication Network.
- Local Area Network.
