Name: EDFA-1U-8-16P High-Power EDFA – 8/16 Ports, 34 dBm – ANKVI
SKU: EDFA-1U-8-16P

Description

Overview

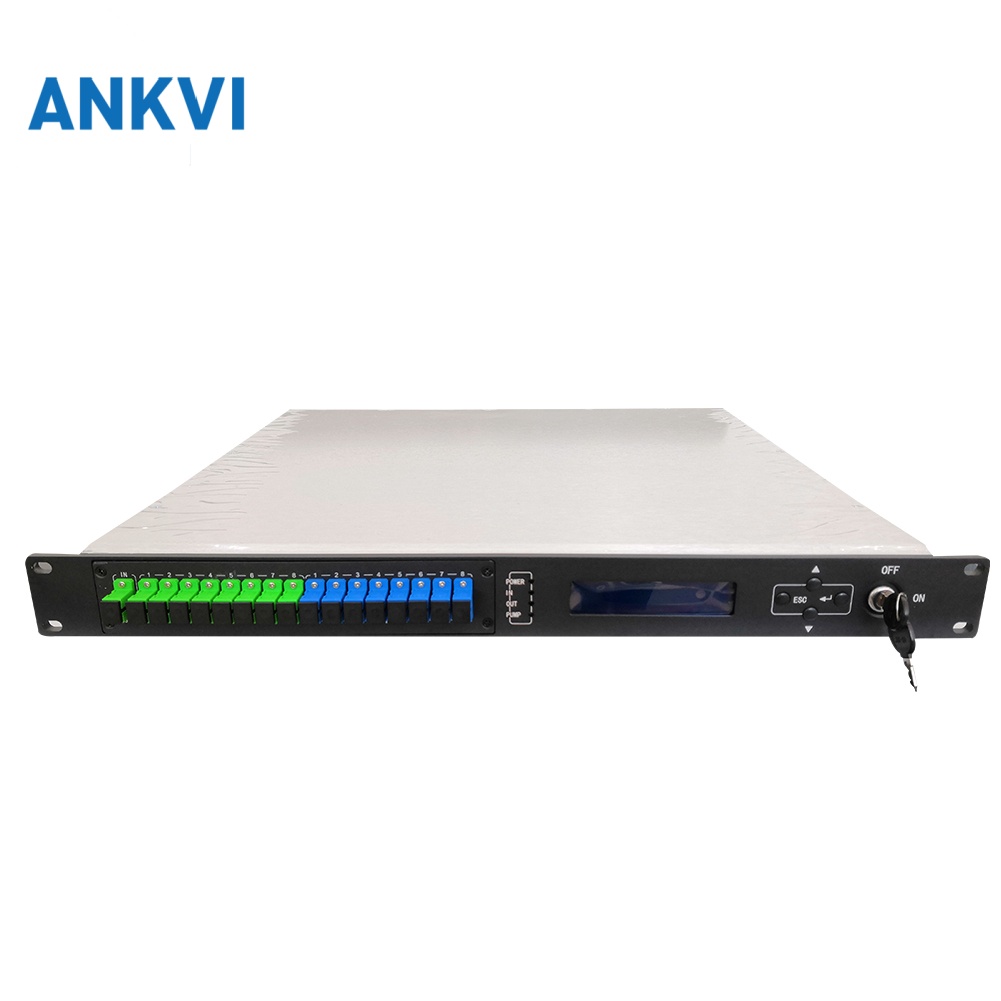

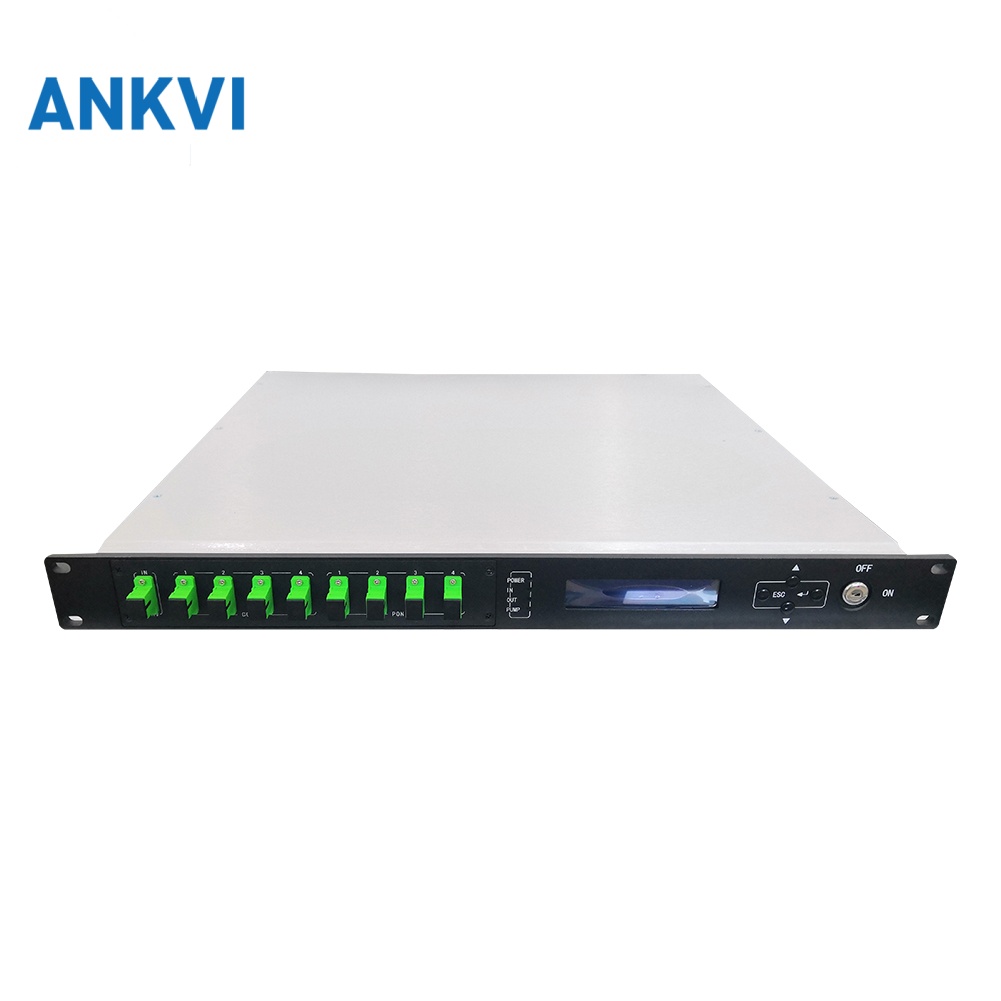

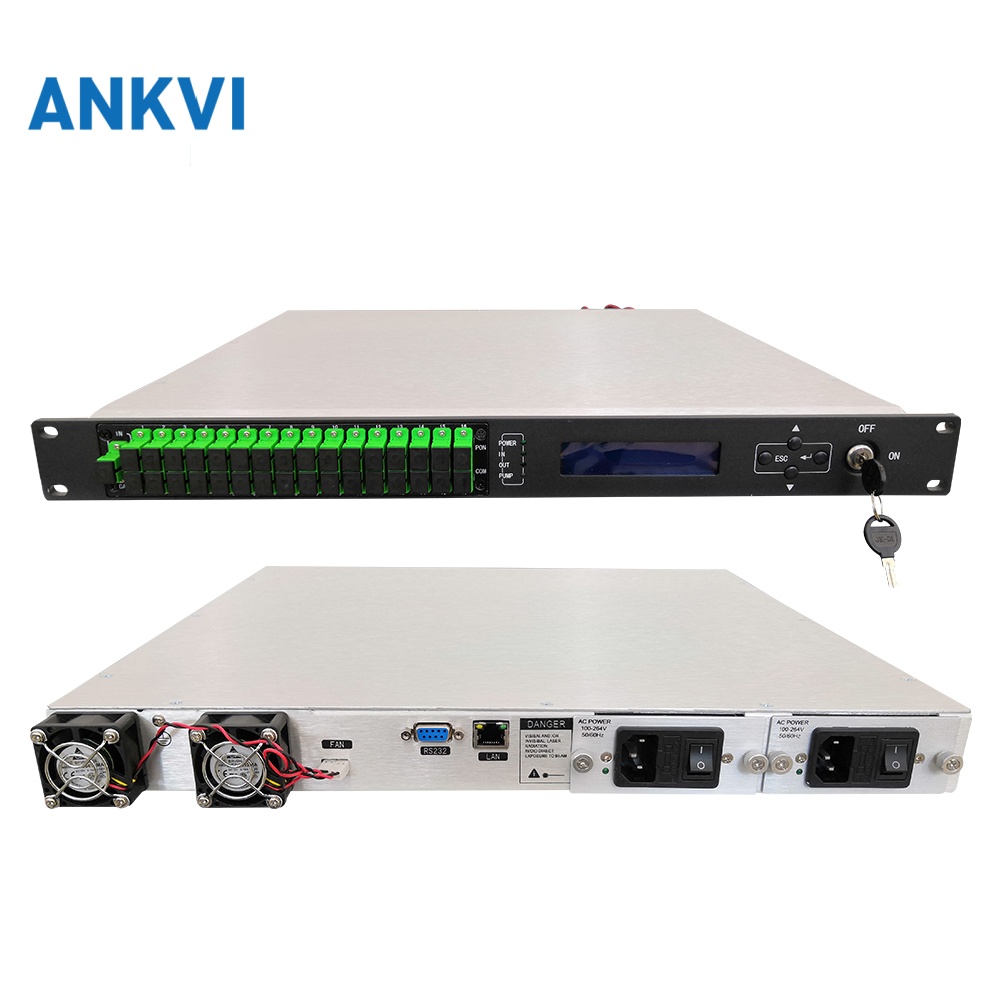

The EDFA-1U-8-16P is a high-power 1550 nm Er Yb co-doped double-clad fibre amplifier in a 1U 19-inch rack-mount chassis, designed for CATV, FTTH and FTTX optical networks.

It provides a maximum optical output power of 34 dBm across 4 to 16 output ports, with a low noise figure, a standard SNMP and Web network management interface and intelligent temperature control.

EDFA-1U-8-16P Key Features

Adopts Er Yb Codoped double-clad fiber technology
Output ports: 4-16 optional
Optical output power: total output up to 3W
Low noise figure: less than 5dB when input is 0dBm
Perfect network management interface, support web English brower, in line with standard SNMP network management
Intelligent temperature control system make the power consumption lower

EDFA-1U-8-16P Specifications

Technique Parameter

Parameter	Specification
Operating bandwidth	1530 – 1560 nm
Optical input power range	-3 – +10 dBm
Maximum optical output power	34 dBm
Output power stability	±0.5 dBm
Output power adjustable range	0~20dBm
Noise figure	≤ 5.0 dB (Optical input power 0dBm, λ=1550nm)
Return loss Input	≥ 45 dB
Return loss Output	≥ 45 dB
Optical Connector Type	SC/APC
C/N	≥ 50 dB (Test condition according to GT/T 184-2002.)
C/CTB	≥ 63 dB
C/CSO	≥ 63 dB
Power supply voltage	A: AC160V – 250V (50 Hz) / B: DC48V
Operating temperature range	-10 – +42 °C
Maximum operating relative humidity	Max 95% no condensation
Storage temperature range	-30 – +70 °C
Maximum storage relative humidity	Max 95% no condensation
Dimension	483(L)×460(W)×44(H) mm

Model and Power Comparison Table

Style	Total output power dBm	Output port	Each output power dBm	Each output PowerdBm with FWDM
EDFA-4 -18-1U	25	4	18	17
EDFA-4 -19-1U	26	4	19	18
EDFA-4 -20-1U	27	4	20	19
EDFA-4 -21-1U	28	4	21	20
EDFA-4 -22-1U	29	4	22	21
EDFA-4 -23-1U	30	4	23	22
EDFA-4 -24-1U	31	4	24	23
EDFA-8 -15-1U	26	8	15	14
EDFA-8 -16-1U	27	8	16	15
EDFA-8 -17-1U	28	8	17	16
EDFA-8 -18-1U	29	8	18	17
EDFA-8 -19-1U	30	8	19	18
EDFA-8 -20-1U	31	8	20	19
EDFA-8 -21-1U	32	8	21	20
EDFA-8 -22-1U	33	8	22	21
EDFA-8 -23-1U	34	8	23	22
EDFA-8 -24-1U	35	8	24	23
EDFA-16-15-1U	29	16	15	14
EDFA-16-16-1U	30	16	16	15
EDFA-16-17-1U	31	16	17	16
EDFA-16-18-1U	32	16	18	17
EDFA-16-19-1U	33	16	19	18
EDFA-16-20-1U	34	16	20	19
EDFA-32-15-1U	32	32	15	14
EDFA-32-16-1U	33	32	16	15
EDFA-32-17-1U	34	32	17	16
EDFA-32-18-1U	35	32	18	17

Applications

Single-mode fiber 1550 amplification network
FTTH network
CATV network
