Name: EDFA-2U-8-16P High-Power EDFA – 8/16 Ports, 39 dBm – ANKVI
SKU: EDFA-2U-8-16P

Description

Overview

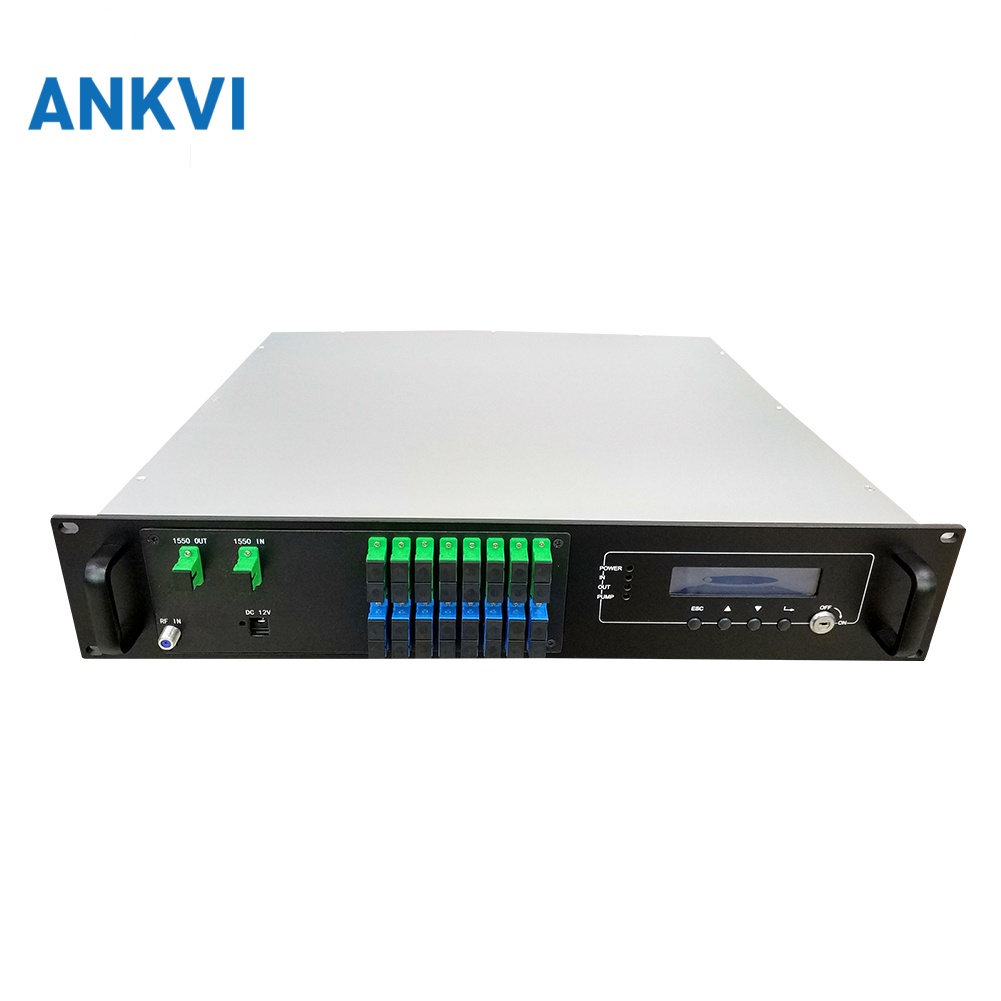

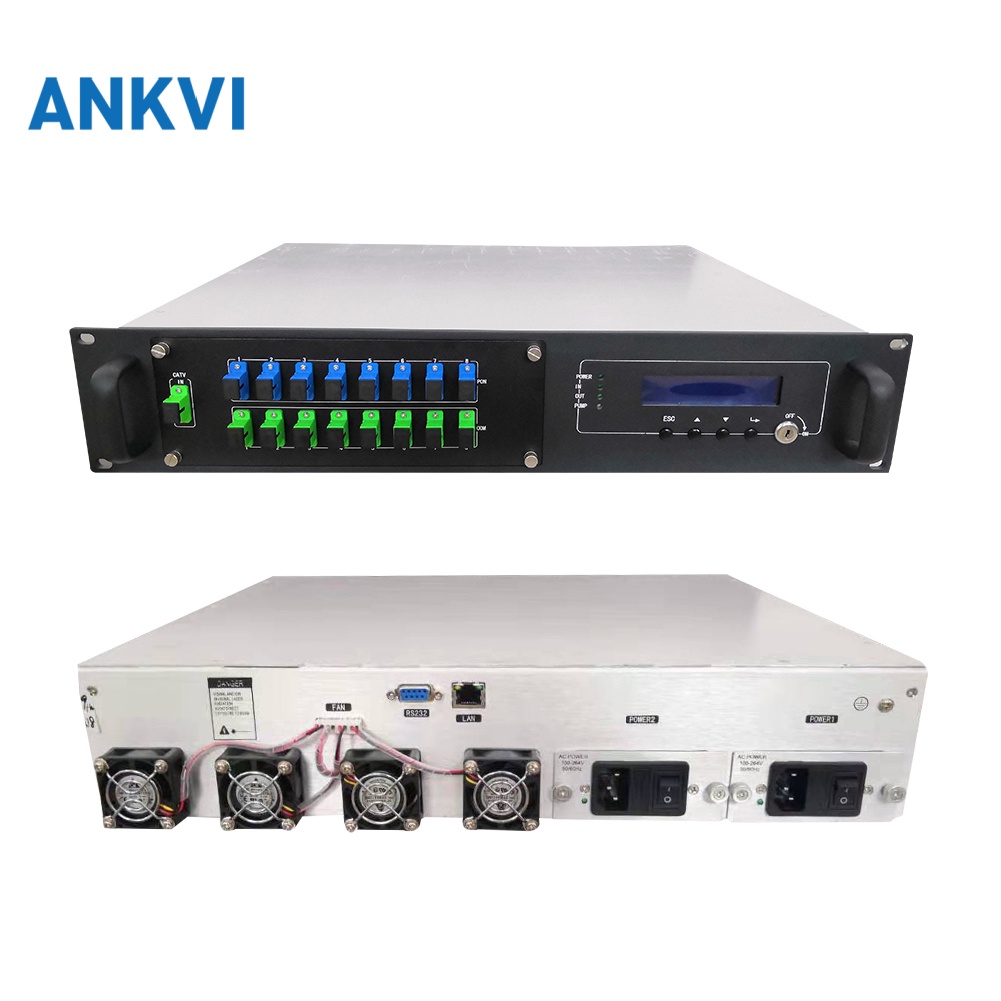

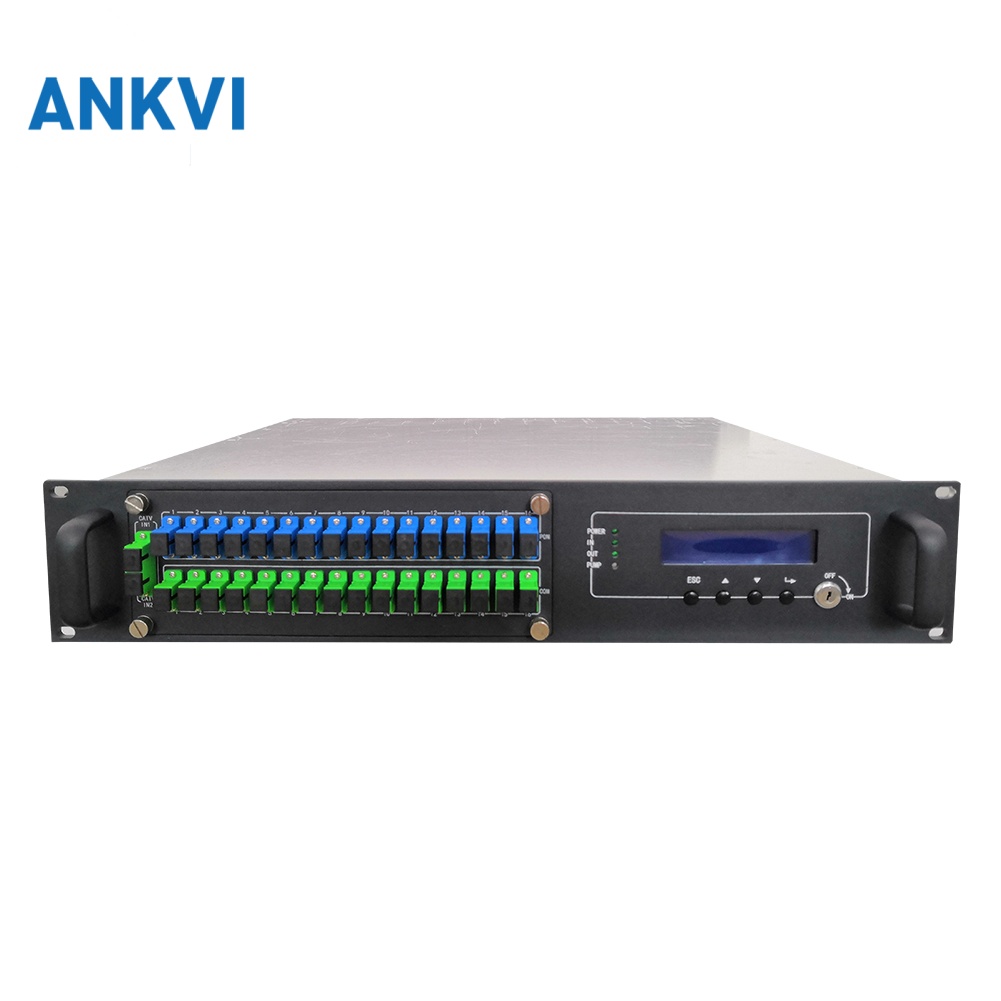

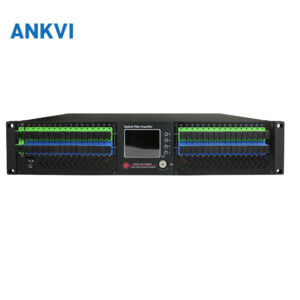

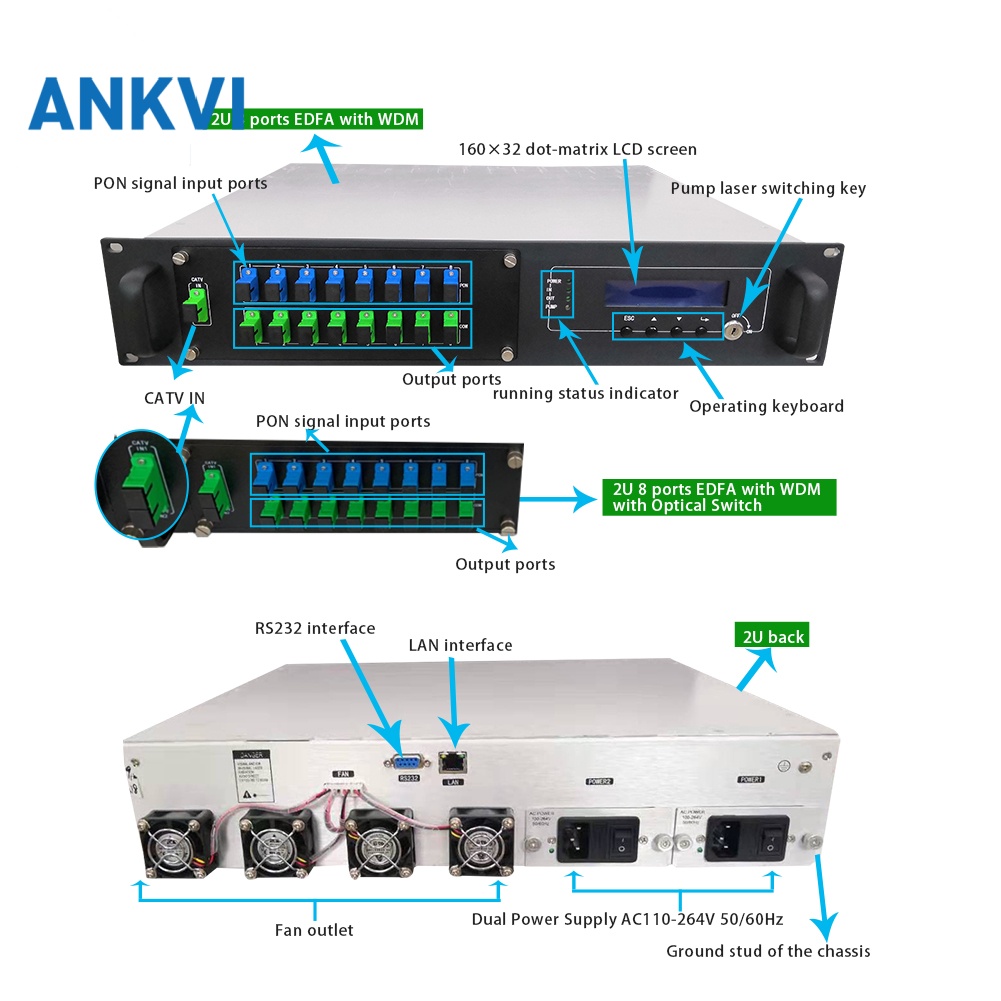

The EDFA-2U-8-16P is a high-power 1550 nm Er Yb co-doped double-clad fibre amplifier in a 2U 19-inch rack-mount chassis with a built-in RF optical transmitter input, designed for CATV, FTTH and FTTX optical networks.

It delivers a maximum optical output power of 39 dBm across 4 to 64 output ports, with a low noise figure, a standard SNMP network management interface and intelligent temperature control.

EDFA-2U-8-16P Key Features

Adopts Er Yb Codoped double-clad fiber technology
Output ports: 4-64 optional
Optical output power: total output up to 10W
Low noise figure: less than 5dB when input is 0dBm
Perfect network management interface, in line with standard SNMP network management
Intelligent temperature control system make the power consumption lower

EDFA-2U-8-16P Specifications

Technique Parameter

Parameter	Specification
Operating bandwidth	1530 – 1560 nm
Optical input power range	-3 – +10 dBm
Maximum optical output power	39 dBm
Output power stability	±0.5 dBm
Noise figure	≤ 5.0 dB (Optical input power 0dBm, λ=1550nm)
Return loss Input	≥ 45 dB
Return loss Output	≥ 45 dB
Optical Connector Type	SC/APC
C/N	≥ 50 dB (Test condition according to GT/T 184-2002.)
C/CTB	≥ 63 dB
C/CSO	≥ 63 dB
Power supply voltage	A: AC160V – 250V (50 Hz) / B: DC48V
Operating temperature range	-10 – +42 °C
Maximum operating relative humidity	Max 95% no condensation
Storage temperature range	-30 – +70 °C
Maximum storage relative humidity	Max 95% no condensation
Dimension	483(L)×460(W)×44(H) mm

Model and Power Comparison Table

Model	Total output power dBm	Output ports number	Output power per port dBm
EYA-4 -18	25	4	18
EYA-4 -19	26	4	19
EYA-4 -20	27	4	20
EYA-4 -21	28	4	21
EYA-4 -22	29	4	22
EYA-4 -23	30	4	23
EYA-4 -24	31	4	24
EYA-8 -15	25	8	15
EYA-8 -16	26	8	16
EYA-8 -17	27	8	17
EYA-8 -18	28	8	18
EYA-8 -19	29	8	19
EYA-8 -20	30	8	20
EYA-8 -21	31	8	21
EYA-8 -22	32	8	22
EYA-8 -23	34	8	23
EYA-16 -15	29	16	15
EYA-16 -16	30	16	16
EYA-16 -17	31	16	17
EYA-16 -18	32	16	18
EYA-16 -19	33	16	19
EYA-16 -20	34	16	20
EYA-16 -21	35	16	21
EYA-16 -22	36	16	22
EYA-32 -15	32	32	15
EYA-32 -16	33	32	16
EYA-32 -17	34	32	17
EYA-32 -18	35	32	18
EYA-32 -19	36	32	19
EYA-32 -20	37	32	20
EYA-32 -21	38	32	21
EYA-32 -22	39	32	22

Applications

Single-mode fiber 1550 amplification network
FTTH network
CATV network
