EDFA-2U-077EYA-32P High-Power EDFA – 32 Ports
The EDFA-2U-077EYA-32P is a CATV Er-Yb high-power fiber amplifier with a 1535~1565nm gain spectrum, 41dBm maximum total output and dual hot-backup power supplies.
Description
Overview

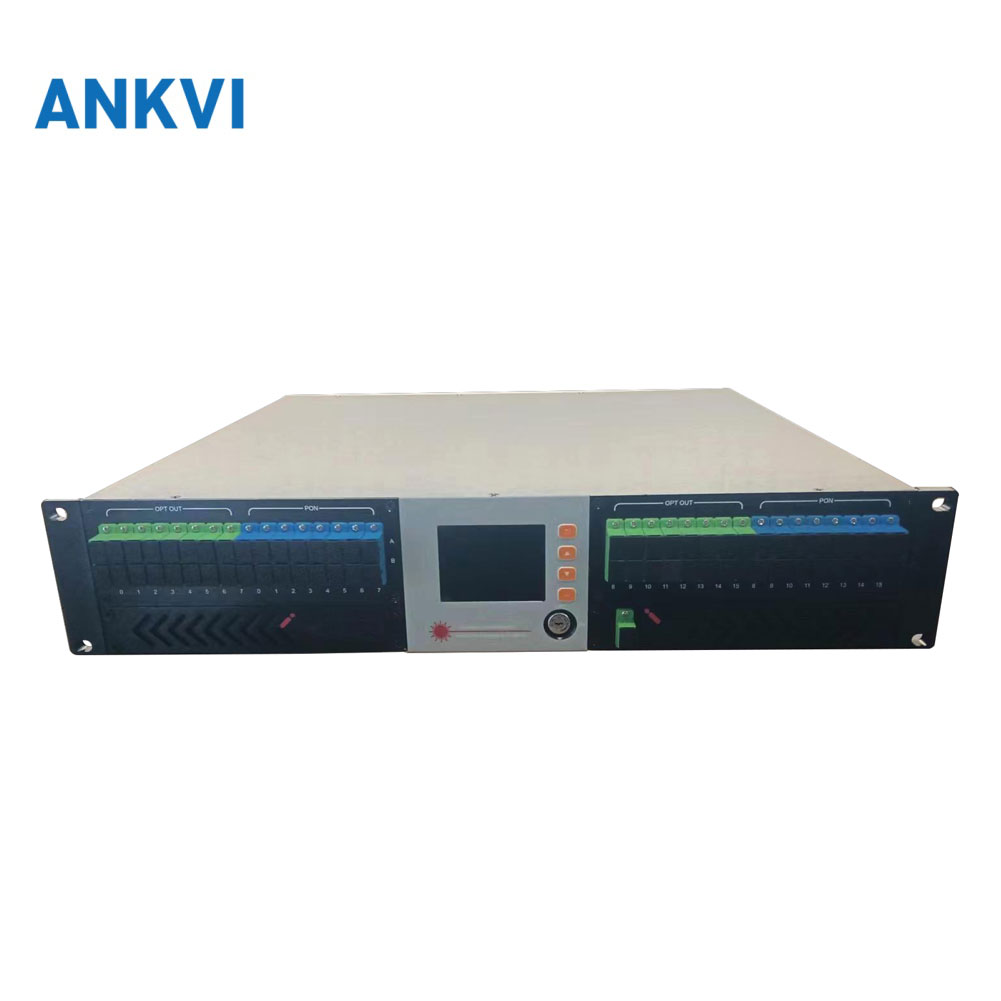

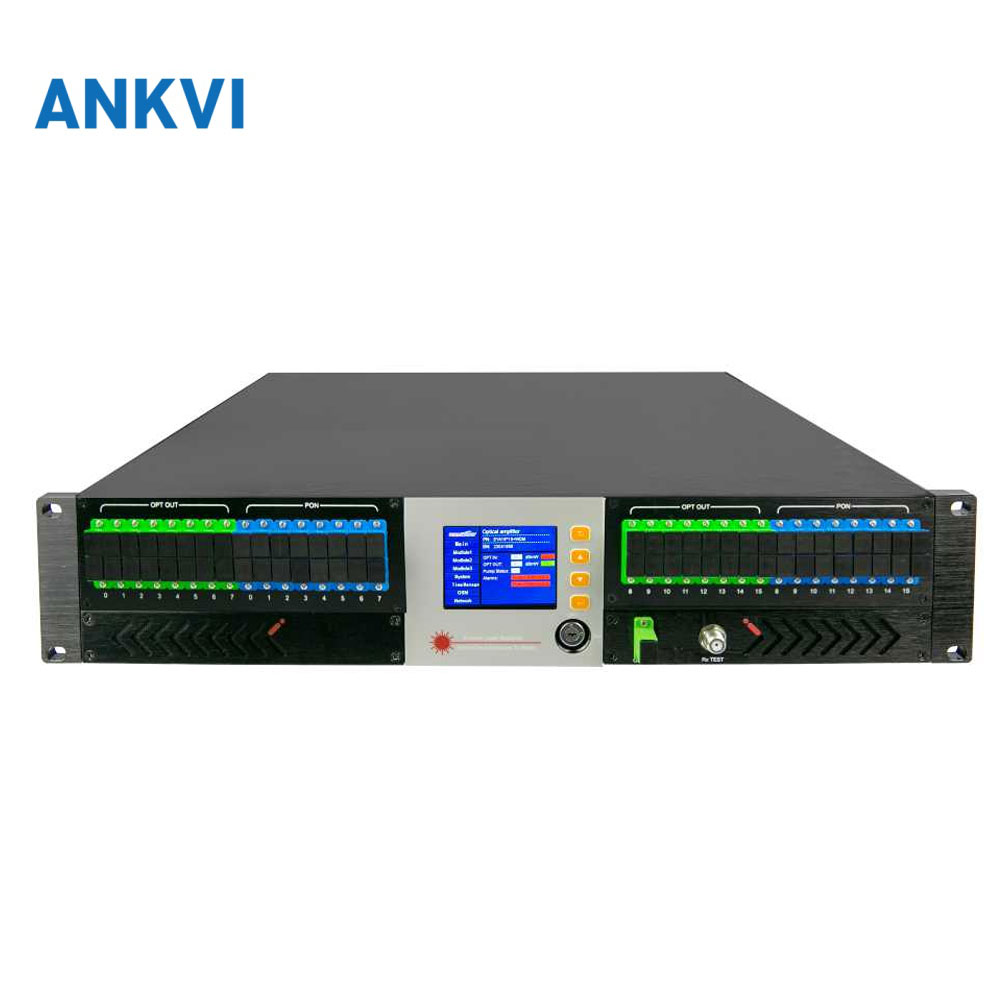

The EDFA-2U-077EYA-32P is a 2U CATV high-power Er-Yb fiber amplifier built on Er-Yb co-doped double-clad fiber and low-noise pump laser technology.
It provides a gain spectrum bandwidth of 1535~1565nm with a maximum total output of 41dBm and adjustable output power, and is designed for CATV systems and ITU wavelength applications.
EDFA-2U-077EYA-32P Key Features
- Er-Yb co-doped double-clad fiber technology with a low-noise pump laser
- High-power multi-output design with adjustable output power
- Modular design that is easy to maintain and manage
- Standard network management interface supporting WEB management and SNMP
- Comprehensive audio-visual alarm through indicator lights and a buzzer

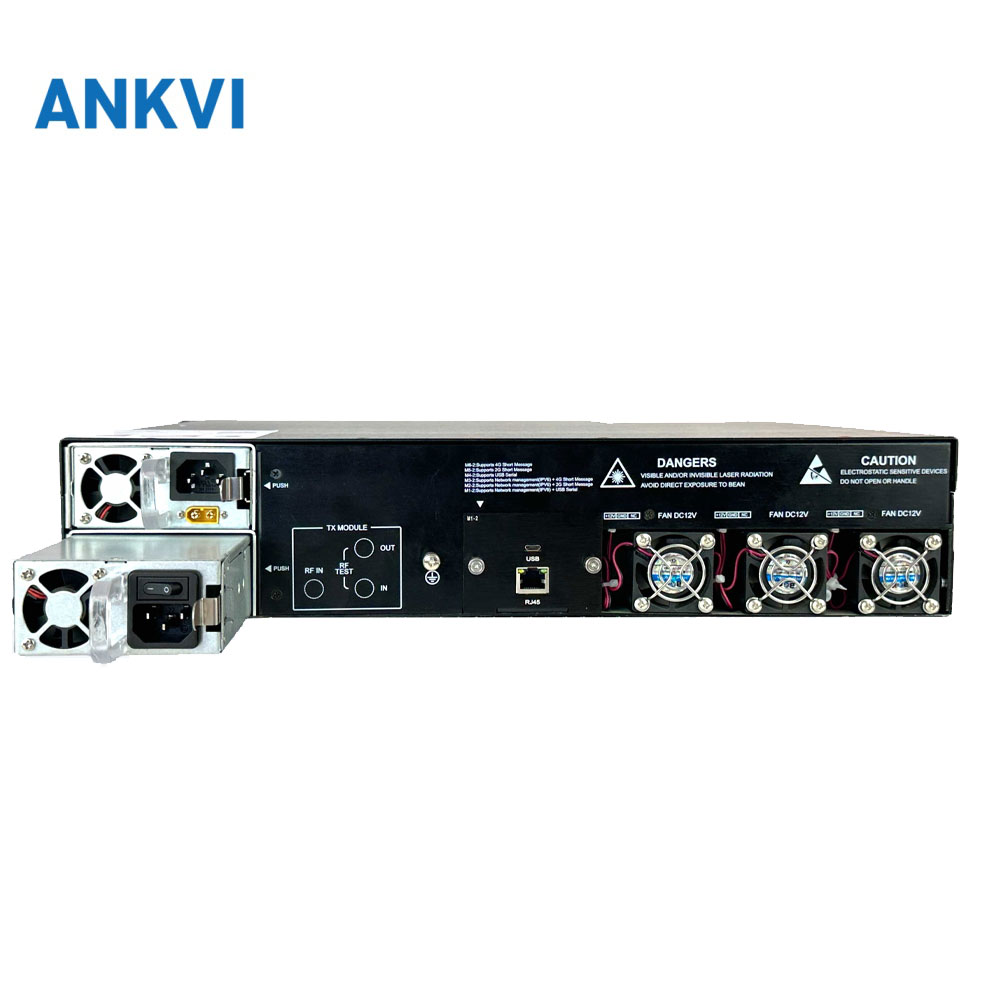

- One-click pull-out dual power supply hot backup design
EDFA-2U-077EYA-32P Specifications
| Parameter | Specification |
|---|---|
| CATV wavelength | 1535~1565nm |
| PON OLT wavelength | 1310/1490nm |
| CATV Input Power Range | -5dBm~+10dBm |
| Max Total Output Power | 41dBm |
| Output Power Stability | ±0.1dB |
| Noise | ≤6dB |
| Return Loss Input | ≥ 45dB |
| Return Loss Output | ≥ 45dB |
| OSW Input port | 2 |
| OSW Insertion loss | ≤1.5dB |
| OSW Switching time | ＜0.5s |
| Direct Modulation Transmitter Wavelength | 1550nm |
| Direct Modulation Transmitter Input level | 75~90dBuV |
| Direct Modulation Transmitter Output power | 3/5/7/10dBmW |
| RF Test Output level | ≥56dBuV |
| Optical Connector | SC/APC；SC/PC；LC/APC；LC/PC |
| C/N | ≥ 50dB |
| C/CTB | ≥ 63dB |
| C/CSO | ≥ 63dB |
| Power Supply Voltage | AC90V~AC265V |
| Consumption | ＜ 150W |
| Operating Temperature | -5 – +50℃ |
| Max Operating Humidity | Maximum 95% non-condensing |
| Storage Temperature Range | -40 ~ +80℃ |
| Max Storage Humidity | Maximum 95% non-condensing |
| Size | 602(L)*480(W)*89(H)mm |
| Package Size(1pc) | 635(L)*635(W)*155(H)mm |
Applications
- CATV fiber optic transmission networks
- FTTH large-scale coverage in major cities
- Single-wavelength CATV signal transmission
- Single-fiber three-wave transmission with built-in FWDM
