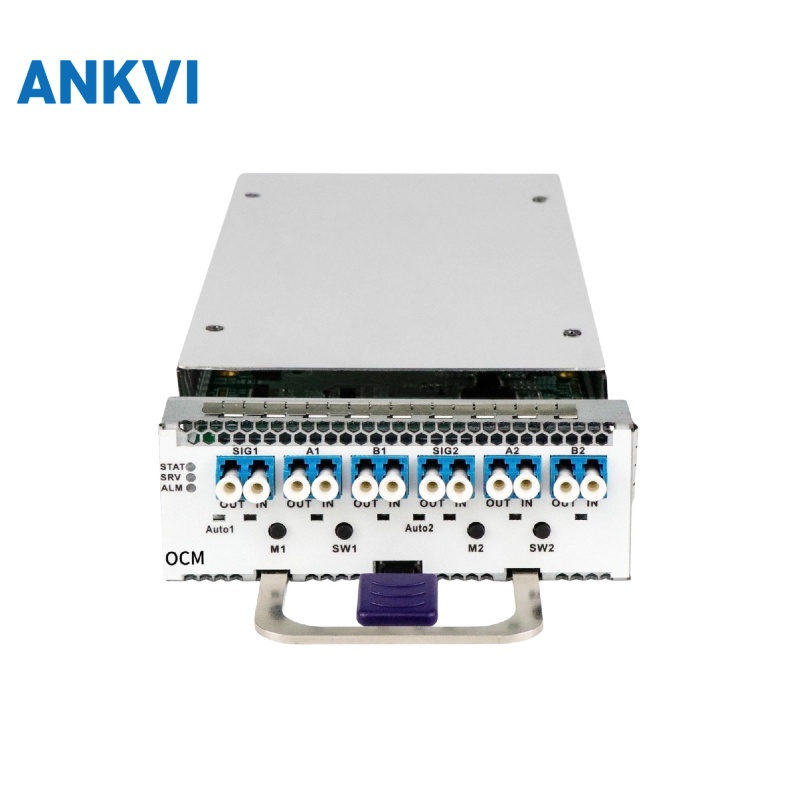

OCM Card – DWDM Channel Monitor, 50/100 GHz
The OCM Card measures discrete DWDM wavelengths at any point in an optical node, reports channel power data and supports 8-core fibre power monitoring.
Description
Overview
The OCM Card is the Optical Channel Monitoring module of an optical transmission system. It provides comprehensive monitoring and measurement of DWDM wavelengths at strategic points within optical communication nodes.
The module identifies discrete DWDM wavelengths and delivers detailed optical power data, and it supports 8-core fibre power monitoring. Placed at different locations in the network and combined with remote access management, it becomes a powerful tool for troubleshooting and advanced alerting. The card occupies only 1/4 standard slot capacity.
OCM Card Key Features
- Optical channel monitoring for DWDM wavelengths inside optical nodes
- Identifies discrete DWDM channels and reports detailed optical power data
- Supports 8-core fibre power monitoring
- Working wavelength range 1528 to 1567 nm
- Channel spacing 50/100 GHz
- Power detection accuracy ≤1 dB, relative power accuracy ±0.8 dB
- Optical precision 0.1 dB and channel power range -40 to -10 dBm
- Scans all channels in ≤1 s, with a maximum switch time of 30 ms
- Wavelength accuracy ±0.1 nm and 0.02 nm, rated for more than 1 billion scans
- Occupies only 1/4 standard slot capacity and supports remote access management
OCM Card Specifications
Technical Specifications
| Performance Parameter | Description |
|---|---|
| Working Wavelength Range | 1528 to 1567 nm |
| Channel Spacing | 50/100 GHz |
| Power Detection Accuracy | ≤1 dB |
| Relative Power Accuracy | ±0.8 dB |
| Optical Precision | 0.1 dB |
| OCM Scan Time (all channels) | ≤1 s |
| Channel Power Range | -40 to -10 dBm |
| Wavelength Accuracy | ±0.1 nm |
| Wavelength Accuracy (high precision) | 0.02 nm |
| Switch Time (maximum) | 30 ms |
| Number of Scans | more than 1 billion |
| Size | 216 (W) x 262 (D) x 40 (H) mm |
| Working Temperature | -10 to +60 ℃ |
| Storage Temperature | -40 to +85 ℃ |
| Relative Humidity | 5% to 95%, non-condensing |
| Power Dissipation | ≤80 W |
Deployment Scenarios
- Per-channel power monitoring at the input or output of a DWDM node
- Troubleshooting wavelength and level problems remotely through the management system
- Advanced alerting when a channel drifts in wavelength or power
- Monitoring 8 fibre cores from a single card in 1/4 of a slot
