OMD96 Equipment – 96-Channel DWDM MUX/DEMUX, 1U
The OMD96 Equipment is a passive 96-channel DWDM MUX/DEMUX for standard 19-inch cabinets, 1U high and independent of the sub-frame chassis.
Description
Overview

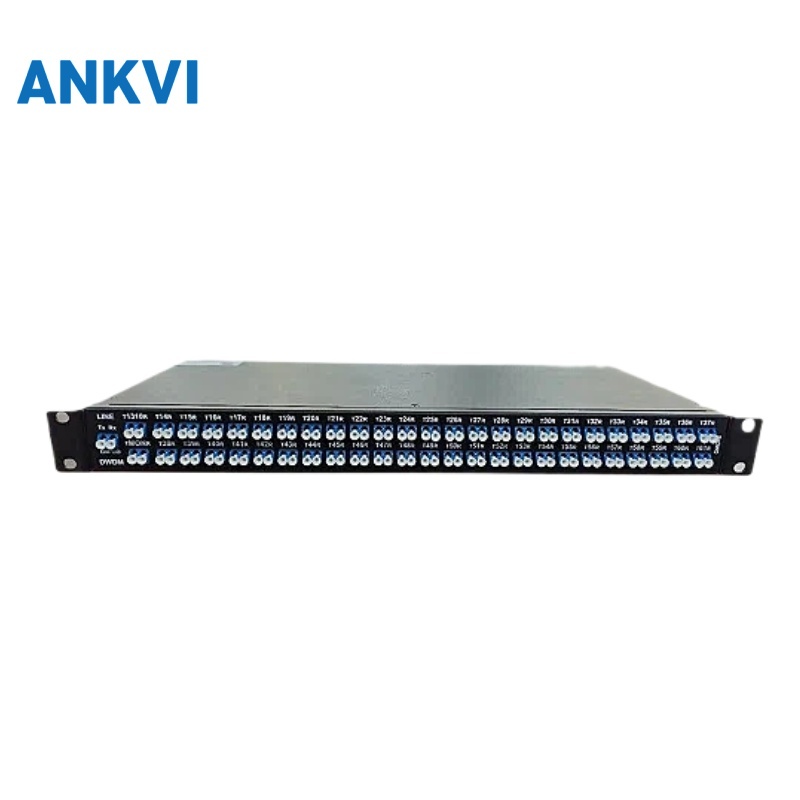

The OMD96 Equipment is a passive MUX device for signal splitting. It operates independently of the sub-frame chassis and can be installed in a standard 19-inch data cabinet with a height of 1U.
The equipment realises the 96-channel DWDM 100 GHz interval signal combining and splitting function, covering the C-band odd and even wavelength ranges.
OMD96 Equipment Key Features
- Passive MUX/DEMUX device, no power feed required
- Operates independently of the sub-frame chassis
- Standard 19-inch data cabinet installation with a height of 1U
- 96-channel DWDM 100 GHz interval combining and splitting
- C-band coverage: 96th odd wave 1528.773 to 1566.314 nm
- Odd-numbered wavelength range 1529.163 to 1566.723 nm
- Combined direction multiplexes the even-numbered single-wavelength signals into one fibre
- Splitting direction divides 1 multi-wavelength signal into 96 even-numbered wavelengths
- Online monitoring port for a spectrometer, without interrupting the service
OMD96 Equipment Specifications
Technical Specifications
| Function | Description |
|---|---|
| Basic Function | Realises the 96-channel DWDM 100 GHz interval signal combining and splitting function |
| Occupied Slots | 1U in a standard 19-inch data cabinet, independent of the sub-frame chassis |
| Wavelength Range of the 96th Odd Wave | 1528.773 to 1566.314 nm in C-band |
| Odd-numbered Wavelength Range of 96 | 1529.163 to 1566.723 nm in C-band |
| Combined Wave Direction | Even-numbered 96-channel single-wavelength optical signals are multiplexed into a single fibre, amplified by an amplifier disk and transmitted via the line |
| Splitting Direction | 1 multi-wavelength optical signal is divided into 96 even-numbered wavelengths |
| Online Monitoring Feature | An online monitoring port can be connected to a spectrometer to monitor the spectral performance of the optical signals input and output by the line without interrupting the service |
Deployment Scenarios
- Multiplexing 96 DWDM channels onto one fibre in a maximum-capacity terminal
- Demultiplexing 96 even-numbered wavelengths towards client equipment
- Sites that mount the multiplexing equipment directly in a 19-inch cabinet
- Spectral monitoring on a live line through the online monitoring port
