FQX.017 Fiber Optic Distribution Box 16 Ports – ABS+PC, IP65

Description

Overview

The FQX.017 is a fiber optic distribution box that realizes the functions of fiber fusion, distribution and scheduling in the FTTH system.

Its shell is made of ABS+PC so it stays strong and durable, and its IP65 protection rating allows it to be installed and used outdoors. Internally it can be fitted with a variety of stents to mount adapters, a mini steel splitter or a cassette splitter.

FQX.017 Key Features

• ABS+PC shell that is strong and durable
• IP65 protection rating for outdoor installation and use
• Realizes fiber fusion, distribution and scheduling in the FTTH system
• Accommodates up to 16 SC, FC, LC or E2K adapters
• Accepts one 1×8 splitter or two 1×16 splitter, with a 2IN-16OUT cable layout

FQX.017 Specifications

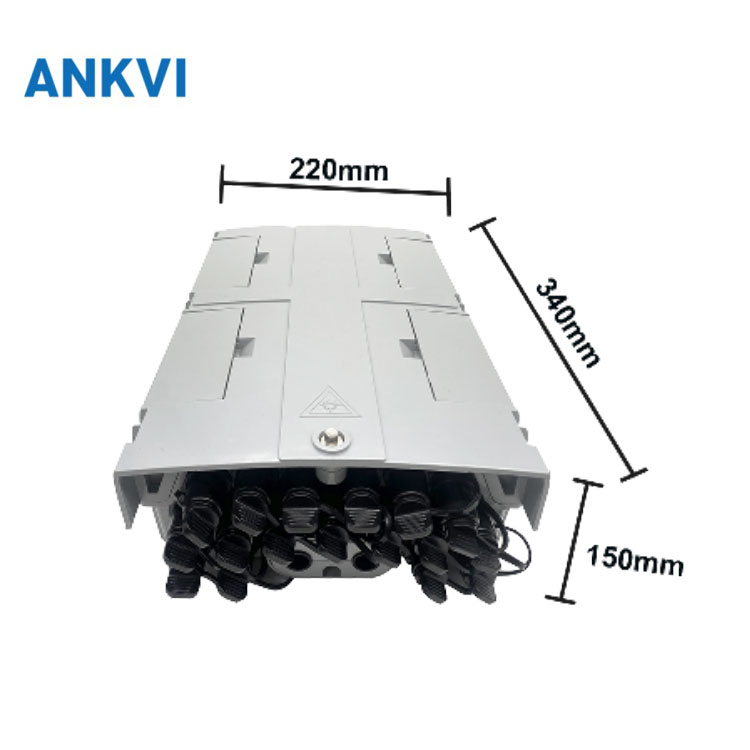

Product Specifications

Installation and Accessories

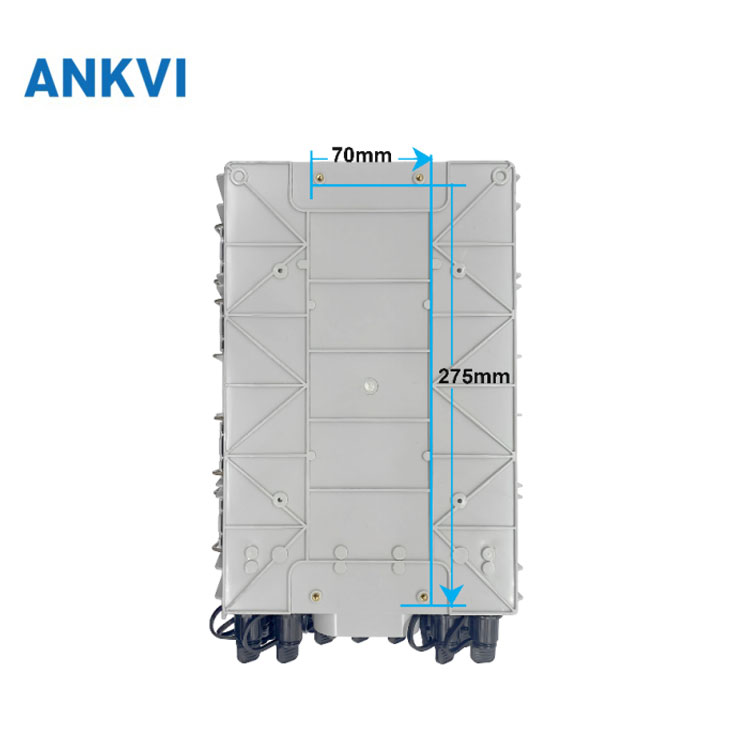

• Wall-mount: drill 4 holes over the wall based on the size, place the expansion bolt, match the box to the holes and fasten with the bolts.

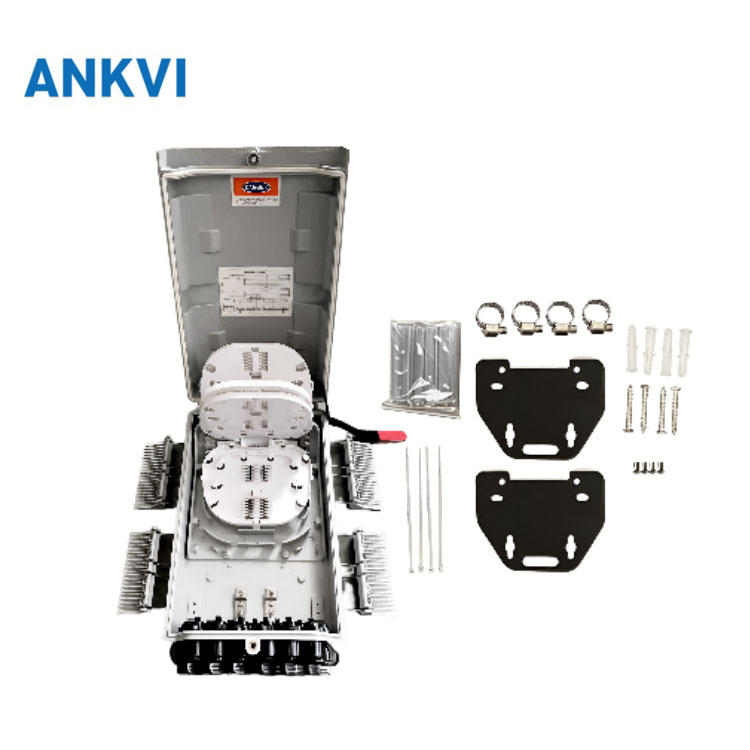

• Wall-mount accessories: plastic tie x4, screw x4, plastic expansion bolt x4, key x1 and throat hoop x4, plus metal backplate x2.
• Pole-mount: set the easy pole ring to the telecom pole; accessories: plastic tie x4, screw x4, plastic expansion bolt x4, key x1, throat hoop x4, metal backplate x2, hoop x2 and backboard x2.
• Heat shrink tubing is supplied in the same quantity as the splice closure cores; configuration can be customized as required.

Applications

• FTTH fiber fusion, distribution and scheduling nodes.
• Outdoor subscriber distribution points installed on a wall or a pole.
• Deployments that need SC, FC, LC or E2K adapter accommodation.
• Splitting with a mini steel splitter or a cassette splitter.
