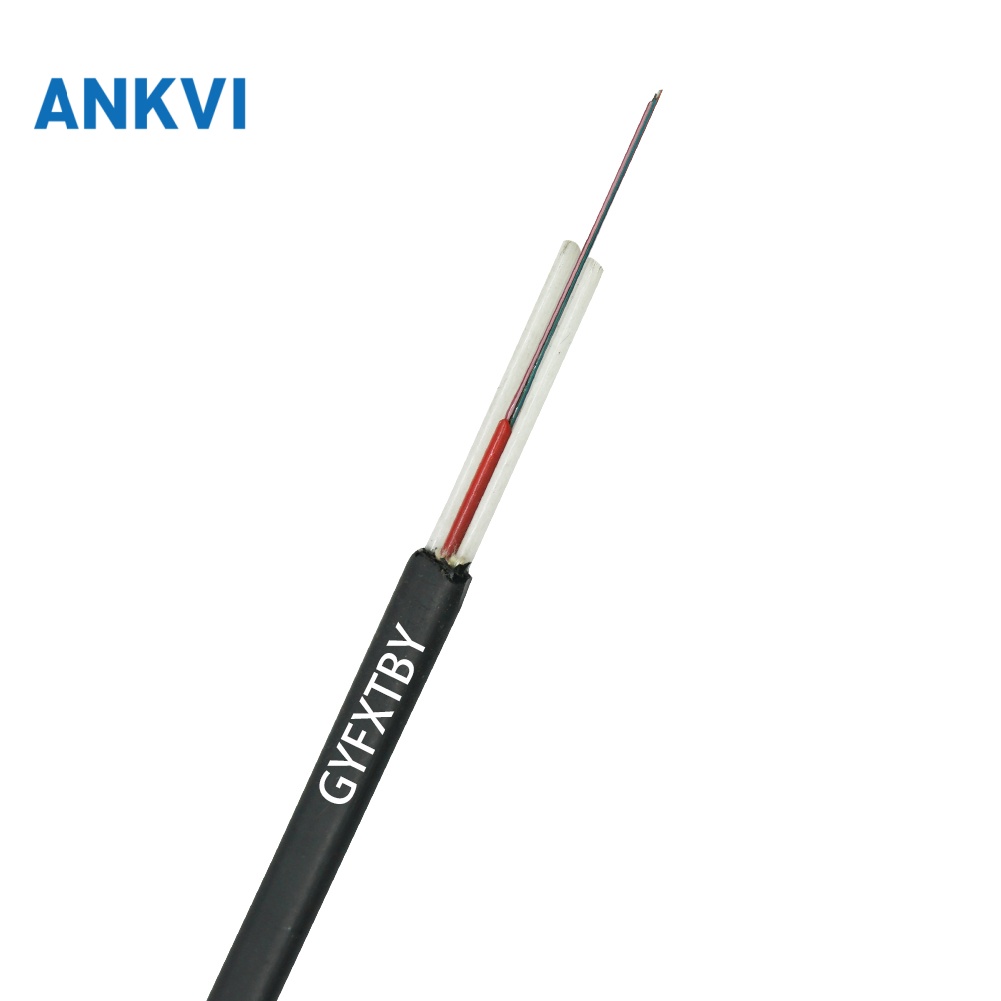

GYFXTBY All-Dielectric Aerial Cable – 1F-12F, G.652D/G.657A
GYFXTBY is a flat all-dielectric self-supporting aerial cable for 1F-12F G.652D or G.657A fibres, with a G-FRP strength member and a 4*7 mm black HDPE sheath.
Worry-Free After-Sales14-month warranty & responsive support
Efficient ProcurementOne-stop sourcing, fast turnaround
Fast Response Times24/7 expert technical support
Description
Overview

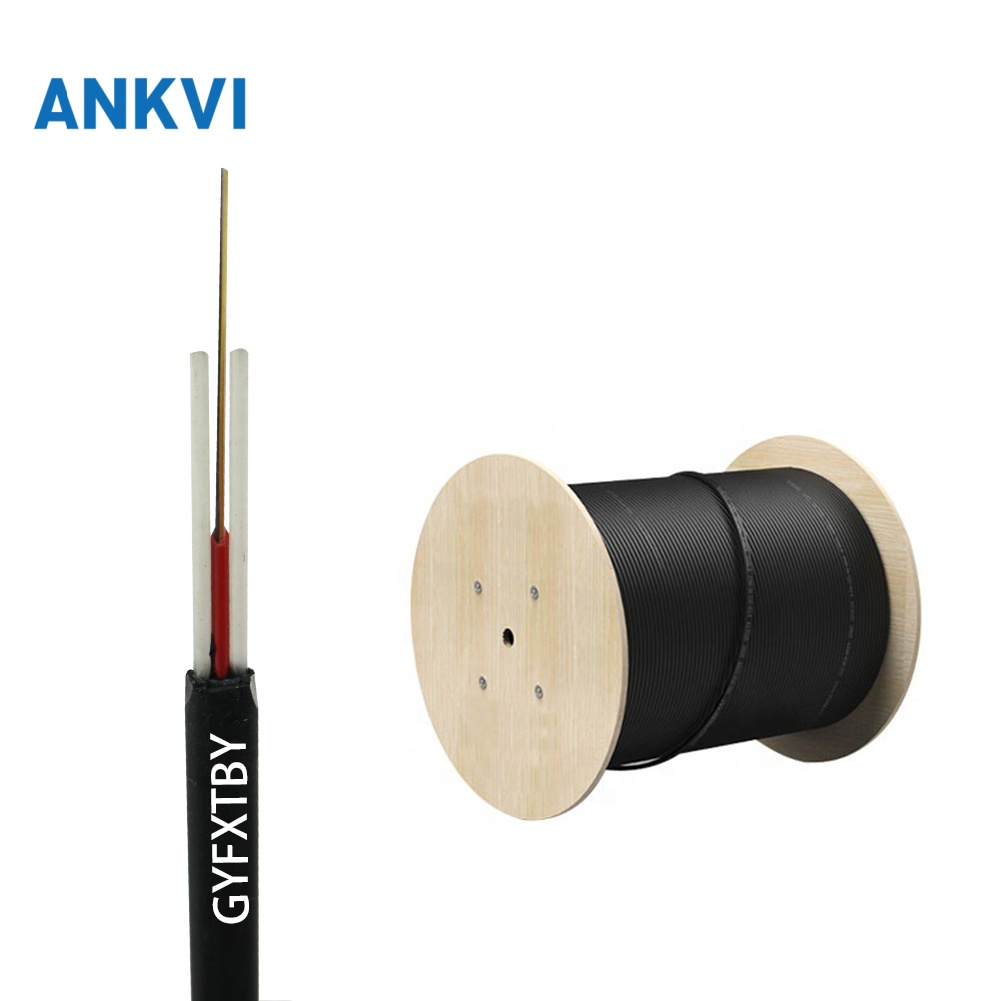

GYFXTBY is a flat, all-dielectric self-supporting aerial cable that combines the optical unit and the strength members in one small profile, so it can be strung overhead without a separate messenger wire.

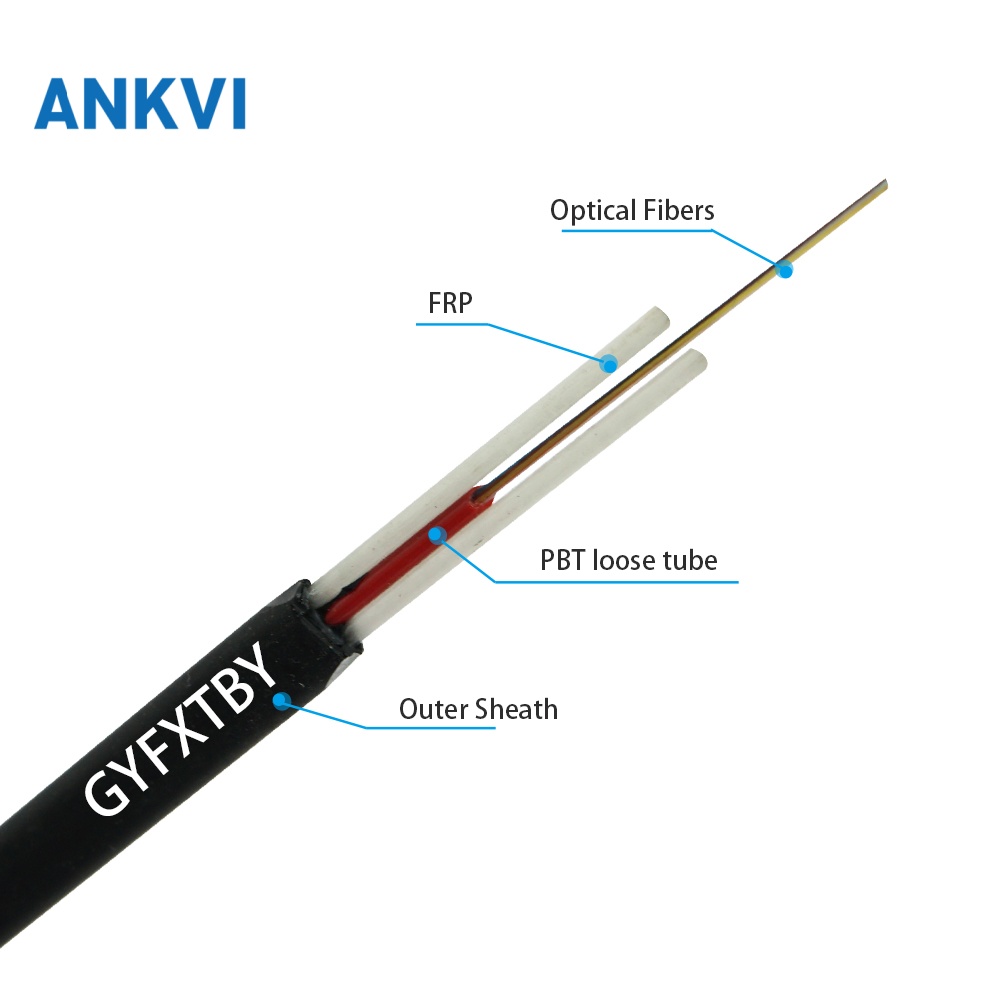

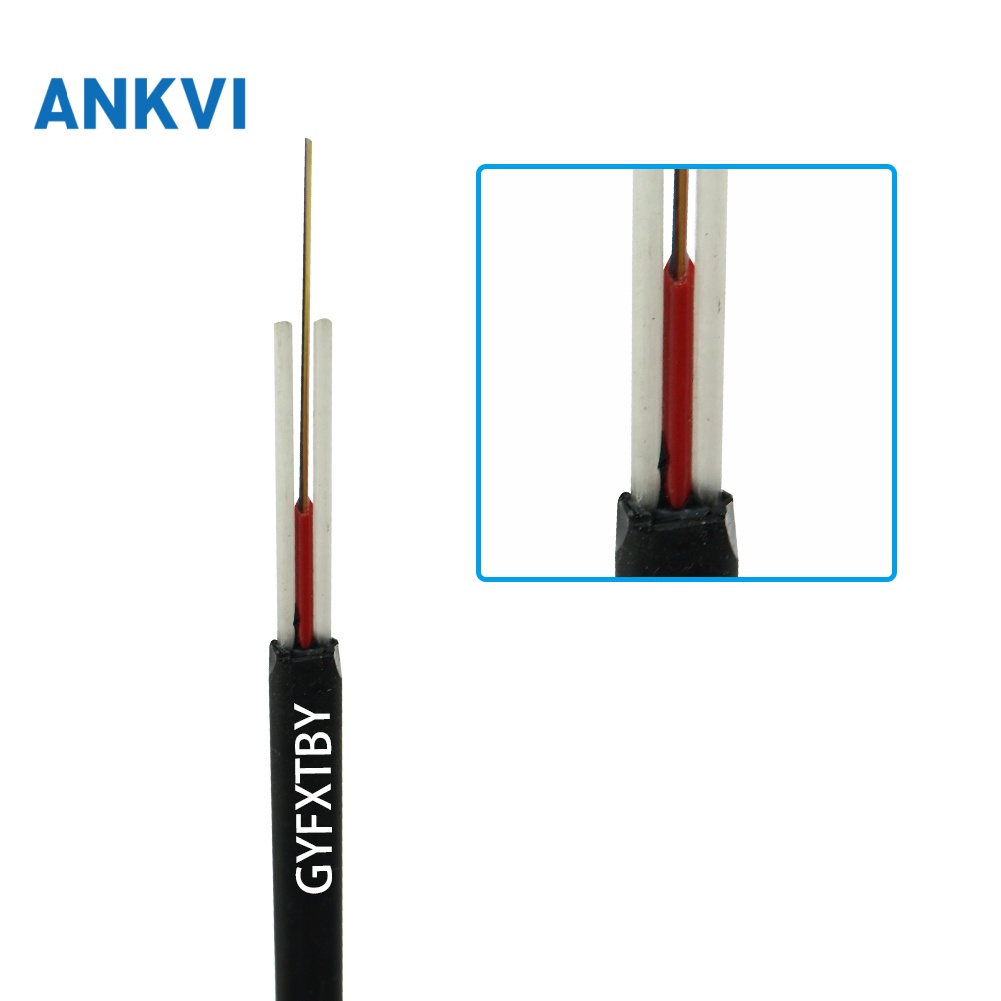

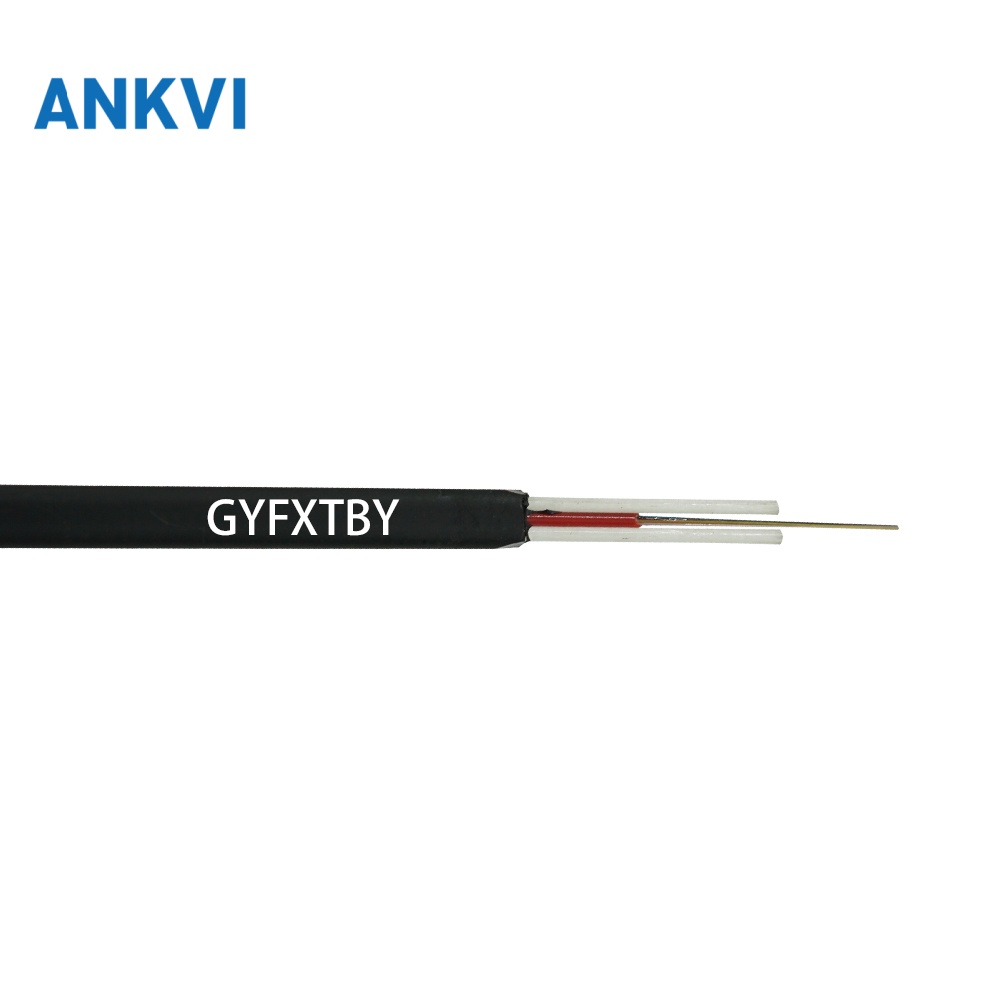

One gel-filled PBT loose tube carries up to 12 fibres and a G-FRP strength member provides the tensile performance. The black HDPE sheath is 4*7±0.3 mm and the cable weighs 30 kg/km.
GYFXTBY Key Features
- Flat all-dielectric profile for aerial self-supporting installation with no metal parts
- 1F-12F capacity in a single PBT loose tube with a 2.0±0.1 mm outer diameter
- G-FRP-1.6mm strength member giving 350N long-term and 800N short-term tensile load
- Black HDPE sheath, Non. 0.8mm thick, with a 4*7±0.3 mm cable outer diameter and 30 kg/km weight
- Available with both G652D and G657A fibre grades in the same cable design
GYFXTBY Specifications
Fiber Parameters
| Parameter | Specification |
|---|---|
| Attenuation | 1310nm≤0.36 dB/km; 1550nm≤0.22 dB/km |
| Chromatic Dispersion | 1310nm≤3.5 ps/nm.km; 1550nm≤18 ps/nm.km; 1625nm≤22 ps/nm.km |
| Zero Dispersion Slope | ≤0.092 ps/nm.km |
| Zero Dispersion Wavelength | 1300~1324 nm |
| Cut-off Wavelength (λcc) | ≤1260 nm |
| Attenuation vs. Bending(60mmx100turns) | (30mm radius 100ring) ≤ 0.1 @ 1625nm; (10mm radius,1ring) ≤1.5 @1625nm dB |
| Mode Field Diameter | 9.2±0.4 at 1310nm (G652D); 9.2±0.4 at 1310nm (G657A) |
| Core-Clad Concentricity | ≤0.5 um (G652D); ≤0.5 um (G657A) |
| Cladding Diameter | 125±1 um (G652D); 125±1 um (G657A) |
| Cladding Noncircularity | ≤0.8 % (G652D); ≤0.8 % (G657A) |
| Coating Diameter | 245±5 um (G652D); 245±5 um (G657A) |
| Proof Test | ≥0.69 Gpa (G652D); ≥0.69 Gpa (G657A) |
Mechanical and Environmental Characteristics
| Parameter | Specification |
|---|---|
| Tensile Loading Test | #Test method: IEC 60794-1-E1; Long-tensile load: 350N; Short-tensile load: 800N; Cable length: ≥50m | Acceptance criteria: Attenuation increment@1550nm:≤0.1dB; No jacket cracking and fiber breakage |
| Crush Resistance Test | #Test method: IEC 60794-1-E3; Long-load: 300 N/100mm; Short load: 1000 N/100mm; Load time: 1 minutes | Acceptance criteria: Attenuation increment@1550nm:≤0.1dB; No jacket cracking and fiber breakage |
| Impact Resistance Test | #Test method: IEC 60794-1-E4; Impact height: 1 m; Impact weight: 450 g; Impact point: ≤5; Impact frequency: ≥30point | Acceptance criteria: Attenuation increment@1550nm:≤0.1dB; No jacket cracking and fiber breakage |
| Repeated Bending | #Test method: IEC 60794-1-E6; Mandrel diameter: 20D (D = cable diameter); Subject weight: 15kg; Bending frequency: 30 times; Bending speed: 2m/time | Acceptance criteria: Attenuation increment@1550nm:≤0.1dB; No jacket cracking and fiber breakage |
| Torsion Test | #Test method: IEC 60794-1-E7; Length: 1m; Subject weight:25kg; Angle: ±180 degree; Frequency: ≥10point | Acceptance criteria: Attenuation increment@1550nm:≤0.1dB; No jacket cracking and fiber breakage |
| Water Penetration Test | #Test method: IEC 60794-1-F5B; Height of pressure head: 1m; Length of specimen: 3m; Test time: 24 hours | Acceptance criteria: No leakage through the open cable end |
| Temperature Cycling Test | #Test method: IEC 60794-1-F1; Temperature steps: +20℃, -40℃, +70℃, +20℃; Testing Time: 24 hours/step; Cycle index: 2 | Acceptance criteria: Attenuation increment@1550nm:≤0.1dB; No jacket cracking and fiber breakage |
| Drop Performance | #Test method: IEC 60794-1-E14; Testing length: 30cm; Temperature range: 70±2℃; Testing Time: 24 hours | Acceptance criteria: No filling compound drop out |
| Temperature | Operating:-40℃~+60℃; Store/Transport:-50℃~+70℃; Installation:-20℃~+60℃ |
| Bend Radius(Dynamic) | ≥20times than cable out diameter |
| Bend Radius(Static) | ≥10 times than cable out diameter |

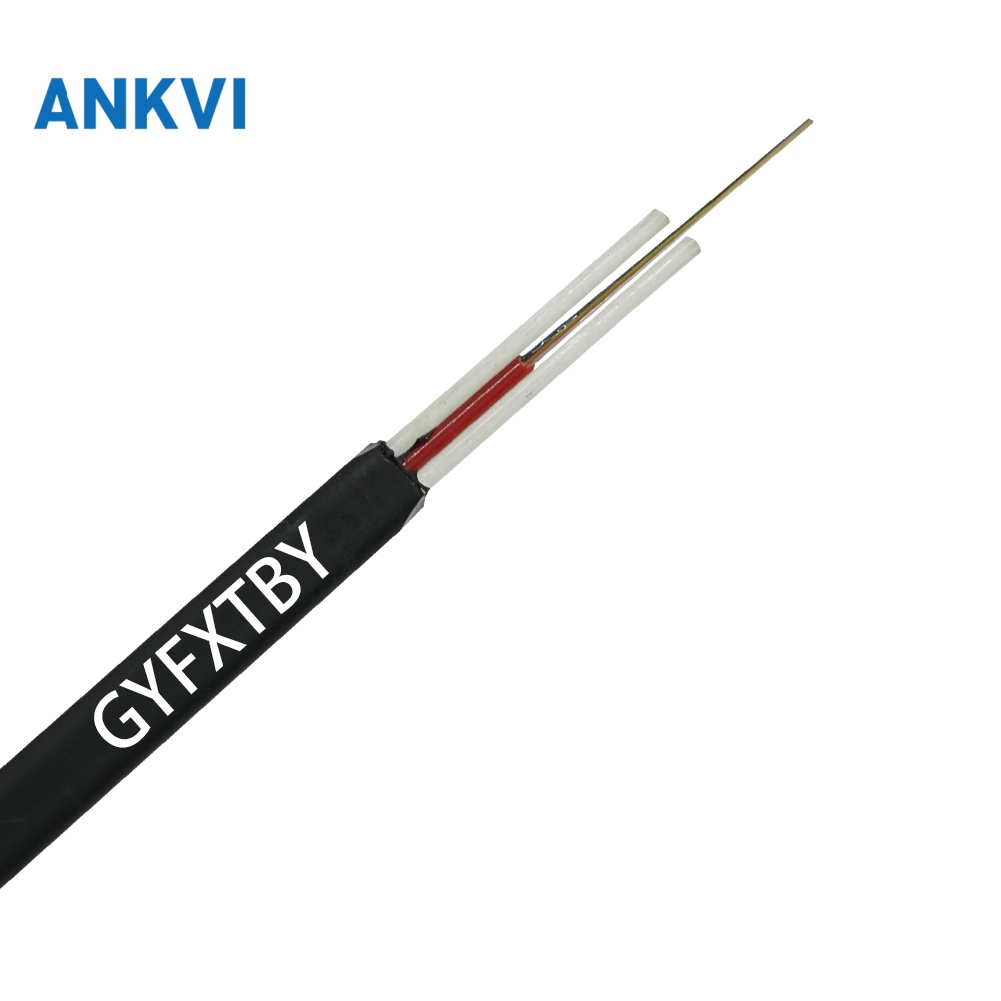

Cable Parameters
| Parameter | Specification |
|---|---|
| Fiber count | 1F-12F |
| The Color Code of The fibers | Blue,Orange; Green, Brown, |
| Loose Tube – OD(mm): | 2.0±0.1 |
| Loose Tube – Material: | PBT |
| Water Block Material: | Water blocking Compound |
| Strength member | G-FRP-1.6mm |
| Sheath – Thickness: | Non. 0.8mm |
| Sheath – Material: | HDPE |

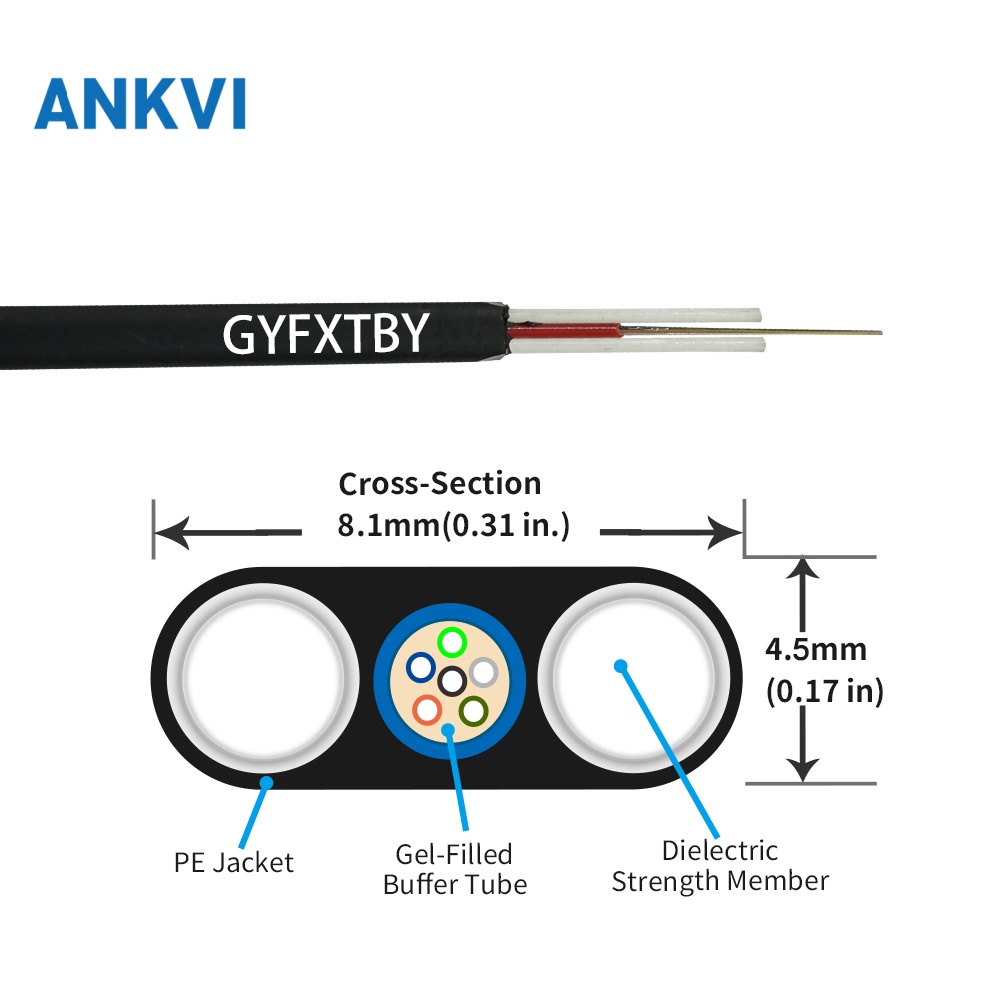

| OD of cable (mm) | 4*7±0.3 |
| Net weight ( kg/km) | 30 |
Applications
- Overhead self-supporting access and distribution links
- FTTH drop and last-mile spans that need a slim, light cable
- Aerial routes in areas exposed to lightning strikes
- Short-span installations that call for bend-insensitive G657A fibre
