HS-OR1 Passive CATV Optical Receiver – 1310+1490/1550 nm
The HS-OR1 is a passive CATV optical receiver that needs no power, covering 1310+1490 and 1550 nm work wavelengths with 45~1050 MHz work bandwidth and 75 Ω output impedance.
Description
Overview

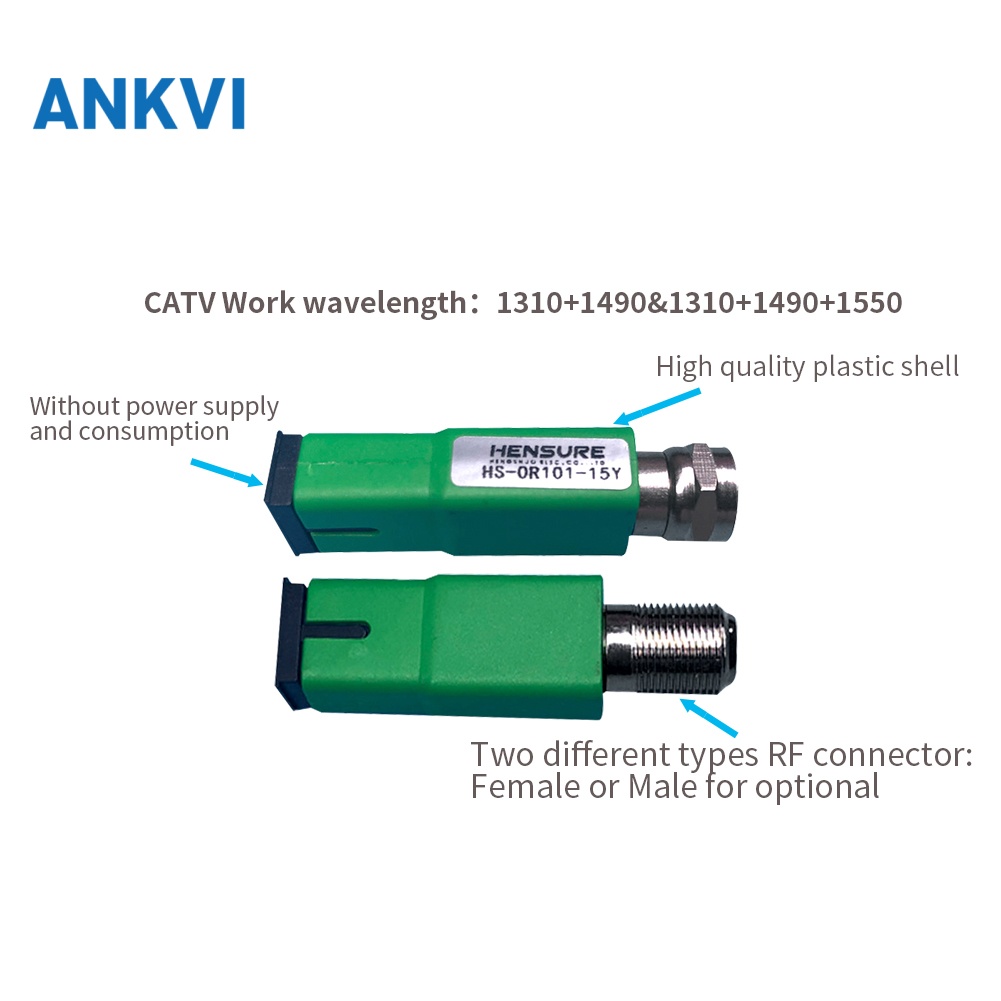

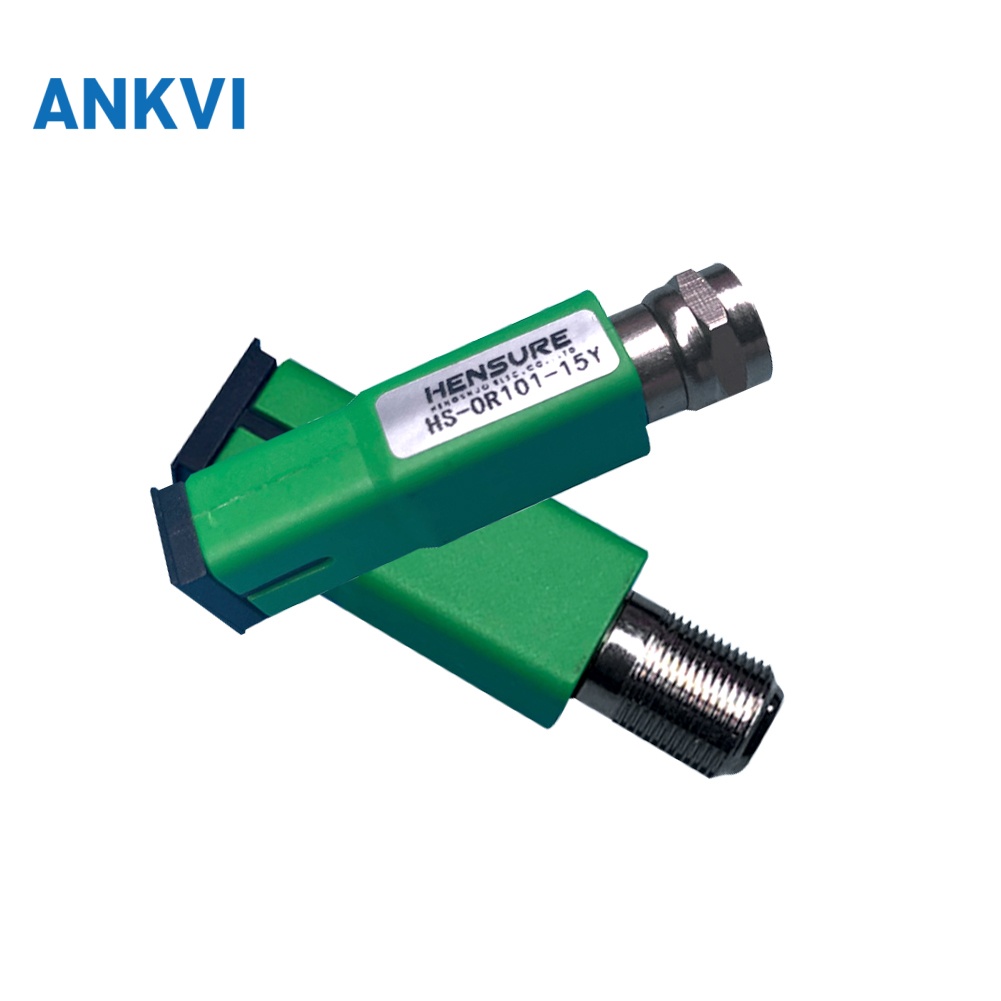

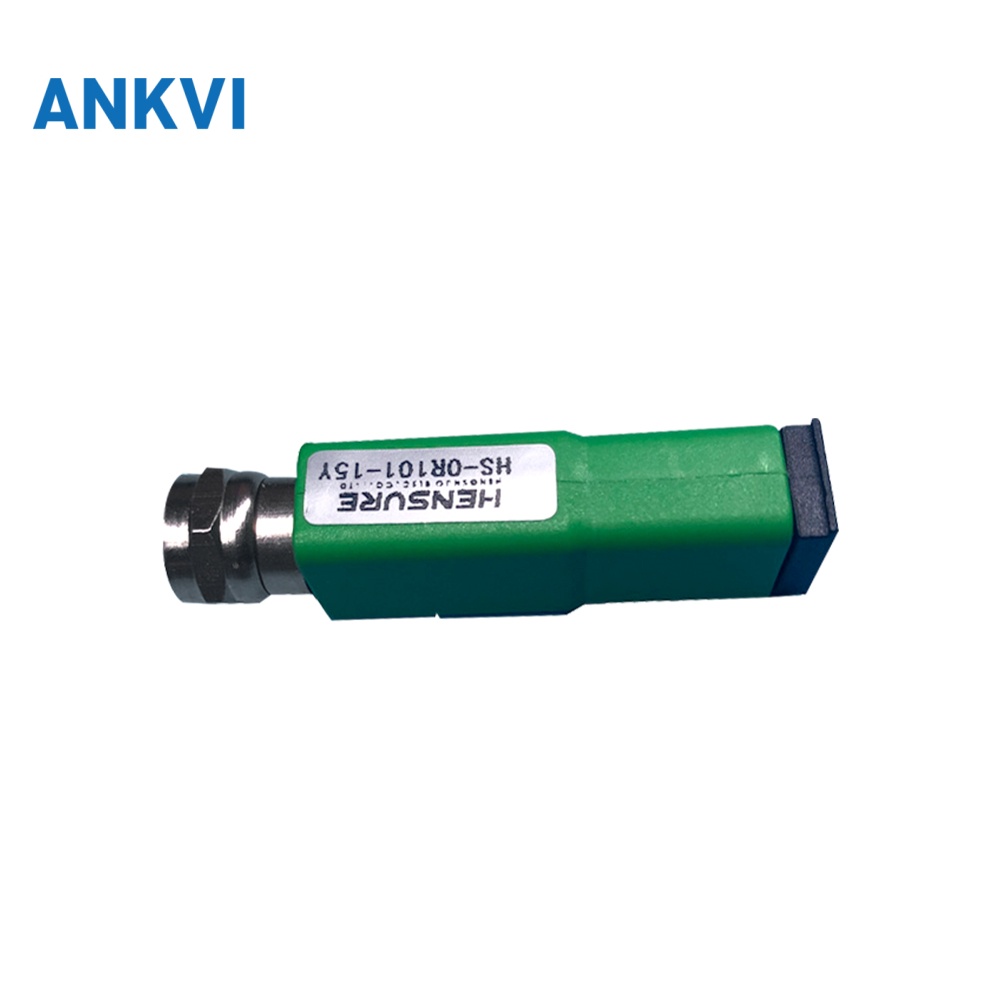

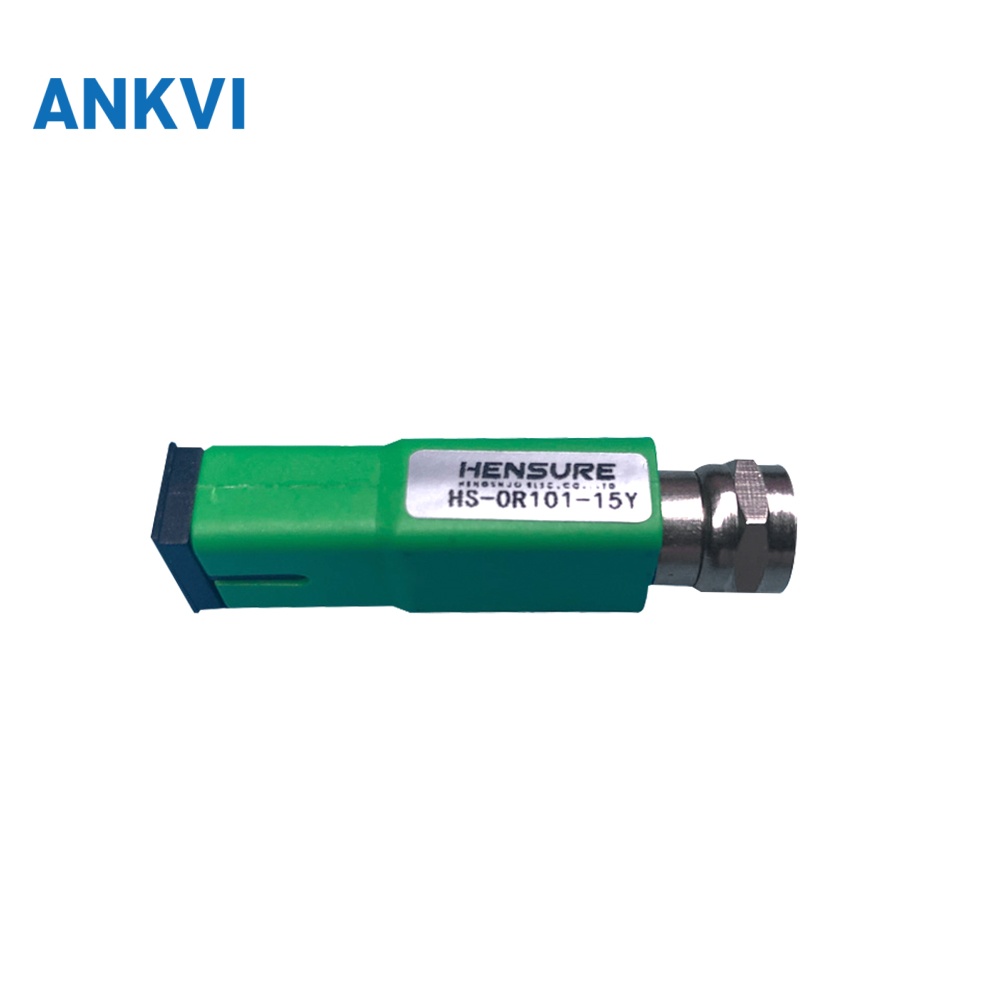

The HS-OR1 is a passive CATV optical receiver that requires no power supply, converting optical CATV signals into RF for the subscriber drop.
Built in a compact 45×12×8 mm plastic shell, it covers 1310+1490 and 1550 nm work wavelengths with 45~1050 MHz work bandwidth and 75 Ω output impedance.
HS-OR1 Key Features
- Passive design with no power required and no consumption at the subscriber drop
- Work bandwidth 45~1050 MHz with output level >68 dBμV (Digital TV, Pin=-1dBm)
- Work wavelength 1310+1490&1310+1490+1550 nm for CATV and single-fibre triple wavelength systems
- Channel isolation ≥40 dB (1550nm & 1490nm) and optical return loss ≥55 dB
- Responsivity ≥0.85 A/W at 1310nm and ≥0.9 A/W at 1550nm
- Operating temperature -20~+55 with work relative temperature 5~95 %
HS-OR1 Specifications
Specifications
| Parameter | Specification |
|---|---|
| Work wavelength (nm) | 1310+1490&1310+1490+1550 |
| Channel Isolation (dB) | ≥40 (1550nm & 1490nm) |
| Responsivity (A/W) | ≥0.85 (1310nm) |
| Responsivity (A/W) | ≥0.9 (1550nm) |
| Receiving power (dBm) | +2~-14 (Digital TV (MER>29dB)) |
| Optical return loss (dB) | ≥55 |
| Optical connector | SC/APC |

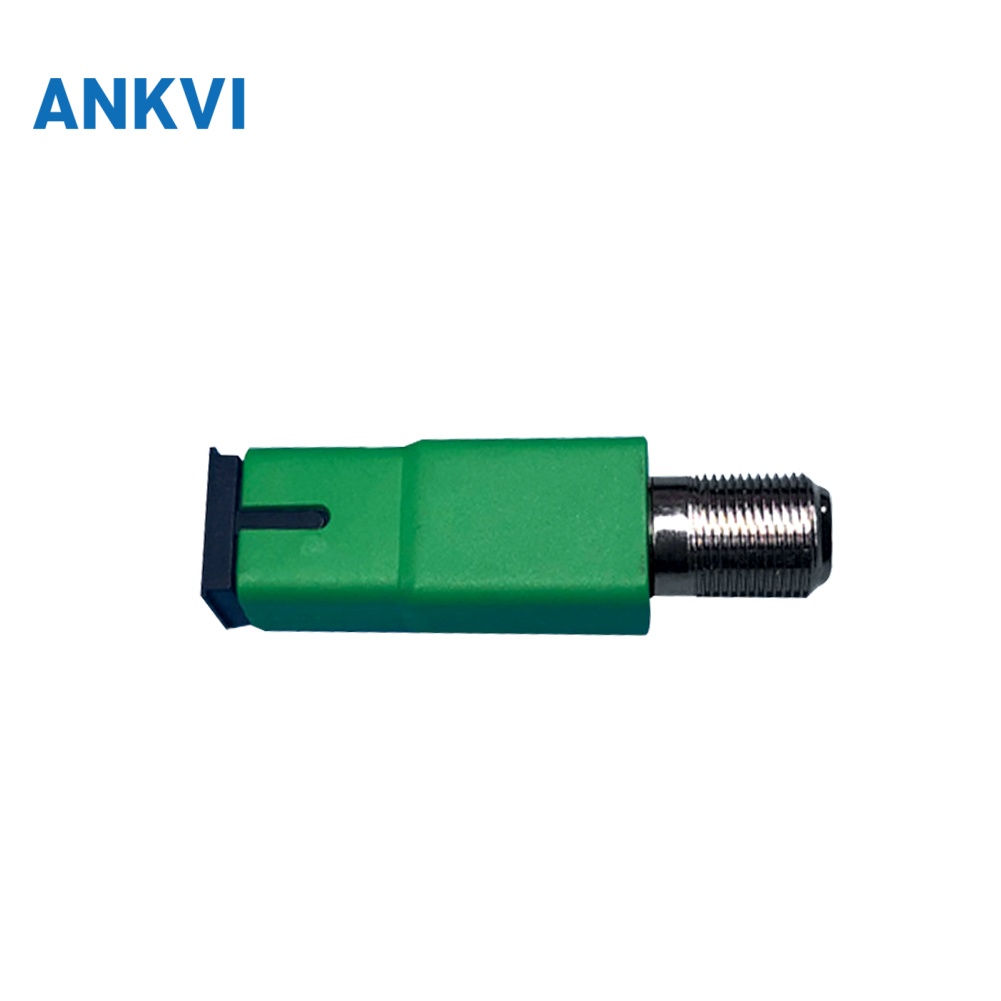

| RF connector | Female-F / Male-F |
| Work bandwidth (MHz) | 45~1050 |
| Output level (dBμV) | >68 (Digital TV (Pin=-1dBm)) |
| Return loss (dB) | ≥14 (47~862MHz) |
| Output impedance (Ω) | 75 |
| Output port number | 1 |
| RF tie-in | F-Female |
| OMI (%) | 4.3 |
| BER | <1.0E-9 (Pin:+2~-14dBm) |
| Work temp (c) | -20~+55 |
| Storage temp (c) | -40~85 |
| Work relative temp (%) | 5~95 |
| Size (L)×(W)×(H) (mm) | 45×12×8 (OR101) |
| Size (L)×(W)×(H) (mm) | 45×12×8 (OR101-15) |
Applications
- CATV subscriber drops and in-home RF distribution
- Single-fibre triple wavelength systems using the built-in filter option
- FTTH and FTTX networks requiring a passive optical to RF conversion point
- Digital CATV reception with receiving power +2~-14 dBm (Digital TV, MER>29dB)
