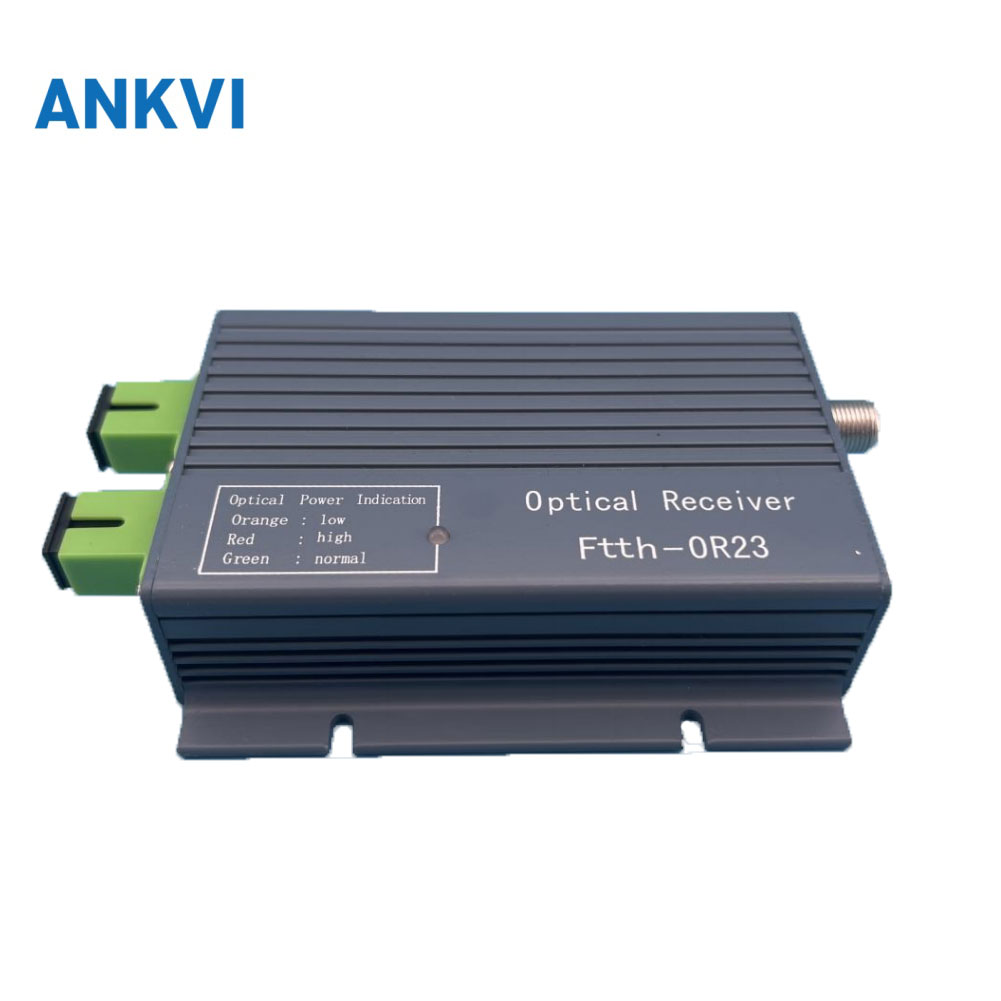

HS-OR23CW FTTH Optical Receiver with WDM, 47~1002 MHz
HS-OR23CW is an FTTH CATV optical receiver with WDM covering 1310/1490/1550 nm, 47~1002 MHz bandwidth and ≥76 dBuv RF output.
Description
Overview

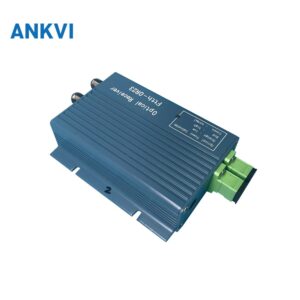

The HS-OR23CW is an FTTH optical receiver with a built-in WDM module, designed for CATV FTTH networks with AGC optical constant level output.
Adopting a brushed aluminium alloy shell and a GaAs RF amplifying module, it keeps a stable output level over a 47~1002 MHz bandwidth.
HS-OR23CW Key Features
- Brushed aluminium shell with good heat dispersion
- GaAs module as RF amplifying module with 47~1002 MHz bandwidth
- WDM wavelength support for 1310/1490/1550 EPON GPON and 1270/1310/1490/1550/1577 XGSPON
- AGC control range +2~-15 dBm keeps the output level unchanged
- Low consumption design with a high reliable switching power supply and optical inspection circuit
- RF output level ≥76 dBuv with a 5VDC input port feeding way of power supply
HS-OR23CW Specifications
Specifications
| Parameter | Specification |
|---|---|
| Model | OR23CW |
| Optical wavelength (nm) | 1310/1490/1550 (EPON GPON); 1270/1310/1490/1550/1577 (XGSPON) |
| Optical input range (dBm) | +2~ -15 (Analog TV); +2~ -23 (Digital TV) |
| Output return loss (dB) | ≥45 |
| Bandwidth (MHz) | 47~1002 |
| Flatness (dB) | ±0.75 |
| RF output level (dBuv) | ≥76 (Pin:-15~+0dBm) |
| AGC control range (dBm) | +2~-15 |
| AGC character (dB) | ≤±0.5 (Pin:-10~+0dBm) |
| Output return loss (dB) | ≥14 (47-1000MHz) |
| Output impendance (Ω) | 75 |
| MER (dB) | >36 (Pin:-15~+0dBm); >28 (Pin:-22dBm) |
| BER (dB) | <1.0E-9 (Pin:-15-+0dBm); <1.0E-9 (Pin:-22dBm) |
| CNR (dB) | ≥51 (Pin=-2dBm) |
| CTB (dB) | ≥65 (Pin=-2dBm) |
| CSO (dB) | ≥62 (Pin=-2dBm) |
| Power supply (V) | +5VDC |
| Power consumption (W) | ≤2(250mA) (+5VDC) |
| Operating temperature (℃) | -20~+60 |
| Dimension (mm) | 128*80*26 |
Applications
- FTTH CATV network construction with WDM
- EPON GPON and XGSPON FTTH access networks
- Analog and digital TV signal distribution
