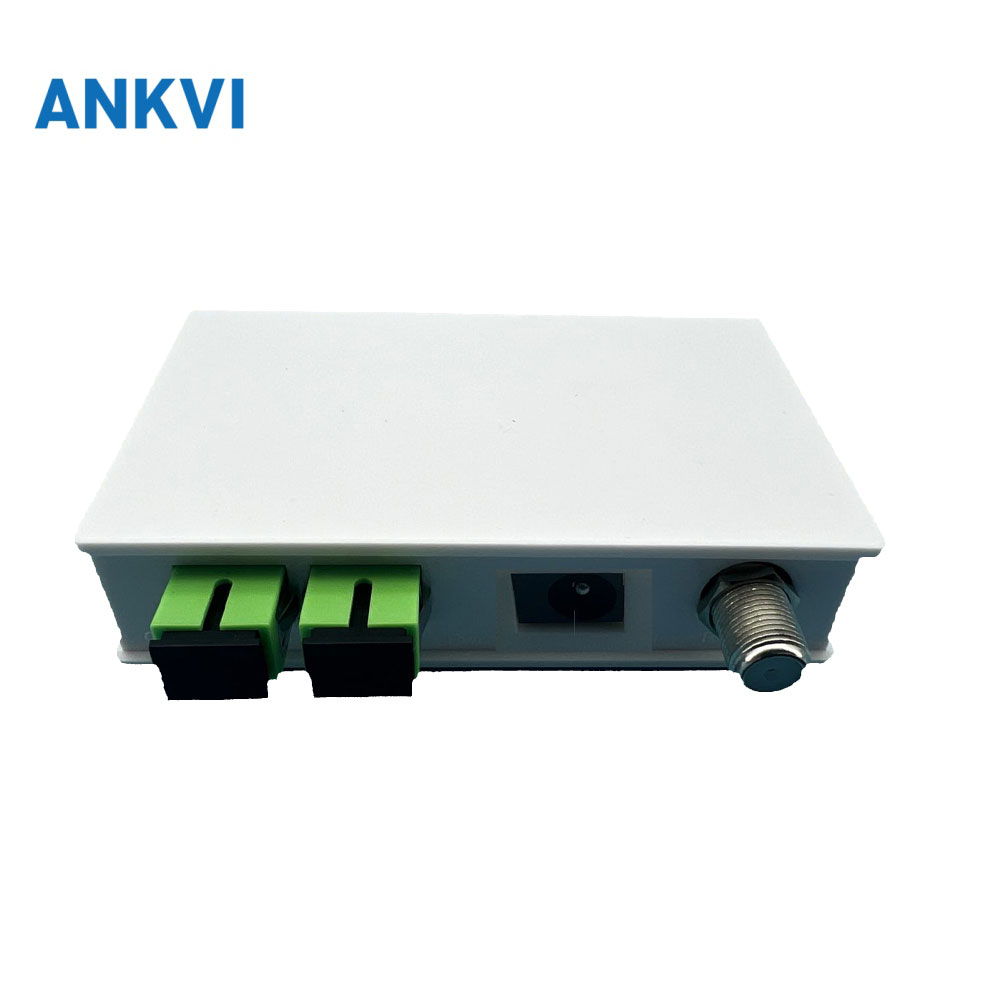

HS-OR16W FTTH High Level Optical Receiver – WDM, AGC
The HS-OR16W is an FTTH high level optical receiver with GaAs RF amplification, AGC range +2~-18 dBm, 47~1218 MHz bandwidth and ≥80 dBuV output level.
Description
Overview
The HS-OR16W is an FTTH high level optical receiver designed for CATV FTTH networks, combining low power consumption with AGC optical constant level output in a compact aluminium alloy housing.
It adopts a GaAs module as the RF amplifying module, supports EPON, GPON and XGSPON wavelengths, and uses an external modular power supply that makes installation and debugging convenient.
HS-OR16W Key Features
- GaAs RF amplifying module with built-in optical AGC circuit for constant output level
- AGC control range +2~-18 dBm with AGC character ≤±0.5 dB (Pin:-10~+0dBm)
- Bandwidth 47~1218 MHz with flatness ±0.75 dB and optical output return loss ≥45 dB
- RF output level ≥80 dBuv with output return loss ≥14 dB (47-1000MHz) and 75 Ω output impedance
- Power consumption ≤2(250mA) from a +5VDC supply, operating temperature -20~+60 ℃
- Compact 87*68*22 mm aluminium alloy housing for subscriber-side CATV FTTH deployment
HS-OR16W Specifications
Specifications
| Parameter | Specification |
|---|---|
| Model | OR16W |
| Optical wavelength (nm) | 1310/1490/1550 (EPON GPON); 1270/1310/1490/1550/1577 (XGSPON) |
| Optical input range (dBm) | +2~ -12 (Analog TV); +2~ -18 (Digital TV) |
| Optical Output return loss (dB) | ≥45 |
| Bandwidth (MHz) | 47~1218 |
| Flatness (dB) | ±0.75 |
| RF output level (dBuv) | ≥80 (Pin:-15~+0dBm) |
| AGC control range (dBm) | +2~-18 |
| AGC character (dB) | ≤±0.5 (Pin:-10~+0dBm) |
| Output return loss (dB) | ≥14 (47-1000MHz) |
| Output impedance (Ω) | 75 |
| MER (dB) | >36 (Pin:-15~+0dBm); >28 (Pin:-22dBm) |
| BER (dB) | <1.0E-9 |
| CNR (dB) | ≥51 (Pin=-2dBm) |
| CTB (dB) | ≥65 (Pin=-2dBm) |
| CSO (dB) | ≥62 (Pin=-2dBm) |
| Power supply (V) | +5VDC |
| Power consumption (W) | ≤2(250mA) |
| Operating temperature (℃) | -20~+60 |
| Dimension (mm) | 87*68*22 |
Applications
- CATV FTTH network subscriber terminals and in-home RF distribution
- EPON, GPON and XGSPON fibre access networks carrying analog and digital TV
- Single-fibre triple-play deployment where the receiver feeds the RF distribution cable
- CATV node and building distribution requiring a constant RF output level
