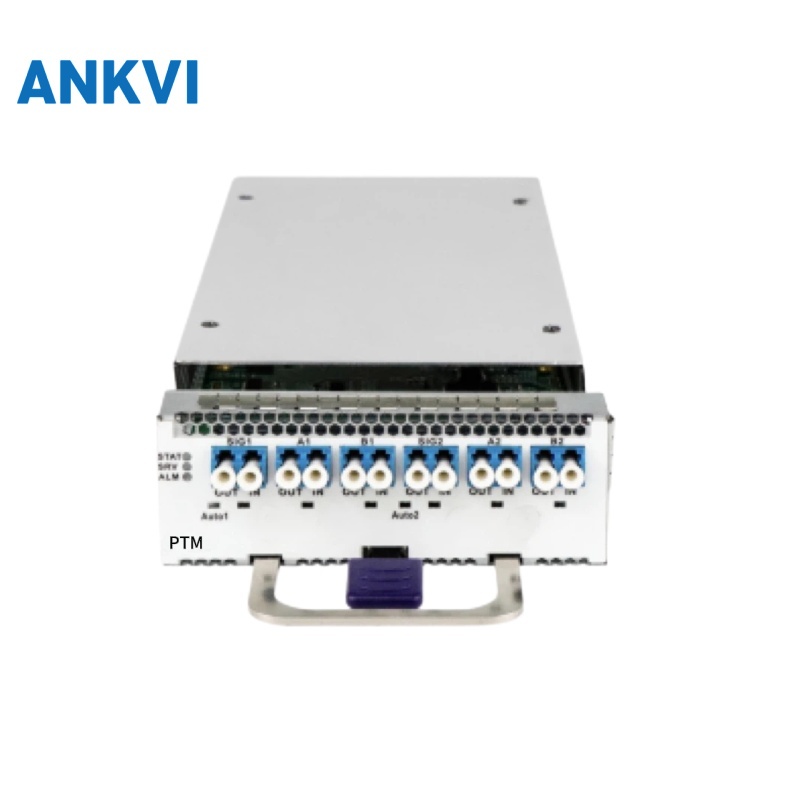

PTM Card – Time Synchronisation, PTM-W / PTM-E
The PTM Card family covers the PTM-W and PTM-E time synchronisation cards, each using only 1/4 standard slot capacity with ≤1.3 dB path loss.
Worry-Free After-Sales14-month warranty & responsive support
Efficient ProcurementOne-stop sourcing, fast turnaround
Fast Response Times24/7 expert technical support
Description
Overview
The PTM Card family covers the time synchronisation PTM cards, including the PTM-W and PTM-E cards.
Each card occupies only 1/4 standard slot capacity.
PTM Card Key Features
- Time synchronisation cards, supplied as the PTM-W and PTM-E variants
- Each card occupies only 1/4 standard slot capacity
- LINE In to C61/60 Out/In loss ≤1.3 dB
- LINE In to SIG Out loss ≤1.3 dB
- Insertion loss (SIG In to LINE Out) ≤0.3 dB
- Line delay difference of ≤±1 ns on both delay paths
PTM Card Specifications
Technical Specifications
| Project | Metric |
|---|---|
| LINE In to C61/60 Out/In | ≤1.3 dB |
| LINE In to SIG Out | ≤1.3 dB |
| Insertion Loss (SIG In to LINE Out) | ≤0.3 dB |
| Line Delay Difference (LINE In to PTPC61 Out/In) | ≤±1 ns |
| Line Delay Difference (LINE Out to PTPC60 Out/In) | ≤±1 ns |
Deployment Scenarios
- Sites that distribute a time synchronisation reference over the DWDM line
- Deployments that need matched line delay on both delay paths
- Chassis where a synchronisation card has to fit 1/4 of a slot
