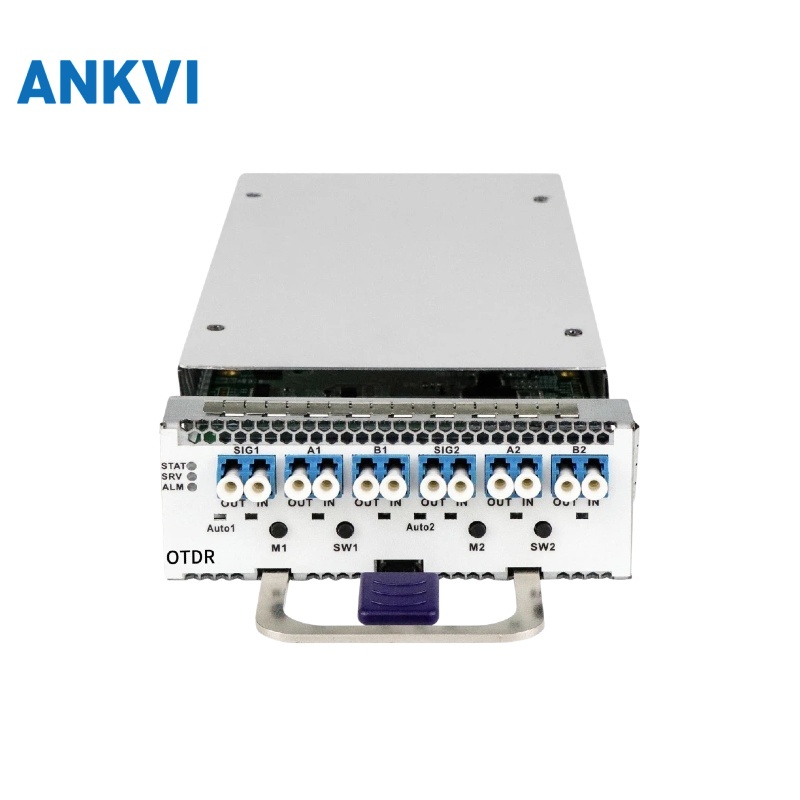

Name: OTDR Card – Fibre Cable Monitoring, 80 km Range – ANKVI
SKU: OTDR Card

Description

Overview

The OTDR Card is an optical cable monitoring system that integrates optical cable monitoring, alarm detection, fault analysis, positioning, fault management, line maintenance and network administration into a unified solution.

It provides 24/7 automated monitoring and automatic fibre switching protection so that fibre networks keep running securely and efficiently. Sudden faults are identified promptly, downtime is reduced significantly, and early warnings detect potential problems before they cause a communication disruption. The card occupies only 1/4 standard slot capacity.

OTDR Card Key Features

Unified optical cable monitoring, fault analysis and positioning
24/7 automated monitoring with automatic fibre switching protection
Early warnings that detect potential problems before communication is disrupted
Occupies only 1/4 standard slot capacity
Operating wavelength 1501 or 1625 nm
OTDR dynamic range ≥30 dB, pulse width 0. 1 to 20 us
Maximum detection distance ≥80 km
Loss detection accuracy ±0.5 dB and distance accuracy <20 m
Sampling precision 0.05 to 8 m, event blind spots <10 m
Linearity ±0.05 dB/dB with 8 monitoring ports and ≤15 W dissipation

OTDR Card Specifications

Technical Specifications

Performance Parameter	Description
Operating Wavelength	1501 or 1625 nm
OTDR Dynamic Range	≥30 dB
OTDR Pulse Width Range	0. 1 to 20 us
Maximum Detection Distance	≥80 km
OTDR Loss Detection Accuracy	±0.5 dB
OTDR Distance Detection Accuracy	<20 m
Sampling Precision Pulse Width Range	0.05 to 8 m
OTDR Event Blind Spots	<10 m
OTDR Attenuation Blind Zone	<20 m
Degree of Linearity	±0.05 dB/dB
Maximum Output Optical Power	<17
Monitoring Port	8
Size	107 (W) x 262 (D) x 40 (H) mm
Working Temperature	-10 to +60 ℃
Storage Temperature	-40 to +85 ℃
Relative Humidity	5% to 95%, no condensation
Power Dissipation	≤15 W

Deployment Scenarios

Continuous monitoring of a live fibre cable for sudden faults
Automatic fibre switching protection when a monitored span fails
Locating a break or high-loss event from the measured distance
Early warning against degradation that would otherwise interrupt traffic
